Product Description
NORGREN VS18SC11DF313A

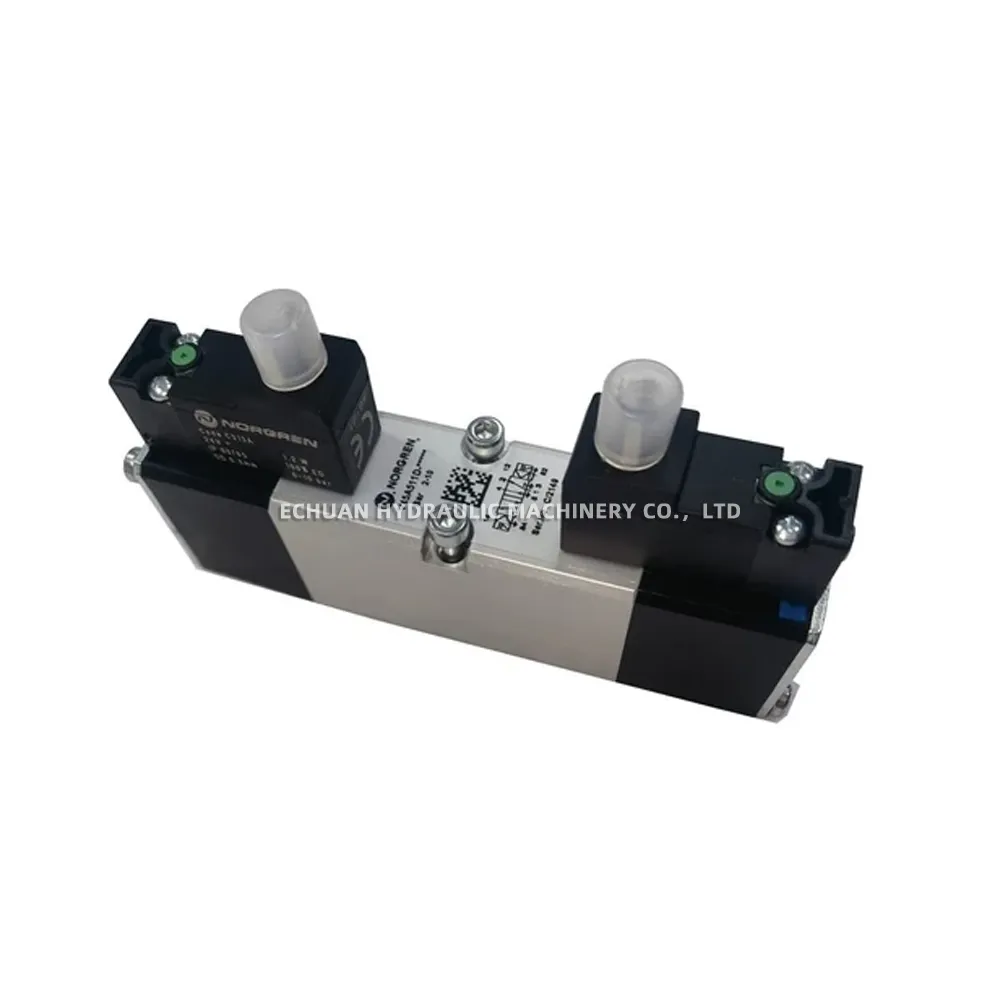

The NORGREN VS18SC11DF313A is a high-performance inline solenoid valve from the VS18 series. This compact 5/2 spool valve features solenoid actuation with a spring return mechanism. Designed for versatility and reliability in industrial pneumatic systems, it offers efficient control of air flow. This specific model operates on 24V DC and includes an integrated LED indicator and surge suppression within its electrical connection.
Technical Specifications:
- Function: 5/2 Solenoid/Spring
- Series: VS18
- Actuation Type: Solenoid (Pilot Operated)
- Return Mechanism: Spring
- Port Size: G1/8
- Operating Pressure Range: -0.9 to 10 bar (14.5 to 145 psi)
- Flow Rate (@ 6 bar, ΔP=1 bar): Approx. 700 l/min
- Voltage: 24V DC
- Electrical Connection: Plug-in, 3-pin DIN Form C (8mm) with LED & Surge Suppression (Type 13A)
- Coil Power (Nominal): Approx 1.3W (DF3 Coil)
- Body Material: Aluminium
- Seal Material: NBR (Nitrile Rubber)
- Operating Temperature: -10°C to +50°C (+14°F to +122°F)
- Manual Override: Yes (Push type, non-locking standard)
NORGREN VS18SC11DF313A
Model:NORGREN VS18SC11DF313A
| Brand | Norgren |
|---|---|
| Model | VS18SC11DF313A |
| Part No. | NORGREN VS18SC11DF313A |
| Category | Hydraulic valves |
