Product Description

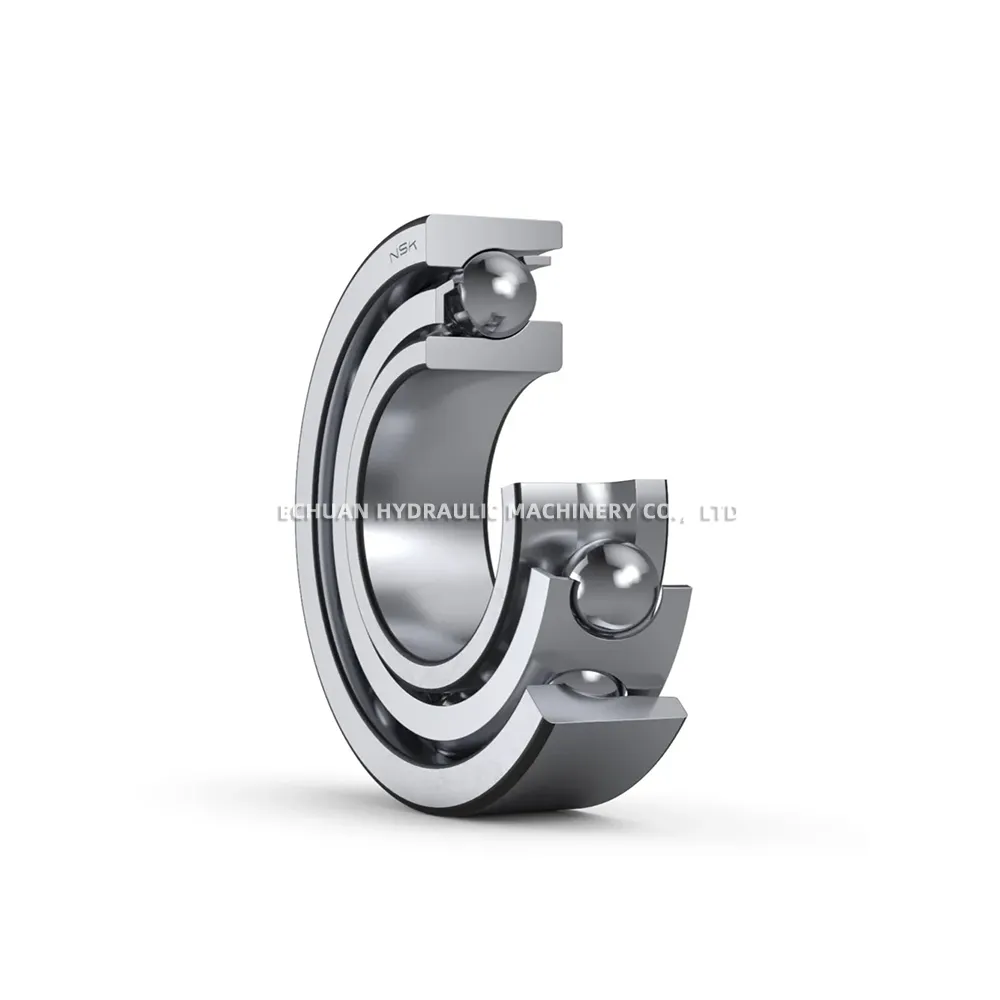

NSK 7215BW

The NSK 7215BW is a high-precision, single-row angular contact ball bearing designed for applications requiring high rigidity and excellent load-carrying capacity. Featuring a 40° contact angle, this bearing is optimized to handle significant axial loads in one direction, as well as combined radial and axial loads. The ‘W’ suffix indicates a pressed steel cage, which provides high strength and durability, making it suitable for a wide range of industrial machinery, including pumps, compressors, and machine tool spindles. Manufactured with high-quality steel and advanced engineering, the 7215BW ensures reliable performance, low friction, and extended service life under demanding operating conditions.

Technical Specifications:

  • Bore Diameter (d): 75 mm

  • Outside Diameter (D): 130 mm

  • Width (B): 25 mm

  • Contact Angle: 40°

  • Cage Material: Pressed Steel

  • Basic Dynamic Load Rating (C): 75.5 kN

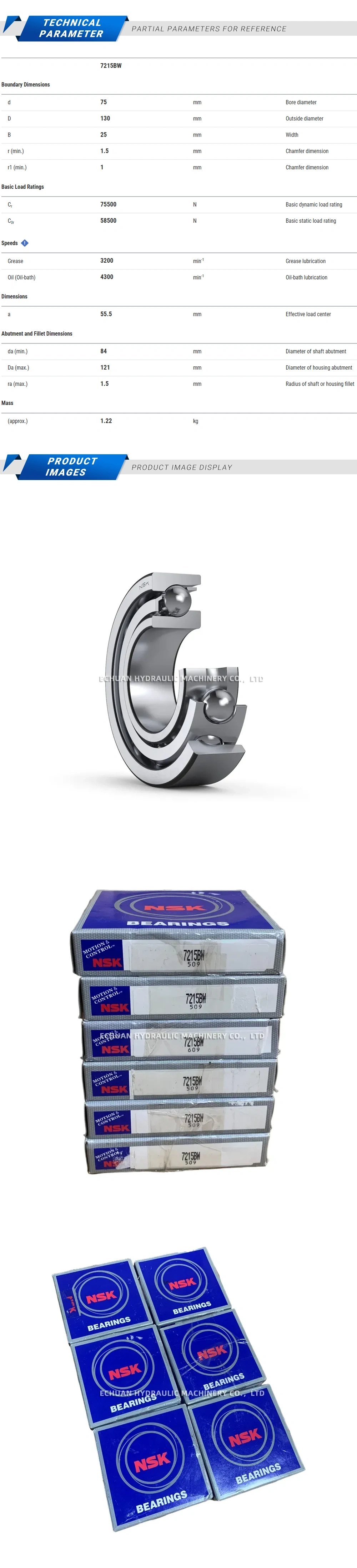

NSK 7215BW Description

NSK 7215BW

Discover the NSK 7215BW single-row angular contact ball bearing (75x130x25 mm). With a 40° contact angle and a robust pressed steel cage, it is engineered for high axial load capacity and precision in demanding industrial applications.

BrandNSK
Model7215BW
CategoryOther products
Linkhttps://www.echuan-hydraulic.com/product/nsk-7215bw
