Product Description

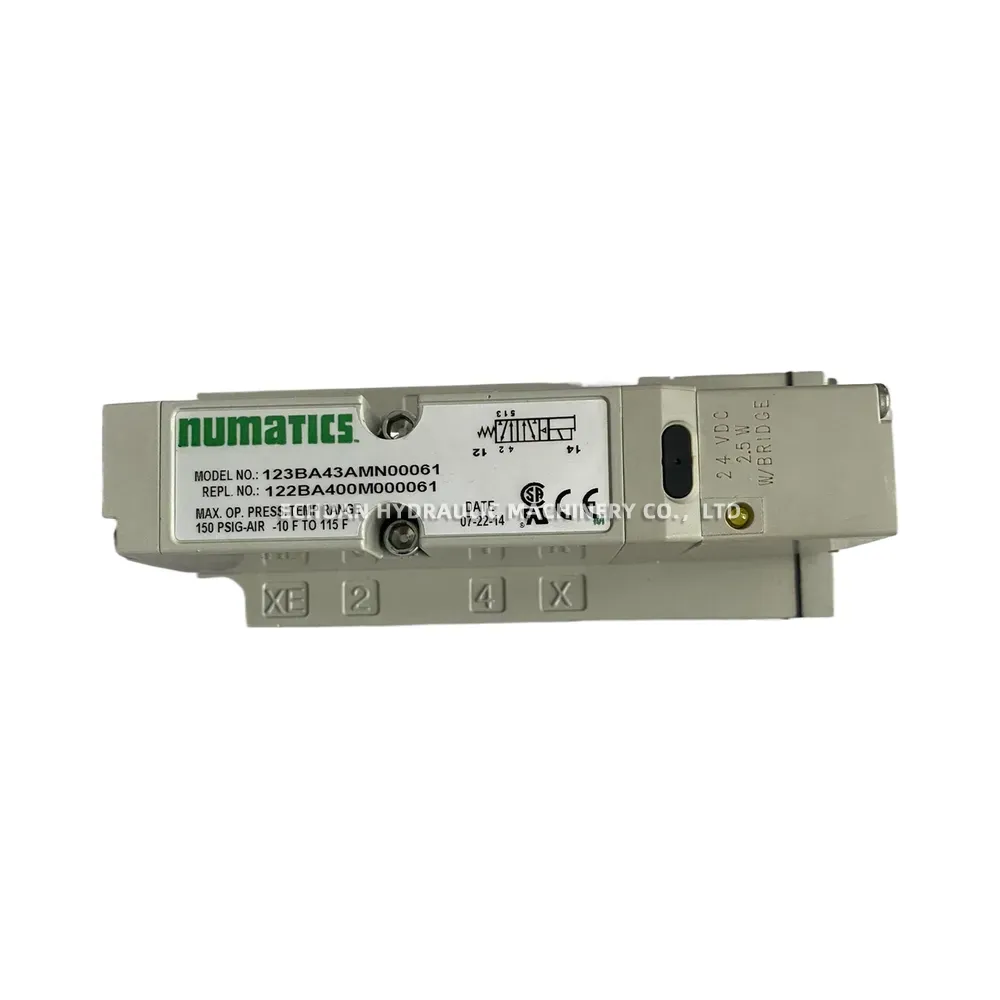

NUMATICS 123BA43AMN00061
The NUMATICS 123BA43AMN00061 is a Mark 3 Series direct solenoid actuated air valve. This compact and reliable valve is designed for pneumatic automation applications, offering efficient control of air flow. It features a plug-in solenoid with an indicator light for ease of use and maintenance. Typically configured as a 4-way, 2-position valve, it’s suitable for controlling double-acting cylinders or other pneumatic devices.
Technical Specifications:
- Valve Series: Mark 3
- Valve Function: 4-Way, 2-Position, Single Solenoid
- Actuation: Solenoid Air Pilot
- Port Size: 1/8″ NPTF
- Solenoid Voltage: 120V AC/60Hz, 110V AC/50Hz
- Electrical Connection: Plug-in with Light (Indicator)
- Body Material: Aluminum
- Flow Coefficient (Cv): Approximately 0.35
- Operating Pressure Range: Vacuum to 150 PSIG (10.3 bar)
- Mounting: Line Mounted
NUMATICS 123BA43AMN00061
Model:NUMATICS 123BA43AMN00061
| Brand | NUMATICS |
|---|---|
| Model | 123BA43AMN00061 |
| Part No. | NUMATICS 123BA43AMN00061 |
| Category | Hydraulic valves |
