Product Description

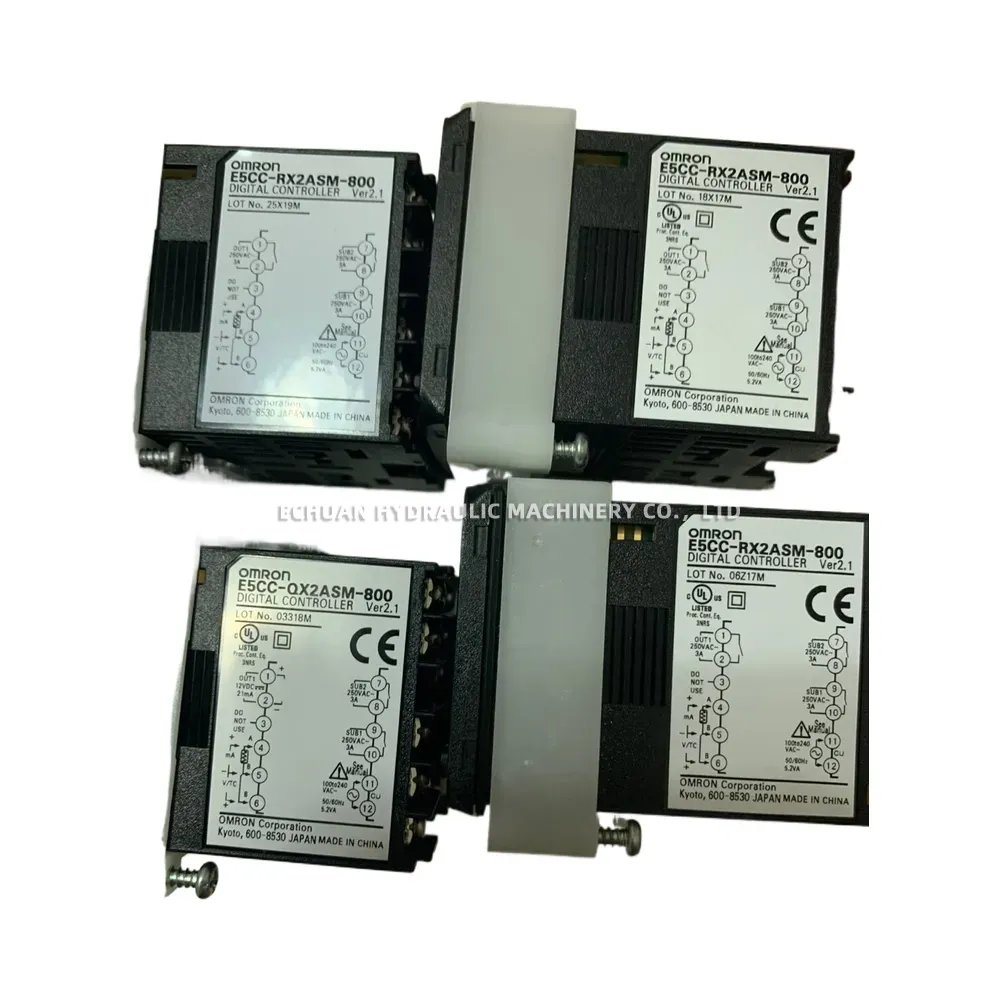

OMRON E5CC-RX2ASM-800
The OMRON E5CC-RX2ASM-800 is a general-purpose digital temperature controller offering precise temperature management in a compact 48 x 48 mm (1/16 DIN) size. It features a large, easy-to-read dual display showing both the process value (PV) and set value (SV) simultaneously. This model supports universal inputs (thermocouple, RTD, analog), providing flexibility for various sensor types. It includes one primary relay control output and two auxiliary relay outputs for functions like alarming. Configuration is straightforward via front panel keys, and it utilizes OMRON’s reliable 2-PID control algorithm (with auto-tuning) or simple ON/OFF control for stable temperature regulation in diverse industrial applications.

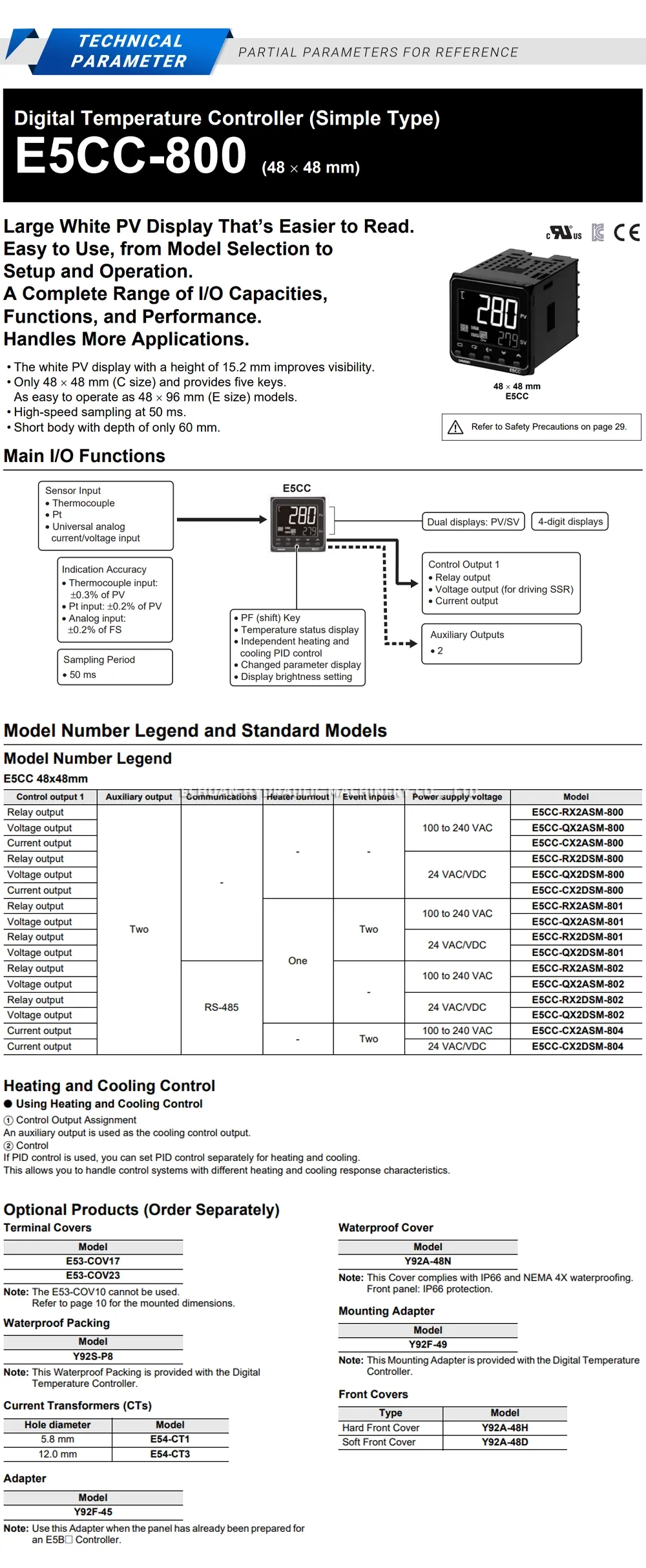

Technical Specifications:
- Controller Type: Digital Temperature Controller
- Series: E5CC
- Size: 48 x 48 mm (W x H), 1/16 DIN
- Power Supply Voltage: 100 to 240 VAC, 50/60 Hz
- Input Type: Universal (Thermocouple / Platinum Resistance Thermometer / Infrared Temperature Sensor / Analog Voltage/Current – Selectable)
- Control Output 1: Relay output (SPST-NO, 250 VAC, 3 A resistive load)
- Auxiliary Outputs: 2 Relay outputs (SPST-NO, 250 VAC, 1 A resistive load)
- Control Method: ON/OFF control or 2-PID control (with auto-tuning)
- Display: Dual 4-digit, 11-segment LCD (PV/SV) with backlight
- Terminal Block: Screw terminals
- Mounting: Panel Mount
- Case Color: Black
- Ambient Operating Temperature: -10 to +55°C (with no condensation or icing)
OMRON E5CC-RX2ASM-800
Type:OMRON E5CC-RX2ASM-800
| Brand | OMRON |
|---|---|
| Model | E5CC-RX2ASM-800 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/omron-e5cc-rx2asm-800 |
