Product Description

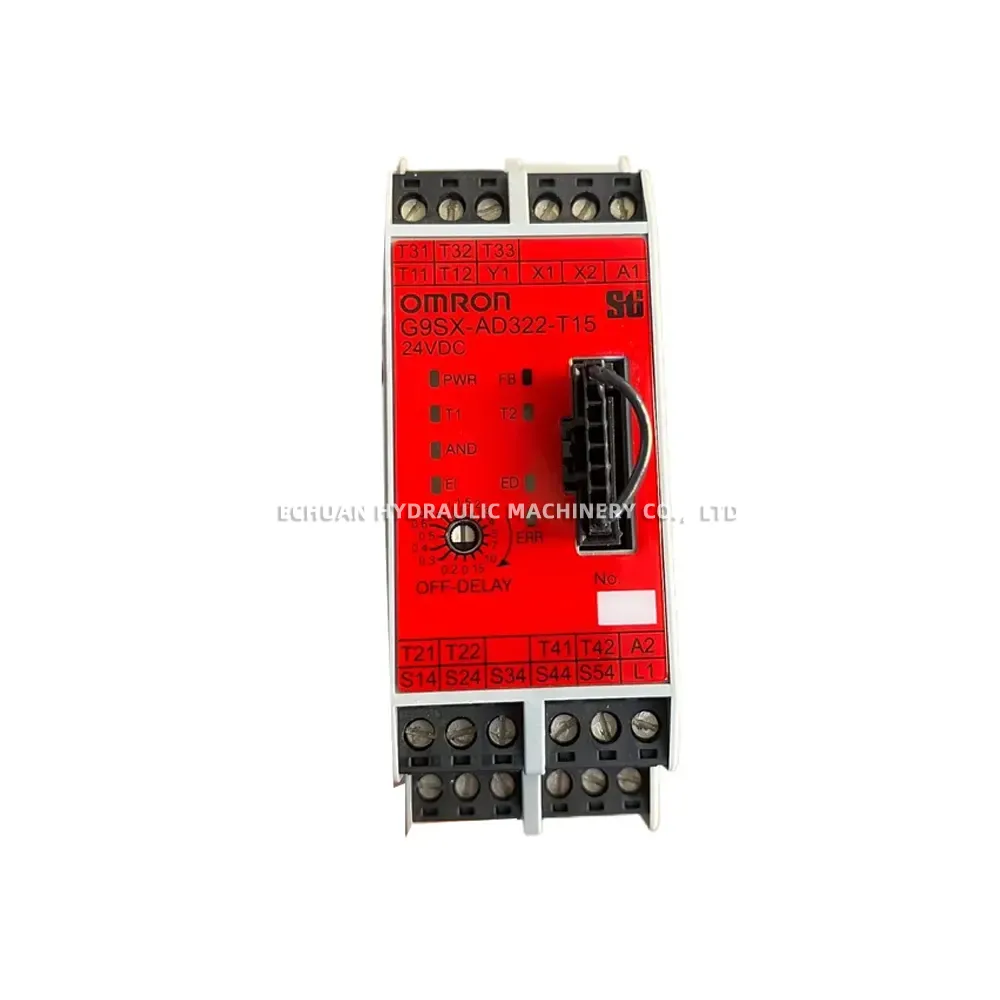

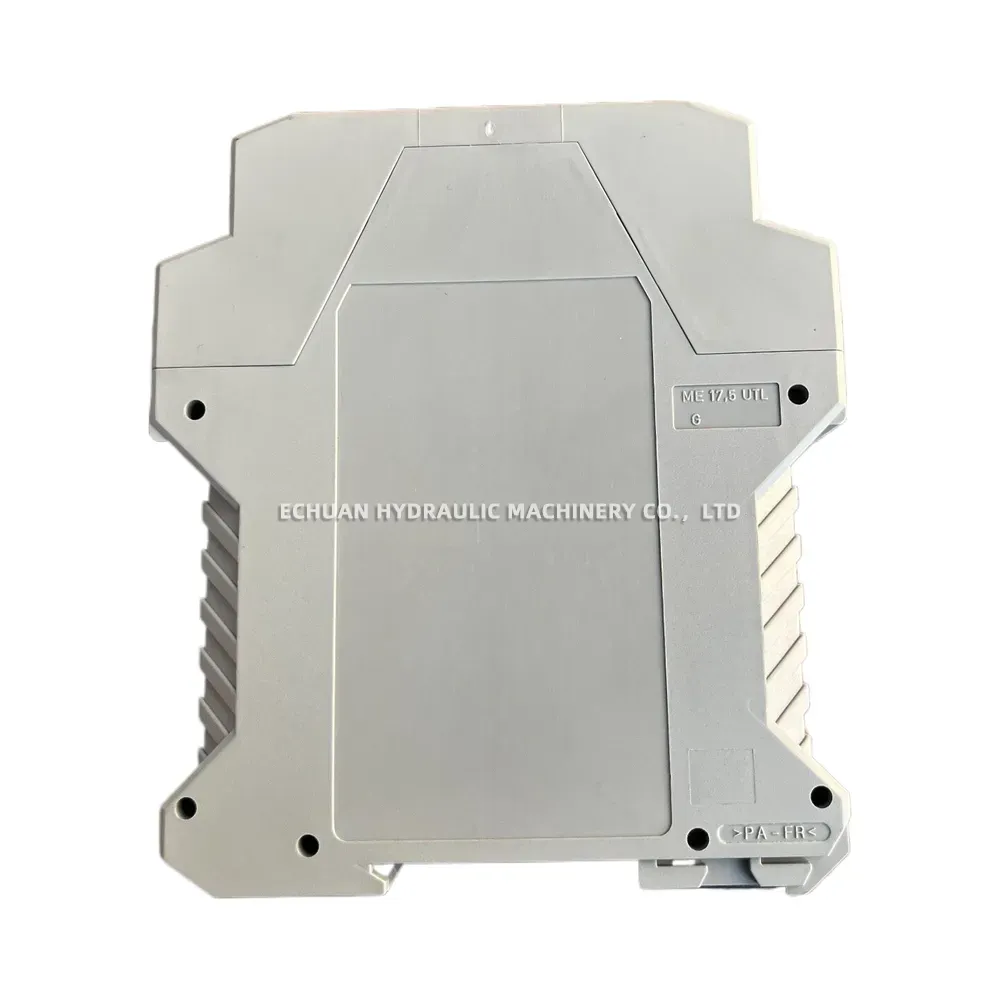

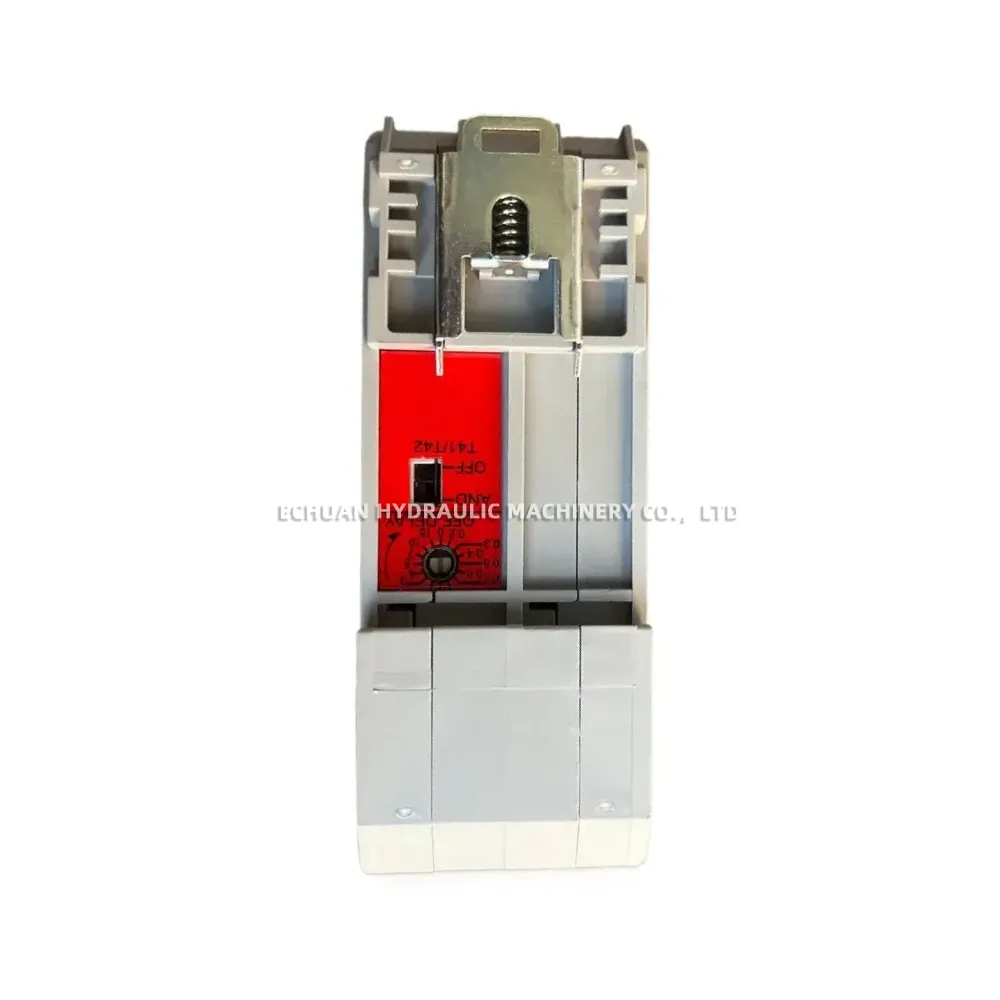

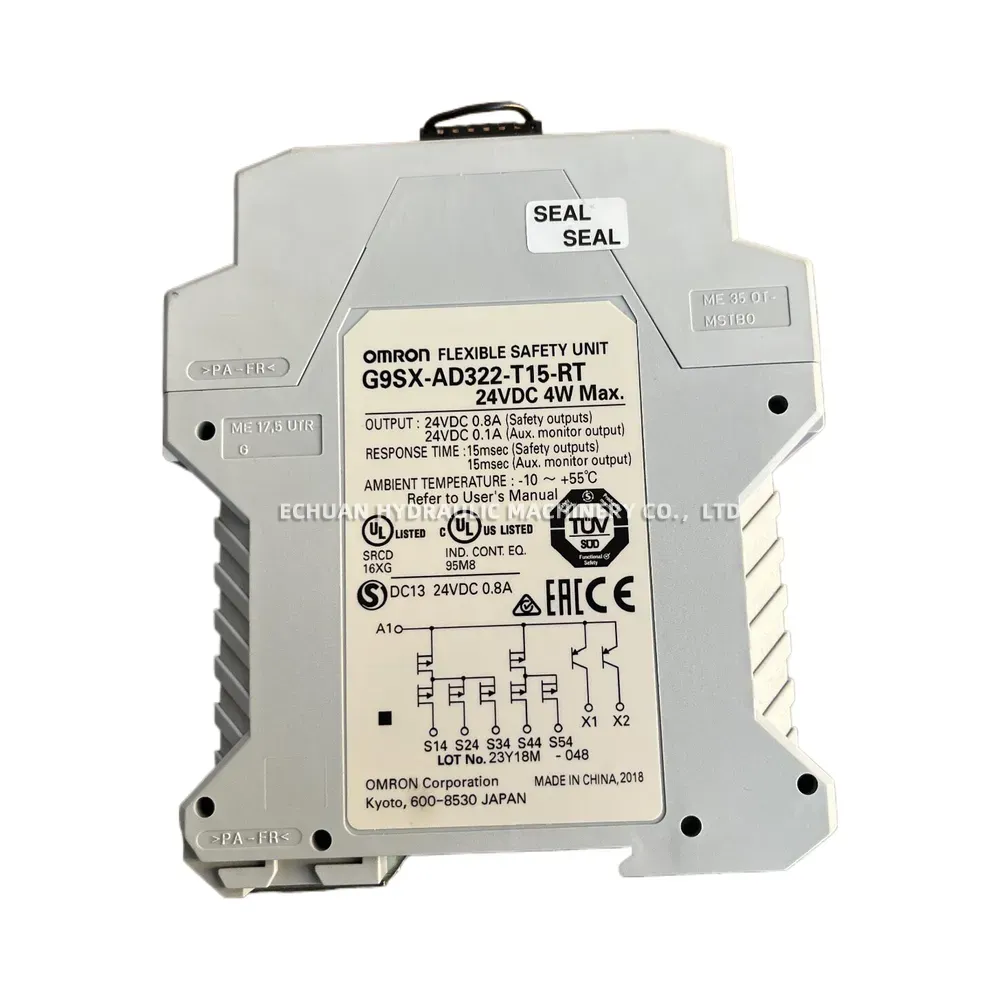

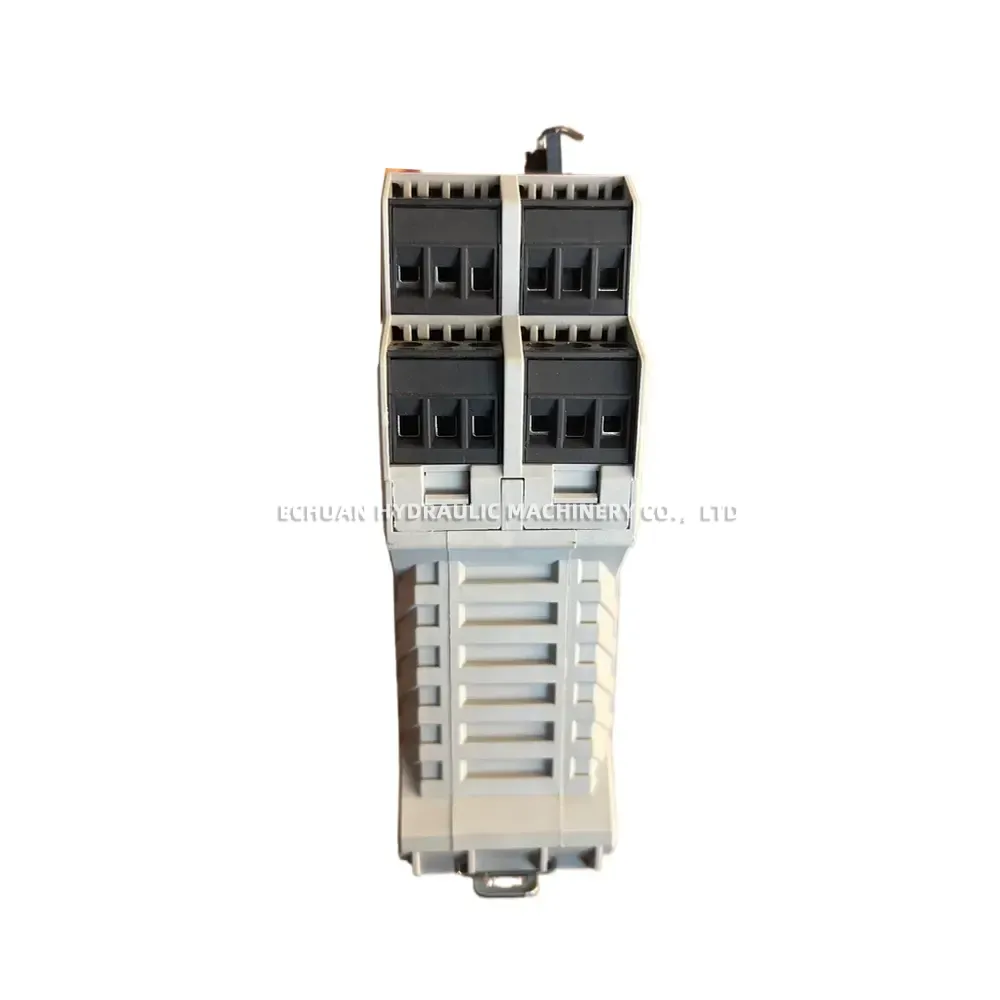

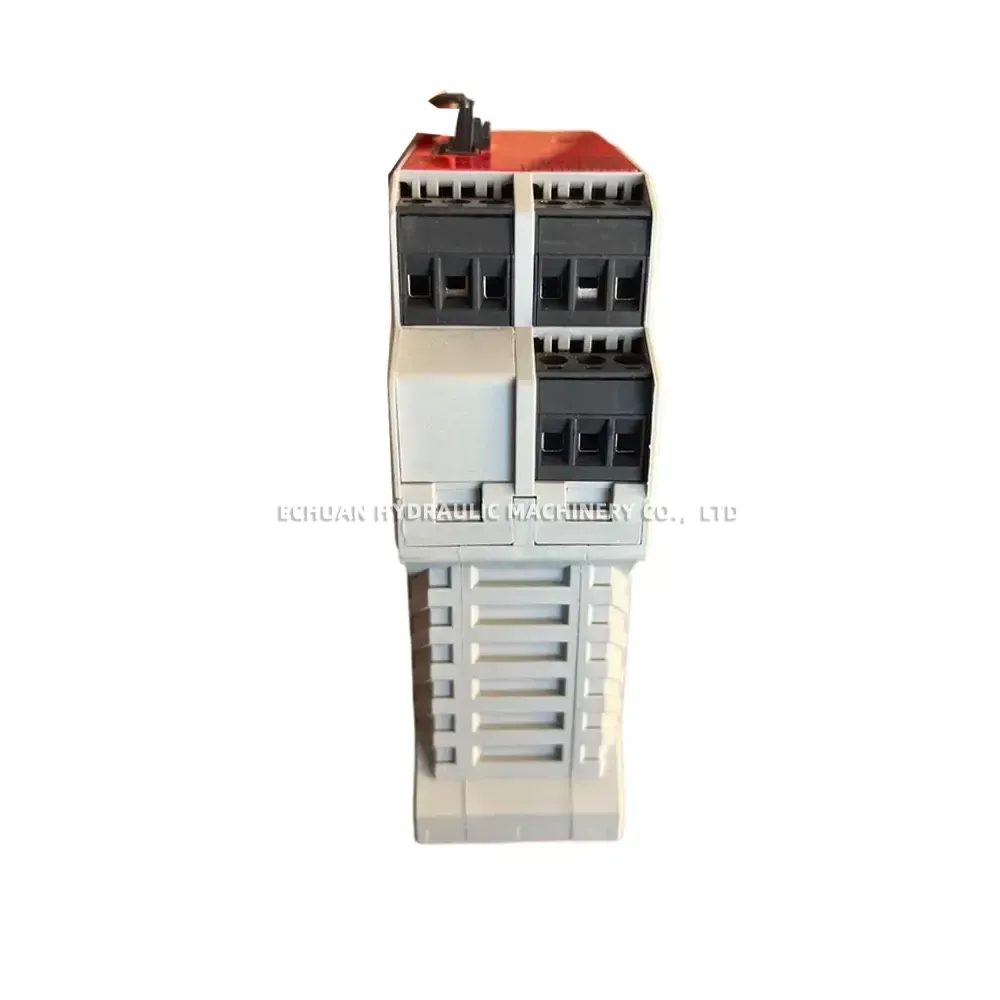

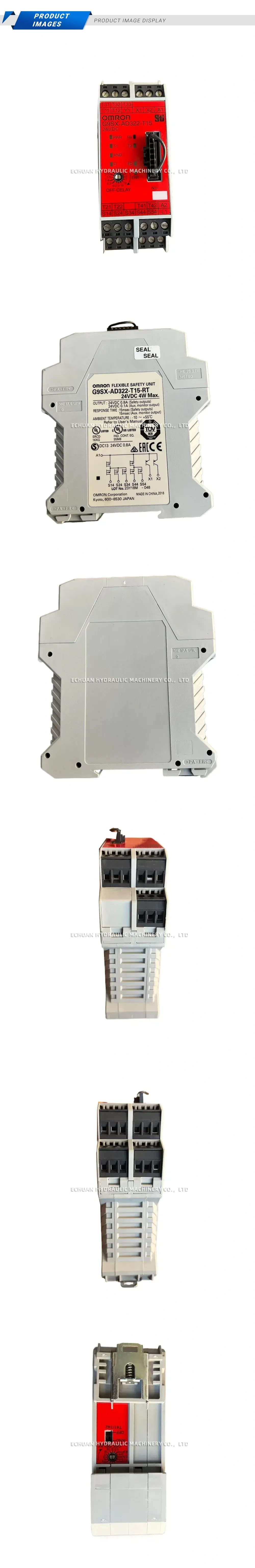

OMRON G9SX-AD322-T15-RT Flexible Safety Unit
The OMRON G9SX-AD322-T15-RT is a highly reliable Advanced Flexible Safety Unit engineered to provide robust safety control for complex industrial automation systems. It features an adjustable OFF-DELAY timer (up to 15 seconds) and supports advanced logical connections such as AND, EI, and ED, allowing for seamless integration into multi-zone safety circuits. Operating efficiently on a 24VDC power supply, this unit delivers a rapid 15msec response time for both its solid-state safety outputs and auxiliary monitor outputs. Backed by comprehensive global certifications including UL, TUV, CE, and EAC, the G9SX-AD322-T15-RT ensures strict compliance with international machine safety standards while maintaining optimal performance in harsh industrial environments ranging from -10°C to +55°C.
Technical Specifications:
- Brand / Model: OMRON G9SX-AD322-T15-RT
- Power Supply: 24VDC, 4W Max.
- Safety Outputs: Solid-state, 24VDC 0.8A
- Auxiliary Monitor Output: 24VDC 0.1A
- Response Time: 15msec (Safety outputs and Auxiliary monitor output)
- Ambient Operating Temperature: -10°C to +55°C
- Advanced Features: Adjustable OFF-DELAY timer, Safety logic inputs (AND, EI, ED)
- Certifications: UL Listed (cULus), TUV SUD, CE, EAC
OMRON G9SX-AD322-T15-RT Flexible Safety Unit
Enhance your industrial machine safety with the OMRON G9SX-AD322-T15-RT Flexible Safety Unit. Featuring a 24VDC power supply, rapid 15ms response time, and an adjustable OFF-DELAY timer, this globally certified (UL, TUV, CE) safety controller ensures maximum protection and seamless logic integration for your automated manufacturing equipment.
