Product Description

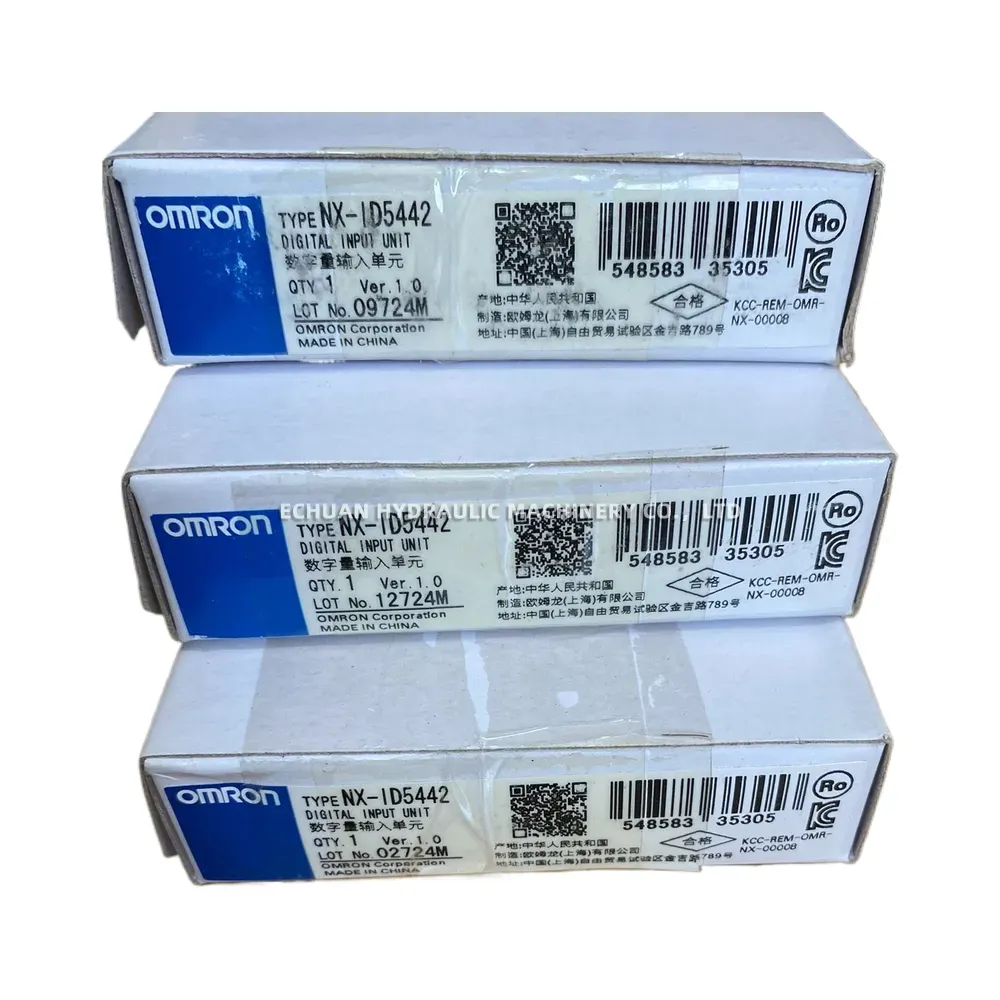

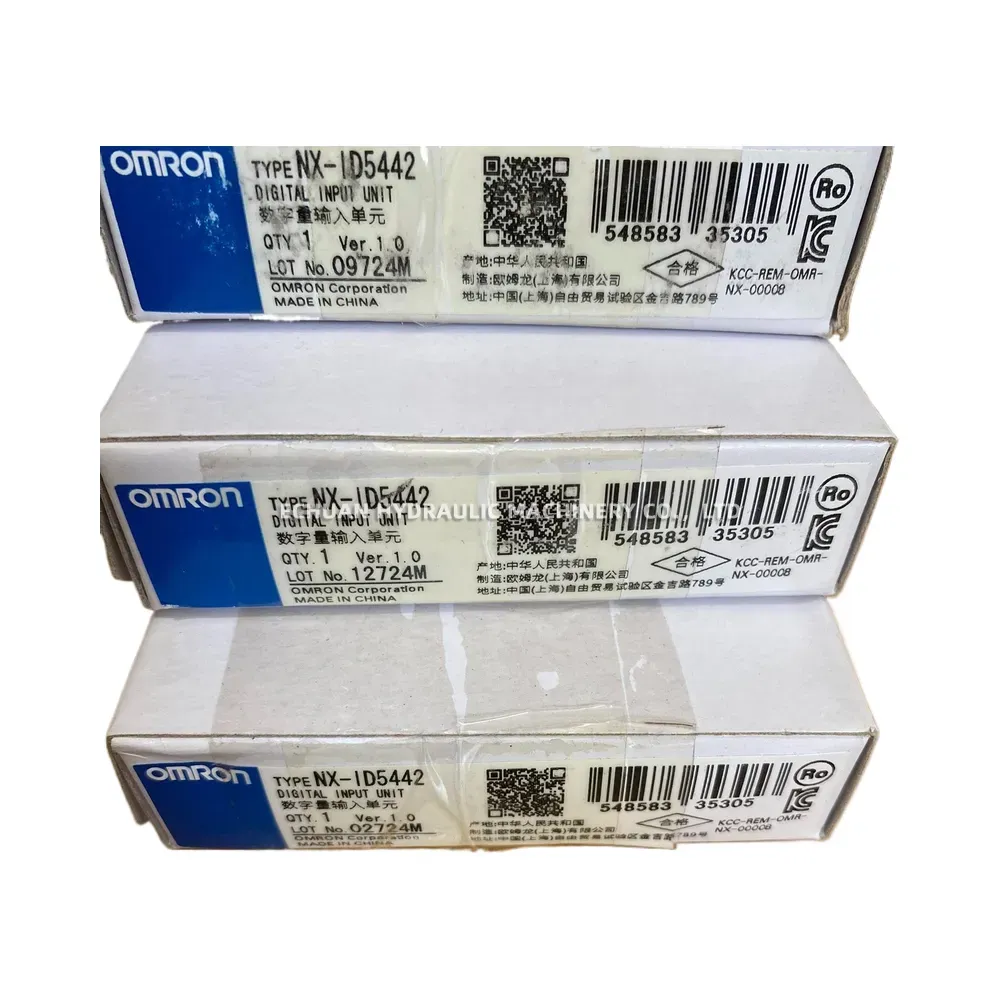

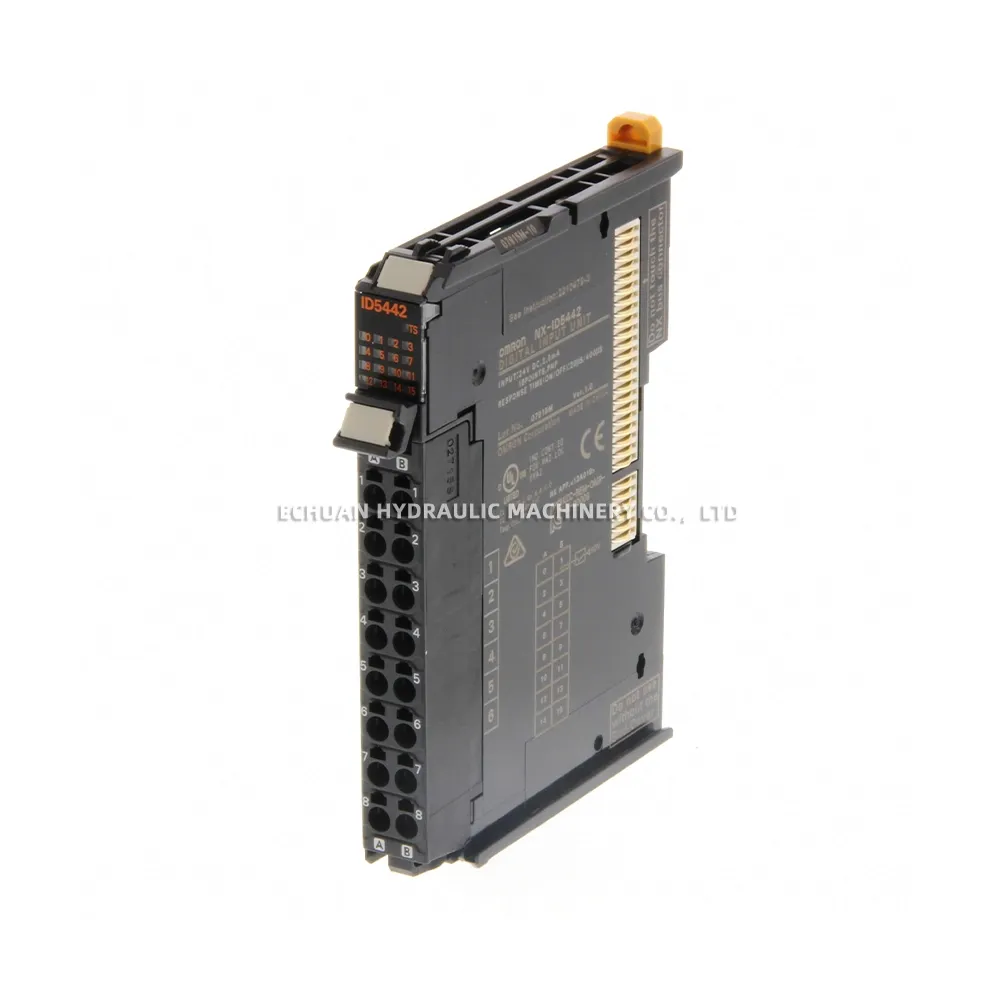

Omron NX-ID5442
The Omron NX-ID5442 is a high-density digital input unit designed for the Omron NX series of machine automation controllers. It provides 32 input points in a compact 30 mm wide module, making it an excellent choice for applications requiring a large number of inputs while saving panel space. This unit supports both sinking and sourcing input types, offering flexibility for various sensor and switch connections. Operating at a standard 24 VDC, it utilizes a 40-pin MIL connector for fast and reliable wiring, streamlining installation and maintenance in complex industrial automation systems.
Technical Specifications:
- Number of Inputs: 32 points
- Rated Input Voltage: 24 VDC
- Input Type: Sinking/Sourcing (switchable in 16-point groups)
- Connection Method: MIL connector (40-pin)
- ON Voltage: 15 VDC min.
- OFF Voltage: 5 VDC max.
- Input Current: 4.1 mA typical at 24 VDC
Omron NX-ID5442
Optimize your automation system with the Omron NX-ID5442, a high-density 32-point digital input unit. This module offers flexible sinking/sourcing inputs, 24 VDC operation, and efficient wiring via a MIL connector, ideal for Omron NX-series controllers.
