Product Description

Omron S8VK-T12024 Switch-Mode Power Supply

The Omron S8VK-T12024 is a high-performance, compact three-phase power supply designed for demanding industrial applications. Part of the S8VK-T series, it offers exceptional reliability and a wide operating temperature range from -40 to 70°C, ensuring stable performance in harsh environments. Its space-saving design makes it ideal for mounting on standard DIN rails, optimizing panel space. This 120W unit provides a stable 24 VDC output and features a 120% Power Boost function to handle temporary current peaks without needing a larger capacity model. Compliant with global safety standards, the S8VK-T12024 is a versatile and robust power solution for worldwide use.

Technical Specifications:

  • Power Rating: 120 W

  • Input Voltage: 3-Phase 380 to 480 VAC (or 2-Phase 380 to 480 VAC)

  • Output Voltage: 24 VDC

  • Output Current: 5 A

  • Mounting Type: DIN Rail

  • Efficiency: 91% (Typ.)

  • Operating Temperature Range: -40 to 70°C

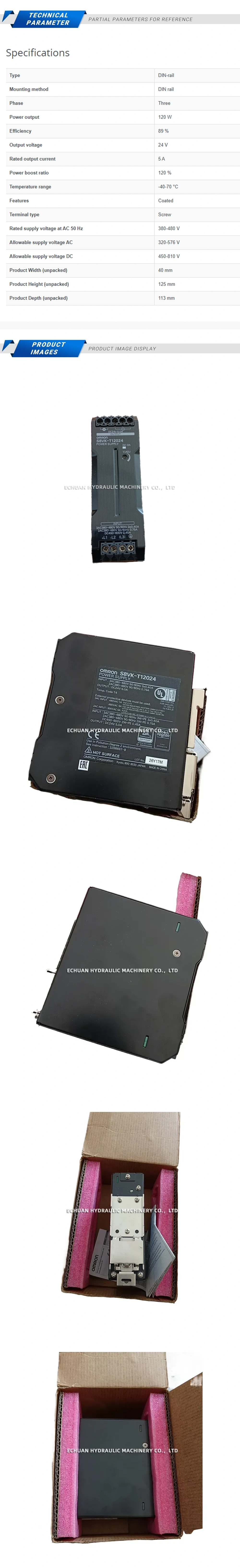

Omron S8VK-T12024 Description

Omron S8VK-T12024

Discover the Omron S8VK-T12024, a compact and reliable 120W, 24VDC 5A three-phase DIN rail power supply. Engineered for global industrial use with a wide operating temperature range and Power Boost function.
