Product Description
OMRON SDV-FM6 Voltage Sensor

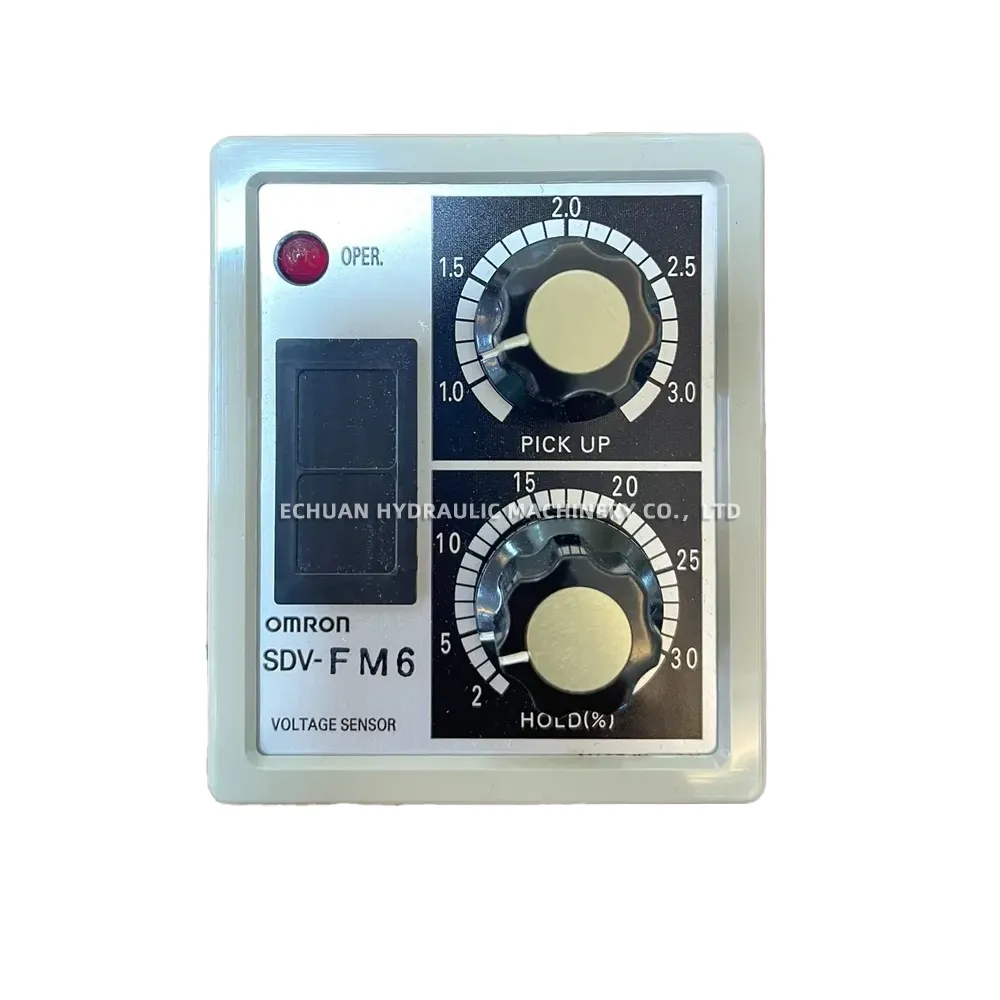

The OMRON SDV-FM6 is a versatile and reliable voltage sensor designed for precise monitoring and protection of electrical systems. Engineered for industrial applications, it allows for highly configurable voltage detection to safeguard equipment against damaging voltage fluctuations. Users can easily set the operating parameters via front-panel dials for ‘PICK UP’ and ‘HOLD’ values. Additionally, internal switches provide flexibility to configure the sensor for under-voltage or over-voltage detection, select between AC (20-500Hz) and DC inputs, and apply various multiplying factors to suit a wide range of voltage monitoring needs. An integrated ‘OPER.’ indicator lamp provides a clear visual status of the sensor’s operation.
Technical Specifications:
- Model: SDV-FM6
- Power Supply Voltage: AC 100/110V
- PICK UP Setting Range: Adjustable dial (1.0 to 3.0)
- HOLD Setting Range: Adjustable dial (2% to 30%)
- Function Selection: Under-voltage / Over-voltage (Switch selectable)
- Input Type Selection: AC (20 to 500Hz) / DC (Switch selectable)
- Multiplying Factor: x0.2V, x0.5V, x1V, x2V, x4V (Switch selectable)

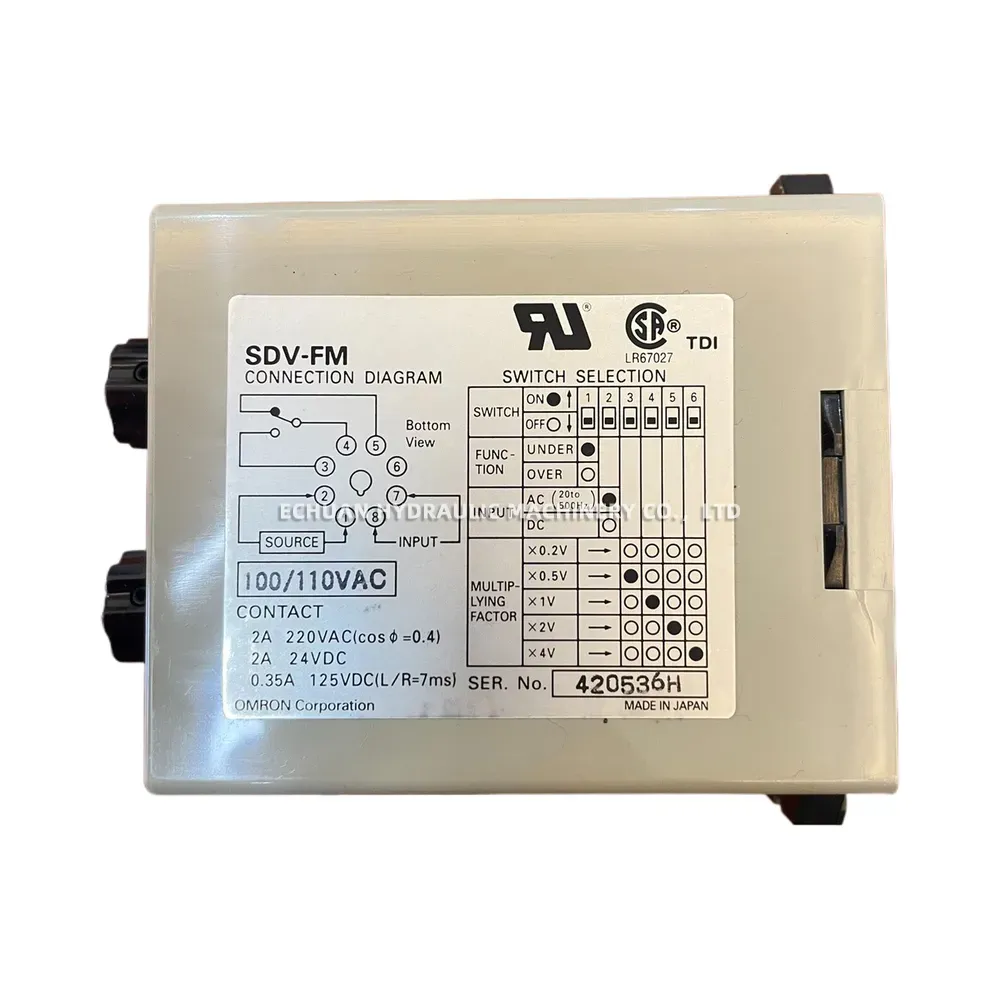

- Contact Rating: 2A 220VAC (cos φ=0.4), 2A 24VDC, 0.35A 125VDC (L/R=7ms)
OMRON SDV-FM6 Voltage Sensor
Discover the OMRON SDV-FM6 Voltage Sensor, a configurable AC/DC monitoring relay with a 100/110V AC supply. Ideal for over-voltage and under-voltage protection with adjustable settings.
