Product Description

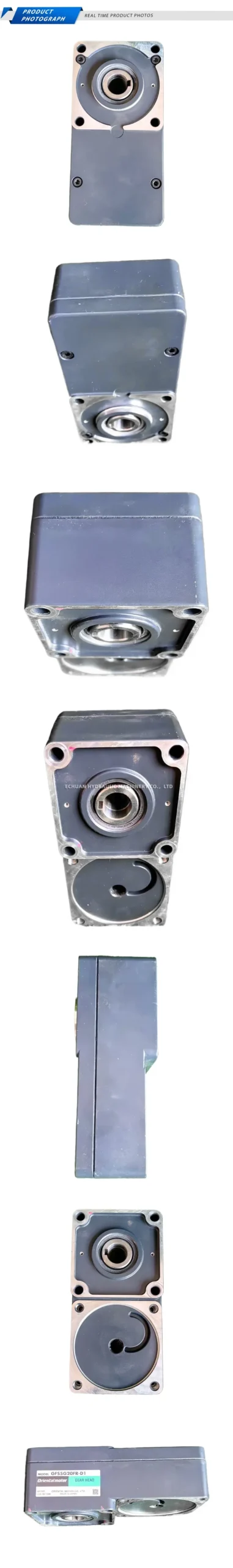

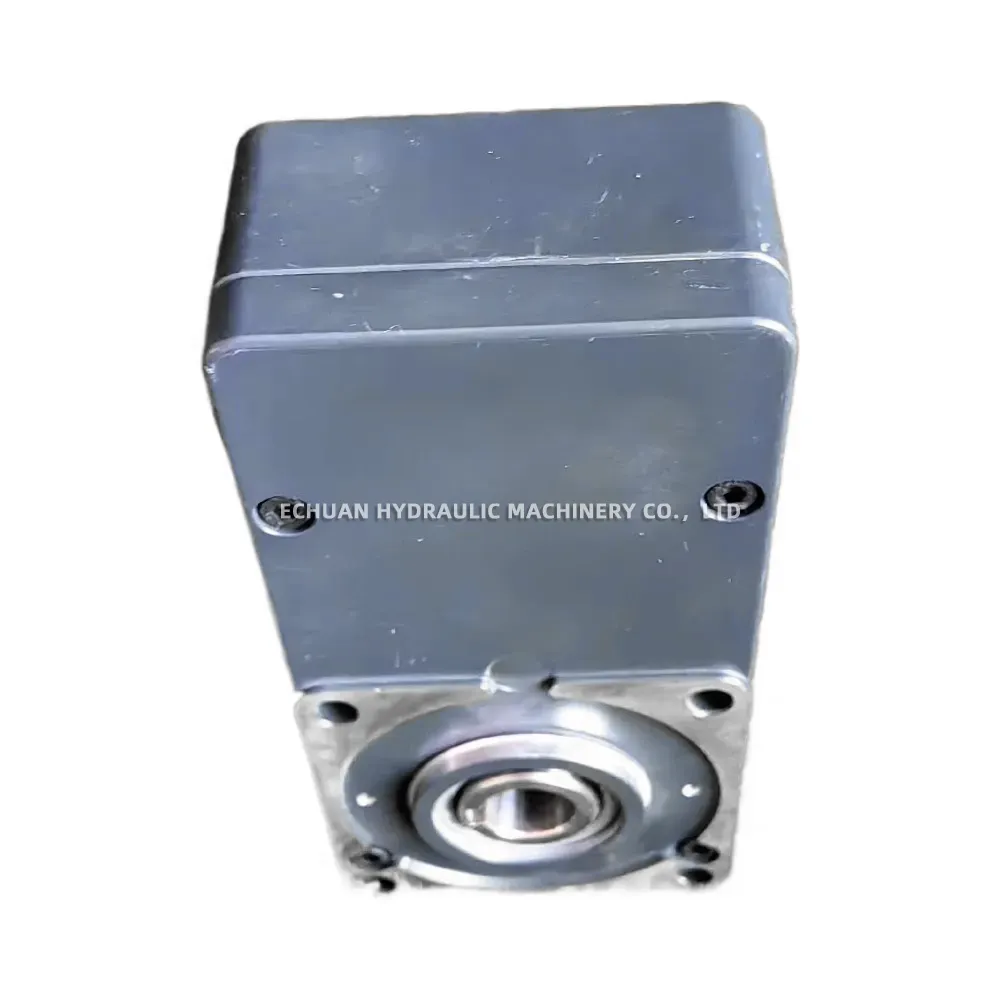

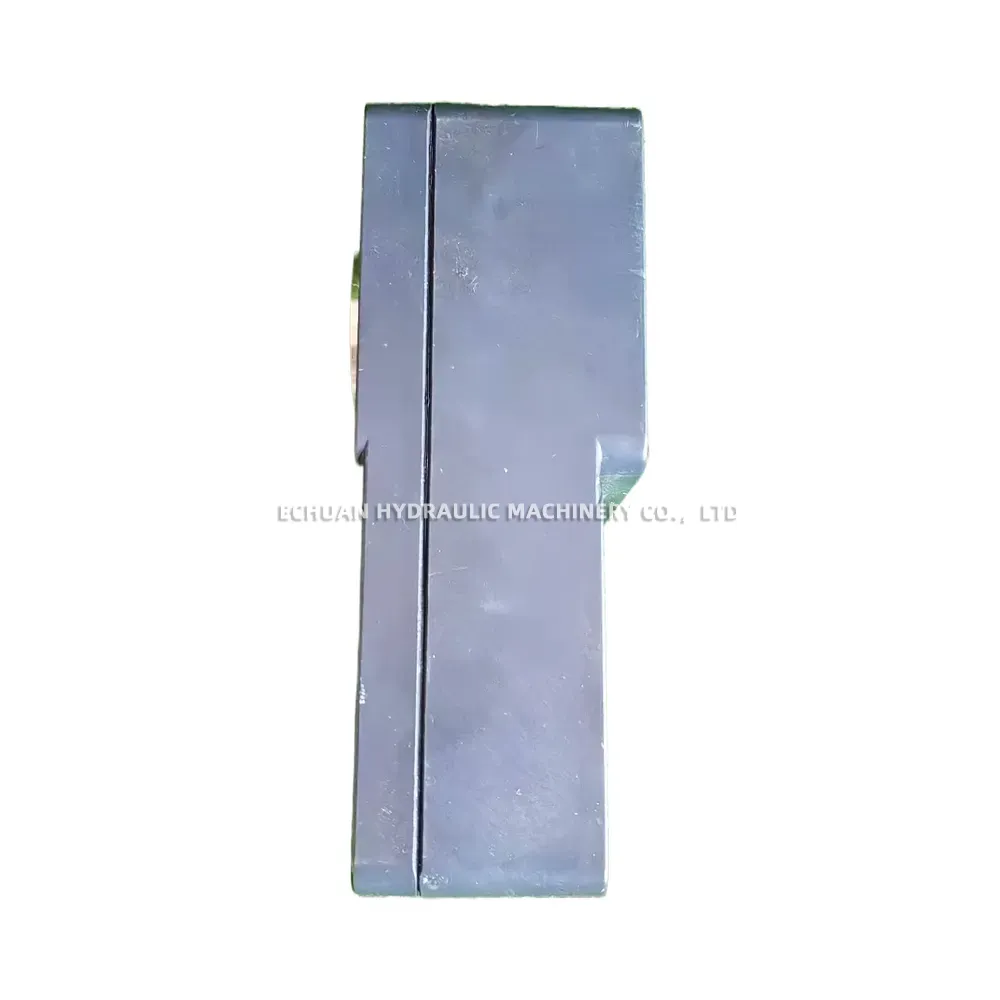

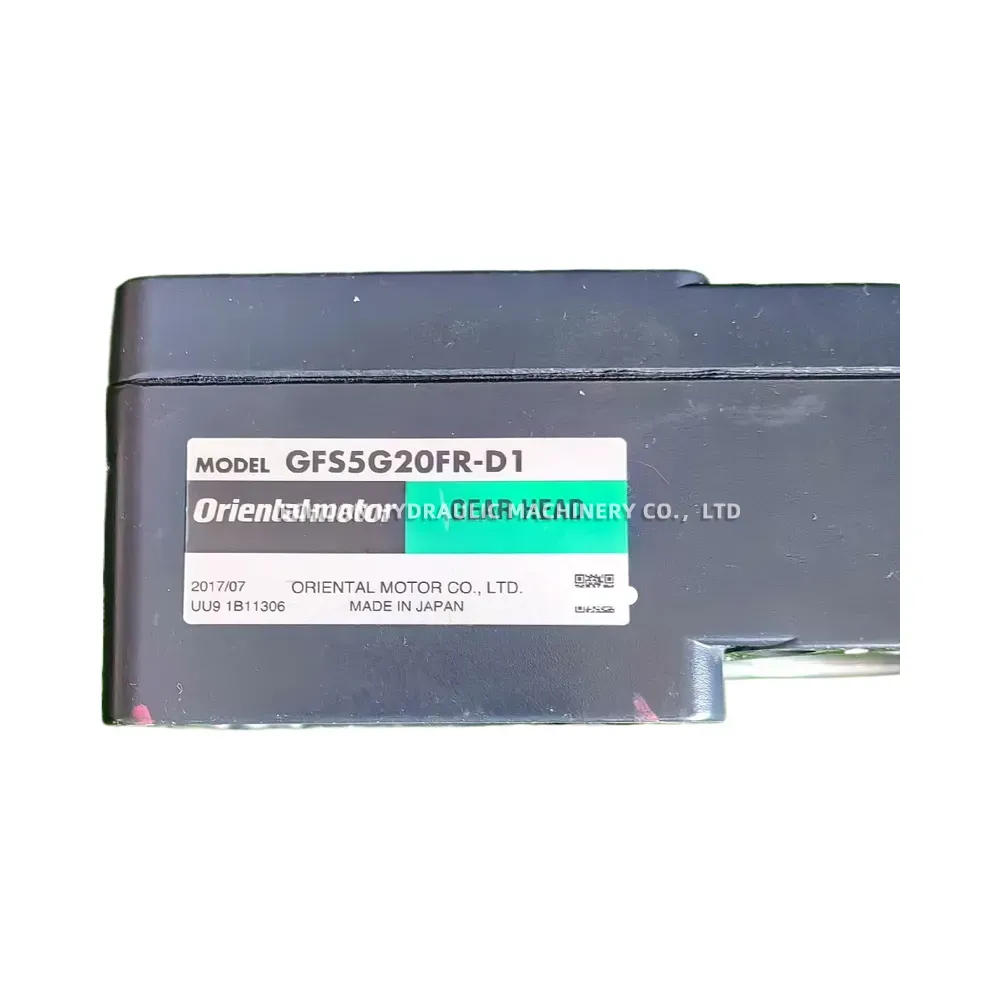

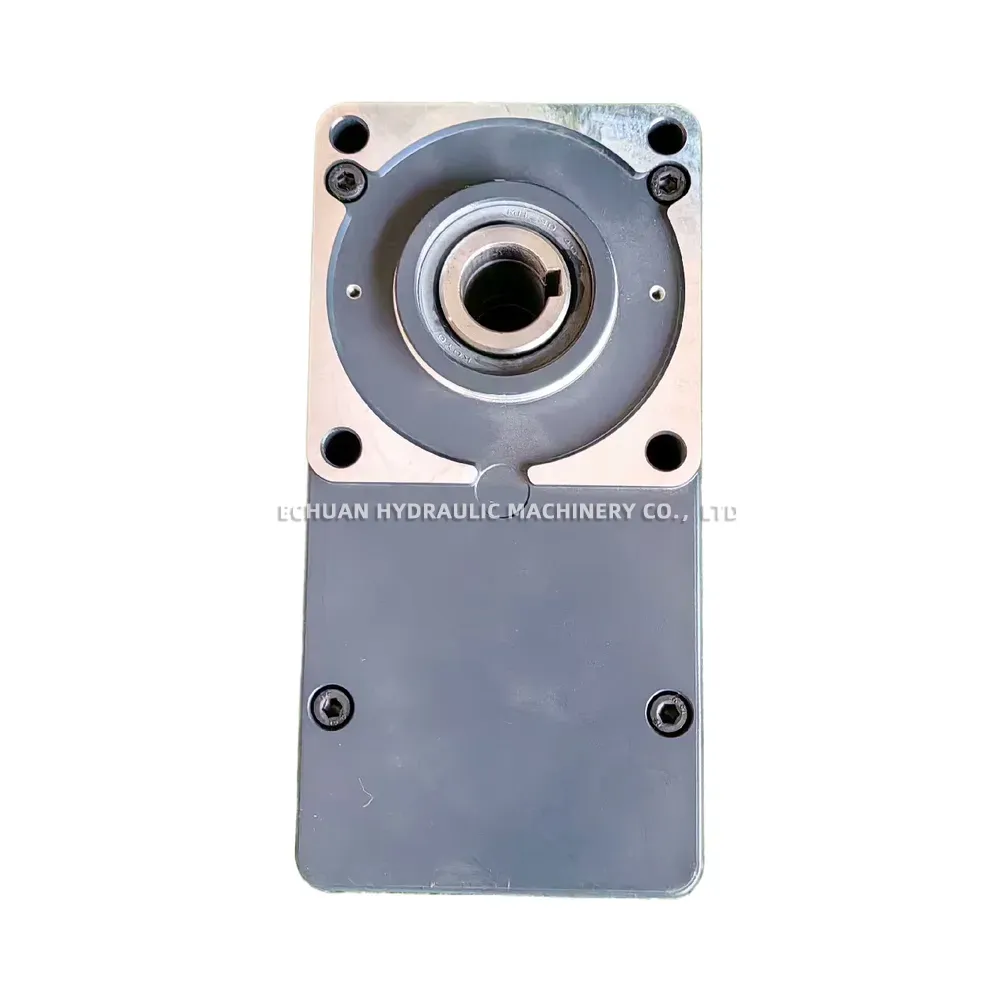

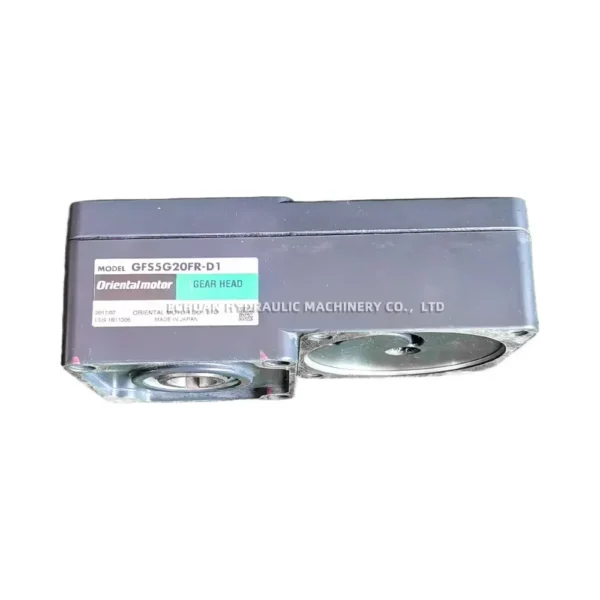

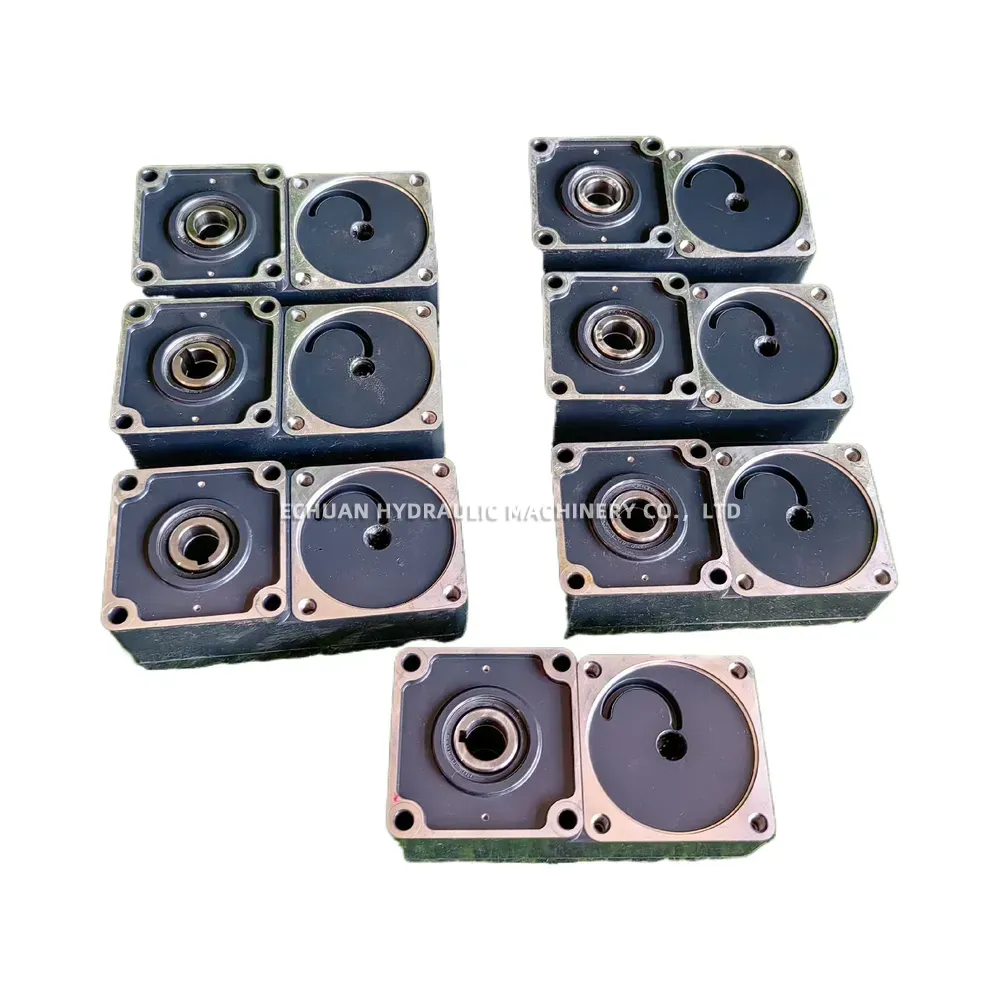

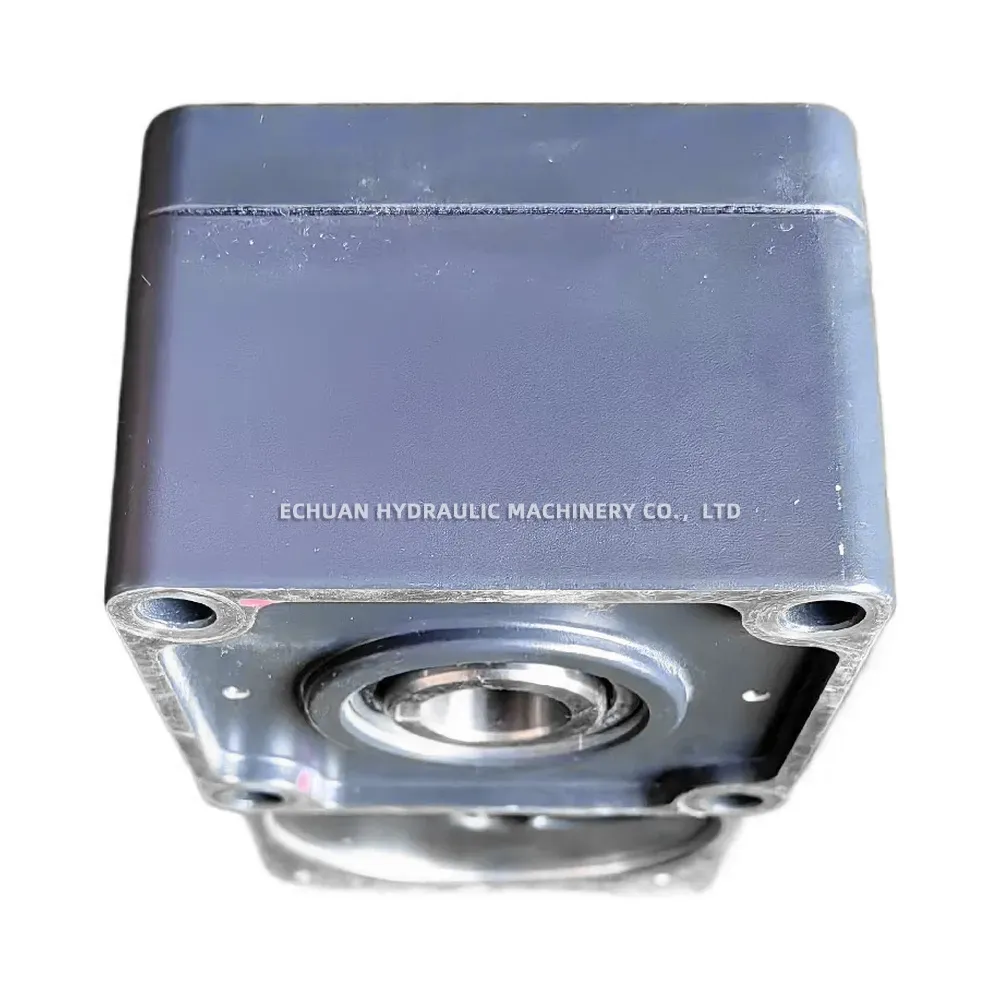

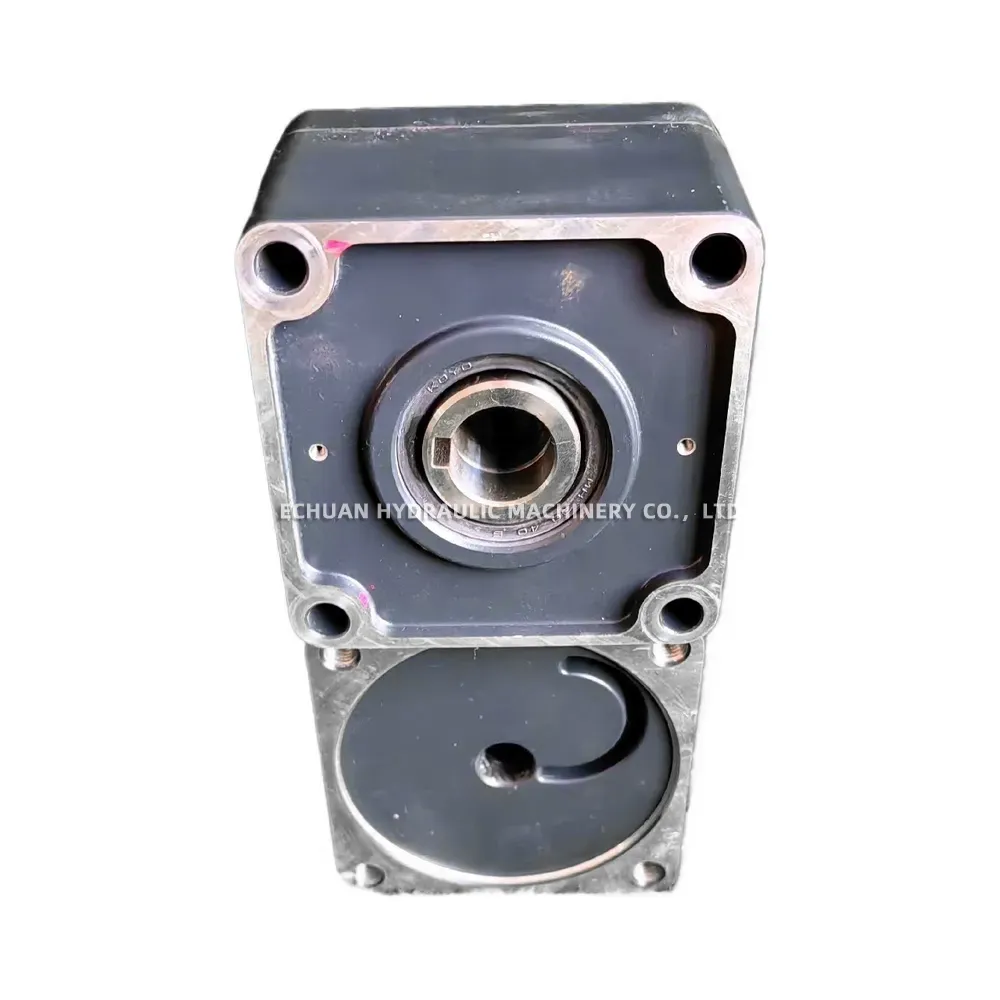

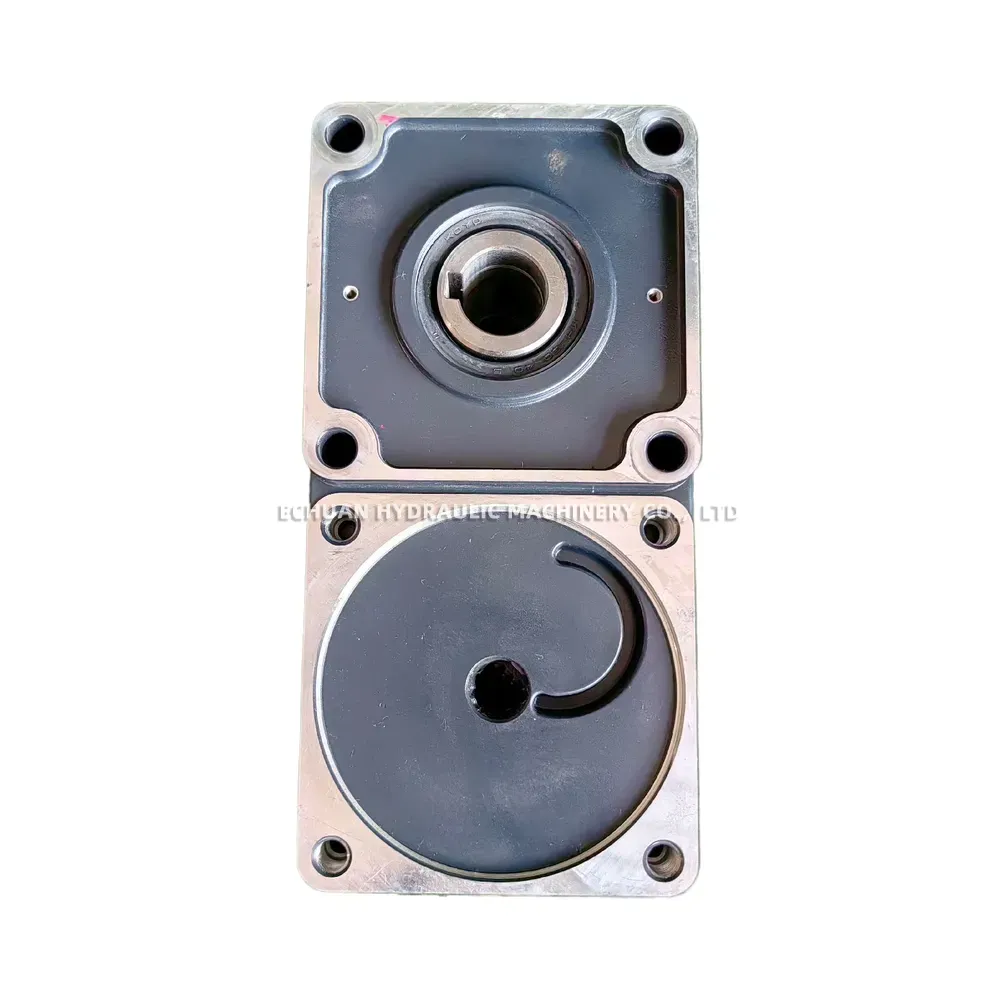

Oriental motor GFS5G20FR-D1
The Oriental Motor GFS5G20FR-D1 is a high-strength, right-angle gearhead designed for flange mounting, making it ideal for space-constrained applications. Part of the GF Series, it features taper hobbed gears for quiet operation and extended durability. This gearhead offers a 1:20 gear ratio, effectively reducing speed and significantly increasing torque when coupled with compatible 90mm frame size Oriental Motor AC motors. The -D1 designation indicates a keyway output shaft for secure and reliable power transmission in demanding industrial environments.
Technical Specifications:
- Product Type: Right-Angle Gearhead
- Series: GF Series (High Strength)
- Model: GFS5G20FR-D1
- Frame Size: 90 mm (3.54 in.)
- Gear Ratio: 20:1
- Mounting Type: Flange Mount
- Output Shaft Type: Keyway Shaft
- Output Shaft Diameter: 15 mm
- Maximum Permissible Torque: 20 N·m (177 lb-in)
- Backlash: ≤15 arcmin (Typical)
- Output Shaft Rotation: Same direction as motor shaft
- Gear Construction: Taper Hobbed Gears
- Lubrication: Grease Lubricated (Maintenance-Free)
- Compatible Motor Frame Size: 90 mm
Oriental motor GFS5G20FR-D1
Model：Oriental motor GFS5G20FR-D1
| Brand | ORIENTAL MOTOR |
|---|---|
| Model | GFS5G20FR-D1 |
| Part No. | Oriental motor GFS5G20FR-D1 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/oriental-motor-gfs5g20fr-d1 |
