Product Description

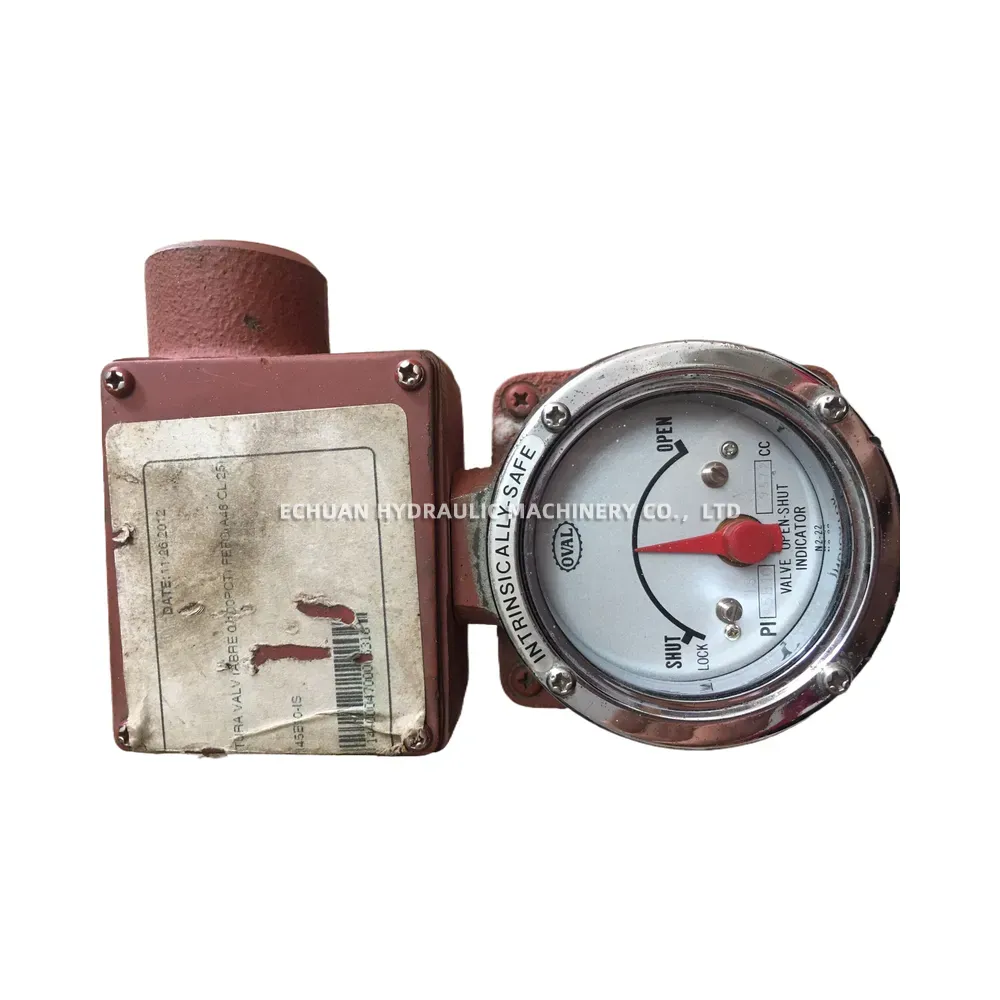

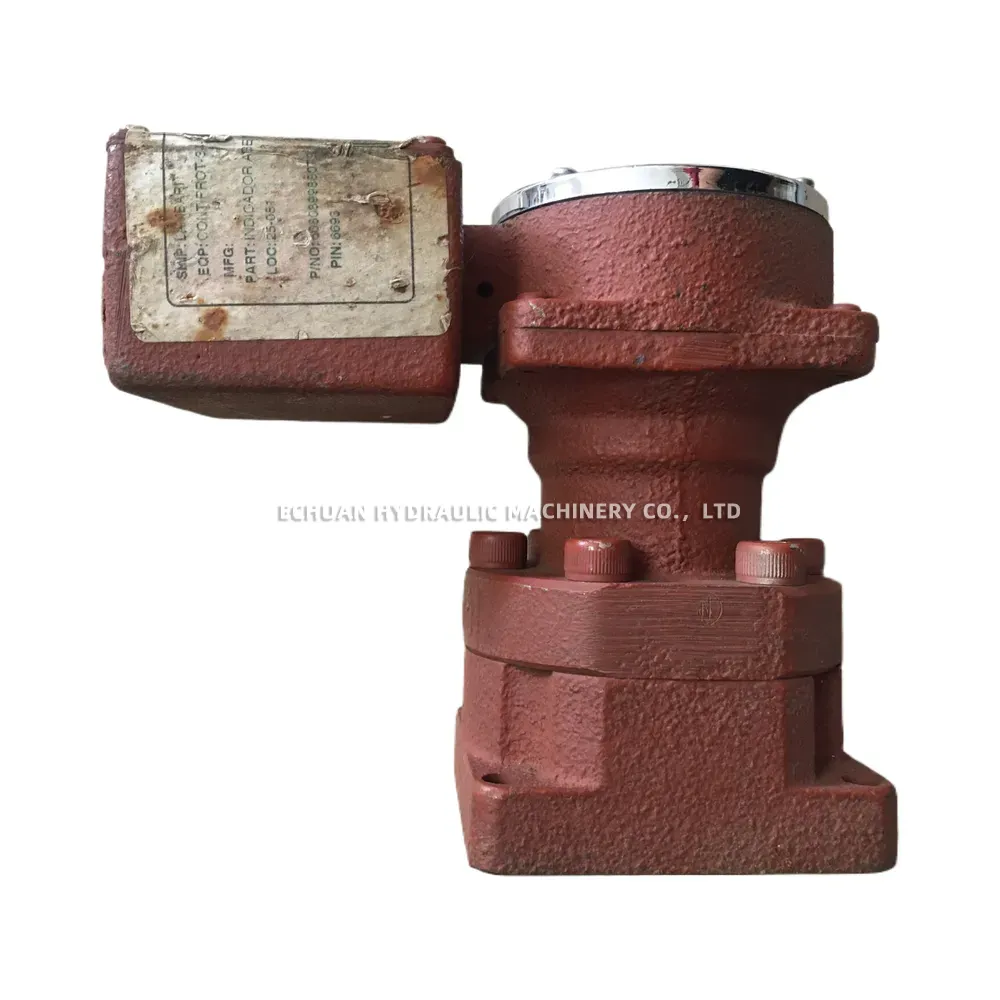

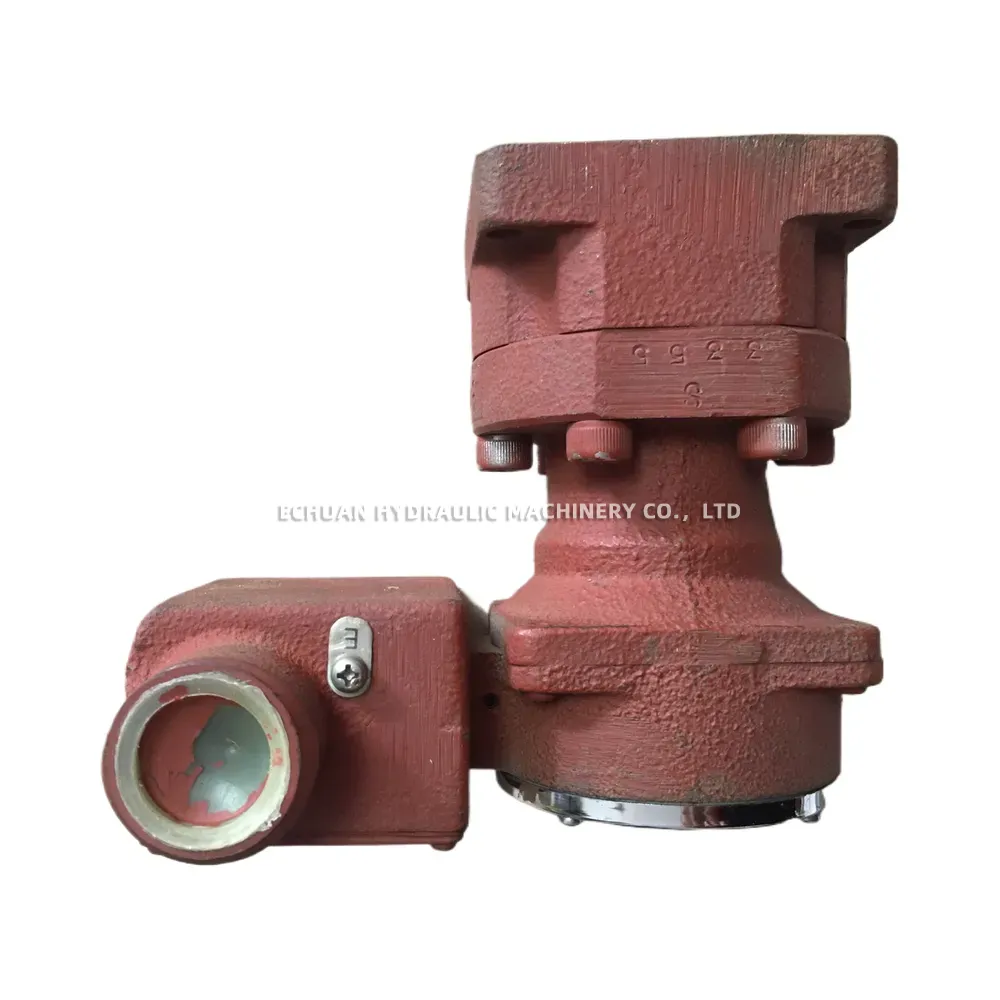

OVAL PI45B10 957.2 CC

The OVAL PI45B10 is a high-precision positive displacement flowmeter utilizing the proven oval gear principle. Part of the ULTRA OVAL series, it accurately measures the volumetric flow rate of a wide range of liquids, including fuels, oils, and various industrial fluids. Its robust construction ensures reliable performance in demanding process control and measurement applications. This model features a specific displacement of 957.2 cc per revolution, contributing to its high accuracy and repeatability across the flow range.

Technical Specifications:

  • Type: Positive Displacement Oval Gear Flowmeter
  • Model Series: ULTRA OVAL (Type F)
  • Displacement per Revolution: 957.2 cm³ (cc)
  • Nominal Size: Corresponds to PI45 designation (e.g., DN40 or DN50, confirm with full model code)
  • Body Material: Cast Iron (Typical for ‘B’ designation)
  • Rotor Material: Cast Iron (Typical for ‘B’ designation)
  • Bearing Type: Carbon (Typical standard)
  • Accuracy: Typically ±0.5% of reading (standard), higher accuracy options may be available
  • Fluid Compatibility: Suitable for various oils, fuels, and non-corrosive liquids (verify specific fluid)
  • Connections: Flanged (e.g., JIS, ANSI, DIN – dependent on full model specification)
  • Maximum Operating Pressure: Dependent on flange rating and body material (e.g., 1.0 MPa / 10 bar for standard cast iron)
  • Operating Temperature Range: Dependent on materials (e.g., -5 to +120°C for standard construction)
  • Output: Requires a compatible transmitter/sensor for pulse or analog output (ordered separately or as part of assembly)

OVAL PI45B10 957.2 CC

Type:OVAL PI45B10 957.2 CC
