Product Description
Panasonic M9MX40GK4CGA AC Motor

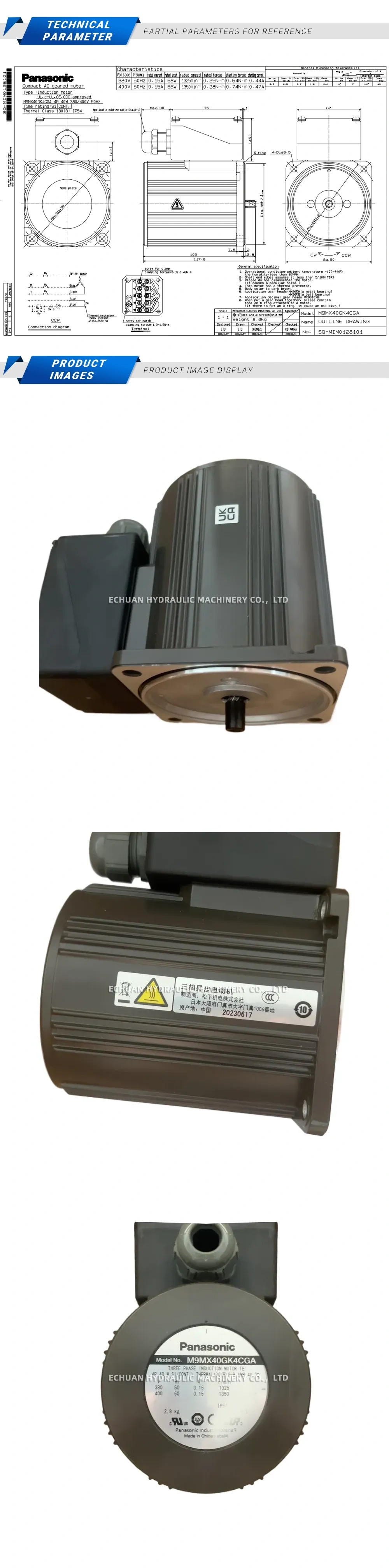

The Panasonic M9MX40GK4CGA is a high-performance single-phase AC induction motor designed for reliability and continuous operation in a wide range of industrial applications. This 40W motor operates on a 200V power supply and is compatible with both 50Hz and 60Hz frequencies. Featuring a compact 90mm square frame and a pinion shaft, it is perfectly suited for integration with Panasonic G-series gear heads to deliver precise torque and speed control. Its robust construction ensures a long service life, making it an ideal choice for conveyor systems, packaging machinery, and other automation equipment requiring dependable motion.
Technical Specifications:
- Model: M9MX40GK4CGA
- Motor Type: Single-Phase AC Induction Motor
- Output Power: 40 W (1/19 HP)
- Voltage: 200V
- Frequency: 50/60 Hz
- Rated Speed: 1250 r/min (at 50Hz), 1550 r/min (at 60Hz)
- Frame Size: 90 mm sq.
- Shaft Type: Pinion Shaft Type
Panasonic M9MX40GK4CGA
Discover the reliable Panasonic M9MX40GK4CGA, a 40W, 200V single-phase AC induction motor. Ideal for industrial automation, this compact motor offers continuous operation and is designed for use with compatible gear heads.
