Product Description

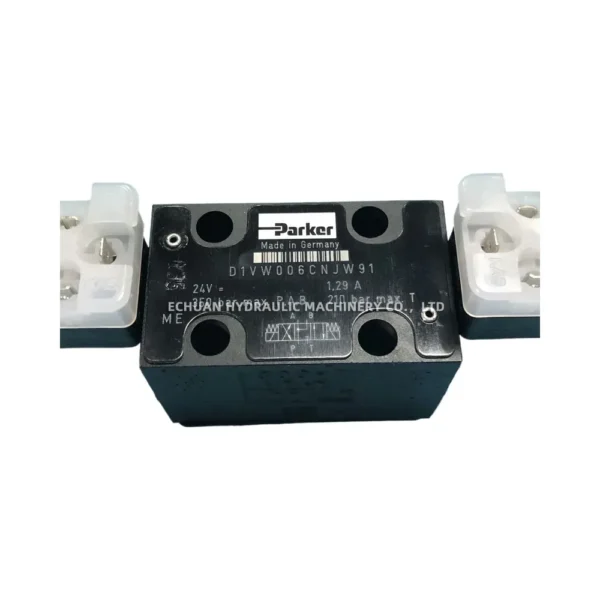

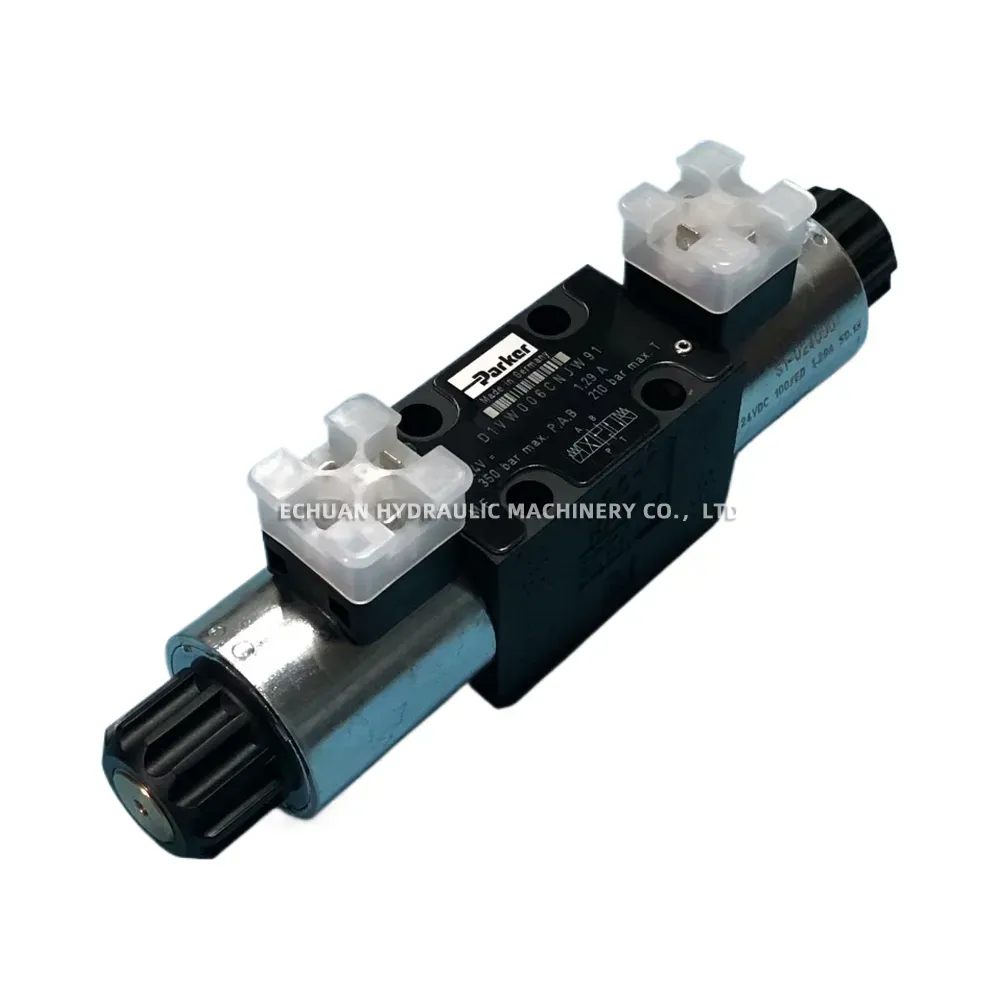

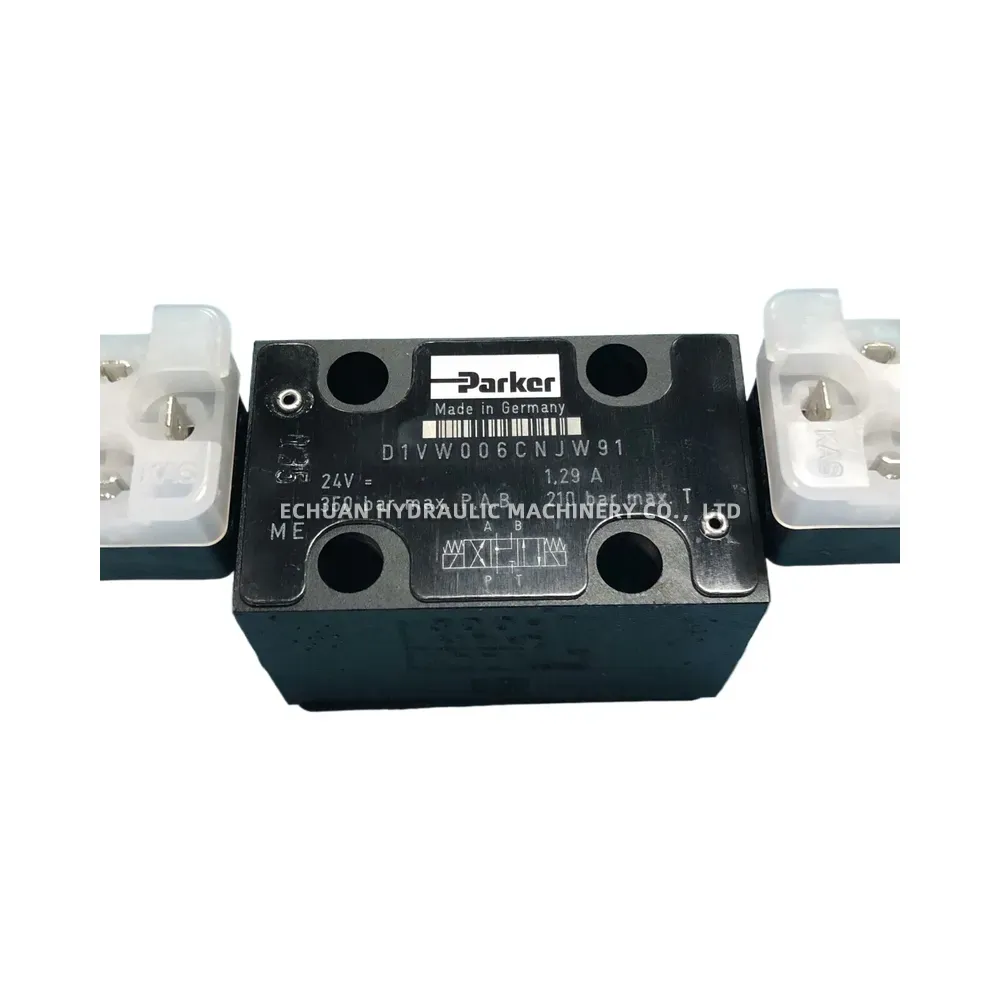

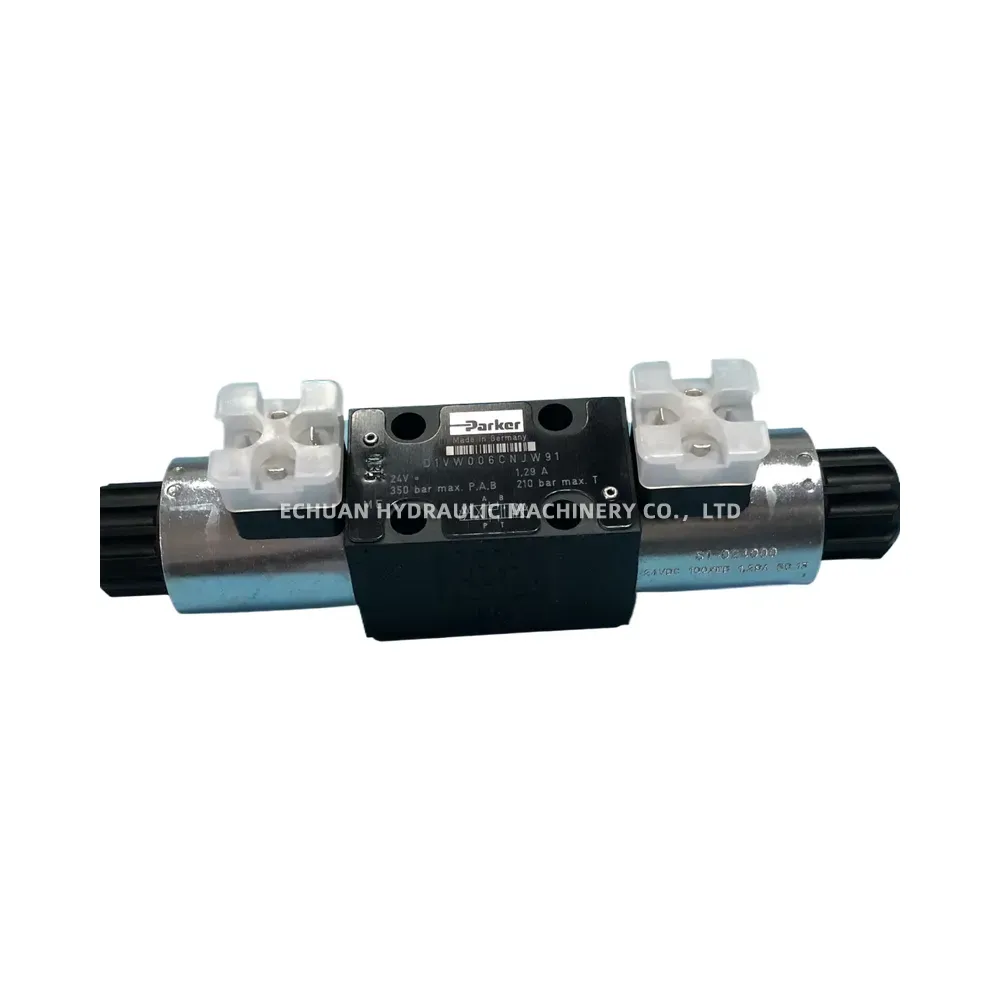

PARKER D1VW006CNJW

The Parker D1VW006CNJW is a high-performance, direct-operated, 4-way, 3-position (or potentially 2-position depending on specific configuration details not fully captured by this base code alone), solenoid-actuated directional control hydraulic valve. It conforms to the NFPA D03 / CETOP 03 / NG6 mounting interface standard. This valve is designed for controlling the start, stop, and direction of fluid flow in hydraulic circuits. The D1VW series is known for its robust design, featuring wet pin solenoids for long life and reliability, making it suitable for a wide range of industrial applications requiring precise hydraulic control. The ‘006’ spool type indicates a closed center configuration where ports P, T, A, and B are blocked in the center position.

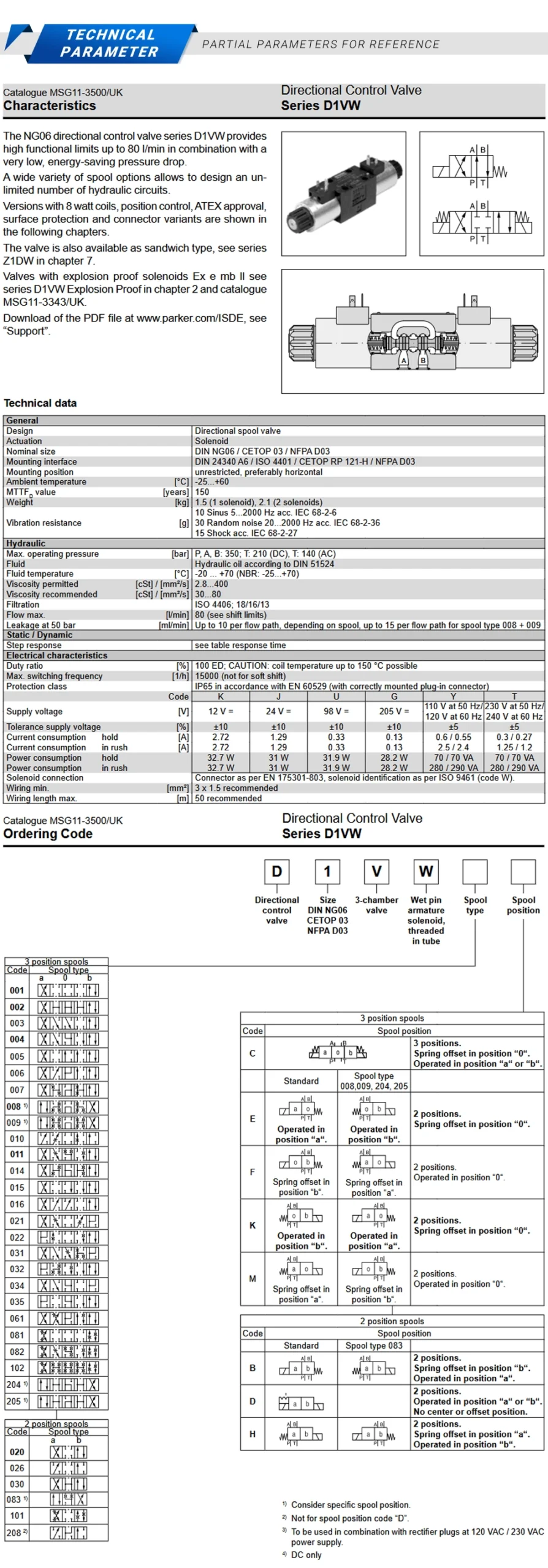

Technical Specifications:

  • Series: D1VW
  • Valve Type: Directional Control Spool Valve
  • Actuation: Solenoid
  • Mounting Interface: NG6 / CETOP 03 / NFPA D03
  • Spool Type: 006 (Closed Center – P, T, A, B blocked)
  • Spring Arrangement: C (Spring Centered)
  • Solenoid Type: N (Standard performance, wet pin armature)
  • Electrical Connection: J (DIN 43650 A / ISO 4400 Connector Interface)
  • Maximum Operating Pressure (Ports P, A, B): 350 bar (5000 PSI)
  • Maximum Operating Pressure (Port T): 210 bar (3000 PSI)
  • Maximum Flow Rate: Up to 80 l/min (21 GPM) – dependent on spool/pressure drop
  • Seal Material: Typically NBR (Nitrile) as standard
  • Fluid Compatibility: Mineral oil based hydraulic fluids (HL, HLP) conforming to DIN 51524

PARKER D1VW006CNJW

Model:PARKER D1VW006CNJW
