Product Description

Parker D1VW102ENJDJS2591

The Parker D1VW102ENJDJS2591 is a high-performance, direct-operated directional control valve from the D1VW series. Designed for industrial hydraulic applications, it provides reliable and precise control of fluid direction. This valve features a standard NG6 (CETOP 03 / NFPA D03) mounting interface, ensuring easy integration and interchangeability in various hydraulic circuits. Its robust construction guarantees a long service life and consistent performance even under demanding conditions. The double solenoid actuation with a 24V DC coil and a closed-center spool configuration makes it ideal for applications requiring actuators to be held in a fixed position when the valve is in its neutral state.

Technical Specifications:

  • Series: D1VW

  • Valve Type: Direct Operated Directional Control Valve

  • Mounting Interface: NG6 / CETOP 03 / NFPA D03

  • Actuation: Double Solenoid

  • Spool Type: 3-Position, 4-Way, Closed Center (Code 102)

  • Solenoid Voltage: 24V DC

  • Electrical Connection: DIN 43650 (JIS B 9355, Form C)

  • Max Operating Pressure: 350 bar (5000 psi)

  • Max Flow Rate: 80 l/min (21 GPM)

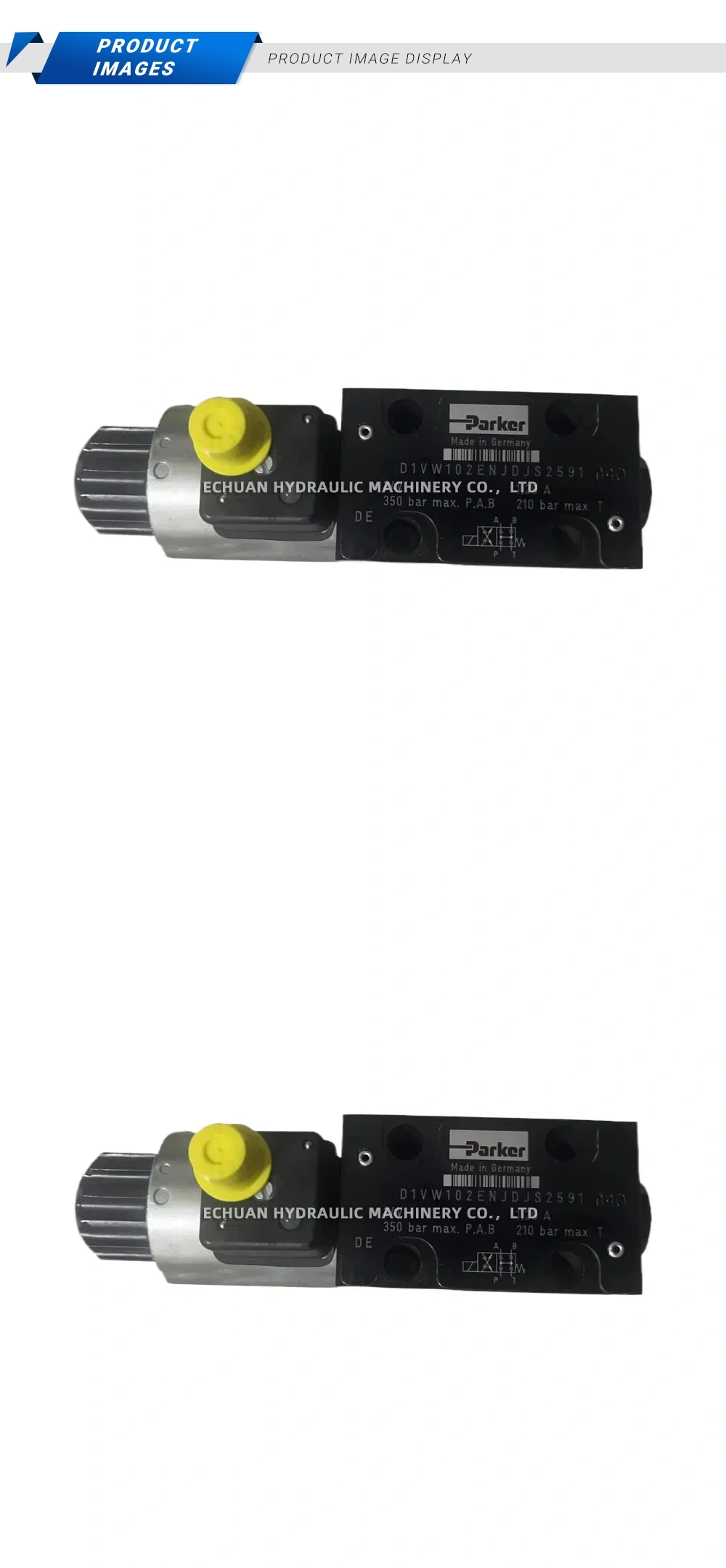

Parker D1VW102ENJDJS2591 Description

Parker D1VW102ENJDJS2591

Discover the reliable Parker D1VW102ENJDJS2591, a direct-operated NG6 (D03) hydraulic directional control valve. Features a 24V DC double solenoid, closed-center spool, and robust design for industrial applications.
