Product Description

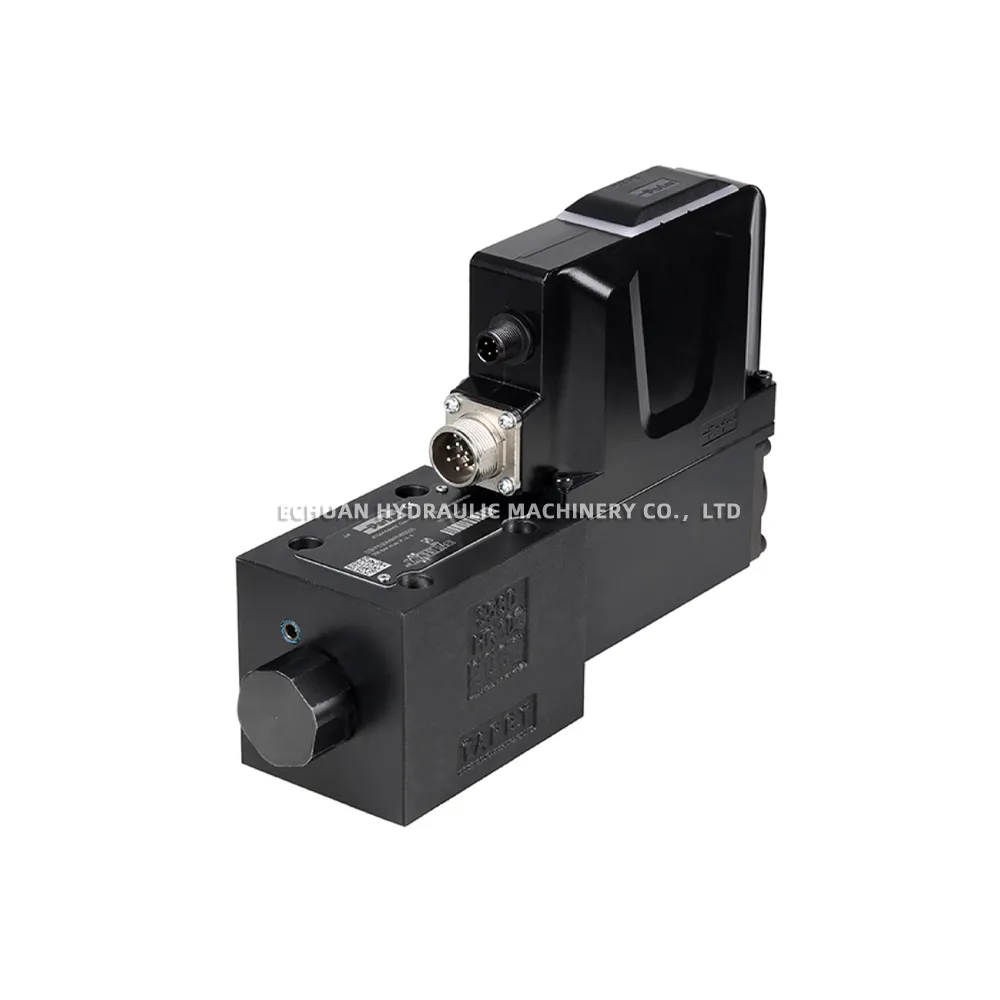

Parker D3FPE50YB9HB7047P63

The Parker D3FPE50YB9HB7047P63 is a high-performance, direct-operated proportional directional control valve with integrated electronics (OBE). Part of the D3FP series, this NG10 / CETOP 05 valve is designed for applications requiring precise and dynamic control of flow direction and rate. The onboard electronics simplify system integration by allowing direct connection to a PLC or controller, processing a standard +/-10V command signal. Its robust design ensures reliable operation in demanding industrial hydraulic systems, offering excellent repeatability and low hysteresis for accurate motion control.

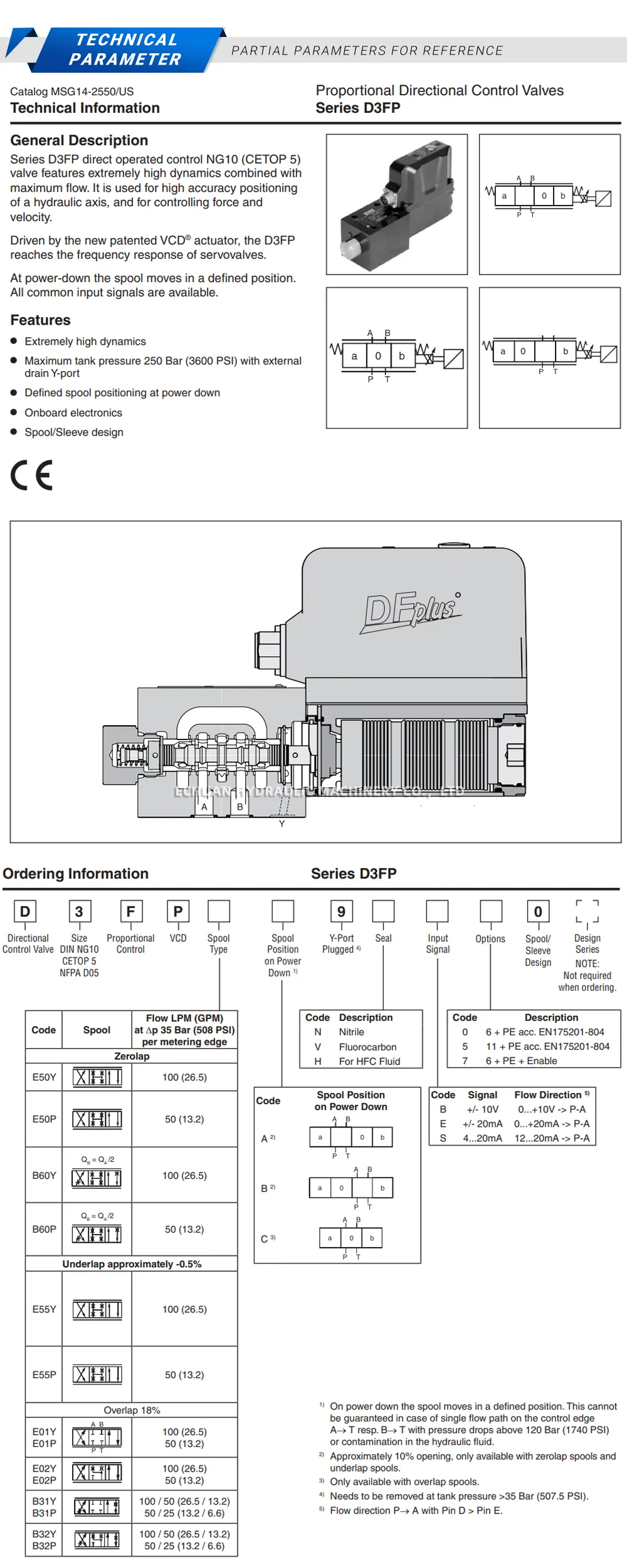

Technical Specifications:

  • Valve Series: D3FP Proportional Directional Control Valve
  • Actuation: Proportional Solenoid with Integrated Electronics (OBE)
  • Mounting Size: NG10 / CETOP 05 / D05
  • Mounting Pattern: ISO 4401-05-04-0-05
  • Spool Type: Y (Tandem center, P to T, A & B blocked)
  • Nominal Flow Rate: 90 L/min (at 5 bar Δp per land)
  • Maximum Operating Pressure: 315 bar (4568 psi) for Ports P, A, B
  • Command Signal: +/- 10 VDC
  • Electrical Connector: DIN 43650 / ISO 4400
  • Seal Material: NBR (Nitrile)
  • Hydraulic Fluid: Mineral oil-based hydraulic fluid (HL, HLP) per DIN 51524

Parker D3FPE50YB9HB7047P63

Model:Parker D3FPE50YB9HB7047P63
