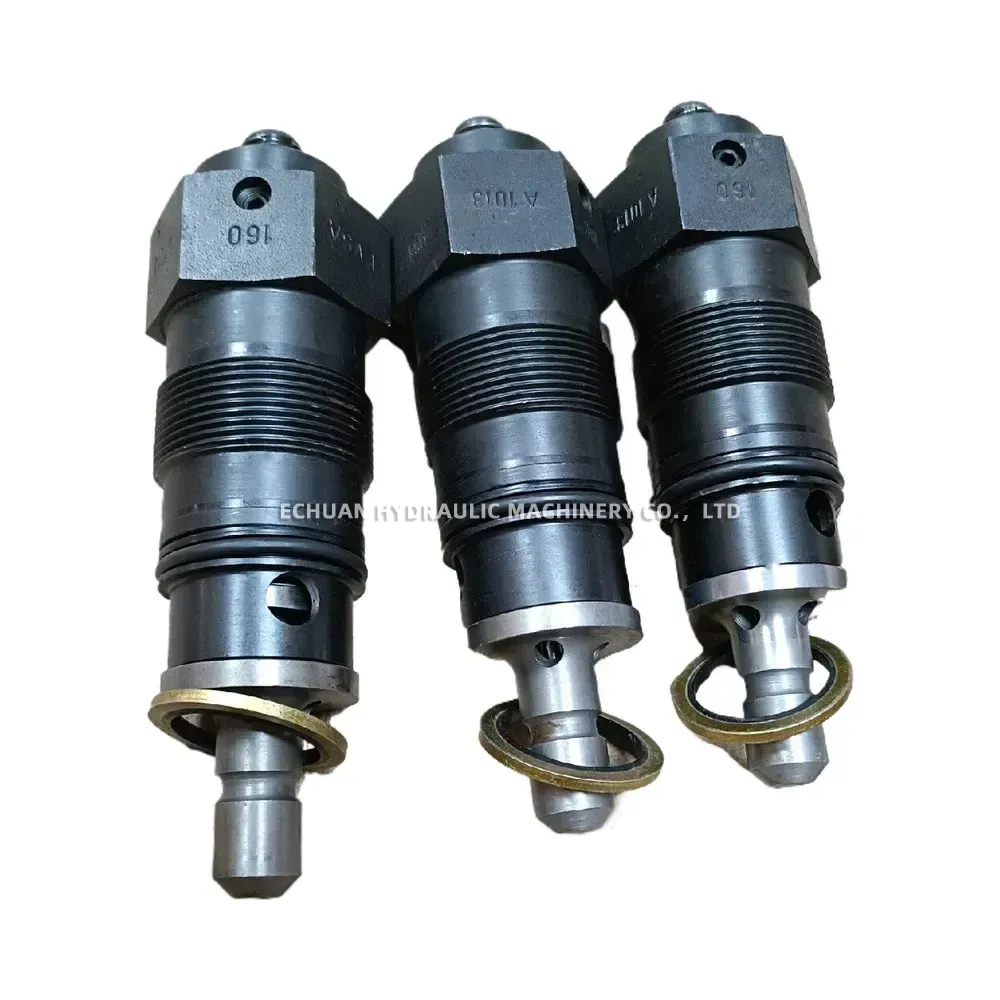

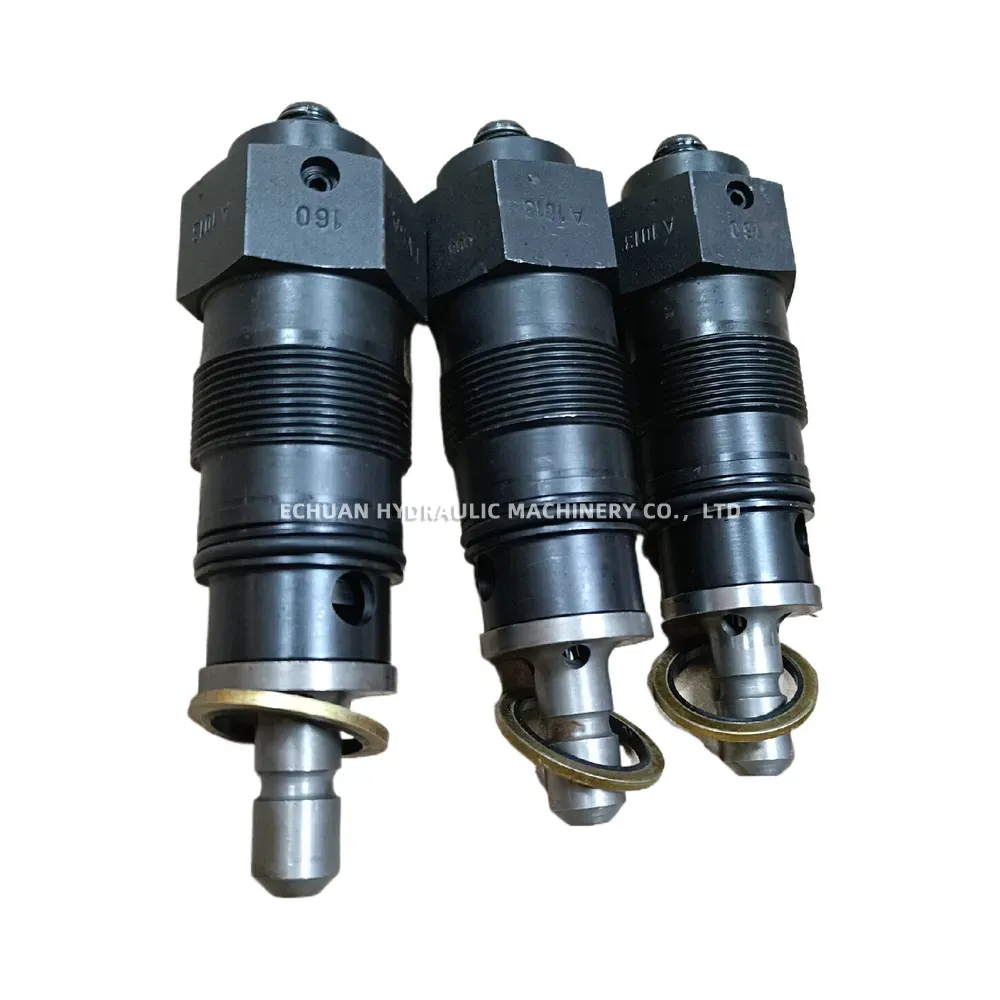

Parker EVSA 160 A1013 Hydraulic Cartridge Relief Valve
The Parker EVSA 160 A1013 is a high-performance, insert-type (screw-in cartridge) hydraulic relief valve engineered for reliable pressure limiting in demanding industrial and mobile hydraulic systems. As part of Parker’s trusted EVSA series, this valve features a robust hexagonal head equipped with an internal adjustment screw and a lock port, allowing for precise and secure pressure control. Designed for maximum versatility and ease of integration, its mounting dimensions are fully interchangeable with the industry-standard Rexroth DBD10 cavity. With a robust pressure rating of up to 160 bar, a secure M35×1.5 threaded connection, and a reliable cartridge nose seal ring, the EVSA 160 A1013 ensures optimal system protection, leak-free operation, and extended service life.
Technical Specifications:
- Brand: Parker
- Model: EVSA 160 A1013
- Valve Type: Insert-type (screw-in cartridge) hydraulic relief valve
- Maximum Pressure Rating: 160 bar
- Thread Connection: M35 × 1.5 (Size 10)
- Cavity Compatibility: Interchangeable with Rexroth DBD10 cavity
- Adjustment Mechanism: Hexagonal head with internal adjustment screw and lock port
- Sealing: Cartridge nose equipped with seal ring for leak prevention
- Application: Pressure limiting and safety protection in hydraulic systems
Parker EVSA 160 A1013 Hydraulic Cartridge Relief Valve
Ensure optimal pressure control with the Parker EVSA 160 A1013 Hydraulic Cartridge Relief Valve. Rated up to 160 bar, this size 10 screw-in valve features an M35x1.5 thread and is directly interchangeable with Rexroth DBD10 cavities, making it the perfect durable solution for reliable hydraulic system pressure limiting.
| Brand | Parker |
|---|---|
| Model | EVSA 160 A1013 |
| Part No. | 872933931310 |
| Category | Hydraulic valves |
