Product Description

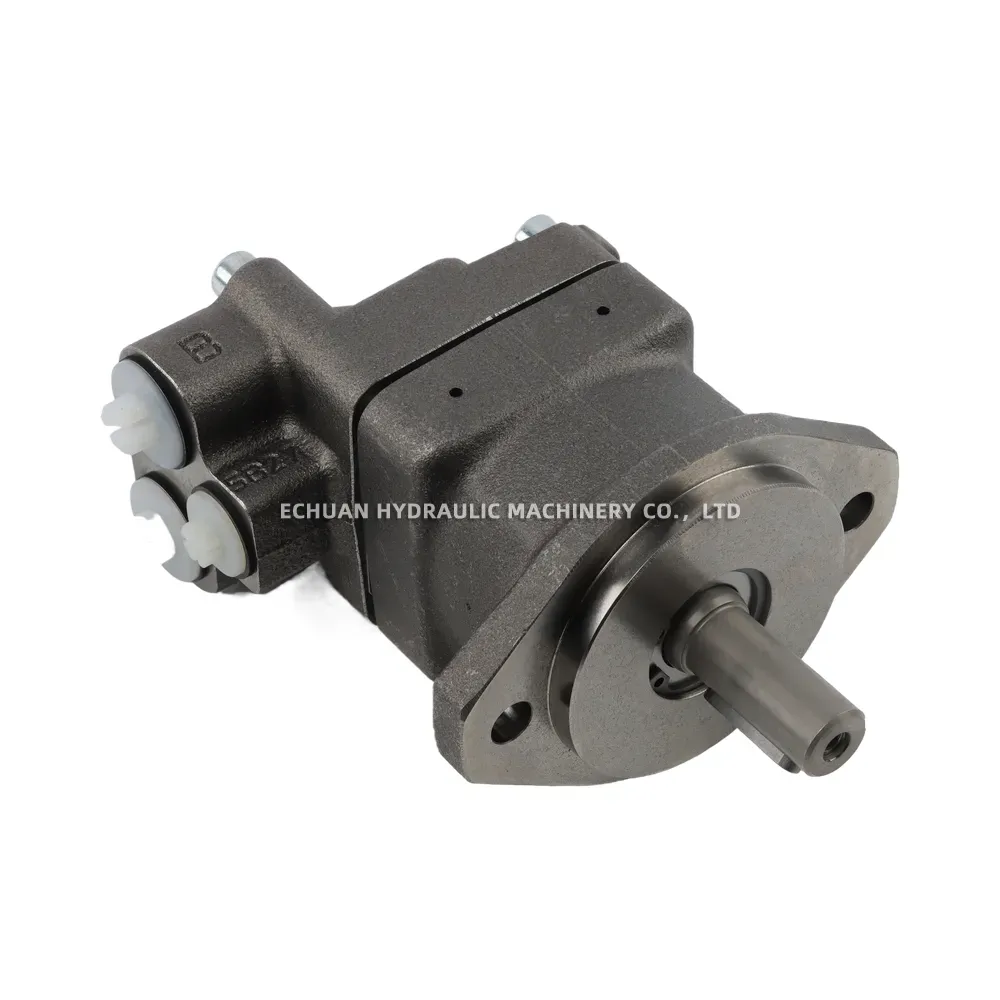

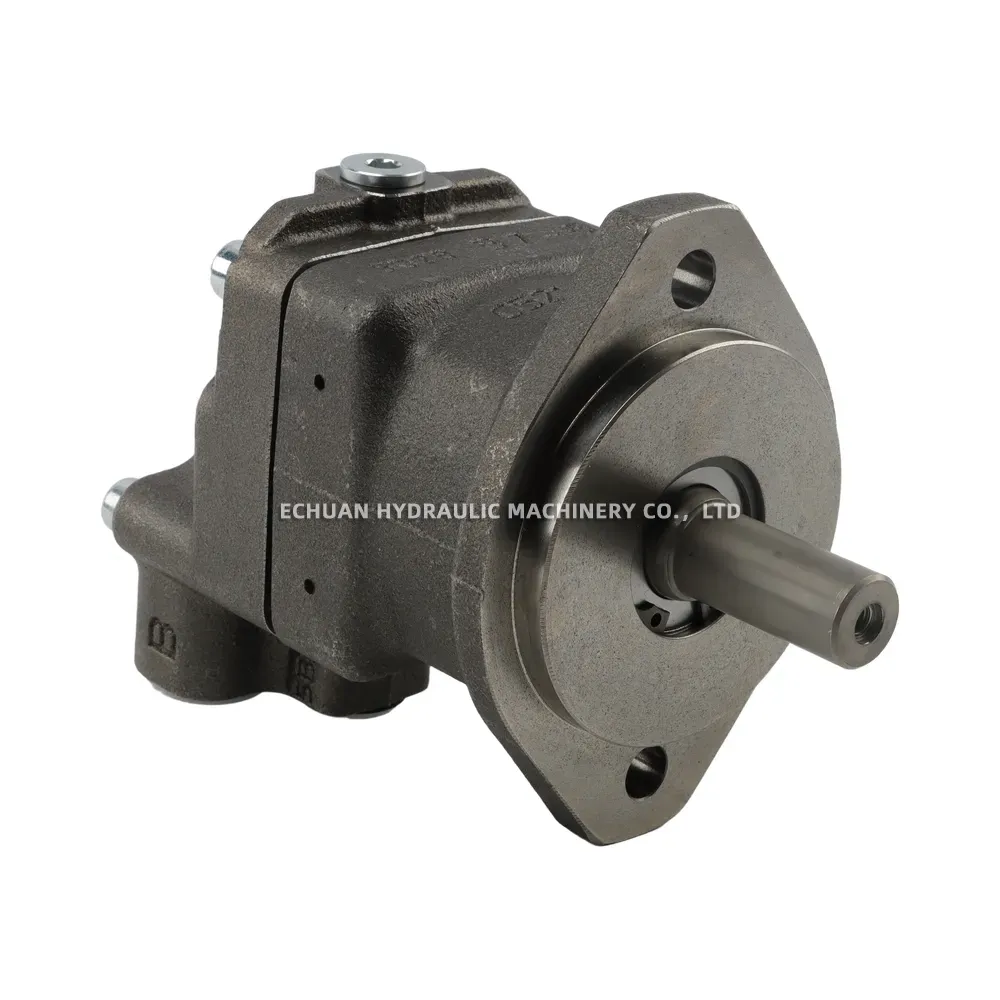

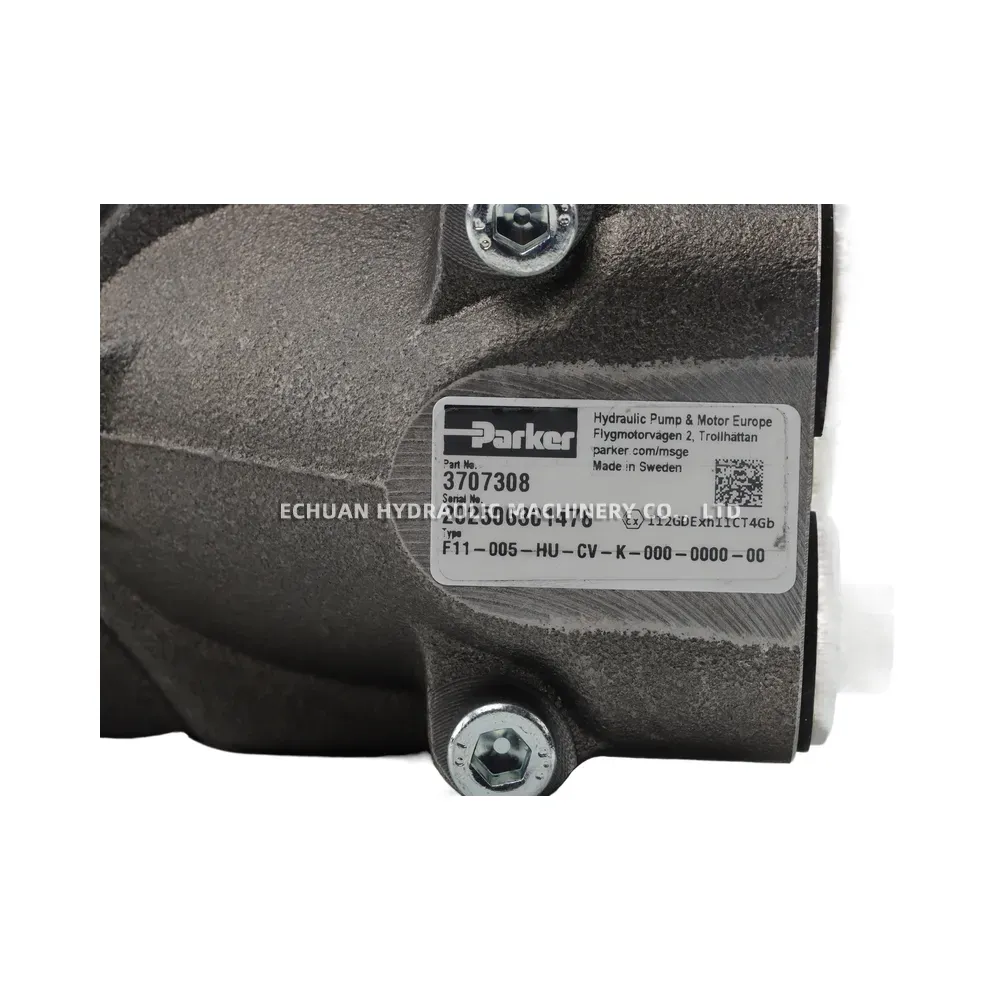

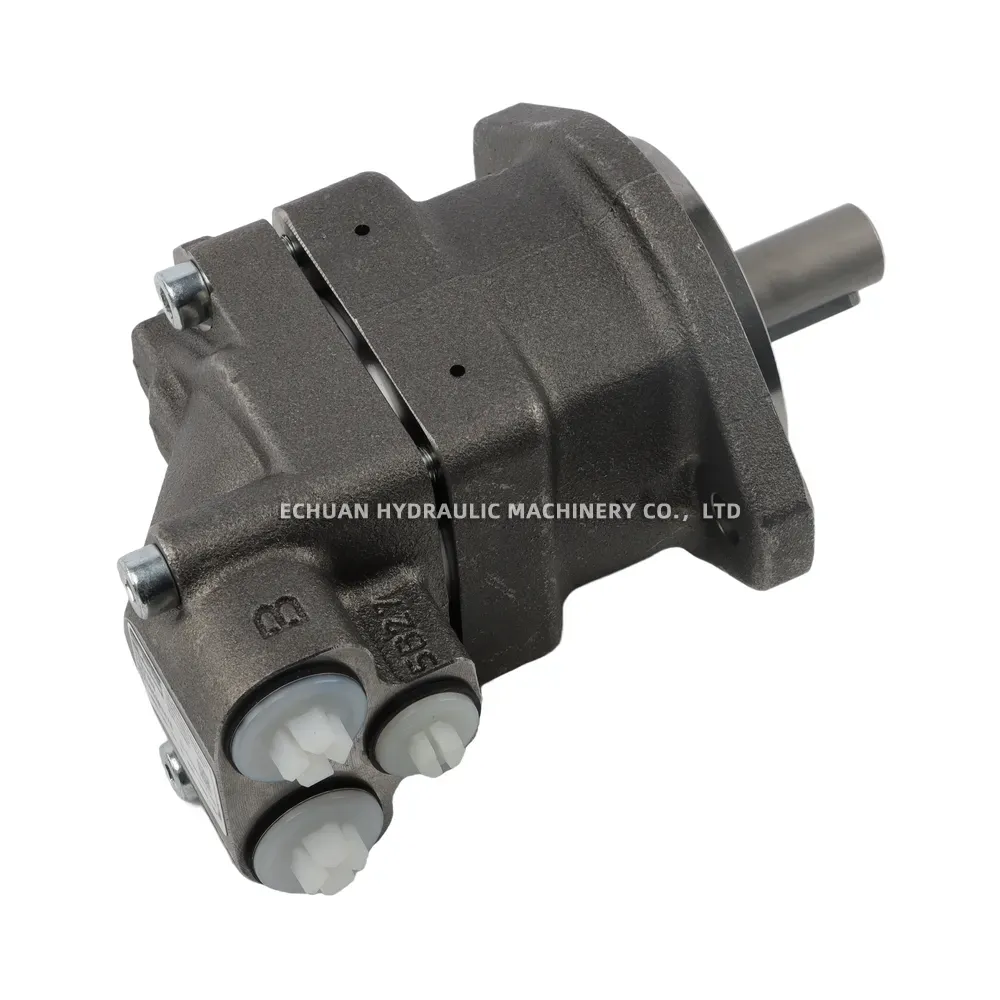

Parker F11-005-HU-CV-K-000-0000-00

The Parker F11-005-HU-CV-K-000-0000-00 is a high-performance, fixed displacement bent-axis hydraulic motor. Part of the renowned F11 series, this motor is engineered for both open and closed-loop circuits, delivering exceptional reliability in demanding mobile and industrial applications. Its unique spherical piston design provides high volumetric efficiency, superior starting torque, and the ability to operate at very high speeds. The compact and robust construction, featuring a 40° bent-axis angle, ensures a lightweight motor with high power density, making it an ideal choice for applications requiring high speed and pressure capabilities, such as fan drives, winches, and agricultural machinery.

Technical Specifications:

  • Displacement: 5.0 cm³/rev (0.30 in³/rev)

  • Maximum Continuous Pressure: 350 bar (5000 psi)

  • Maximum Peak Pressure: 420 bar (6100 psi)

  • Maximum Continuous Speed: 6500 rpm

  • Shaft Type: Splined (SAE J744, 9T 16/32 DP)

  • Port Type: SAE O-ring boss (UNF thread)

  • Mounting Flange: SAE J744, 2-bolt A

Parker F11-005-HU-CV-K-000-0000-00 Description

Parker F11-005-HU-CV-K-000-0000-00

Shop the Parker F11-005-HU-CV-K-000-0000-00, a compact 5cc bent-axis fixed displacement hydraulic motor. Engineered for high-pressure and high-speed performance, it offers exceptional efficiency and durability for demanding industrial and mobile applications.

BrandParker
ModelF11-005-HU-CV-K-000-0000-00
CategoryHydraulic motors
Linkhttps://www.echuan-hydraulic.com/product/parker-f11-005-hu-cv-k-000-0000-00
