Product Description

PEPPERL+FUCHS NBB4-12GM50-E0-V1

The PEPPERL+FUCHS NBB4-12GM50-E0-V1 is a high-performance inductive proximity sensor designed for reliable, non-contact detection of metallic objects in industrial automation environments. Part of the NBB series, this sensor features a standard M12 threaded barrel housing made from nickel-plated brass, ensuring durability and resistance to harsh conditions. Its flush-mountable design allows for seamless integration into machinery and equipment. With a PNP normally open output and a standard M12 connector, it offers straightforward installation and compatibility with common control systems like PLCs. This sensor is an ideal choice for applications requiring precise position sensing, counting, and control tasks in manufacturing and material handling.

Technical Specifications:

  • Sensing Range (Sn): 4 mm

  • Installation: Flush

  • Output Type: 3-wire, PNP, Normally Open (NO)

  • Operating Voltage (Ub): 10 … 30 V DC

  • Switching Frequency (f): 0 … 1500 Hz

  • Housing: M12 x 1 threaded barrel, brass, nickel-plated

  • Connection: M12 x 1 connector, 4-pin

  • Protection Degree: IP67

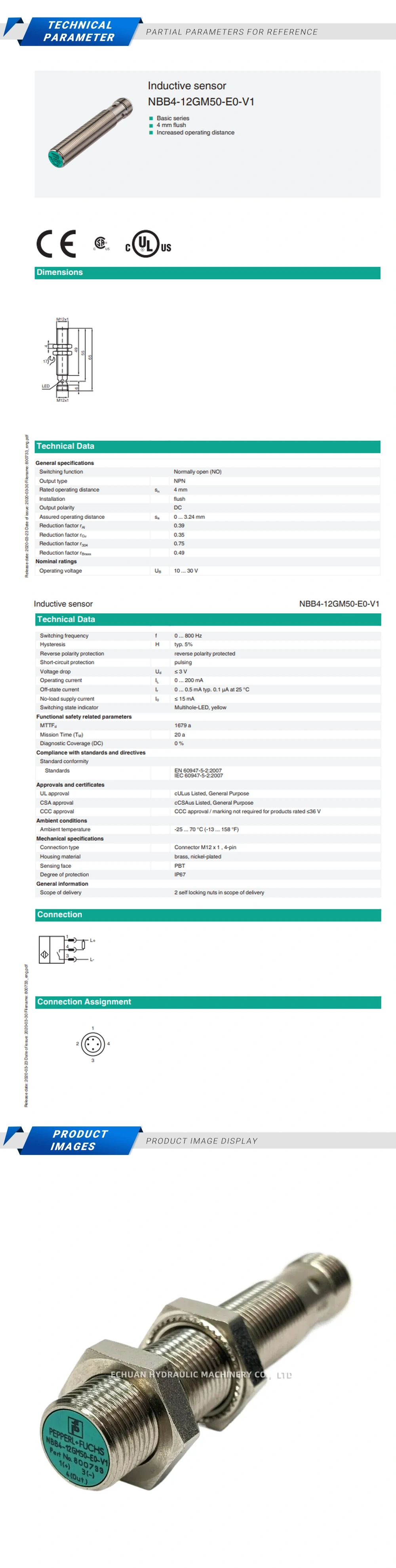

PEPPERL+FUCHS NBB4-12GM50-E0-V1 Description

PEPPERL+FUCHS NBB4-12GM50-E0-V1

PEPPERL+FUCHS NBB4-12GM50-E0-V1 inductive proximity sensor with a 4mm flush sensing range, PNP NO output, and a robust M12 threaded housing. Ideal for reliable object detection in industrial automation.
