Product Description

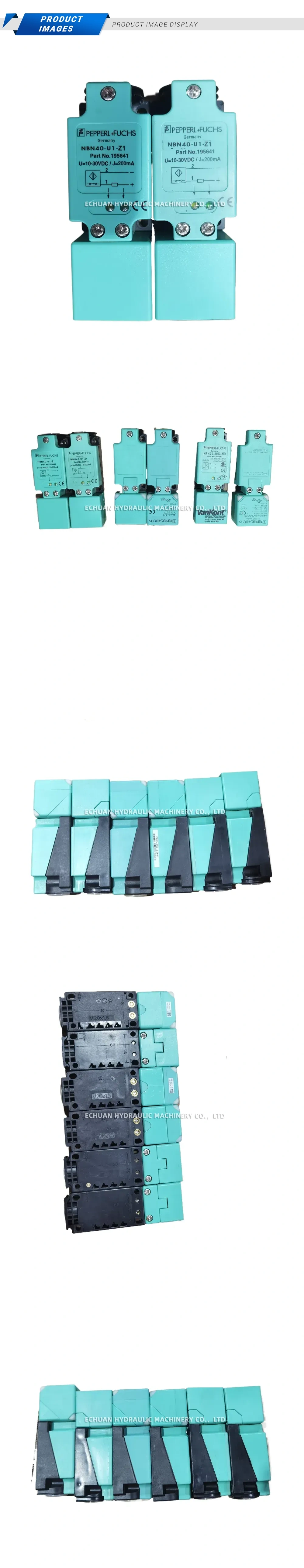

Pepperl+Fuchs NBN40-U1-Z1
The Pepperl+Fuchs NBN40-U1-Z1 is a high-performance inductive proximity sensor from the VariKont U series, designed for reliable non-contact detection of metallic objects in industrial environments. It features a substantial 40 mm sensing range and is intended for non-flush mounting. This sensor is highly versatile, with a universal 2-wire AC/DC output that can be configured for normally open (NO) or normally closed (NC) operation. A key advantage is its 4-way rotatable sensor head, which allows for flexible positioning and easy installation. Encased in a rugged housing with an IP68/IP69K protection rating, the NBN40-U1-Z1 ensures dependable performance even in harsh conditions involving dust, water, and high-pressure washdowns.
Technical Specifications:
- Sensing Range (sn): 40 mm
- Installation: Non-flush
- Switching Function: Normally open (NO) / Normally closed (NC)
- Output Type: 2-wire AC/DC
- Operating Voltage (UB): 20 … 253 V AC/DC
- Connection Type: Terminal compartment
- Housing: VariKont U with 4-way rotatable head
- Degree of Protection: IP68 / IP69K
Pepperl+Fuchs NBN40-U1-Z1
Shop the Pepperl+Fuchs NBN40-U1-Z1, a versatile non-flush inductive sensor with a 40 mm sensing range, universal 2-wire AC/DC output, and a rugged, rotatable housing for industrial automation applications.
| Brand | PEPPERL+FUCHS |
|---|---|
| Model | NBN40-U1-Z1 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pepperlfuchs-nbn40-u1-z1 |
