Product Description

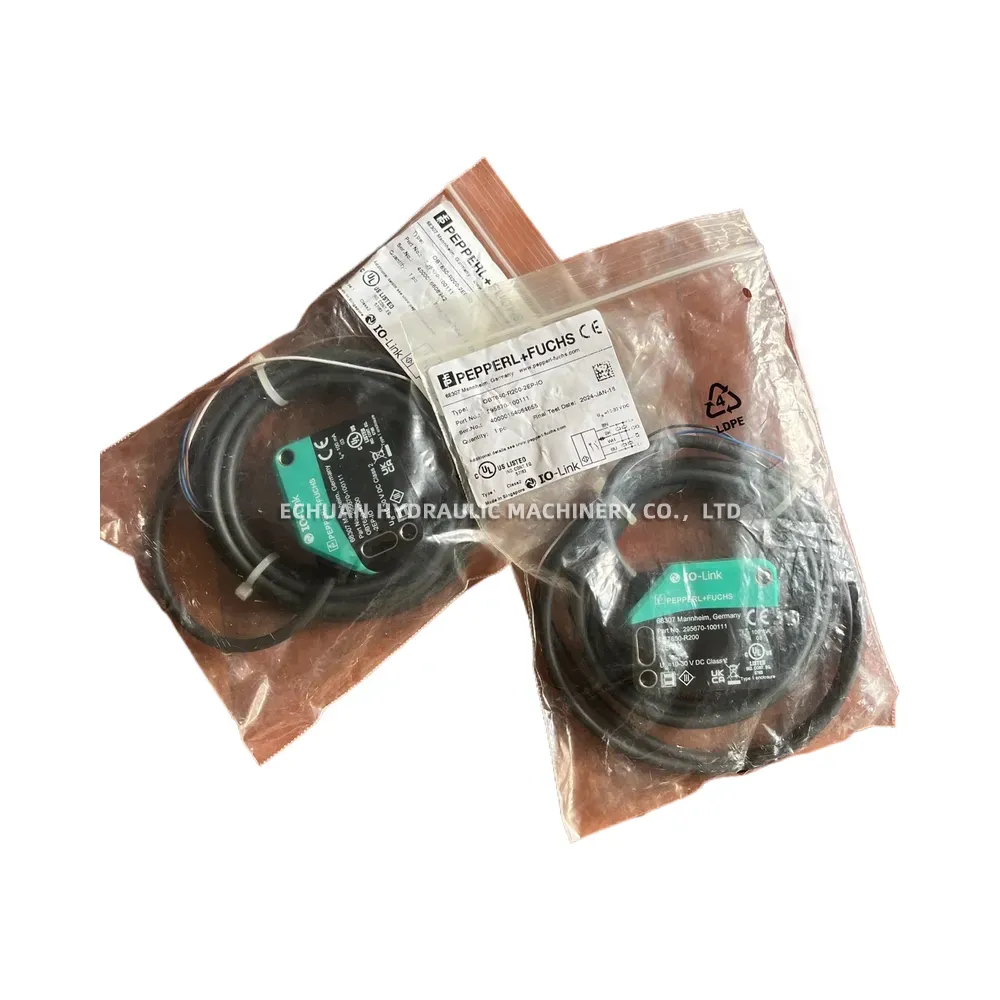

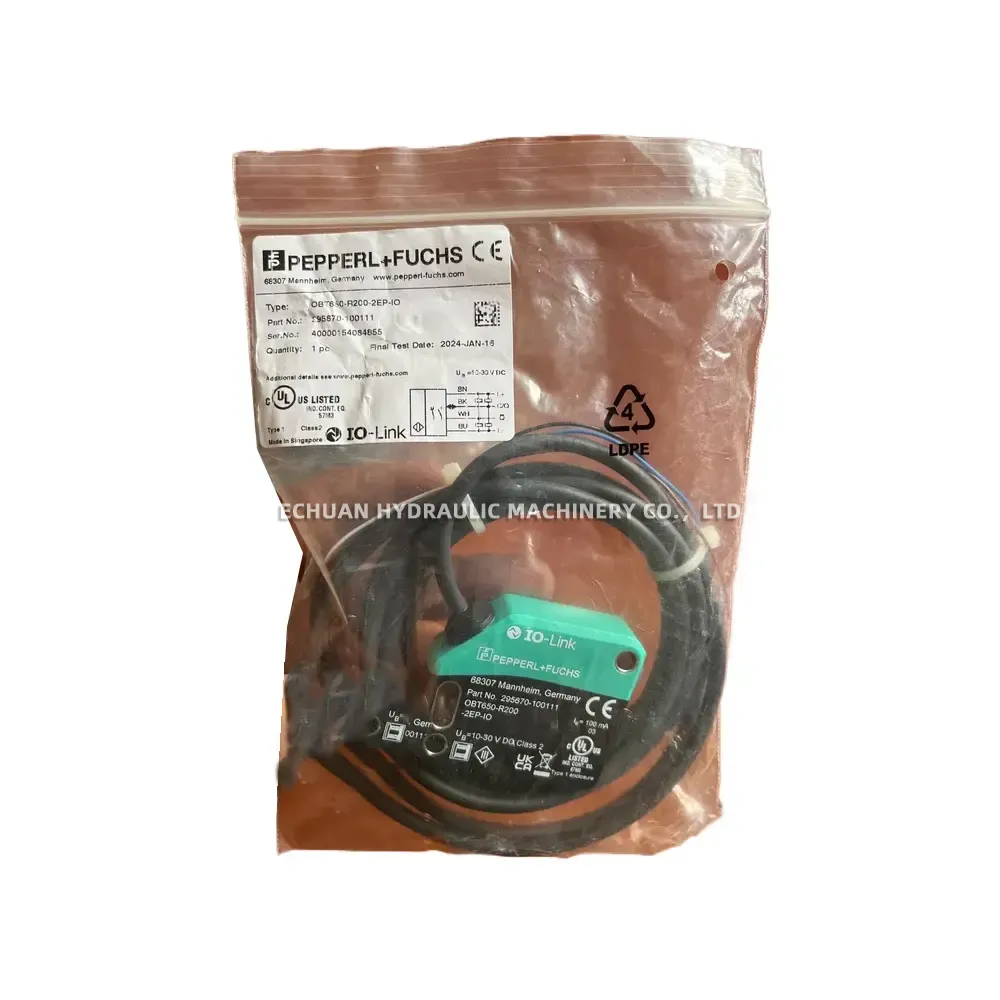

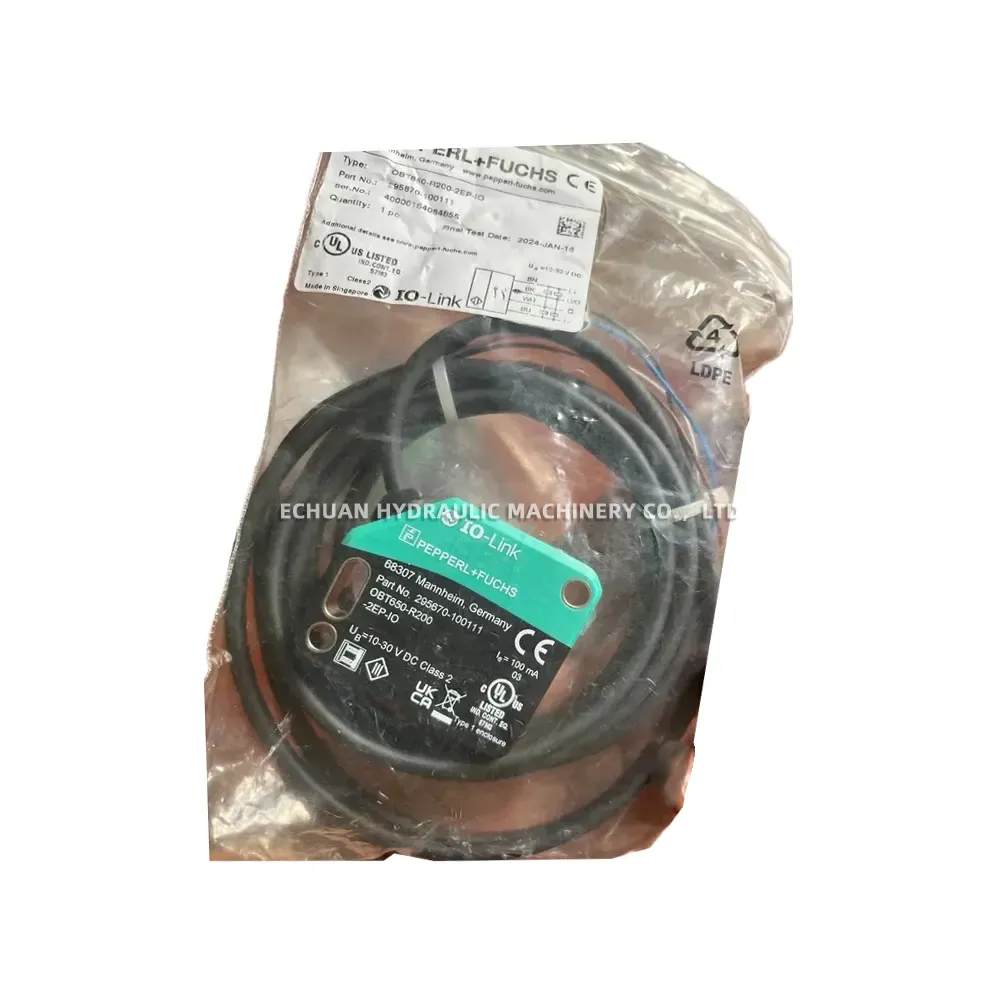

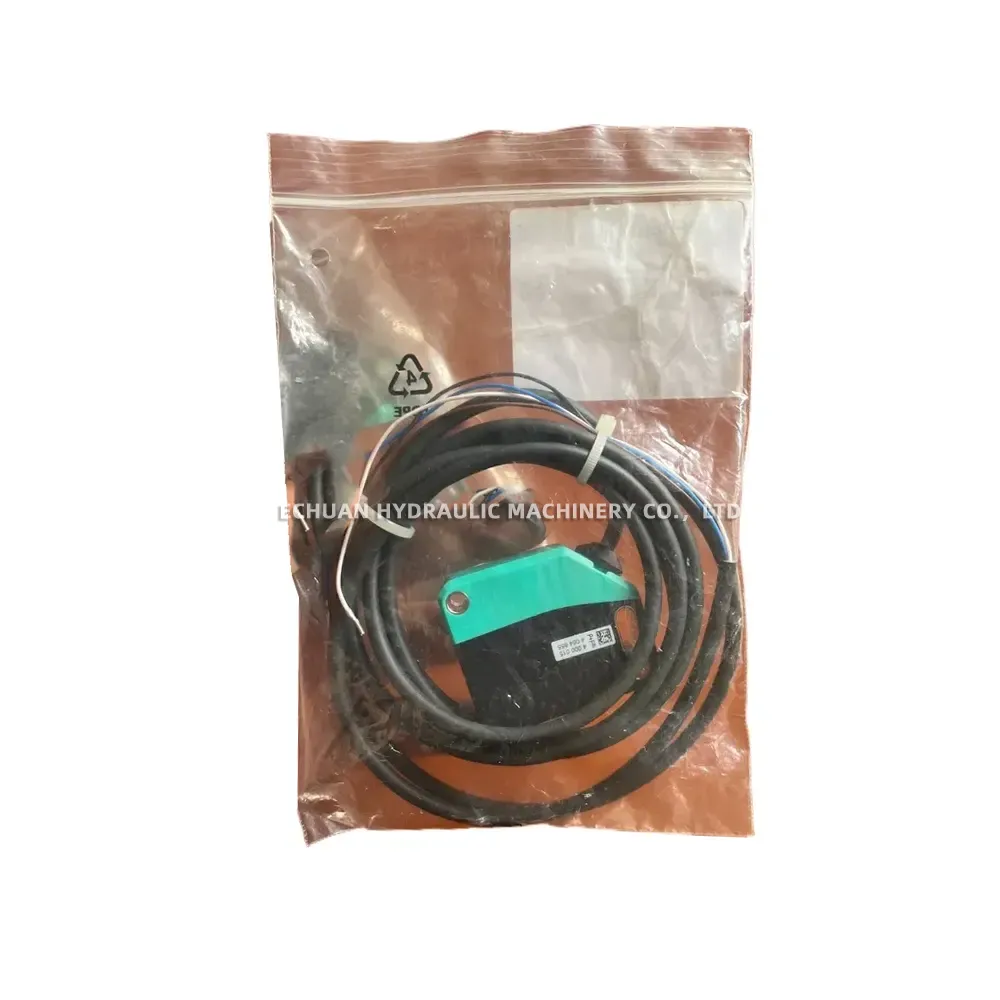

Pepperl+Fuchs OBT810-R200-2EP-IO IO-Link Sensor
The Pepperl+Fuchs OBT810-R200-2EP-IO (Part Number: 295870-100111) is a highly reliable diffuse mode photoelectric sensor engineered for precision object detection in demanding industrial environments. Equipped with an advanced IO-Link interface, this sensor allows for seamless smart factory integration, offering remote parameterization, real-time diagnostics, and enhanced communication capabilities. It operates efficiently on a 10-30 V DC (Class 2) power supply and features a robust Type 1 enclosure. With global approvals including cULus, CE, and UKCA, this sensor guarantees safety and consistent performance for your Industry 4.0 automation and control systems.
Technical Specifications:
- Brand: Pepperl+Fuchs
- Model Number: OBT810-R200-2EP-IO
- Part Number: 295870-100111
- Operating Voltage (U_B): 10 – 30 V DC, Class 2
- Rated Operating Current (I_e): 100 mA
- Communication Interface: IO-Link
- Connection / Wiring: BN (1+), BK (2 DO), WH (3 IO), BU (4 -)
- Enclosure Rating: Type 1
- Approvals & Certifications: cULus Listed (IND. CONT. EQ. 578X), CE, UKCA
- Country of Origin: Singapore
Pepperl+Fuchs OBT810-R200-2EP-IO IO-Link Sensor
Optimize your industrial automation with the Pepperl+Fuchs OBT810-R200-2EP-IO (295870-100111) photoelectric sensor. Featuring smart IO-Link technology, 10-30V DC operation, and a durable Type 1 enclosure, it ensures precise, reliable object detection for modern manufacturing applications.
