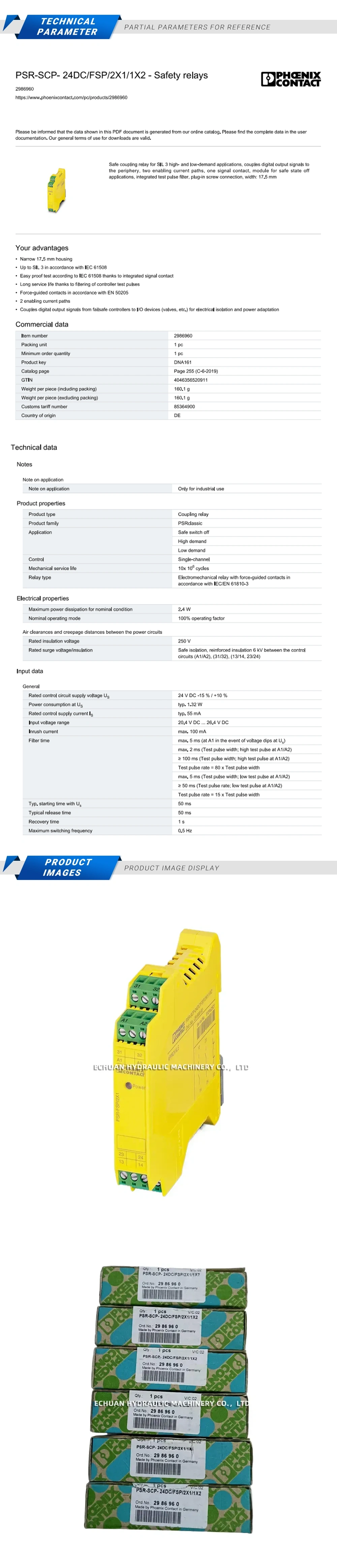

Product Description
Phoenix PSR-SCP-24DC/FSP/2X1/1X2
The Phoenix Contact PSR-SCP-24DC/FSP/2X1/1X2 is a high-performance safety relay designed for reliable contact expansion in safety-related applications. It is typically used in conjunction with fail-safe controllers or PLCs to safely switch loads. This compact module, with a width of just 17.5 mm, provides two enabling current paths and one signaling path, making it ideal for integrating into modern safety circuits. Featuring screw connection technology for secure and easy installation, this relay meets high safety standards, including SIL 3 and PL e, ensuring maximum operational safety for your machinery and personnel.
Technical Specifications:
- Nominal input voltage: 24 V DC
- Outputs: 2 enabling current paths (N/O), 1 signaling current path (N/C)
- Maximum switching voltage: 250 V AC/DC
- Safety Integrity Level: Up to SILCL 3 (IEC 62061) and PL e (EN ISO 13849-1)
- Connection method: Screw connection
- Dimensions (W x H x D): 17.5 mm x 99 mm x 114.5 mm
Phoenix PSRSCP-24DC/FSP/2X1/1X2
Shop the Phoenix Contact PSR-SCP-24DC/FSP/2X1/1X2 safety relay. This 24V DC module offers SIL 3 / PL e compliance for safe contact expansion with fail-safe controllers. Features 2 N/O and 1 N/C contacts in a compact 17.5mm housing.
