Product Description
Phoenix TRIO-PS-2G/1AC/24DC/10
The Phoenix Contact TRIO-PS-2G/1AC/24DC/10 is a high-performance, single-phase primary-switched power supply designed for DIN rail mounting. Part of the robust TRIO POWER family, this unit is engineered for reliability and efficiency in demanding industrial environments, particularly in machine building. Its compact design saves valuable cabinet space, while the tool-free Push-in connection makes installation quick and easy. With a dynamic boost feature that provides up to 150% of the nominal current for short periods, it can reliably start heavy loads. The wide input voltage range and extensive temperature tolerance ensure operational stability across various global applications and conditions.

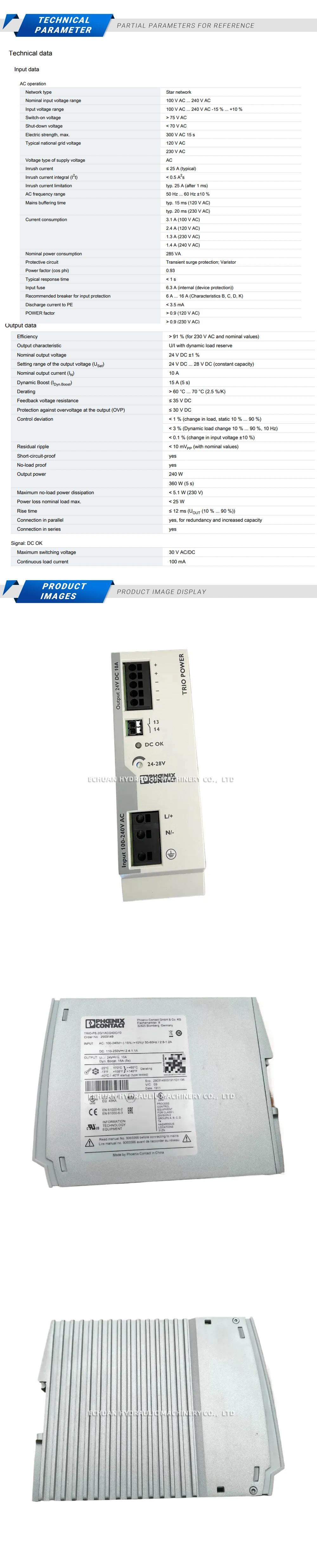

Technical Specifications:
- Input Voltage Range: 85 V AC … 264 V AC / 99 V DC … 275 V DC
- Nominal Output Voltage: 24 V DC ±1 %
- Nominal Output Current (I_N): 10 A (at ≤ 60 °C)
- Dynamic Boost (I_dyn): 15 A (for 5 s)
- Output Power: 240 W
- Efficiency: > 91 % (for 230 V AC and nominal values)
- Dimensions (W x H x D): 42 mm x 130 mm x 160 mm
- Connection Method: Push-in connection
Phoenix TRIO-PS-2G/1AC/24DC/10
Discover the Phoenix Contact TRIO-PS-2G/1AC/24DC/10, a compact and robust 24V, 10A DIN rail power supply. This single-phase unit delivers 240W of reliable power, featuring a dynamic boost and high efficiency, perfect for industrial machine building applications.
