Product Description
Pilz 774730 PNOZ X3 Safety Relay
The Pilz 774730, also known as the PNOZ X3, is a robust and reliable safety relay designed for critical safety applications in industrial automation. It is engineered to monitor safety functions such as E-STOP pushbuttons, safety gates, and light barriers. This unit ensures a safe and controlled shutdown of machinery in hazardous situations, helping to protect both personnel and equipment. With its versatile 24V AC/DC power supply and multiple safety contacts, the PNOZ X3 is a foundational component for building safety circuits compliant with international standards like PL e and SIL CL 3.

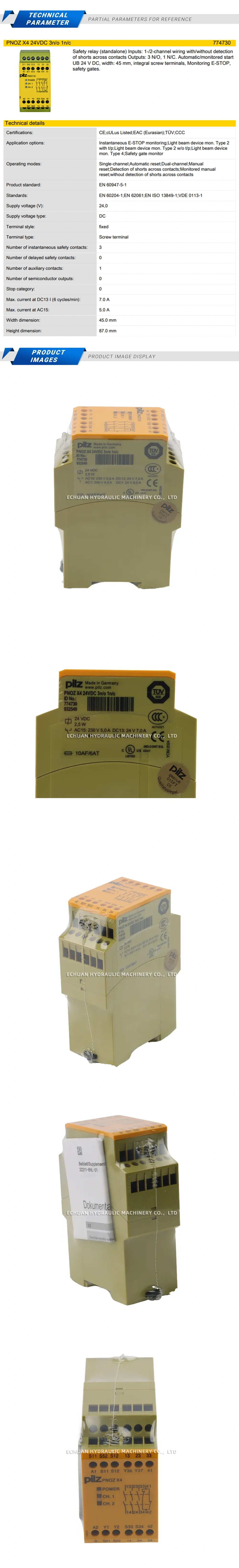

Technical Specifications:
- Model: PNOZ X3
- Order Number: 774730
- Supply Voltage: 24 V AC/DC
- Safety Contacts: 3 N/O (Normally Open)
- Auxiliary Contacts: 1 N/C (Normally Closed)
- Safety Level: PL e (EN ISO 13849-1), SIL CL 3 (IEC 62061)
- Terminal Type: Screw terminals
- Application: E-STOP pushbuttons, safety gates, light barriers
Pilz 774730
Shop the Pilz 774730 PNOZ X3 safety relay. This 24V AC/DC unit provides reliable monitoring for E-STOP and safety gates, ensuring high safety standards up to PL e and SIL CL 3 for industrial machinery.
