Product Description
Pilz PNOZ X1 774300
The Pilz PNOZ X1 774300 is a compact and reliable safety relay designed for monitoring critical safety functions in industrial applications. It is widely used for monitoring E-STOP pushbuttons, safety gates, and light barriers. With its 22.5 mm width, it saves valuable space in the control cabinet. The PNOZ X1 ensures high levels of safety and availability for machinery and personnel, meeting the stringent requirements of international safety standards. Its straightforward design and clear diagnostics via LED indicators make installation and troubleshooting simple and efficient.

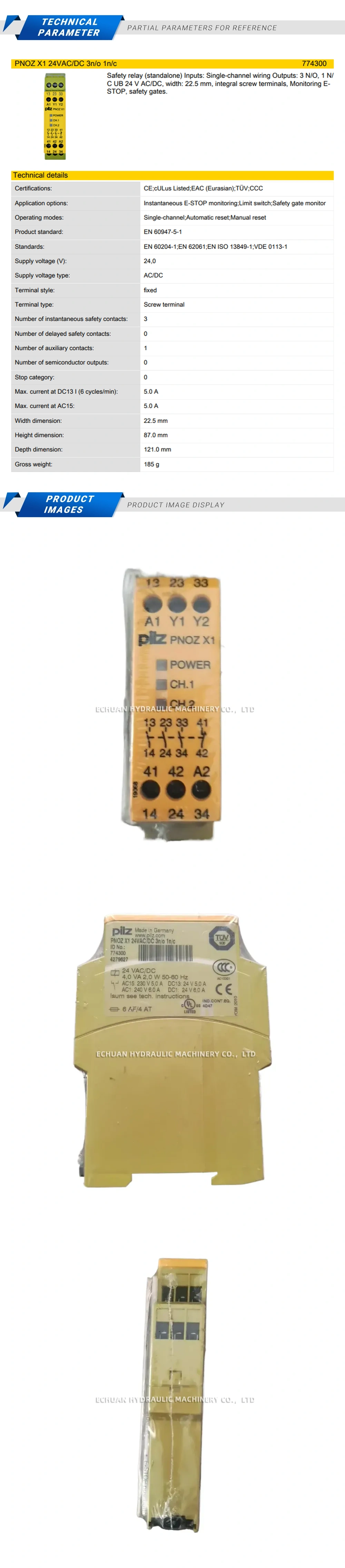

Technical Specifications:
- Supply Voltage: 24 VDC
- Safety Contacts (N/O): 3
- Auxiliary Contacts (N/C): 1
- Terminal Type: Screw terminals
- Safety Level: PL e (Cat. 4) according to EN ISO 13849-1, SIL CL 3 according to EN IEC 62061
- Width: 22.5 mm
Pilz PNOZ X1 774300
Discover the Pilz PNOZ X1 774300, a compact 24VDC safety relay for E-STOP and safety gate monitoring. This unit offers 3 N/O safety contacts and meets PL e / SIL 3 safety standards, ensuring maximum machine safety.
