Product Description
PILZ PNOZ X3.10P 777314
The PILZ PNOZ X3.10P 777314 is a robust and reliable safety relay designed for monitoring essential safety functions in industrial environments. It is commonly used for applications such as E-STOP pushbuttons, safety gates, and light barriers. This compact unit, with a width of just 22.5 mm, provides a high level of safety and performance, conforming to international standards like EN ISO 13849-1 (PL e) and IEC 62061 (SIL CL 3). Its pluggable screw terminals allow for quick and easy installation and maintenance, making it an efficient choice for machine safety circuits.

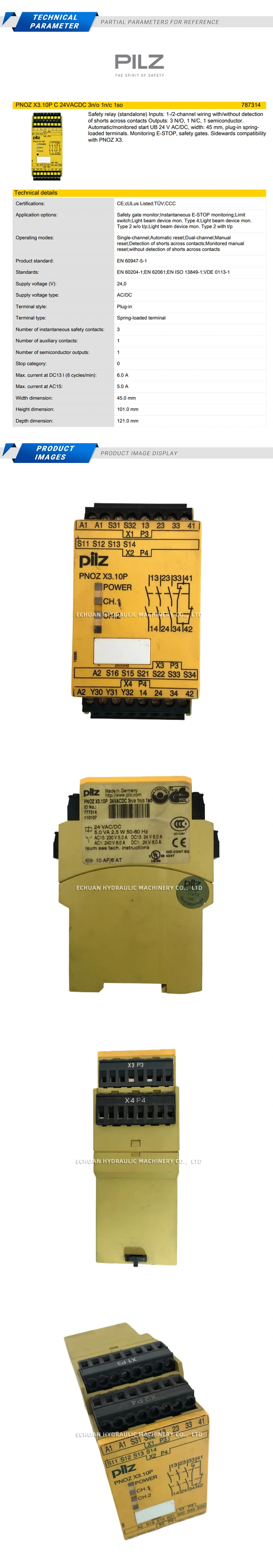

Technical Specifications:
- Supply Voltage: 24 V DC
- Safety Contacts: 3 N/O (Normally Open)
- Auxiliary Contacts: 1 N/C (Normally Closed)
- Terminal Type: Pluggable screw terminals
- Safety Level: PL e (EN ISO 13849-1), SIL CL 3 (IEC 62061)
- Dimensions (W x H x D): 22.5 mm x 94 mm x 121 mm
PILZ PNOZ X3.10P 777314
Discover the PILZ PNOZ X3.10P 777314, a compact 24V DC safety relay for monitoring E-STOP, safety gates, and light barriers. Features 3 N/O safety contacts, pluggable terminals, and meets PL e / SIL CL 3 safety standards.
