Product Description

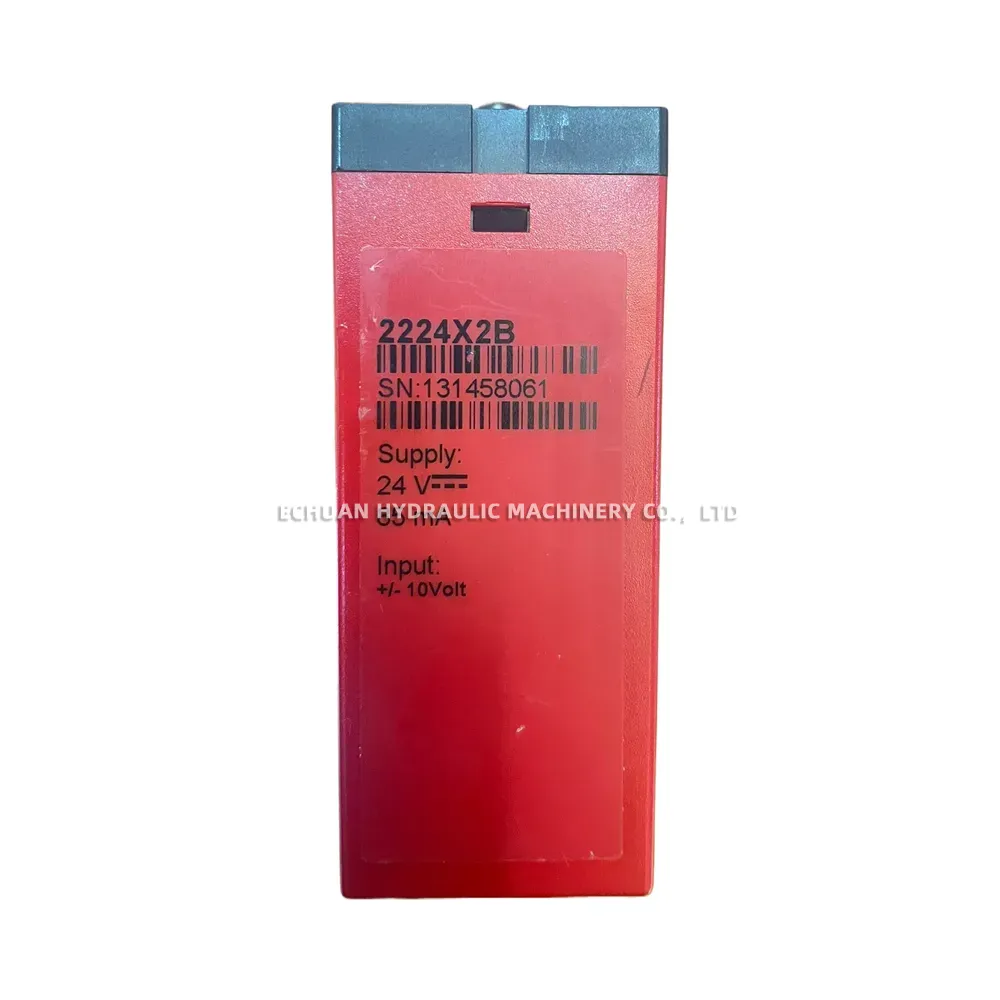

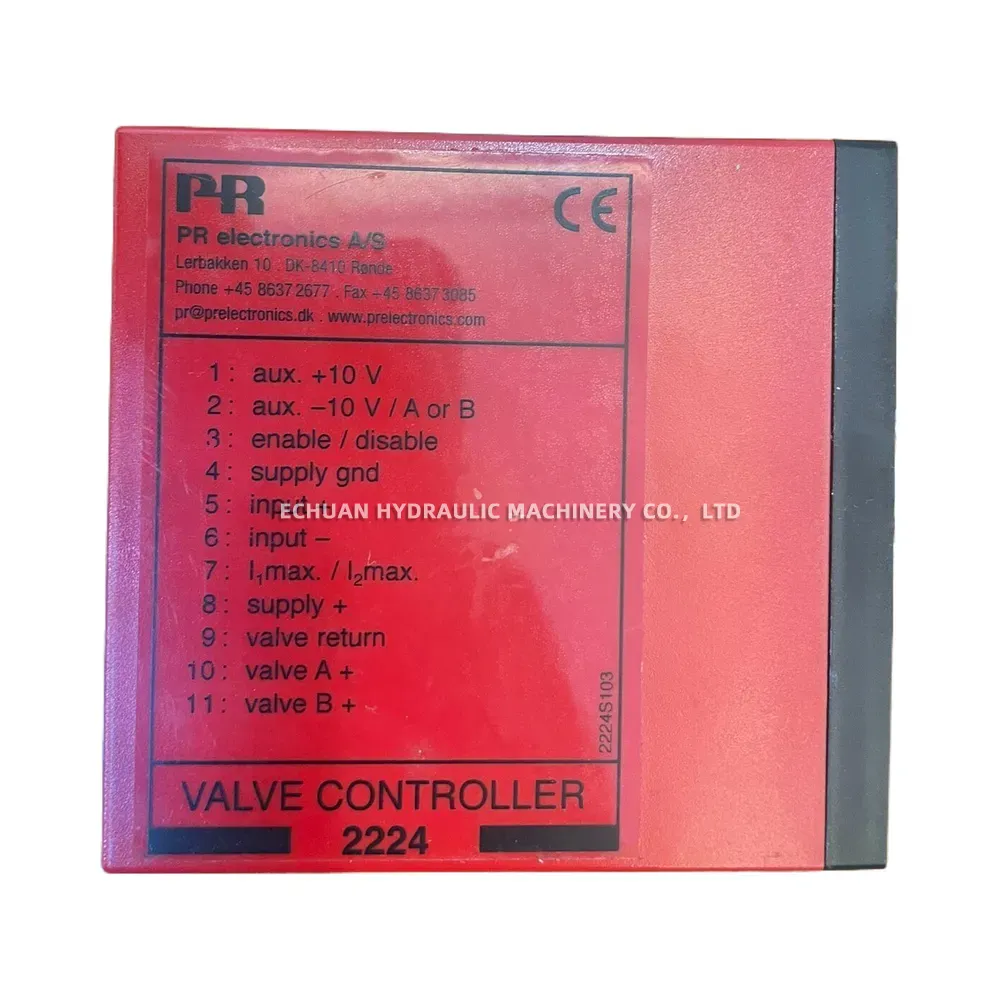

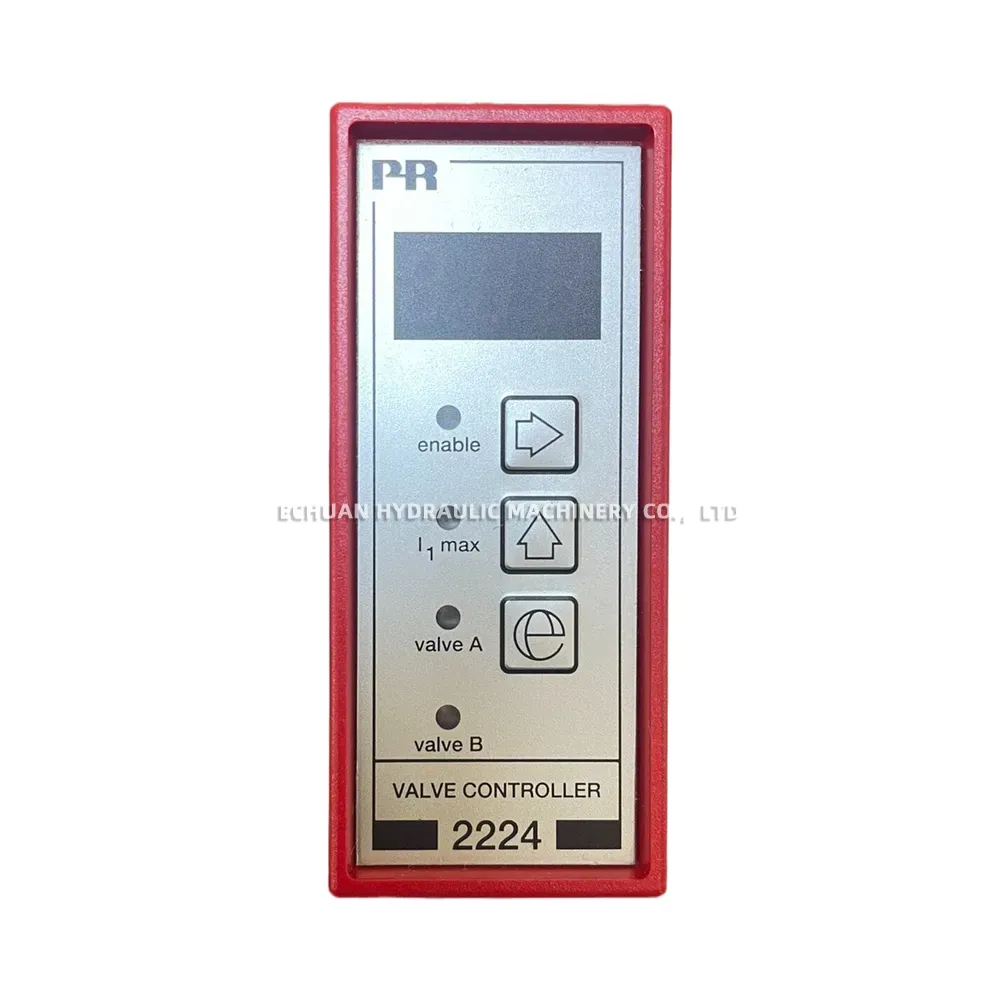

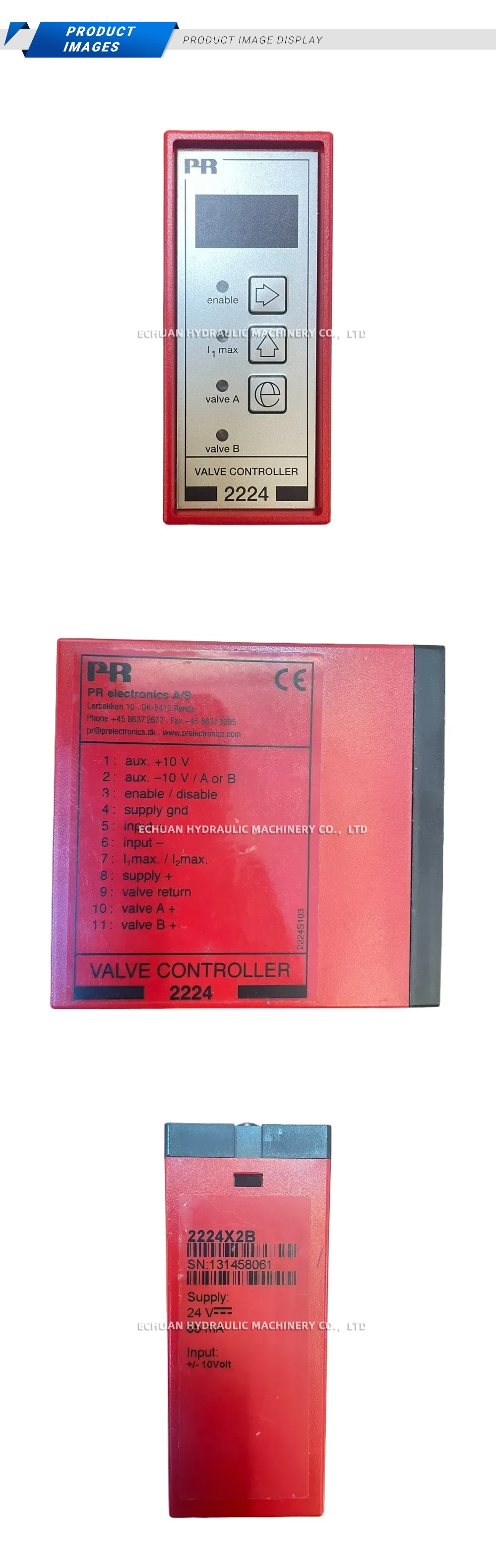

PR electronics 2224X2B Valve Controller
The PR electronics 2224X2B is a versatile and reliable valve controller engineered for the precise management of proportional valves with one or two coils in demanding industrial applications. This module accepts a differential +/- 10V input signal to provide accurate, controlled outputs to two separate valve coils (Valve A+ and Valve B+). It features essential controls such as an enable/disable input for safety and system integration, and adjustable maximum current limiting (I1/I2 max) to protect the valve coils. Additionally, it provides auxiliary +/- 10V outputs, enhancing its flexibility for integration into complex control systems. Powered by a standard 24 VDC supply, the 2224X2B is a robust solution for hydraulic and pneumatic control systems requiring high precision and reliability.
Technical Specifications:
- Model: 2224X2B
- Product Type: Industrial Valve Controller
- Supply Voltage: 24 V DC
- Supply Current: 85 mA
- Input Signal: +/- 10 V (Differential)
- Outputs: Dual valve outputs (Valve A+, Valve B+); Auxiliary +/- 10 V
- Control Features: Enable/Disable input, I1/I2 max. current limiting
PR electronics 2224X2B Valve Controller
High-performance PR electronics 2224X2B valve controller for precise industrial control of proportional valves. Features a +/- 10V input, dual valve outputs, and current limiting.
