Product Description

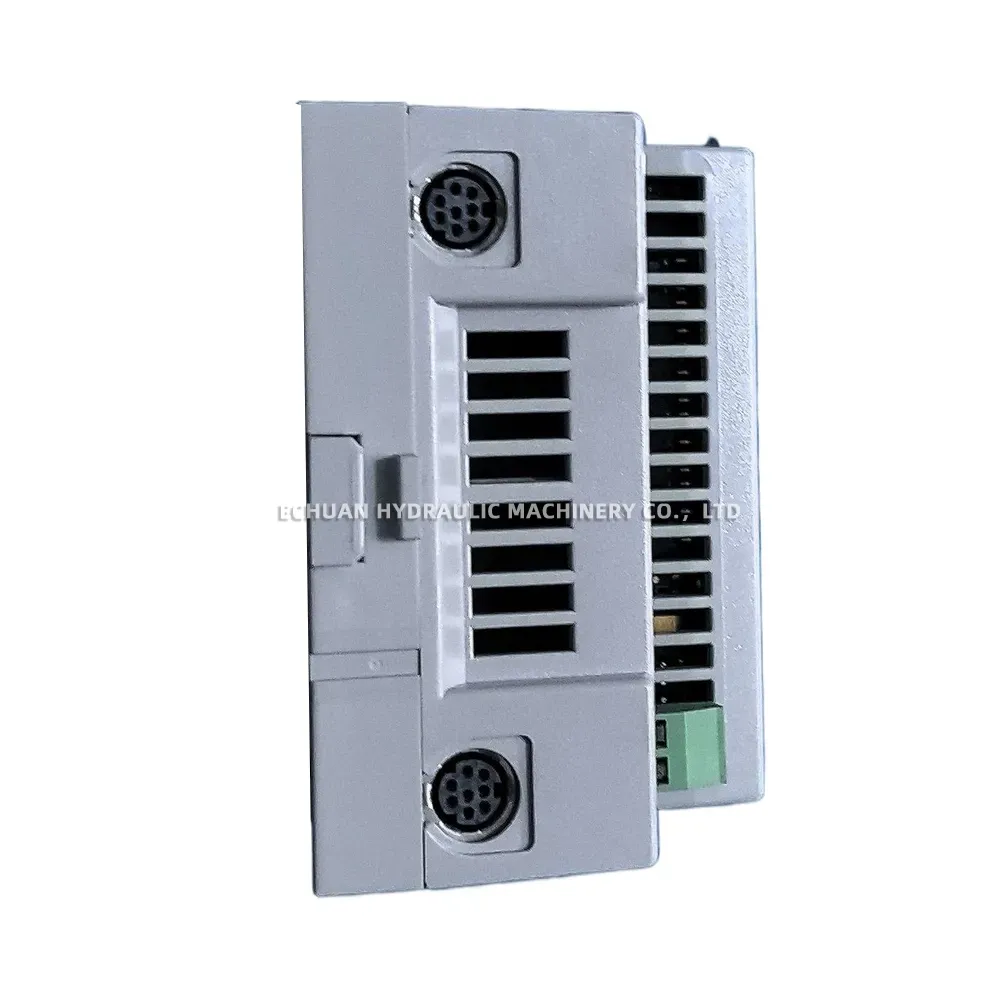

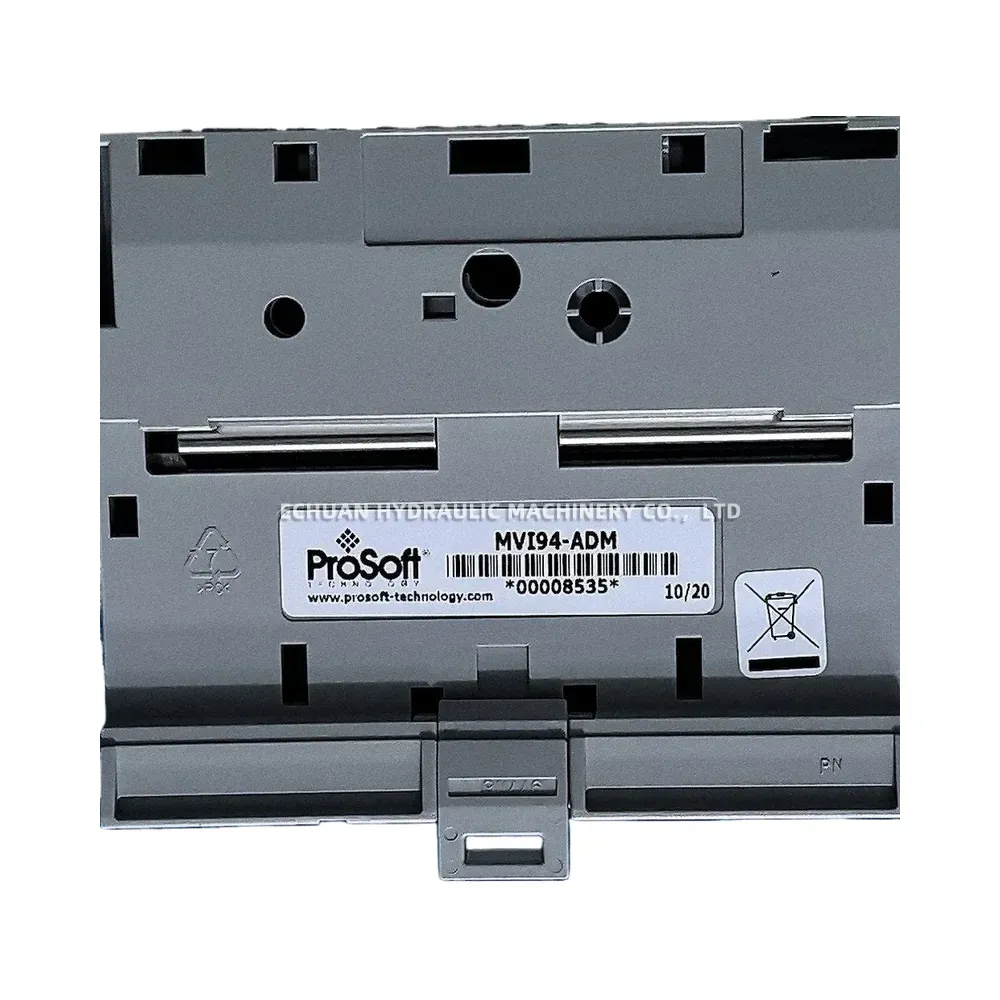

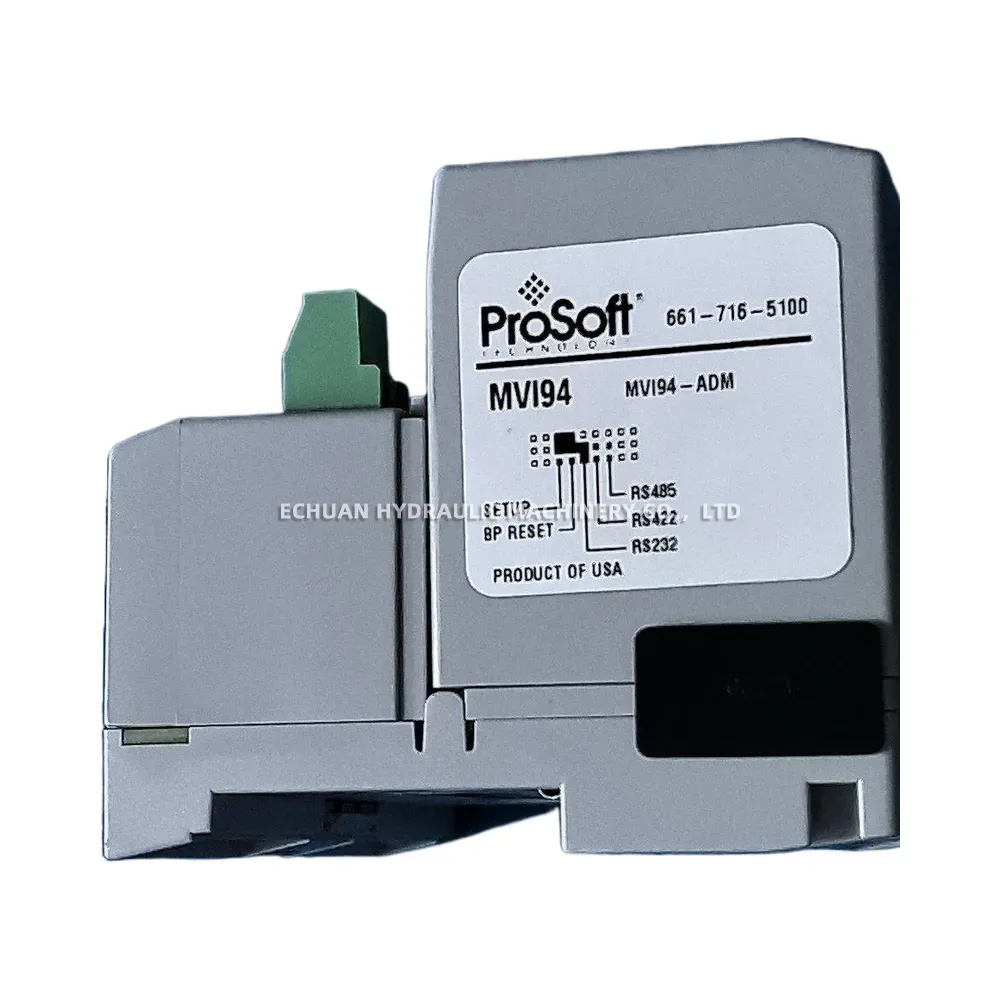

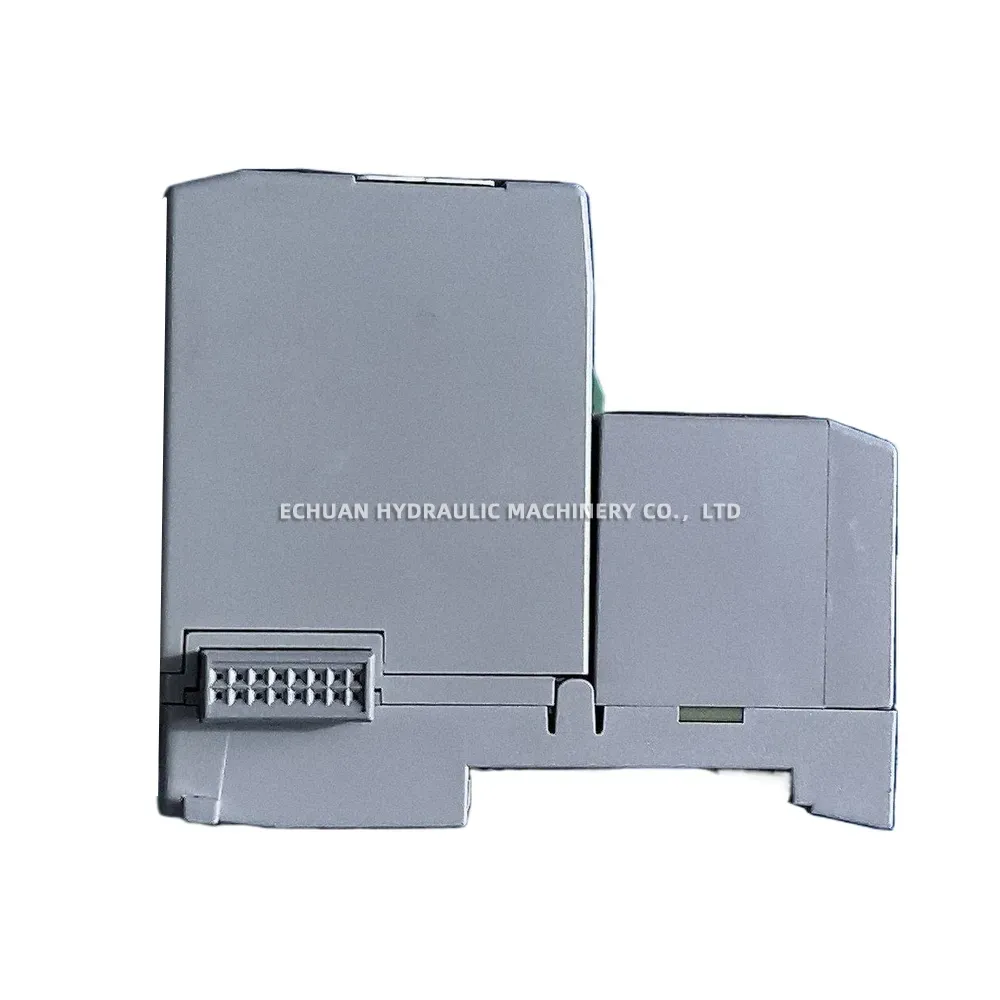

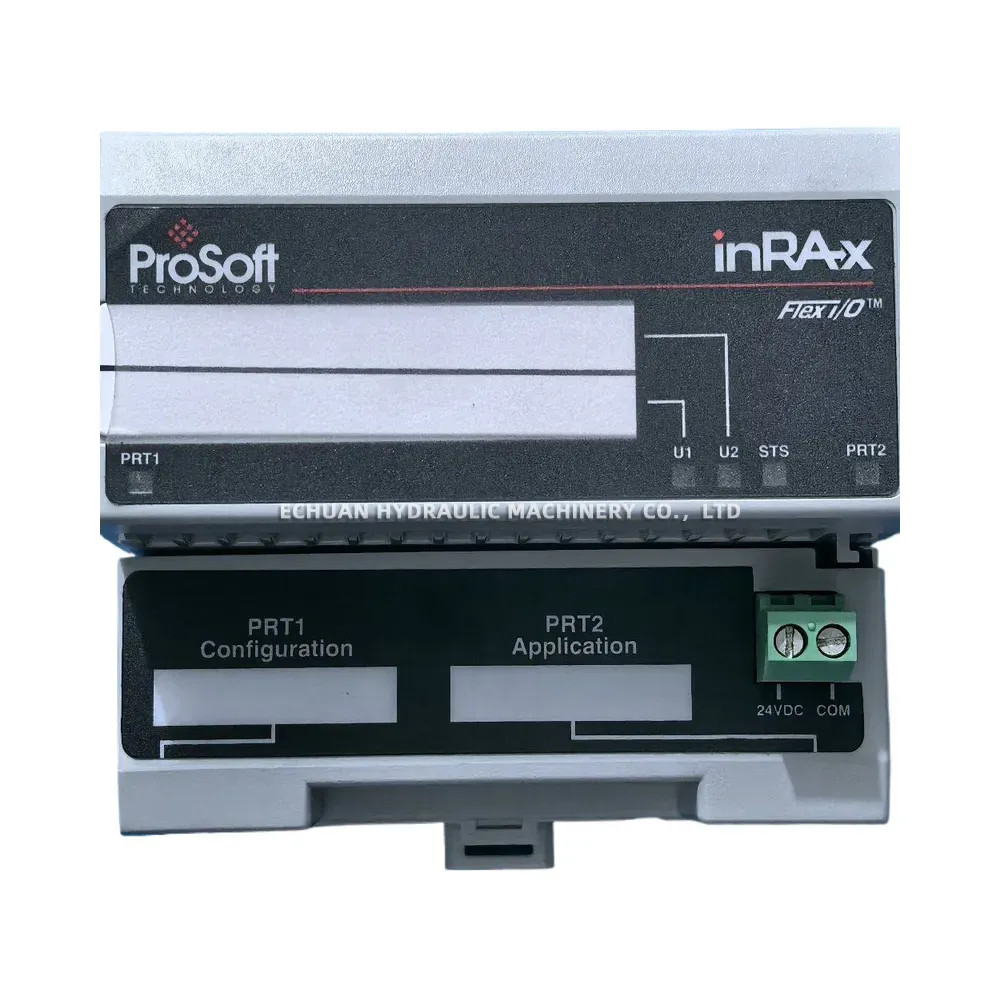

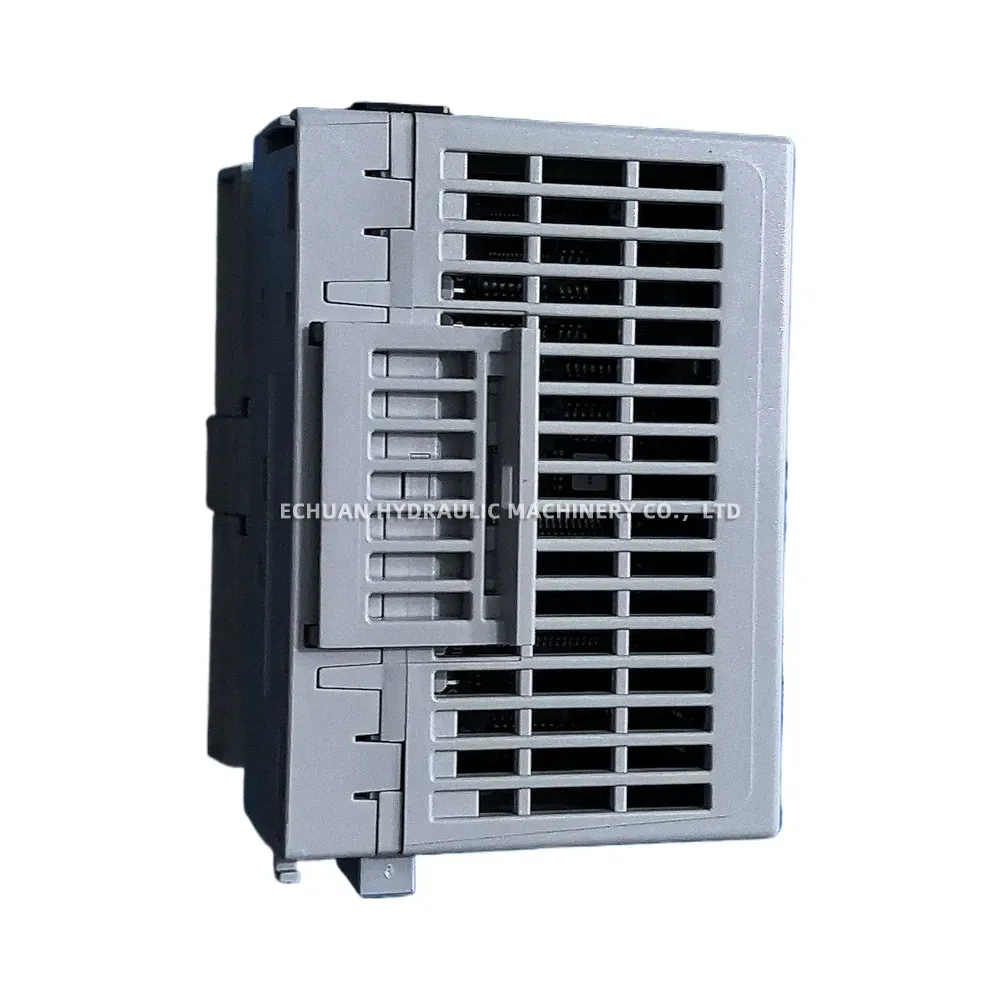

ProSoft MVI94-ADM
The ProSoft Technology MVI94-ADM is a powerful MODBUS Master/Slave communication module designed for the Rockwell Automation Flex I/O platform (1794 series). This module enables seamless integration between a Flex I/O processor and a wide range of MODBUS-compatible devices, such as RTUs, SCADA systems, and intelligent instruments. It operates as either a MODBUS master or slave, providing flexible communication solutions for data acquisition and control applications. The module features a single configurable serial port supporting RS-232, RS-422, and RS-485 protocols, making it a versatile choice for industrial automation environments.
Technical Specifications:
- Platform Compatibility: Rockwell Automation Flex I/O (1794)
- Backplane Current Load: 400 mA @ 5 VDC
- Communication Ports: One configurable port supporting RS-232, RS-422, and RS-485
- Protocols Supported: MODBUS RTU and ASCII (Master or Slave)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Relative Humidity: 5% to 95% (non-condensing)
ProSoft MVI94-ADM
The ProSoft MVI94-ADM is a reliable MODBUS Master/Slave communication module for the Rockwell Flex I/O platform, featuring a configurable RS-232/422/485 serial port for industrial device integration.
| Brand | Prosoft |
|---|---|
| Model | MVI94-ADM |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/prosoft-mvi94-adm |
