Product Description

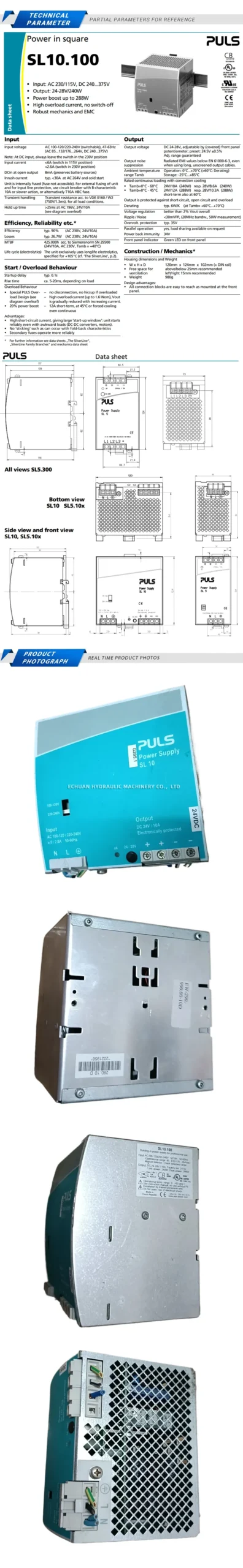

Puls SL10.100

The Puls SL10.100 is a high-performance, compact DIN rail power supply from the SilverLine series, designed for demanding industrial applications. It offers a reliable and efficient 24V DC output, capable of delivering up to 10A current (240W power). With its wide input voltage range, it is suitable for worldwide use. The SL10.100 is characterized by its high efficiency, robust design, and comprehensive protection features, making it an ideal choice for powering PLCs, sensors, actuators, and other critical industrial equipment where space on the DIN rail is a consideration and reliability is paramount.

Technical Specifications:

Input Voltage Range: AC 100-240V (±15%), DC 110-300V
Nominal Output Voltage: DC 24V
Output Voltage Adjustable Range: DC 24-28V
Output Current: 10A at 24V, 8.6A at 28V
Output Power: 240W
Efficiency: Up to 92.7%
Operating Temperature Range: -25°C to +70°C (derating applies above +60°C)
Dimensions (WxHxD): 60mm x 124mm x 117mm
Mounting: DIN Rail (TS35/7.5 or TS35/15)
Protection: Overload, Short-circuit, Output Over-voltage, Input Over-voltage, Over-temperature
Hold-up Time: Min. 25ms at 100V AC / 24V, 10A
Certifications: UL 508 Listed, UL 60950-1 Recognized, CSA C22.2 No. 60950-1, IEC 60950-1, CE Marked, EAC
Weight: Approximately 700g
