Product Description

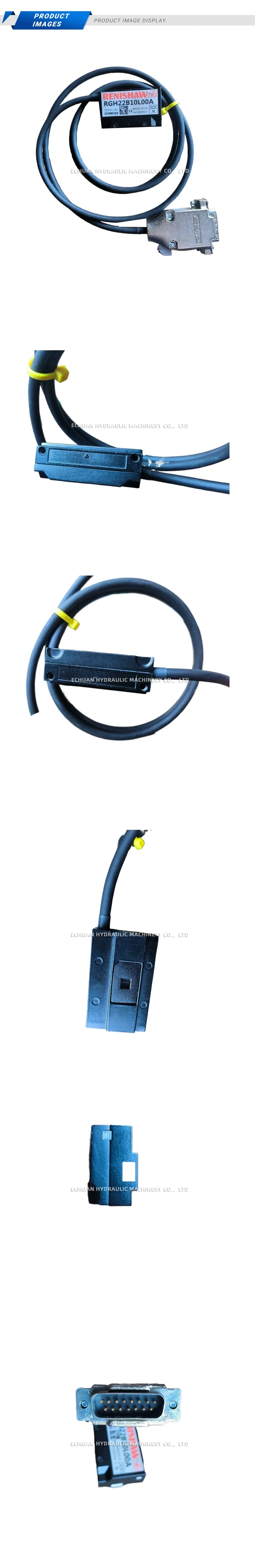

RENISHAW RGH22B10L00A
The RENISHAW RGH22B10L00A is a compact and robust non-contact optical encoder readhead designed for high-performance motion control systems. Part of the acclaimed RGH22 series, it delivers reliable and precise position feedback. This model provides a 1 Vpp analogue output signal and is engineered to be used with Renishaw’s RGS20-S 20 µm pitch linear scale. Its non-contact design eliminates friction and wear, ensuring long-term reliability and high-speed performance. The integrated set-up LED simplifies installation, making it an ideal choice for applications where space is limited but accuracy is paramount.
Technical Specifications:
- Model: RGH22B10L00A
- Product Type: Optical Encoder Readhead
- Output Signal: 1 Vpp Analogue
- Resolution: 10 µm
- Compatible Scale: RGS20-S (20 µm pitch)
- Reference Mark: Single, at optical centre
- Max Speed: Up to 10 m/s
- Connector: 15-way D-type (no cable included)
- Supply Voltage: 5 V ±5%
RENISHAW RGH22B10L00A
Discover the RENISHAW RGH22B10L00A, a compact optical encoder readhead offering 10 µm resolution and a 1 Vpp analogue output. Ideal for precise linear motion control with RGS20-S scale.
| Brand | RENISHAW |
|---|---|
| Model | RGH22B10L00A |
| Category | Electrical |
