Product Description

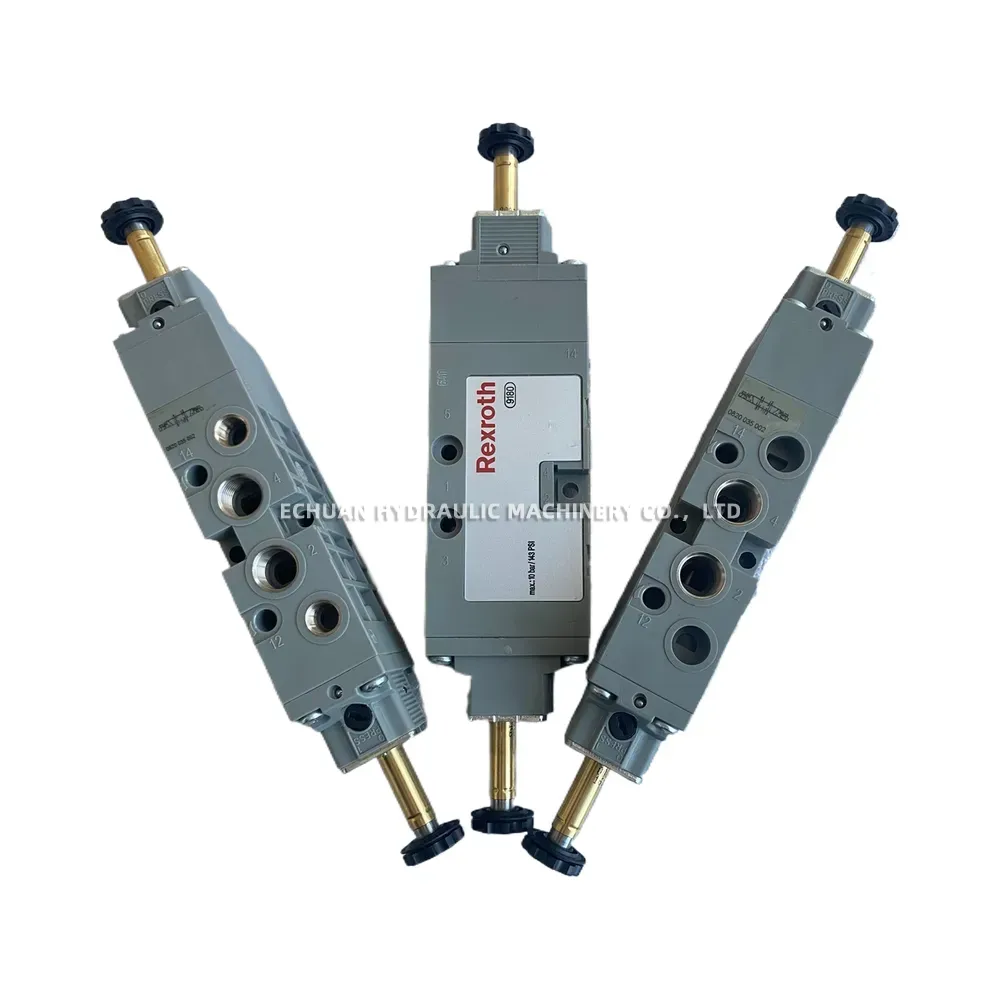

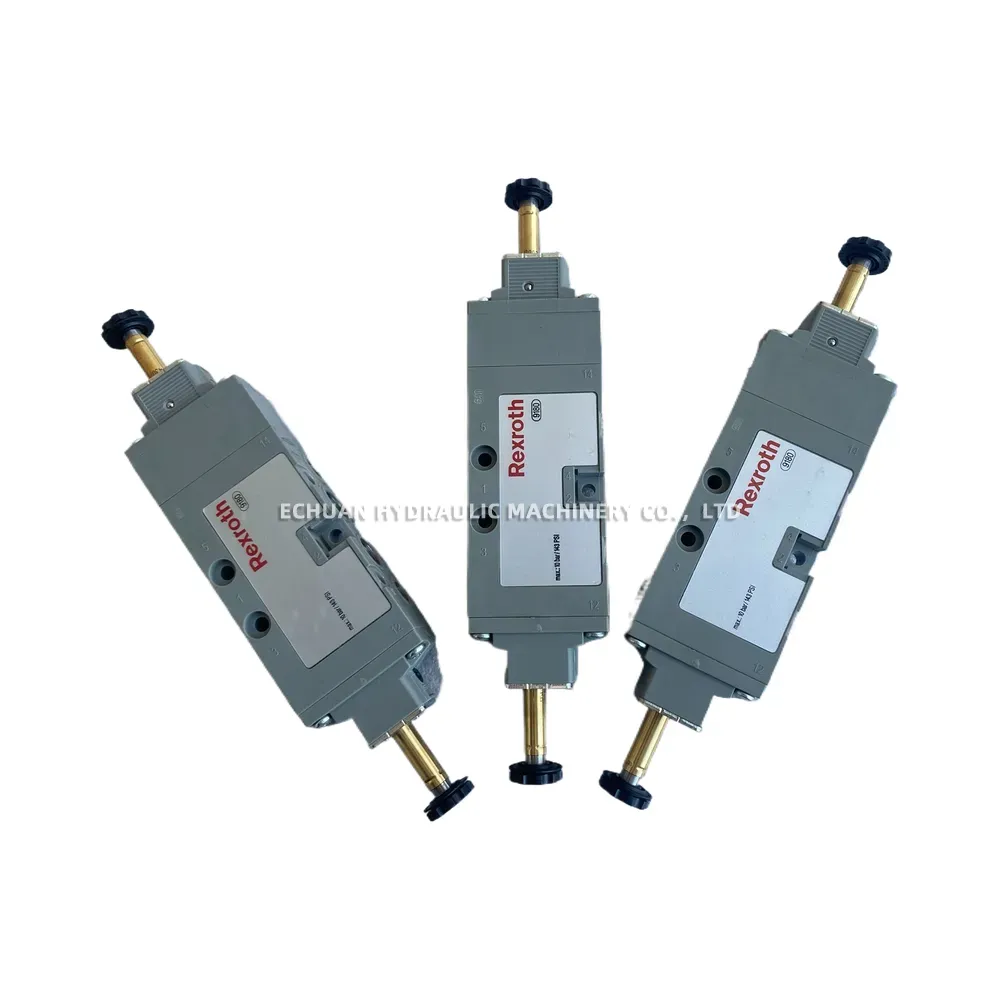

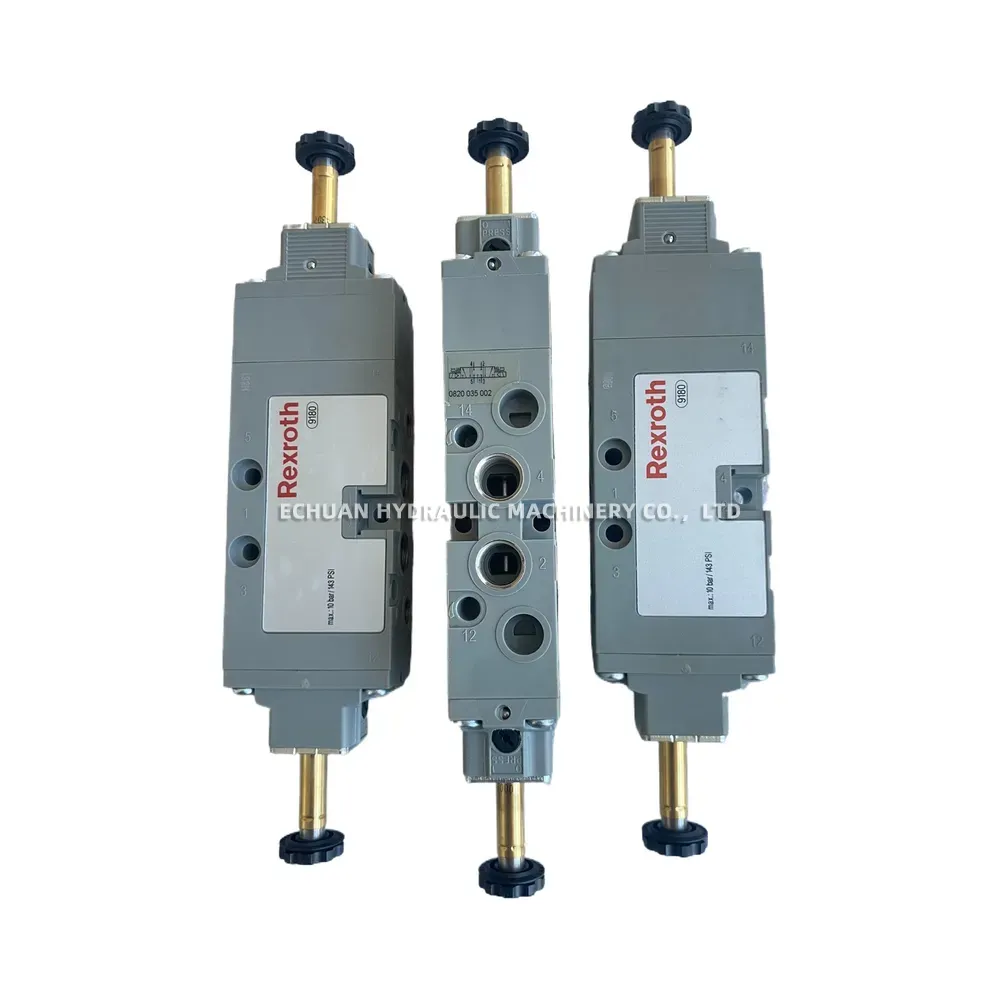

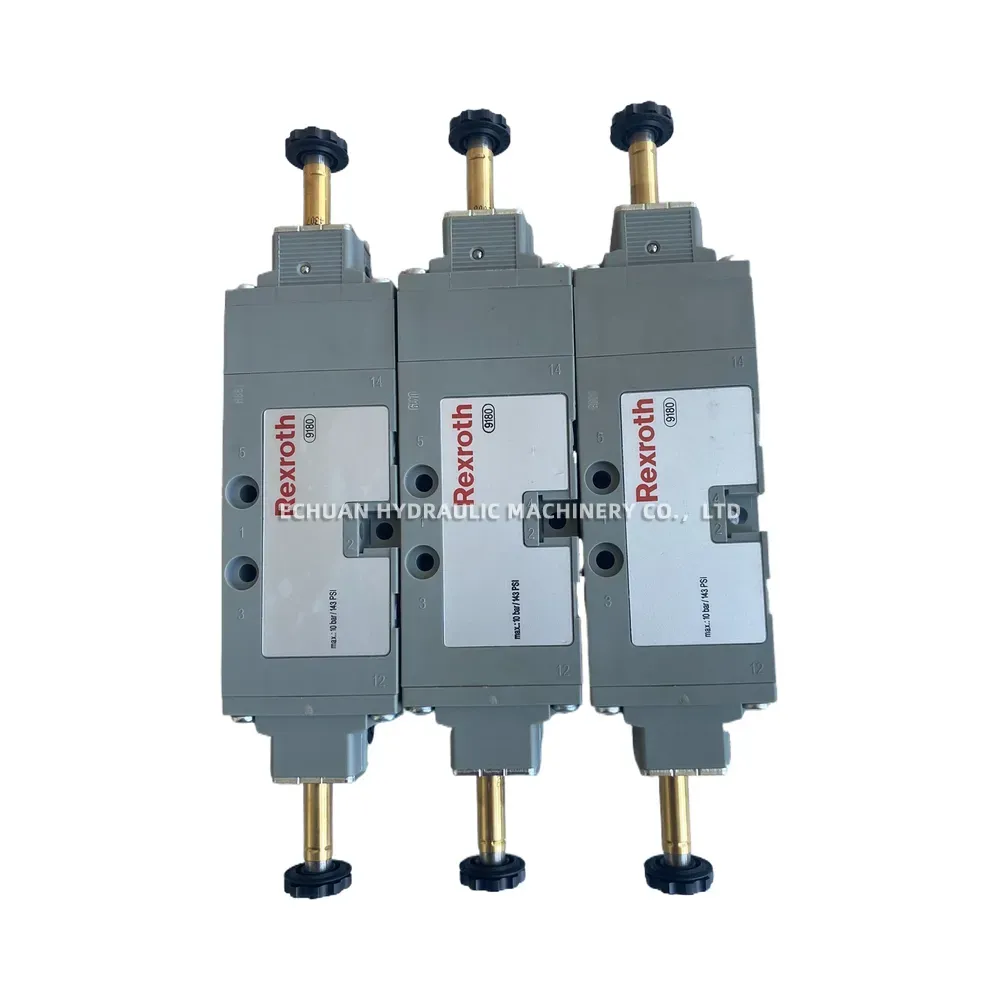

REXROTH 0820035002 RA14-5/3CC-SR-024DC
The Rexroth 0820035002 is a high-quality, solenoid-operated 5/3-way directional control valve from the RA14 series. This valve features a closed center (CC) spool configuration in the neutral position and spring return (SR) for reliable operation. Designed for pneumatic systems, it provides precise control over airflow direction. It operates on a 24V DC supply and utilizes G1/4 connection ports, making it suitable for various industrial automation applications requiring dependable directional control.
Technical Specifications:
- Type: 5/3 Directional Control Valve
- Series: RA14
- Actuation: Solenoid operated, double solenoid
- Return Mechanism: Spring Return (SR)
- Spool Symbol: Closed Center (CC)
- Port Connection: G1/4
- Nominal Flow Rate (Qn): 750 l/min (ANR)
- Operating Pressure Range: -0.95 bar to 10 bar
- Control Voltage: 24V DC
- Power Consumption: 2.0 W
- Ambient Temperature Range: -10 °C to +50 °C
- Medium: Compressed Air
- Housing Material: Aluminum
- Sealing Material: NBR (Nitrile Butadiene Rubber)
- Protection Class (with connector): IP65
- Manual Override: Yes (Latching type)
REXROTH 0820035002 RA14-5/3CC-SR-024DC
Model:REXROTH 0820035002 RA14-5/3CC-SR-024DC
| Brand | Rexroth |
|---|---|
| Model | 0820035002 RA14-5/3CC-SR-024DC |
| Part No. | REXROTH 0820035002 RA14-5/3CC-SR-024DC |
| Category | Hydraulic valves |
