Product Description

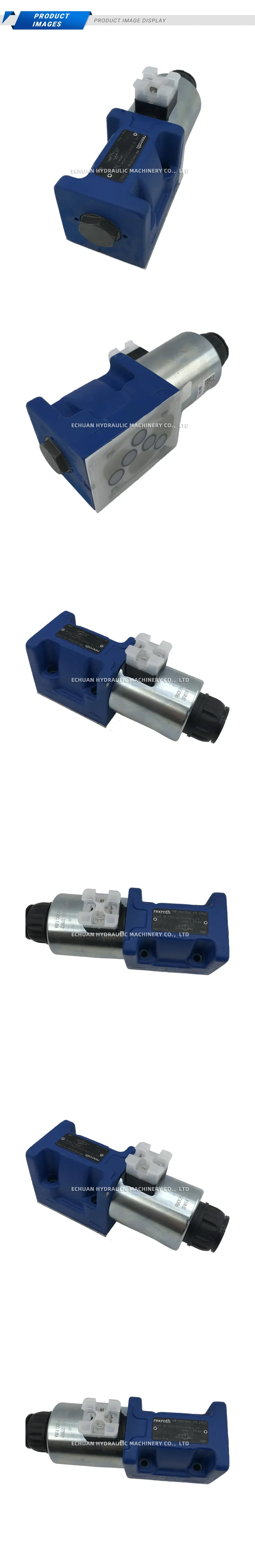

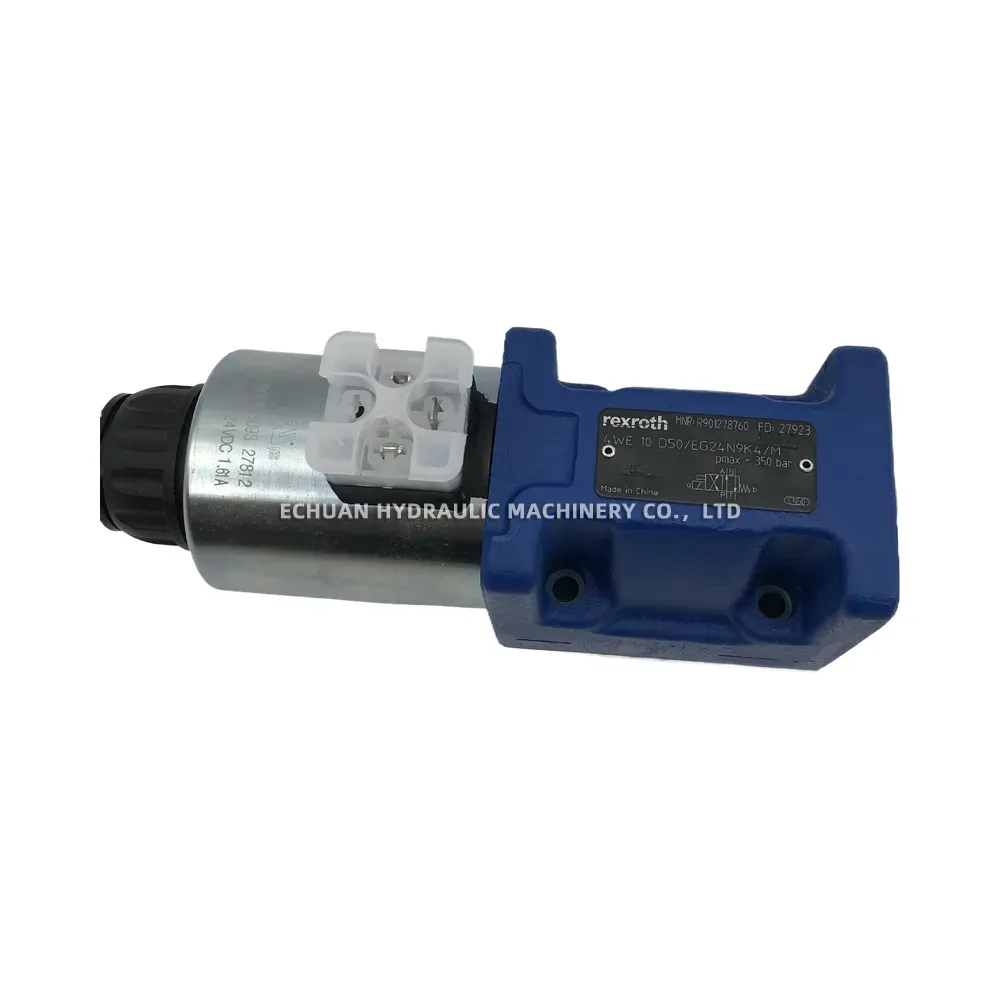

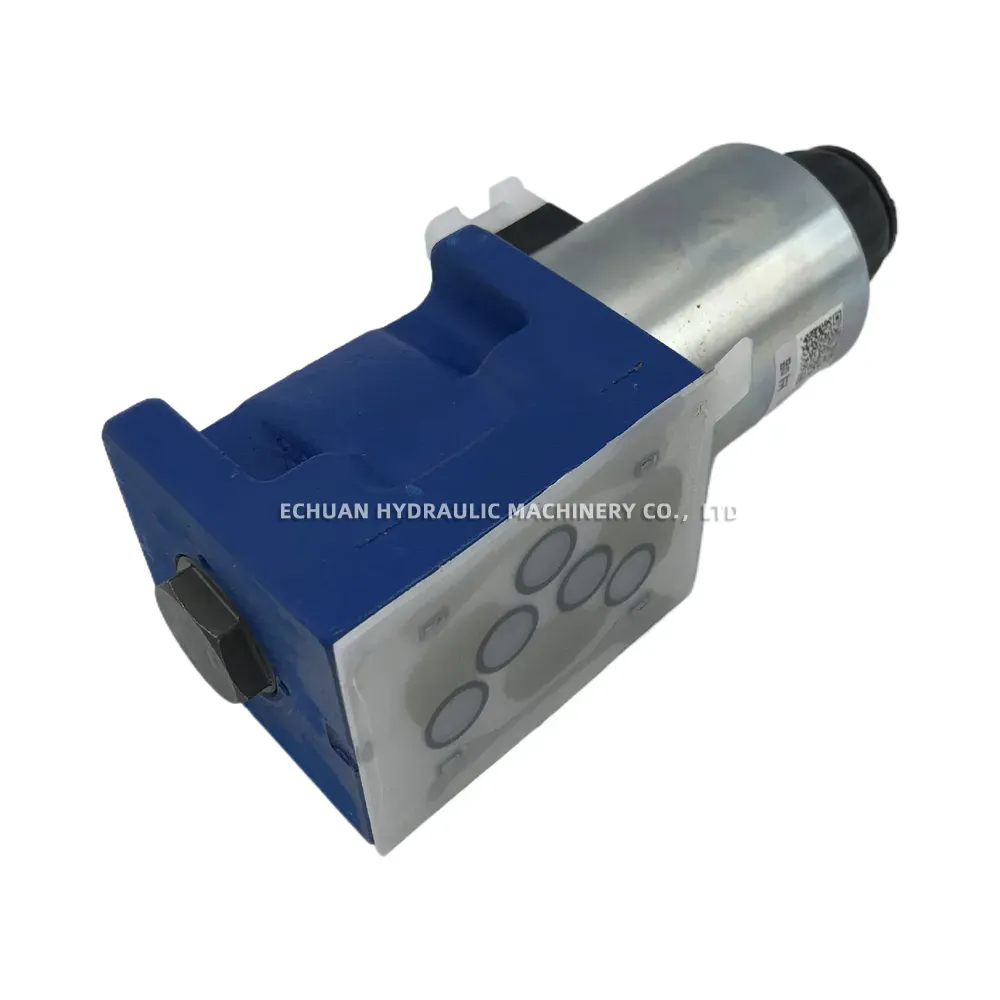

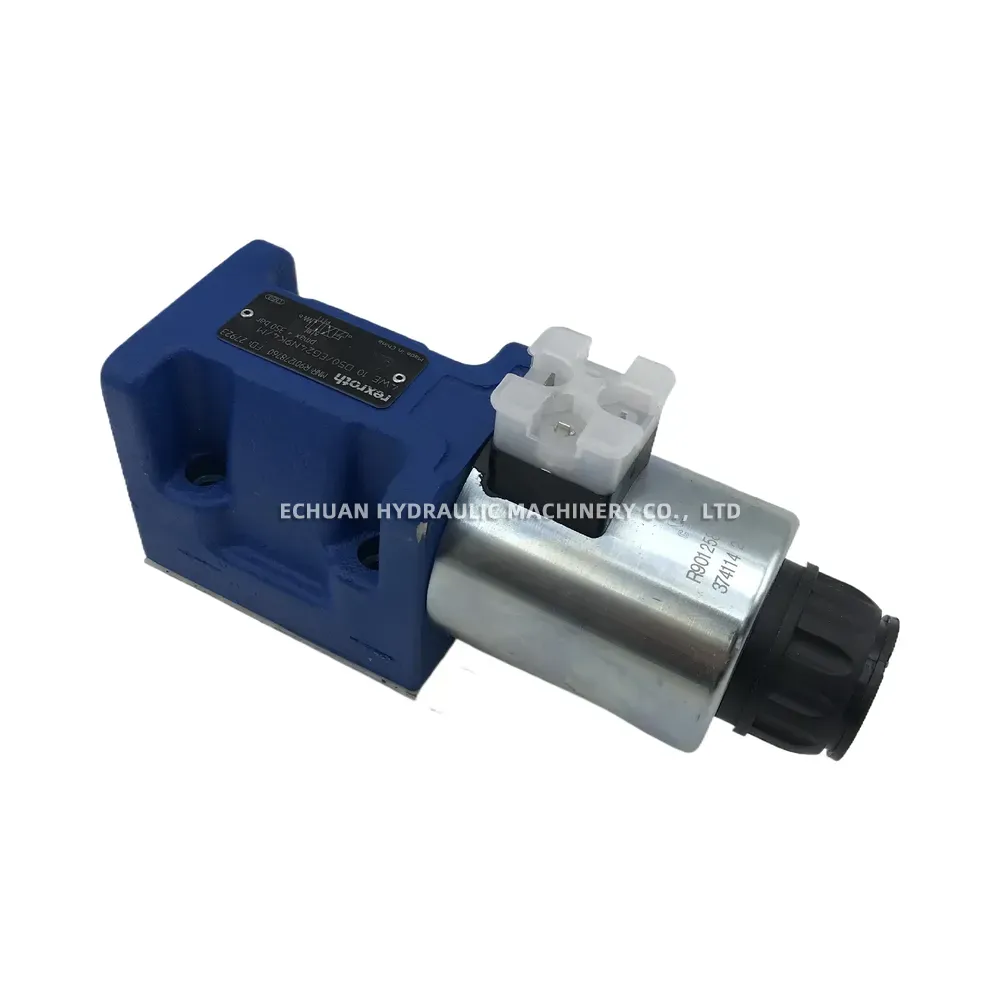

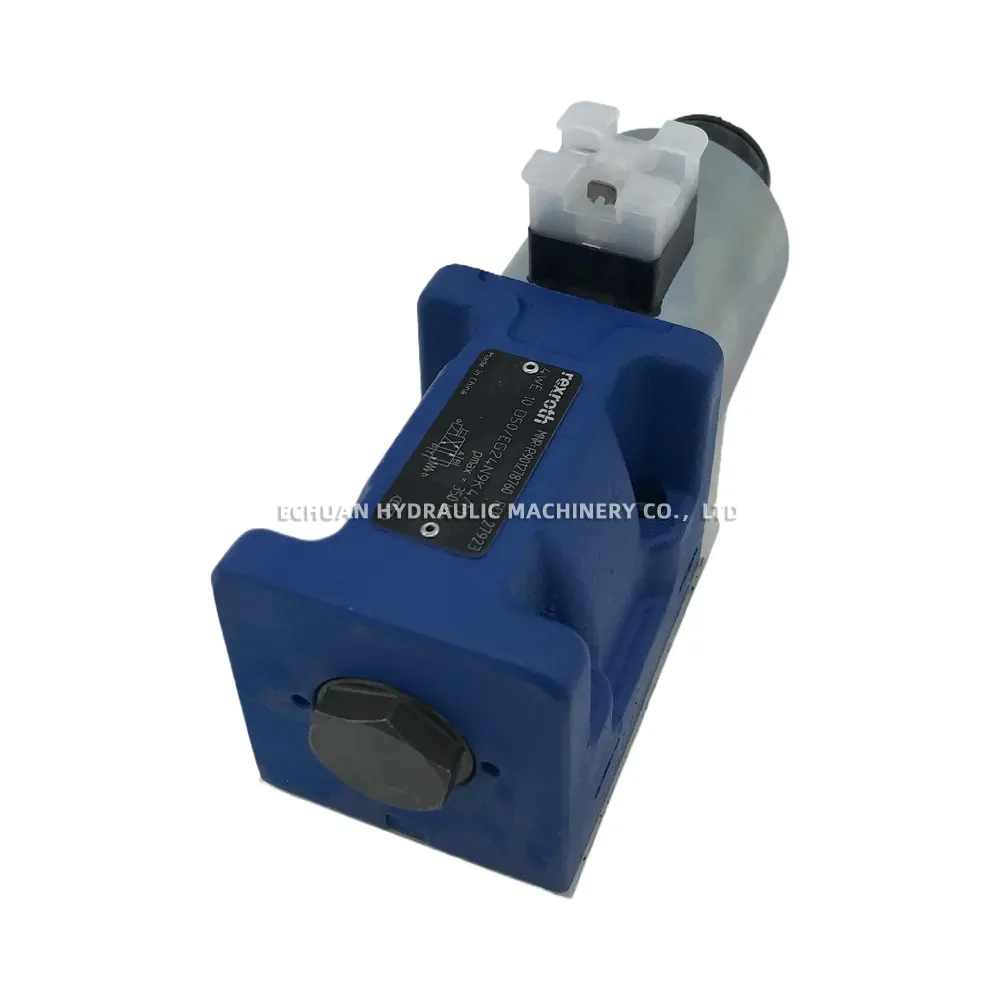

Rexroth 4WE 10 D50/EG24N9K4/M Solenoid Directional Control Valve
The Bosch Rexroth 4WE 10 D50/EG24N9K4/M (Material Number: R901278760) is a highly reliable, direct-operated directional spool valve with solenoid actuation. Engineered for industrial hydraulic systems, this size 10 valve effectively controls the start, stop, and direction of fluid flow. It features a standard subplate mounting interface (CETOP 5 / NFPA D05) for seamless integration into existing manifolds. Powered by a robust 24V DC solenoid coil that draws 1.8A, it ensures rapid and precise spool shifting. Designed for heavy-duty applications, the valve can withstand a maximum operating pressure of 350 bar (5076 psi), making it an ideal choice for demanding manufacturing, automation, and mobile hydraulic applications.
Technical Specifications:
- Brand: Bosch Rexroth
- Model: 4WE 10 D50/EG24N9K4/M
- Material Number (MNR): R901278760
- Valve Type: Solenoid-Operated Directional Control Valve
- Nominal Size: Size 10 (CETOP 5 / NFPA D05)
- Maximum Operating Pressure (pmax): 350 bar (5076 psi)
- Coil Voltage: 24V DC
- Coil Current: 1.8 A
- Mounting Type: Subplate Mounting
- Country of Origin: China
Rexroth 4WE 10 D50/EG24N9K4/M Solenoid Directional Control Valve
Shop the genuine Bosch Rexroth 4WE 10 D50/EG24N9K4/M (R901278760) Solenoid Directional Control Valve. This Size 10 hydraulic valve features a 24V DC coil, 350 bar max operating pressure, and standard CETOP 5 subplate mounting for superior industrial fluid control. Order today for reliable performance.
