Product Description

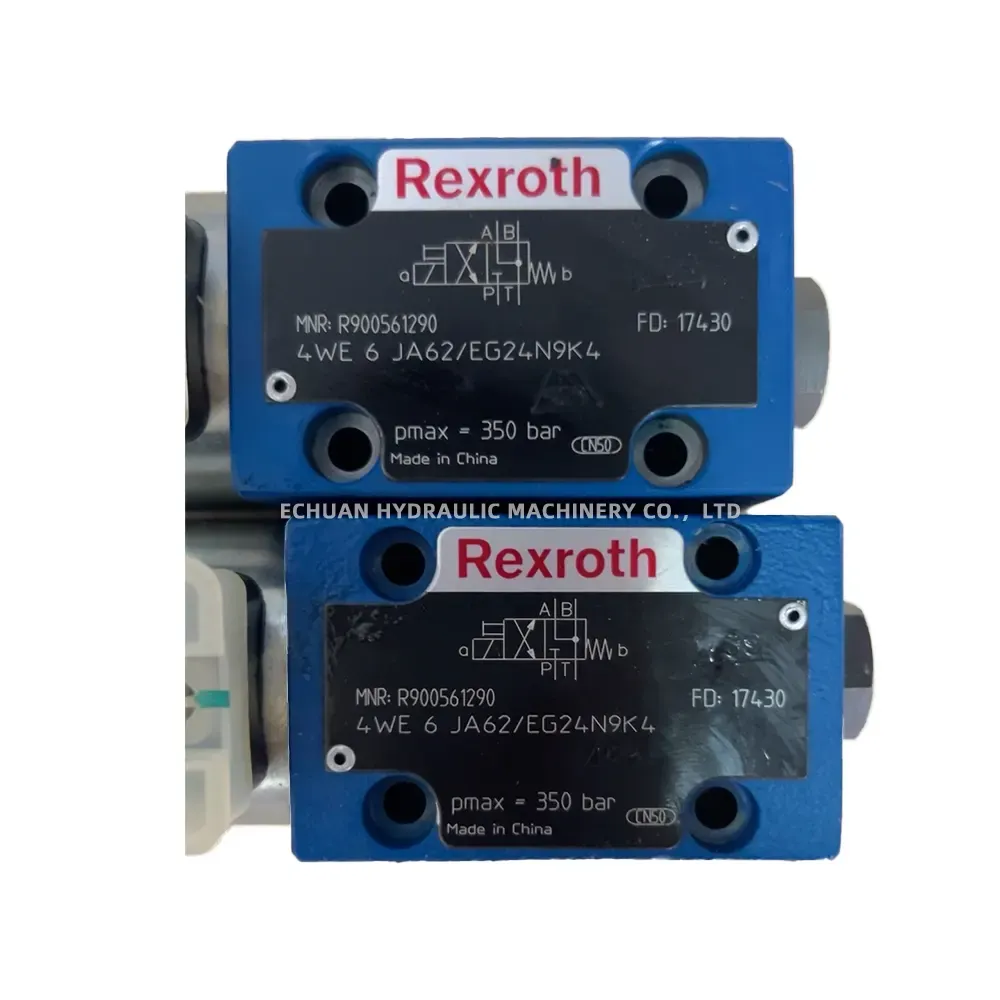

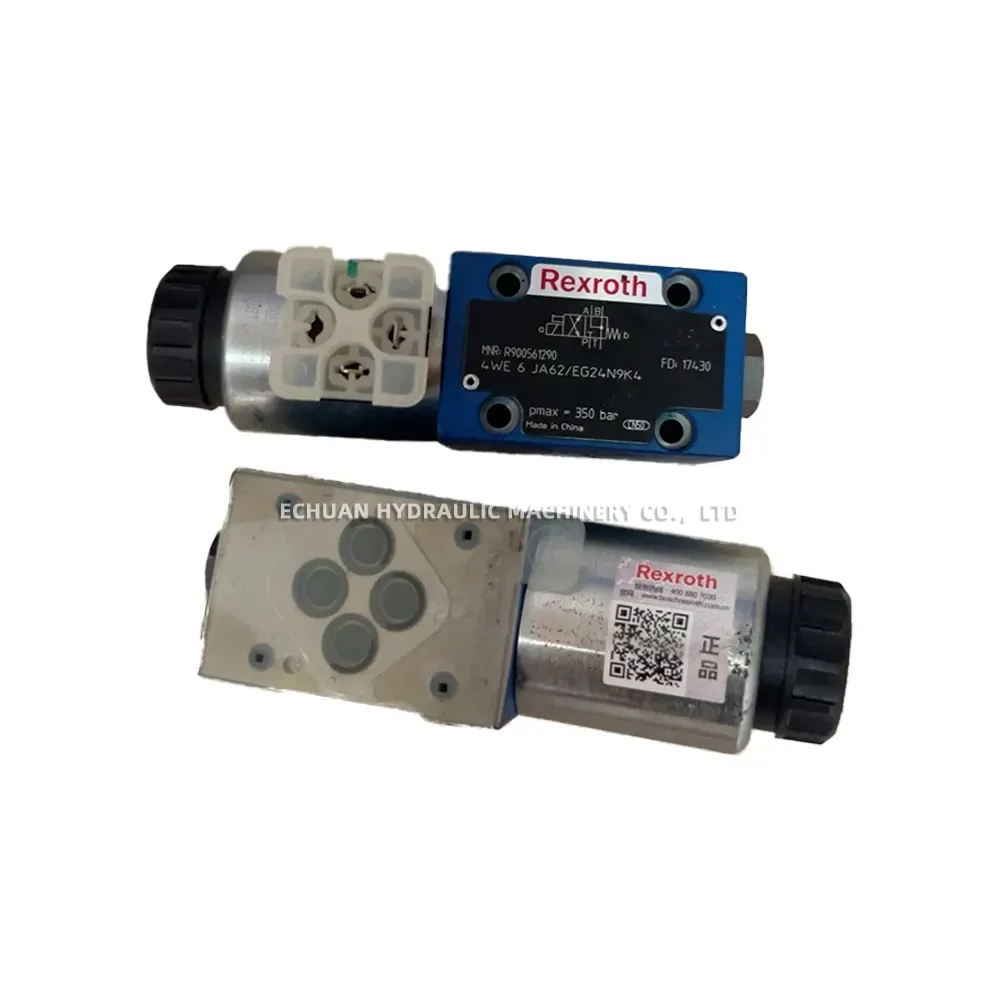

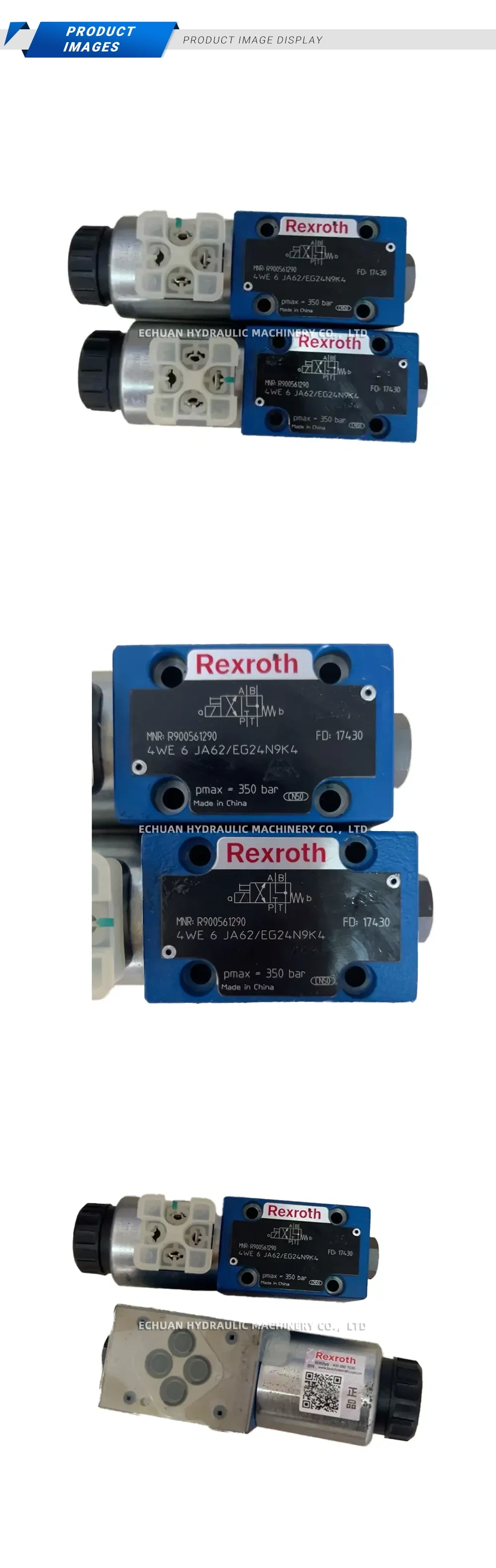

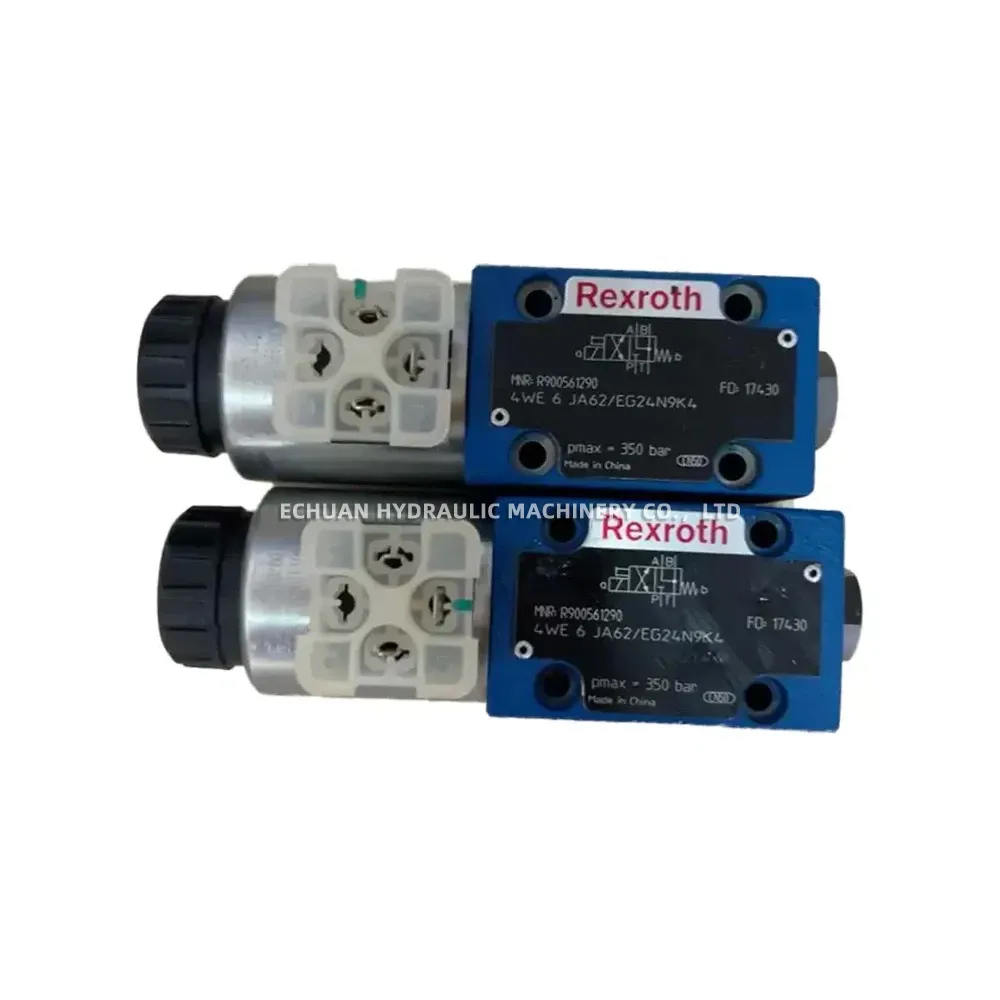

Rexroth 4WE 6 JA62/EG24N9K4 Hydraulic Solenoid Directional Valve
The Rexroth 4WE 6 JA62/EG24N9K4 is a high-performance, direct-operated directional spool valve designed to control the start, stop, and direction of fluid flow in a hydraulic system. Actuated by a reliable 24V DC wet-pin solenoid, this valve ensures long service life and quiet, efficient operation. It features the industry-standard NG6 (D03) mounting interface for easy installation and system integration. The ‘J’ spool configuration blocks the pressure port while connecting the work ports (A, B) to the tank in the neutral position, making it ideal for applications requiring the actuator to be free-floating when the valve is centered. This valve is a benchmark for quality and performance in industrial hydraulics.
Technical Specifications:
- Model: 4WE 6 JA62/EG24N9K4
- Material Number (MNR): R900561290
- Valve Type: 4/3-Way Solenoid Operated Directional Spool Valve
- Size: NG6 (CETOP 3 / D03)
- Maximum Operating Pressure: 350 bar (5075 psi)
- Solenoid Voltage: 24V DC
- Spool Symbol: J

Rexroth 4WE 6 JA62/EG24N9K4 Hydraulic Solenoid Directional Valve
Buy the genuine Rexroth 4WE 6 JA62/EG24N9K4 (R900561290) hydraulic solenoid directional valve. This NG6 / D03 size valve operates at 24V DC with a max pressure of 350 bar, providing reliable and precise control for industrial hydraulic systems.
