Product Description

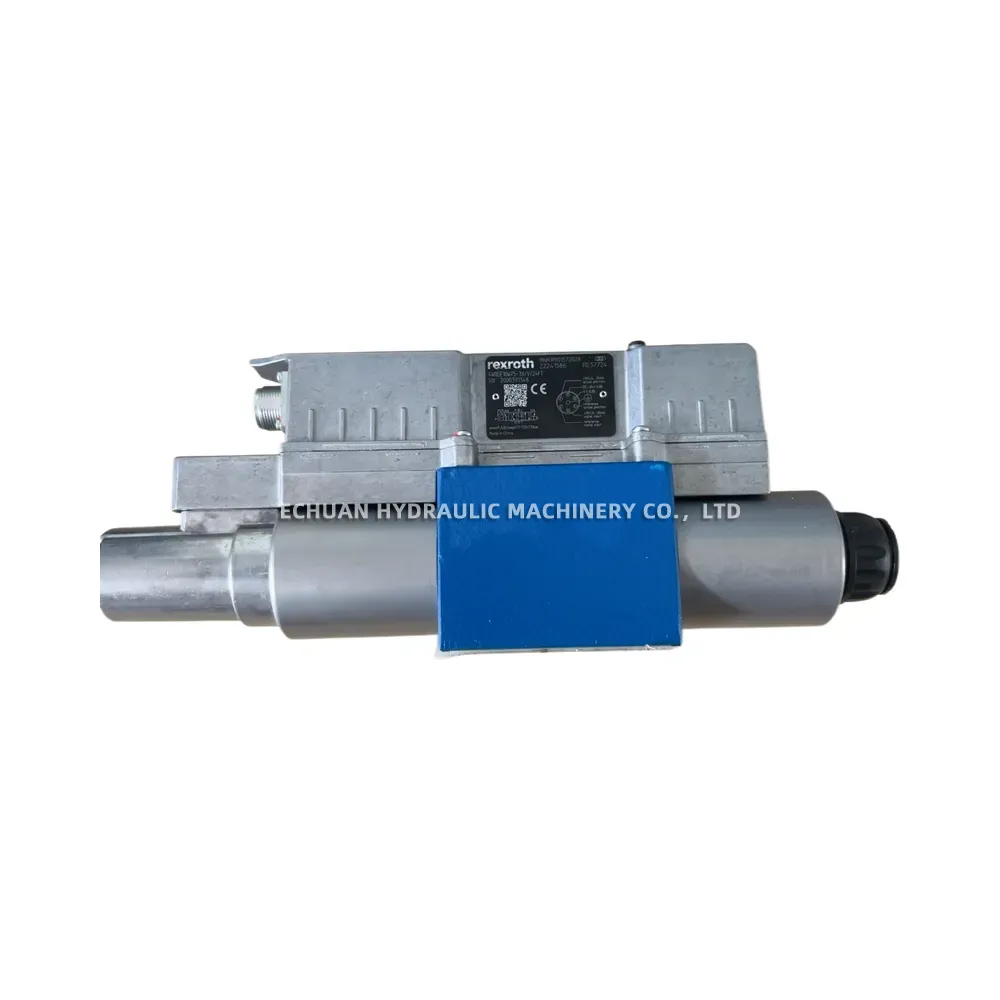

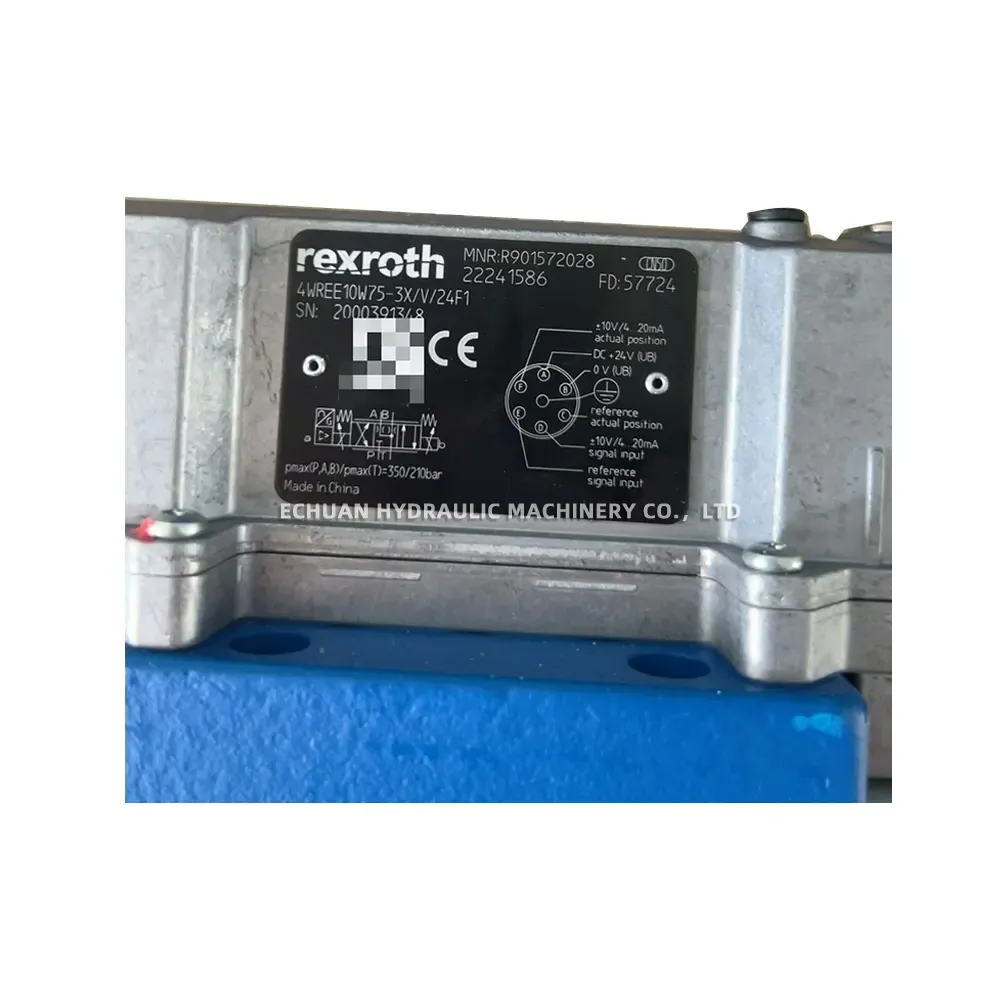

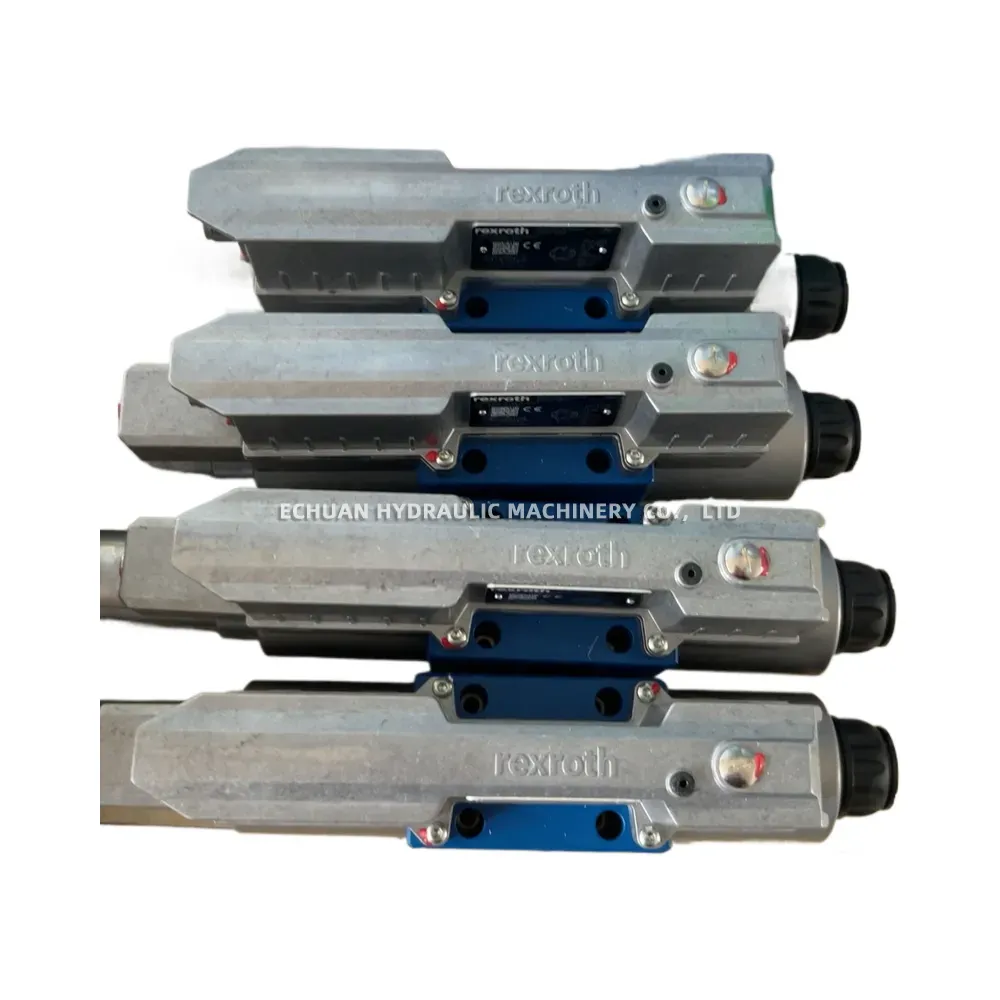

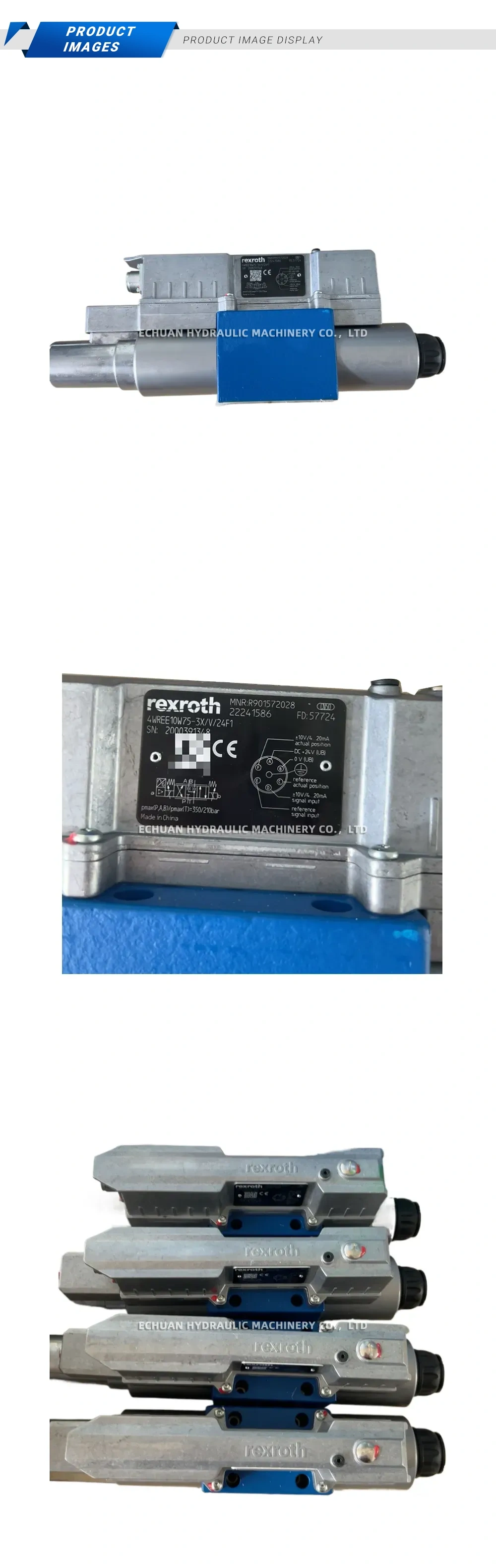

Rexroth 4WREE10W75-3X/V/24F1 Proportional Directional Valve
The Rexroth 4WREE10W75-3X/V/24F1 is a high-performance, direct-operated proportional directional valve designed for precise control in demanding hydraulic systems. This NG10 valve features integrated electronics (OBE) and electrical position feedback of the control spool, ensuring high accuracy and repeatability. It controls the direction and magnitude of fluid flow based on the command signal. Built for reliability, it operates at a maximum pressure of 350 bar on the P, A, and B ports. The FKM (Viton) seals make it suitable for a wide range of hydraulic fluids and operating temperatures. Its integrated digital electronics simplify installation and setup, making it an ideal choice for applications requiring superior motion control.
Technical Specifications:
- Model: 4WREE10W75-3X/V/24F1
- Type: Direct operated proportional directional valve with position feedback and integrated electronics
- Size: NG10 (Nominal Size 10)
- Maximum Operating Pressure: Ports P, A, B: 350 bar | Port T: 210 bar
- Spool Symbol: W75
- Power Supply: 24V DC
- Command Signal Input: ±10V or 4-20mA
- Position Feedback Output: +10V or 4-20mA
- Sealing Material: FKM (Viton)
Rexroth 4WREE10W75-3X/V/24F1 Proportional Directional Valve
Buy the Rexroth 4WREE10W75-3X/V/24F1 (R901572028), a reliable NG10 proportional directional valve with integrated electronics and position feedback for precise hydraulic control up to 350 bar.
