Product Description

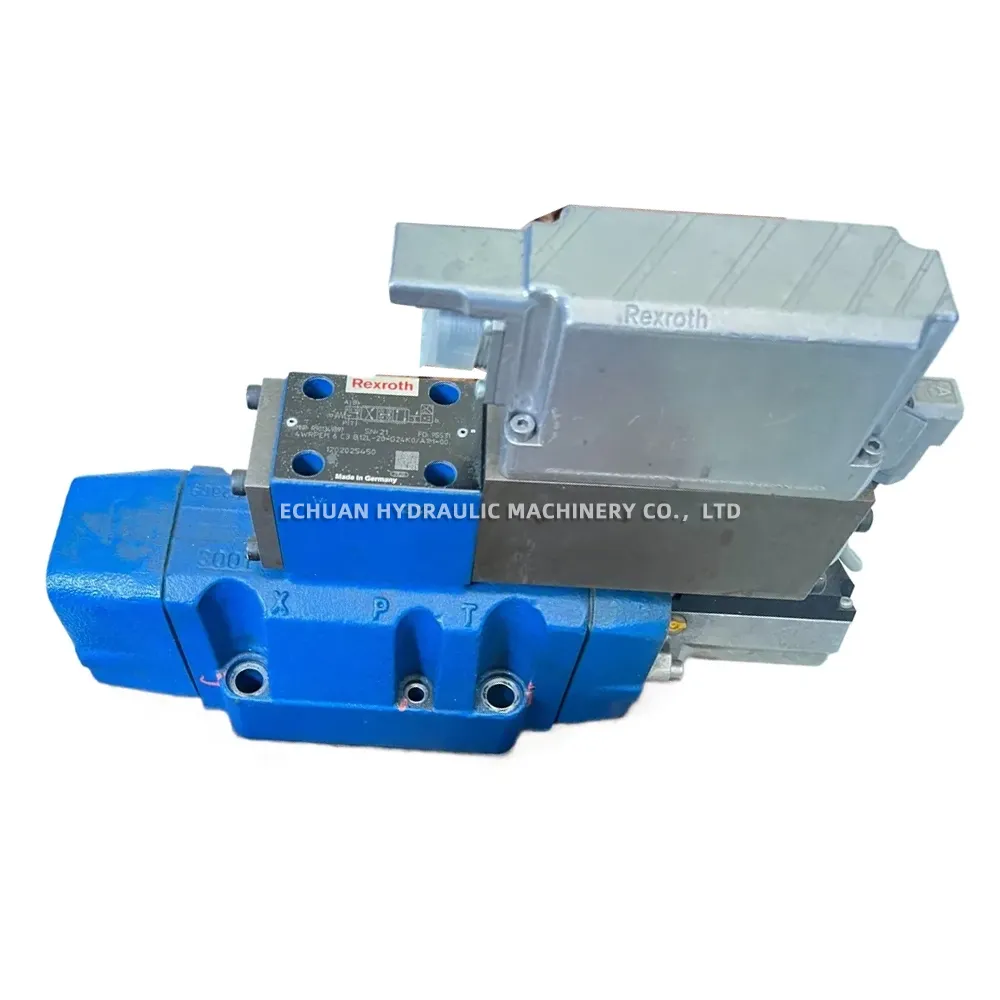

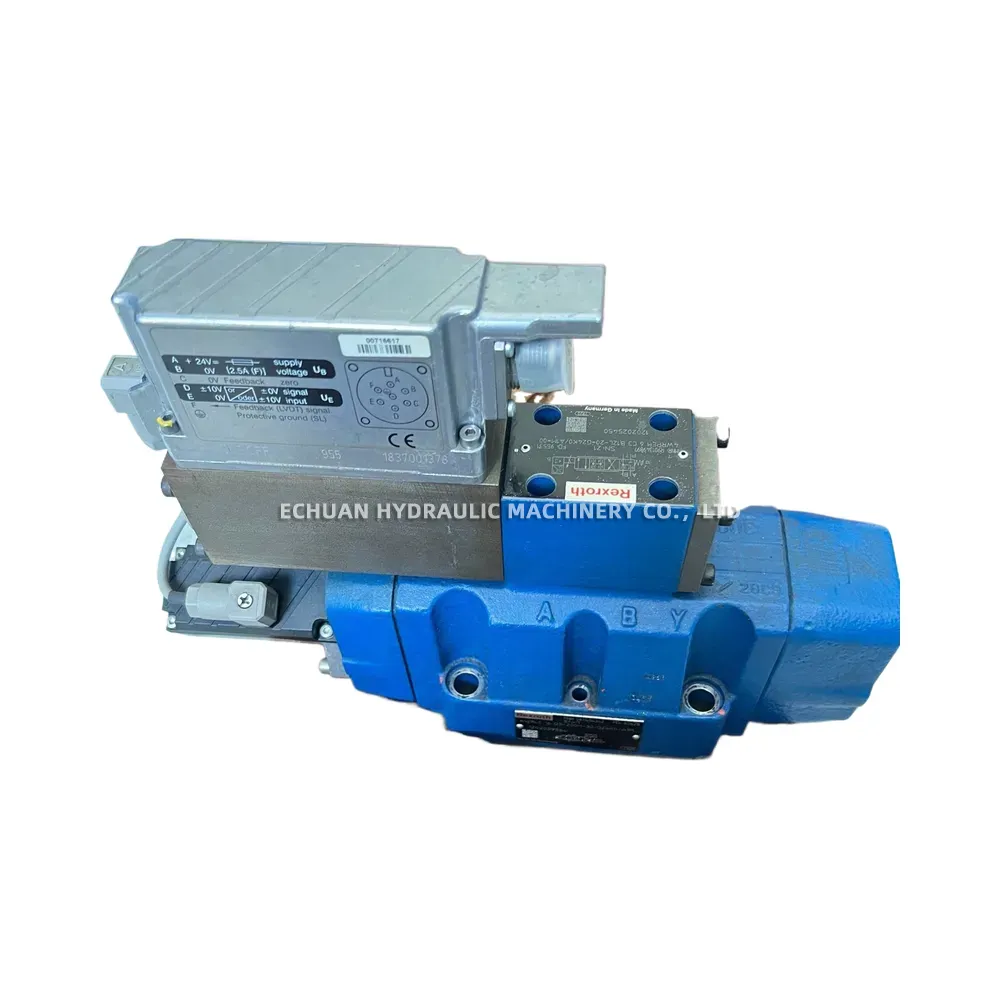

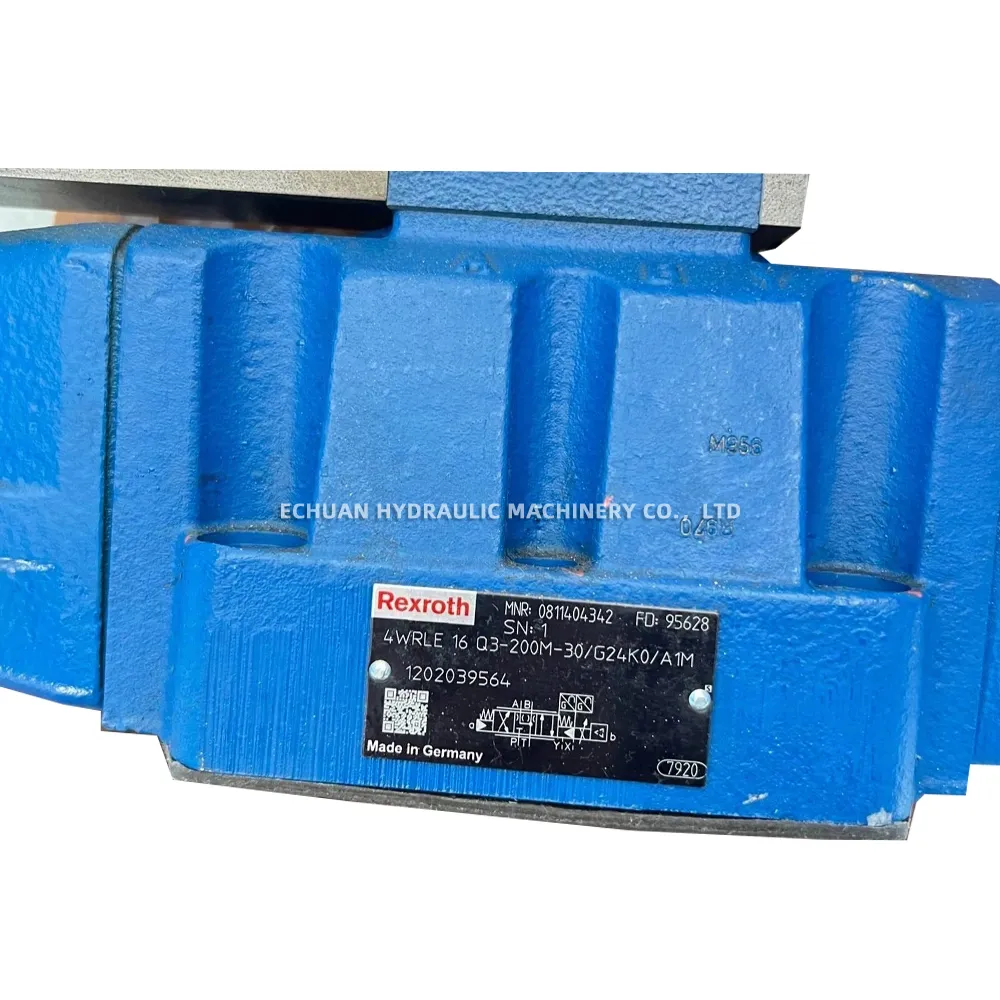

Rexroth 4WRLE16Q3-200M-30/G24K0/A1M 0811404342
The Rexroth 4WRLE16 is a direct-operated, high-response proportional directional control valve with integrated digital electronics (OBE) and electrical position feedback. Designed for subplate mounting according to ISO 4401-07 standards (NG16), this valve provides precise control over the direction and magnitude of hydraulic fluid flow. It is suitable for demanding electrohydraulic control applications requiring high dynamics and accuracy. The integrated electronics simplify installation and setup, offering features like diagnostics and parameterization capabilities. This specific model operates with a 24V DC supply and accepts a +/- 10V command signal.
Technical Specifications:
- Valve Type: Direct operated proportional directional valve
- Series: 4WRLE
- Actuation: Proportional solenoid with integrated electronics (OBE)
- Size: NG16 (Nominal Size 16)
- Mounting Interface: ISO 4401-07-07-0-05
- Spool Symbol: Q3
- Maximum Flow Rate: 200 l/min
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T): 210 bar
- Supply Voltage: 24V DC
- Command Signal Interface (A1): +/- 10V
- Electrical Connection (K0): Connector according to EN 175201-804
- Seal Material (M): FKM (Viton)
- Fluid Temperature Range: -20°C to +80°C (with FKM seals)
- Part Number: 0811404342
Rexroth 4WRLE16Q3-200M-30/G24K0/A1M 0811404342
Model:Rexroth 4WRLE16Q3-200M-30/G24K0/A1M 0811404342
