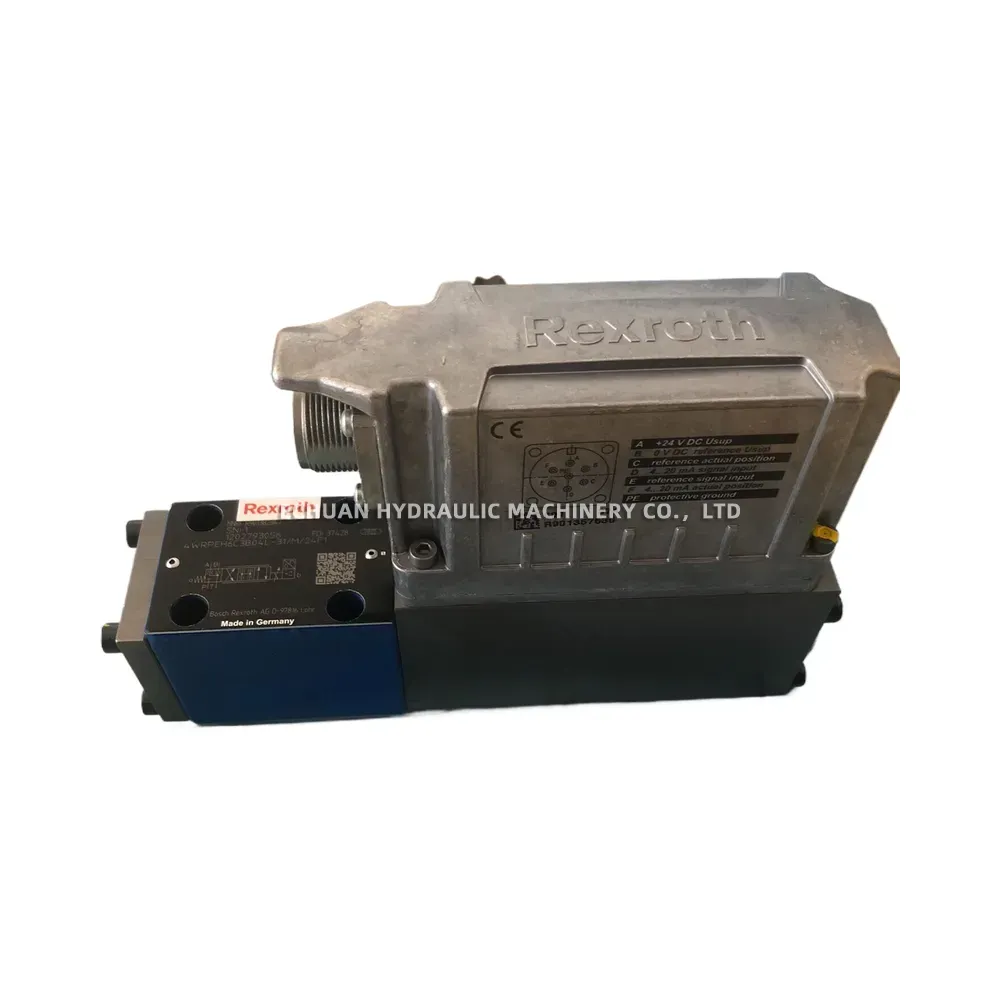

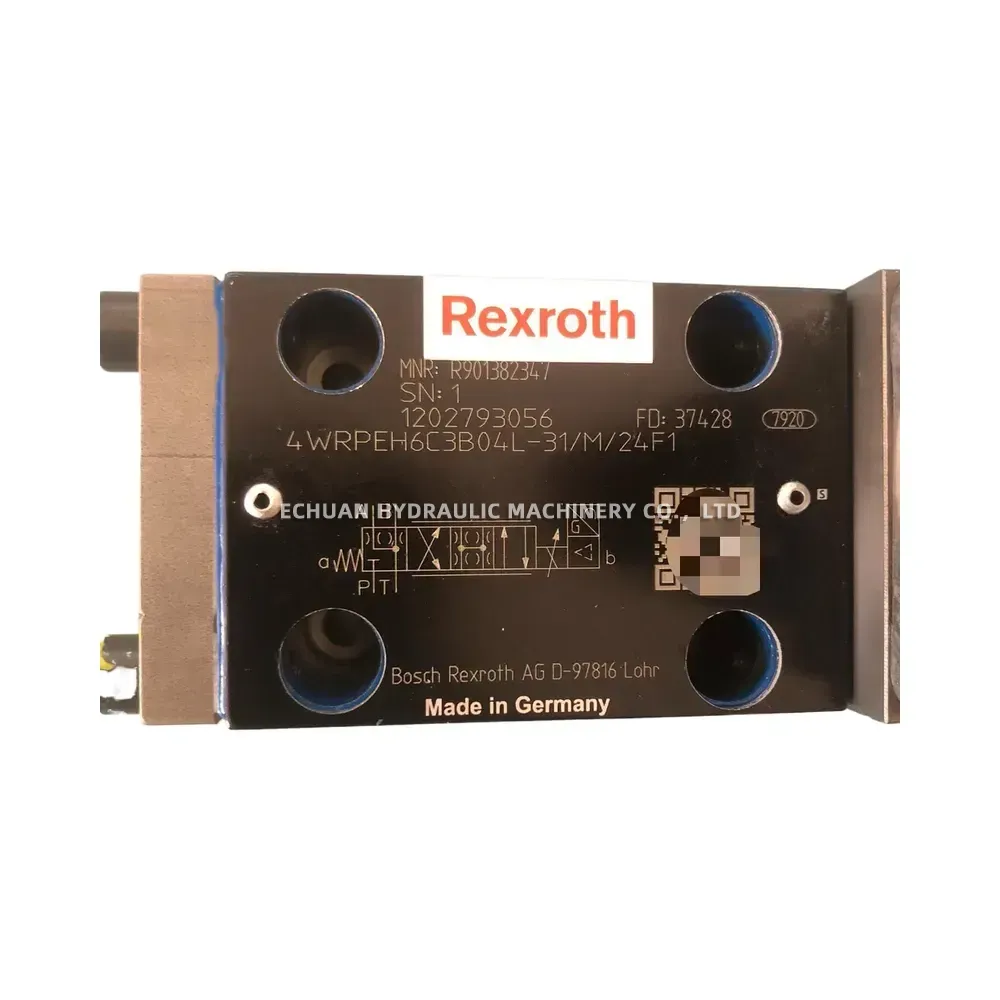

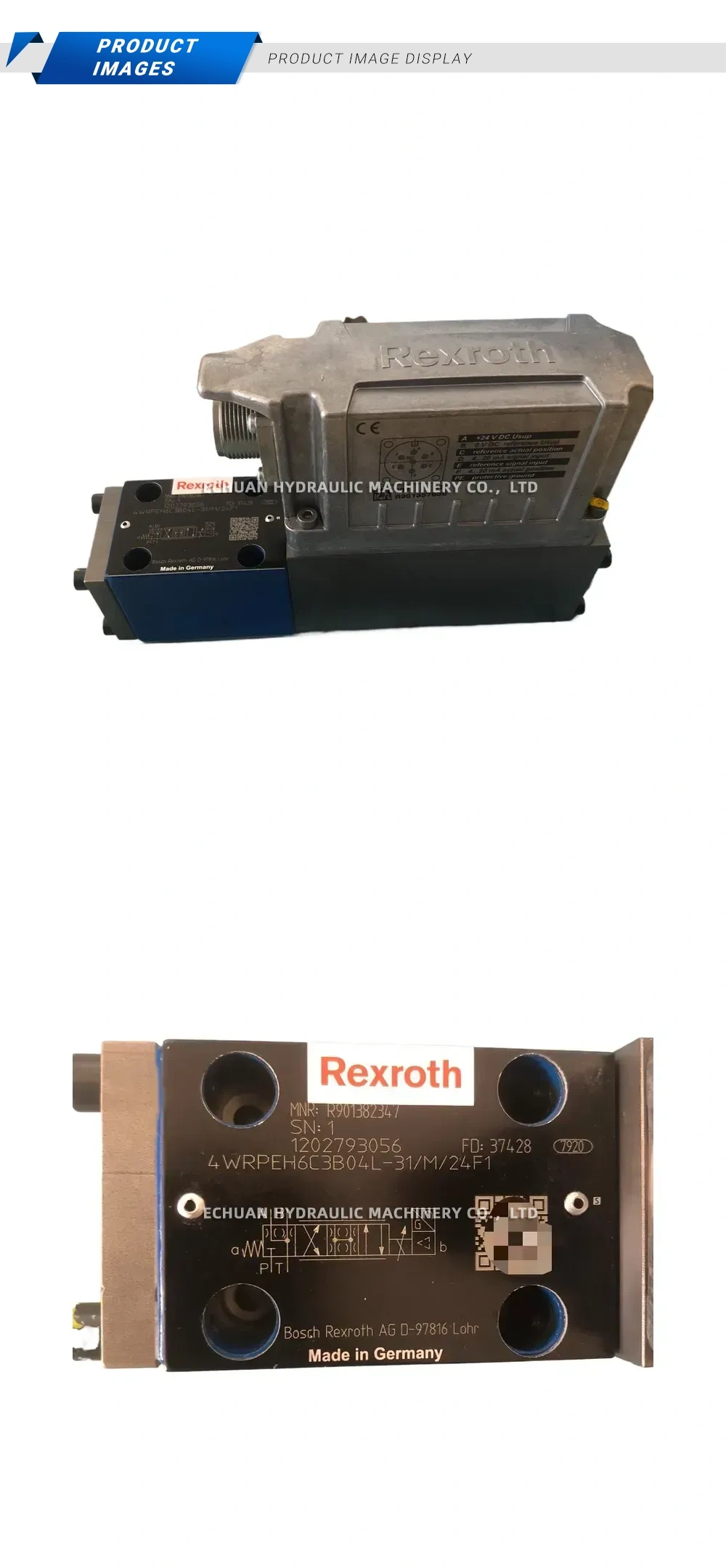

Rexroth 4WRPEH6C3B04L-31/M/24F1 Proportional Directional Control Valve
The Bosch Rexroth 4WRPEH6C3B04L-31/M/24F1 (Material Number: R901382347) is a high-performance, high-response proportional directional control valve designed for demanding industrial hydraulic applications. Engineered with integrated electronics (OBE) and precise electrical position feedback, this valve delivers exceptional accuracy in command value processing and position control. Built to the standard Size 6 (NG6) with an ISO 4401 mounting pattern, it ensures seamless integration into existing hydraulic manifolds. The valve features a nominal flow rate of 4 l/min at a 35 bar pressure drop per spool edge and operates on a standard 24V DC power supply. Utilizing industry-standard 4-20 mA signals for both command and actual values, it provides robust, interference-resistant communication, making it an ideal solution for closed-loop control systems requiring maximum reliability and precision.
Technical Specifications:
- Brand: Bosch Rexroth
- Model Number: 4WRPEH6C3B04L-31/M/24F1
- Material Number (MNR): R901382347
- Valve Type: High-response proportional directional control valve with OBE
- Size: Size 6 (NG6)
- Nominal Flow Rate: 4 l/min (at Δp = 35 bar per spool edge)
- Operating Voltage: 24V DC
- Command Value Signal: 4…20 mA
- Actual Value Signal: 4…20 mA
- Port Configuration: 4 Ports (P, T, A, B)
- Mounting Pattern: ISO 4401
- Country of Origin: Made in Germany
Rexroth 4WRPEH6C3B04L-31/M/24F1 Proportional Directional Control Valve
Shop the genuine Bosch Rexroth 4WRPEH6C3B04L-31/M/24F1 (R901382347) Proportional Directional Control Valve. This NG6 high-response valve features integrated electronics (OBE), a 4 l/min flow rate, 24V DC operation, and 4-20mA signal processing for highly precise hydraulic control.
