Product Description

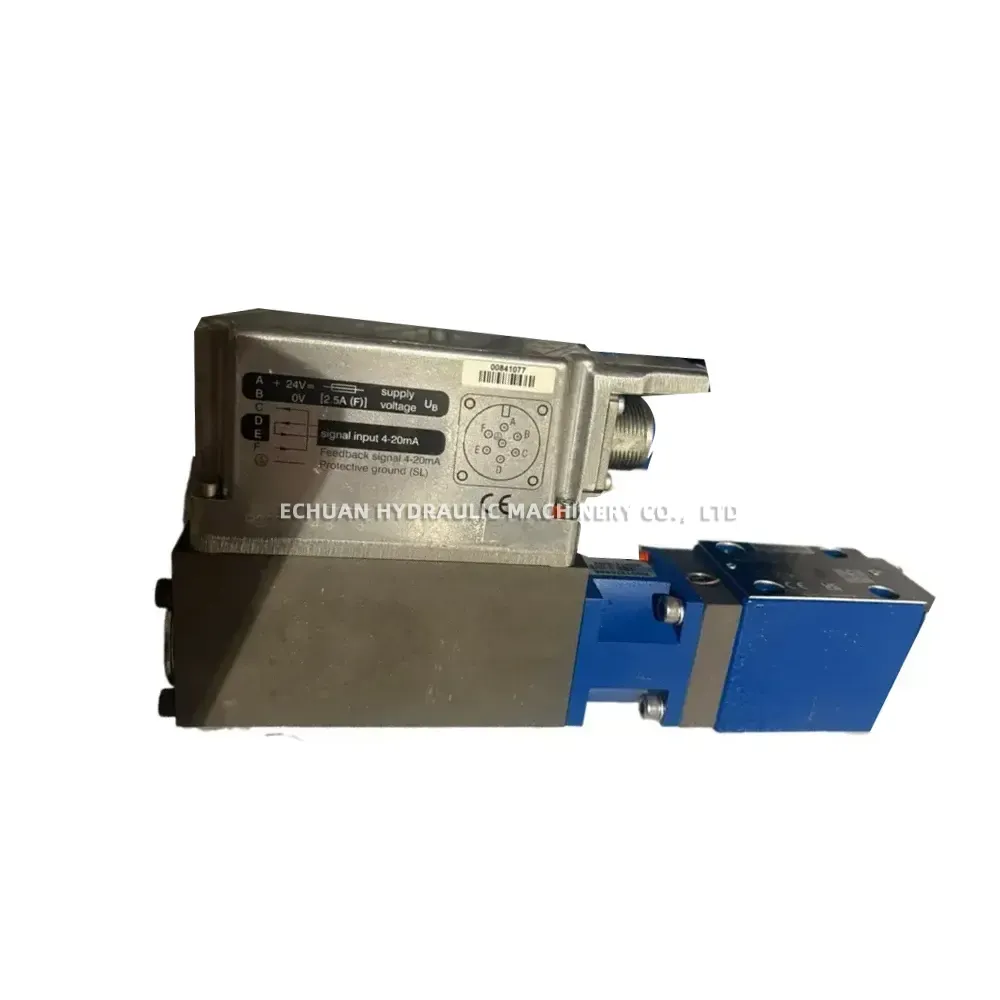

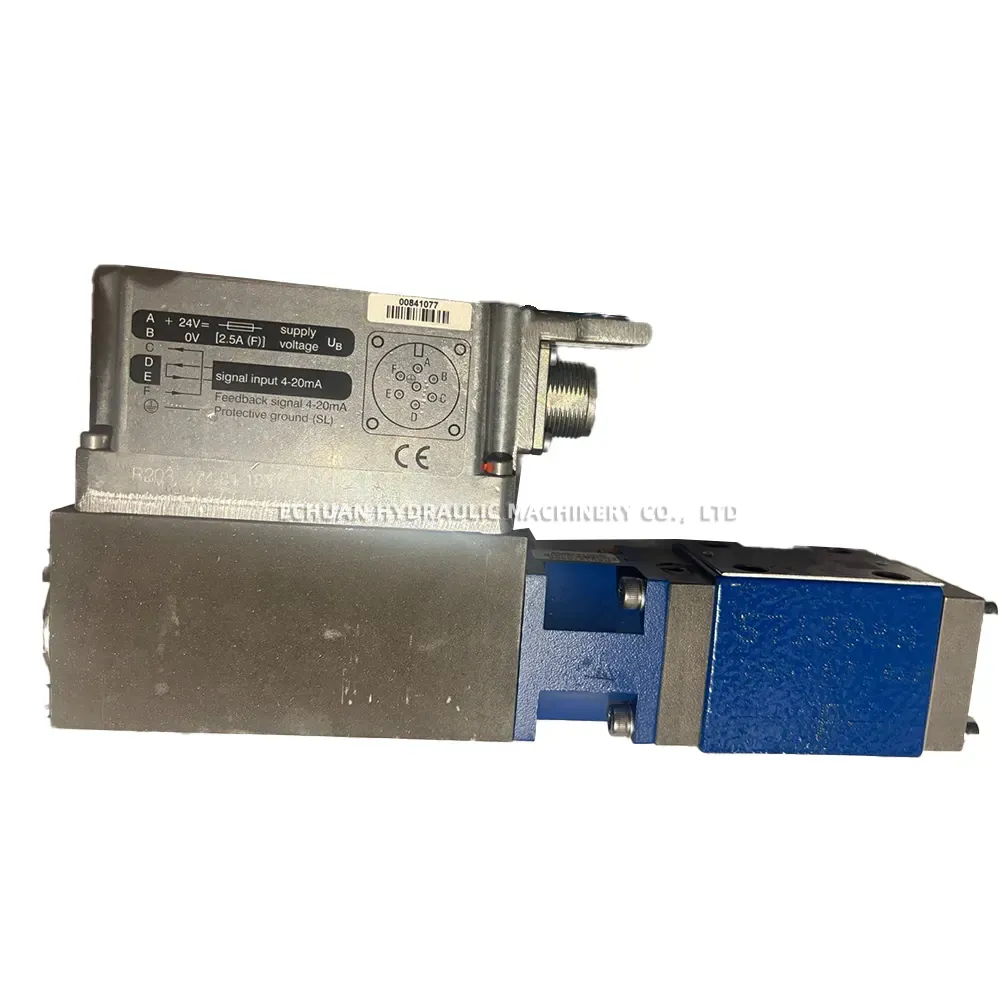

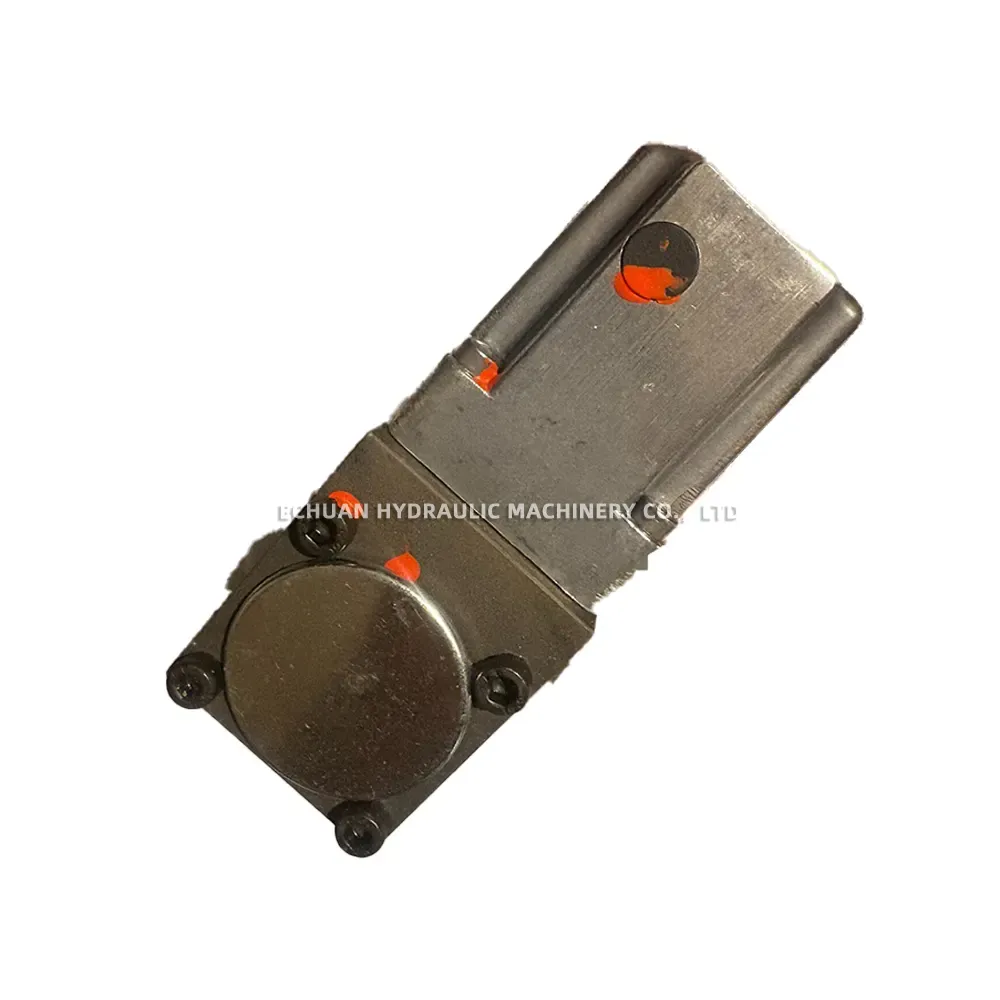

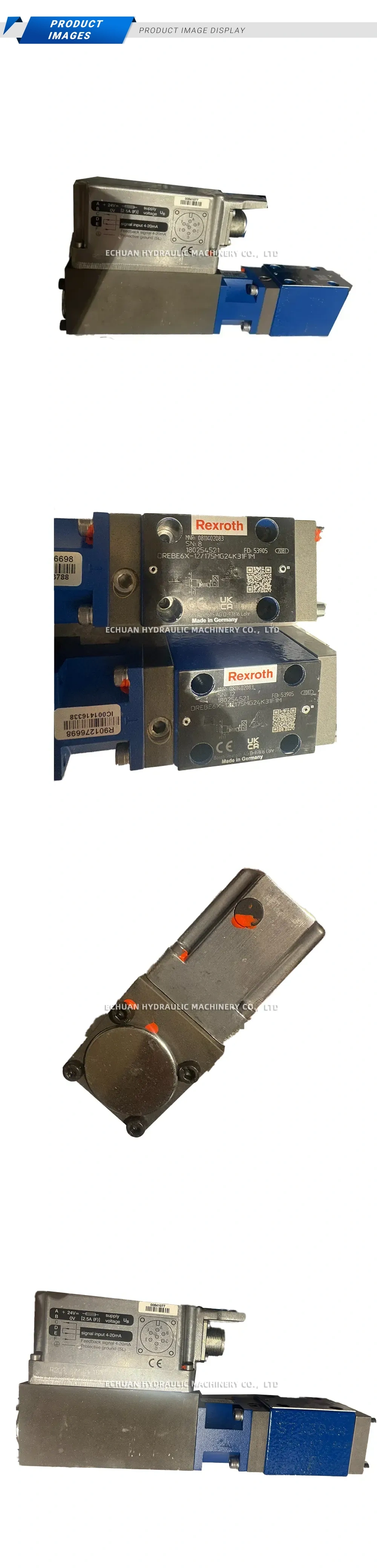

Rexroth DBEE6A-5X/315YG24K31M Proportional Pressure Relief Valve with Integrated Electronics
The Bosch Rexroth DBEE6A-5X/315YG24K31M is a high-performance electro-hydraulic proportional pressure relief valve from the DBEE series, engineered for precise and reliable hydraulic control. A key feature of this valve is its integrated on-board electronics (OBE), which eliminates the need for external amplifier cards, thereby simplifying installation and reducing wiring complexity. Operating on a standard 24V DC supply voltage, it utilizes an industry-standard 4-20mA input signal for highly accurate pressure regulation, complemented by a 4-20mA feedback signal for continuous, real-time system monitoring. Capable of handling a maximum operating pressure of 315 bar and equipped with a secure 6-pin electrical connector featuring a protective ground, this CE-certified valve delivers exceptional stability, accuracy, and safety for demanding industrial hydraulic applications.
Technical Specifications:
- Brand: Bosch Rexroth
- Model Number: DBEE6A-5X/315YG24K31M
- Valve Type: Electro-hydraulic proportional pressure relief valve (Series DBEE)
- Electronics: Integrated On-Board Electronics (OBE)
- Maximum Operating Pressure: 315 bar
- Supply Voltage (Ub): 24V DC
- Maximum Current: 2.5A (F)
- Signal Input (Command Value): 4 – 20 mA
- Feedback Signal (Actual Value): 4 – 20 mA
- Electrical Connection: 6-pin connector with Protective Ground (SL)
- Certification: CE Marked
Rexroth DBEE6A-5X/315YG24K31M Proportional Pressure Relief Valve with Integrated Electronics
Upgrade your hydraulic system with the Rexroth DBEE6A-5X/315YG24K31M Proportional Pressure Relief Valve. Featuring integrated on-board electronics (OBE), a 315 bar maximum pressure capacity, and precise 4-20mA input/feedback signals, this 24V DC valve ensures reliable, highly accurate pressure control for industrial automation.
