Product Description

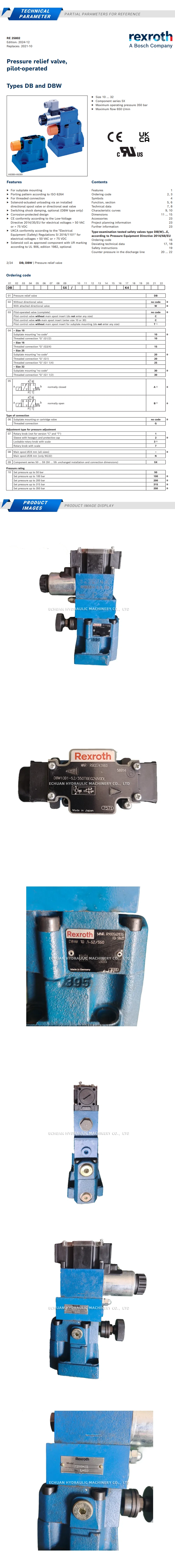

Rexroth DBW10B1-52/350T6EG24N9DL R900742860
The Rexroth DBW10B1-52/350T6EG24N9DL is a high-performance, pilot-operated pressure relief valve designed for reliable hydraulic system protection. It functions to limit the operating pressure within a system by opening a path to the tank when the set pressure is reached. This model features a sandwich plate design with a subplate mounting pattern according to ISO 6264. It is equipped with a 24V DC solenoid-actuated directional spool valve (type WE) which allows for electrical unloading of the pressure, providing enhanced control and system efficiency. This valve is ideal for applications requiring precise pressure limitation and remote unloading capabilities.
Technical Specifications:
- Type: Pilot-operated pressure relief valve with solenoid unloading
- Size: NG10
- Mounting: Subplate mounting, porting pattern to ISO 6264-06-09-0-97
- Maximum Pressure Setting: 350 bar (5075 psi)
- Maximum Flow: 250 l/min (66 GPM)
- Solenoid Voltage: 24V DC
- Manual Override: Concealed manual override (N9)
Rexroth DBW10B1-52/350T6EG24N9DL R900742860
Rexroth DBW10B1-52/350T6EG24N9DL (R900742860) size 10 pilot-operated pressure relief valve with 24V DC solenoid unloading, for system pressures up to 350 bar.
