Product Description

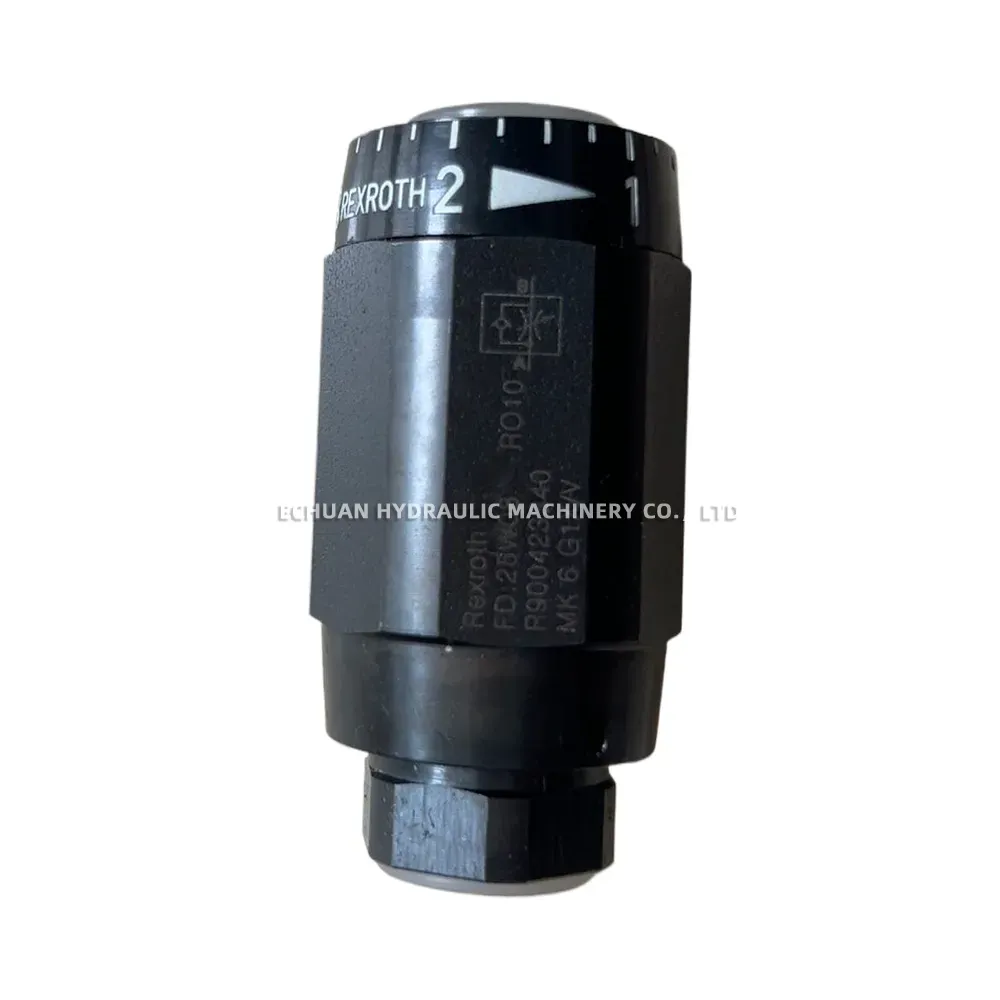

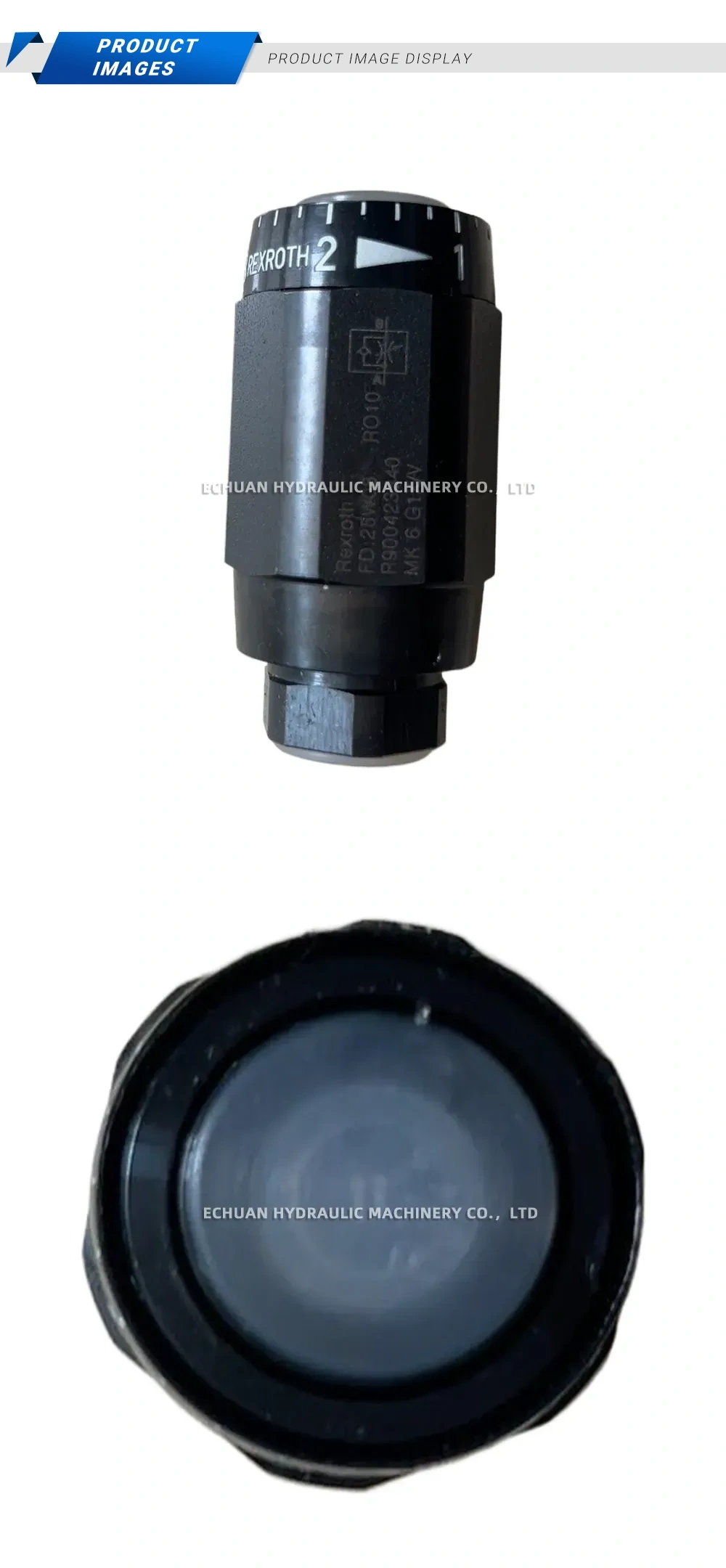

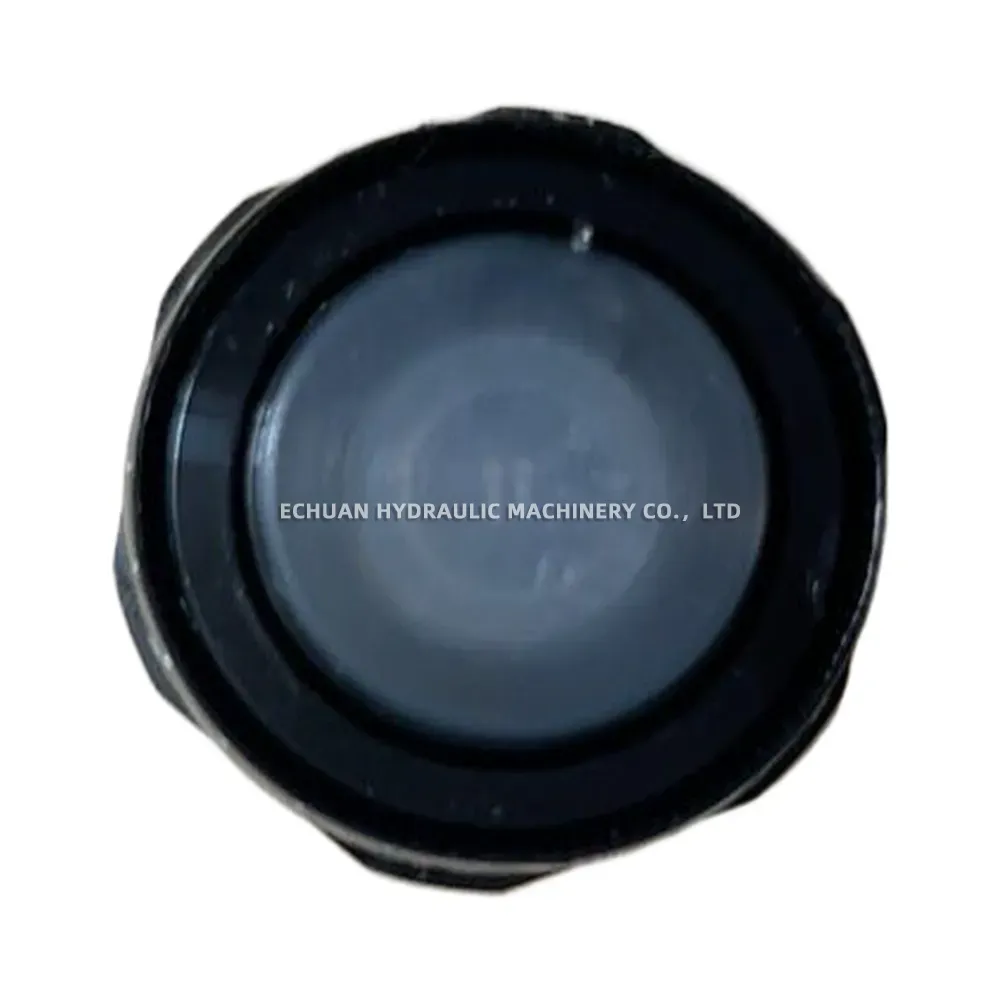

Rexroth MK 6 G1X/V Throttle Check Valve
The Bosch Rexroth MK 6 G1X/V is a high-performance throttle check valve designed for in-line hydraulic applications. This valve provides precise, adjustable control of the flow rate in one direction using a rotary knob, while allowing for free, unrestricted flow in the reverse direction. Engineered for reliability, the MK 6 G1X/V (part number R900423340) is a size 6 valve with threaded connections for easy installation into hydraulic lines. It is equipped with FKM seals, making it compatible with a wide range of hydraulic fluids and operating temperatures. This valve is ideal for applications requiring metered control of actuator speed or other flow-sensitive functions within a hydraulic system.
Technical Specifications:
- Model: MK 6 G1X/V
- Part Number: R900423340
- Size: 6
- Maximum Operating Pressure: 315 bar (4568 psi)
- Maximum Flow: 25 l/min (6.6 GPM)
- Port Connection: Threaded G 1/4
- Seal Material: FKM (Viton)
- Adjustment: Rotary knob
Rexroth MK 6 G1X/V Throttle Check Valve
Shop the genuine Rexroth MK 6 G1X/V throttle check valve (R900423340). This size 6 in-line hydraulic flow control valve features G 1/4 ports, FKM seals, and a maximum pressure rating of 315 bar.
| Brand | Rexroth |
|---|---|
| Model | MK 6 G1X/V |
| Category | Hydraulic valves |
