Product Description
Rexroth R900370146 DBETR-10/230G24K4M
The Rexroth R900370146 DBETR-10/230G24K4M is a high-performance, direct-operated proportional pressure relief valve with integrated electronics (OBE). Designed for precise and continuous adjustment of system pressure, this valve is ideal for applications requiring reliable pressure limitation. The integrated digital electronics simplify installation and setup, eliminating the need for external amplifiers. Its robust construction ensures long service life and consistent performance in demanding hydraulic systems. This model includes a concealed manual override for emergency operation or system setup.

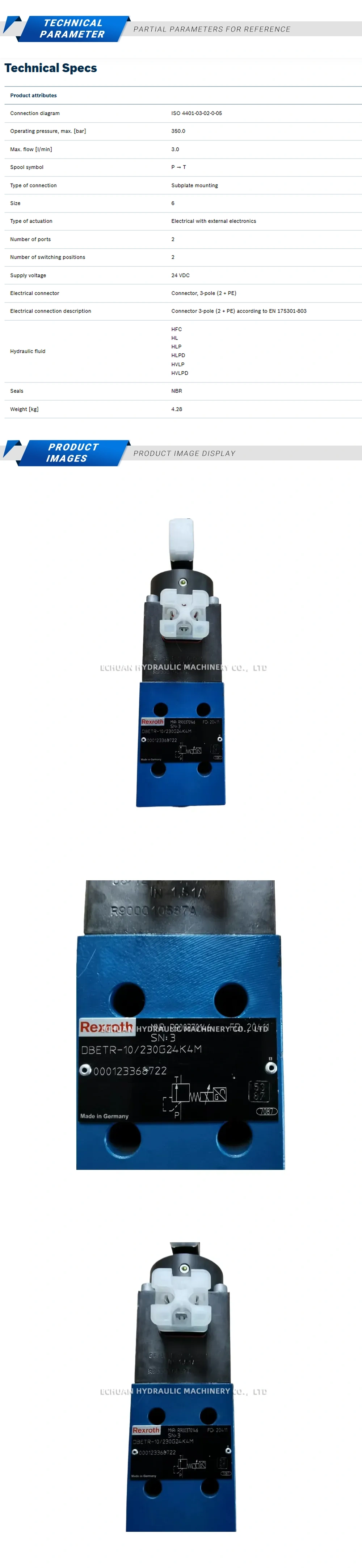

Technical Specifications:
- Model: DBETR-10/230G24K4M
- Type: Proportional pressure relief valve, direct operated with integrated electronics (OBE)
- Size: NG10 (Nominal Size 10)
- Maximum Pressure Setting: 230 bar
- Supply Voltage: 24V DC
- Electrical Connection: Connector K4 according to DIN EN 175301-803
- Features: Includes concealed manual override (M)

Rexroth R900370146 DBETR-10/230G24K4M
Order the Rexroth R900370146 DBETR-10/230G24K4M, a size 10 direct-operated proportional pressure relief valve with a 230 bar setting, 24V DC coil, and integrated electronics for precise hydraulic pressure control.
