Product Description

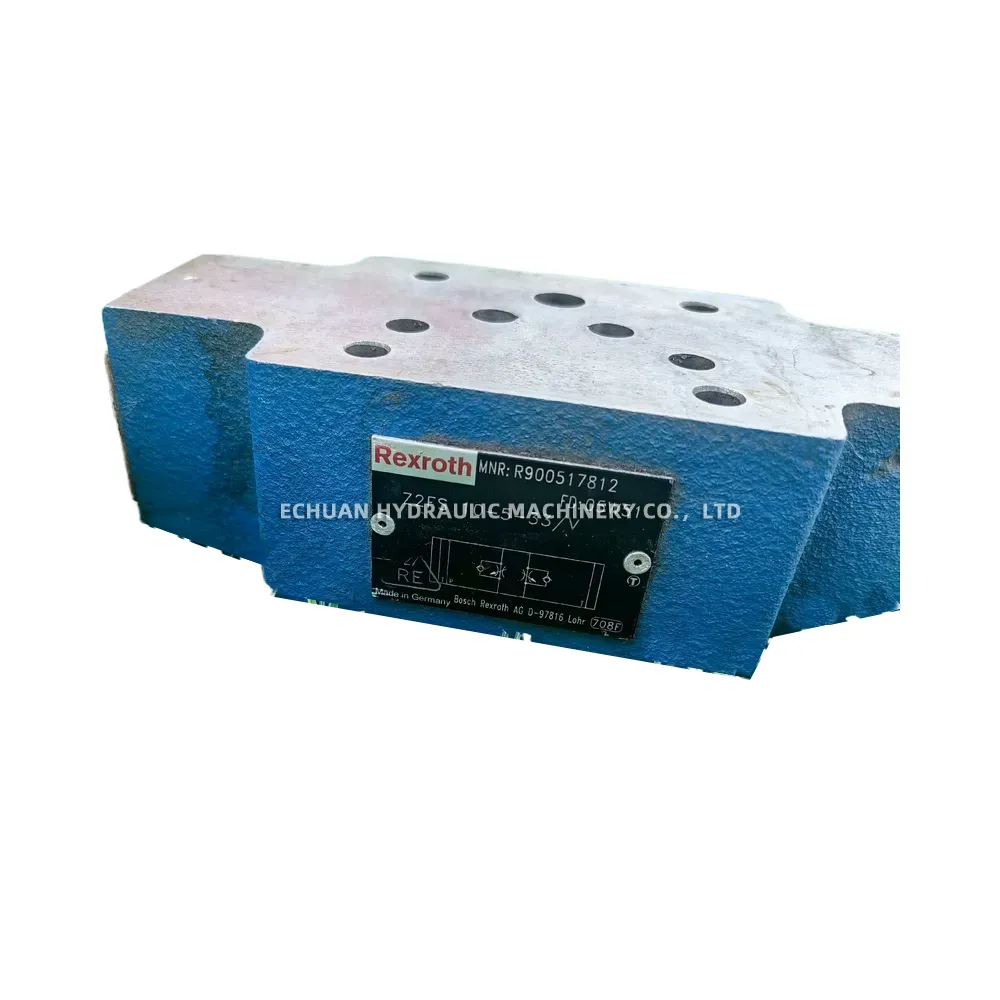

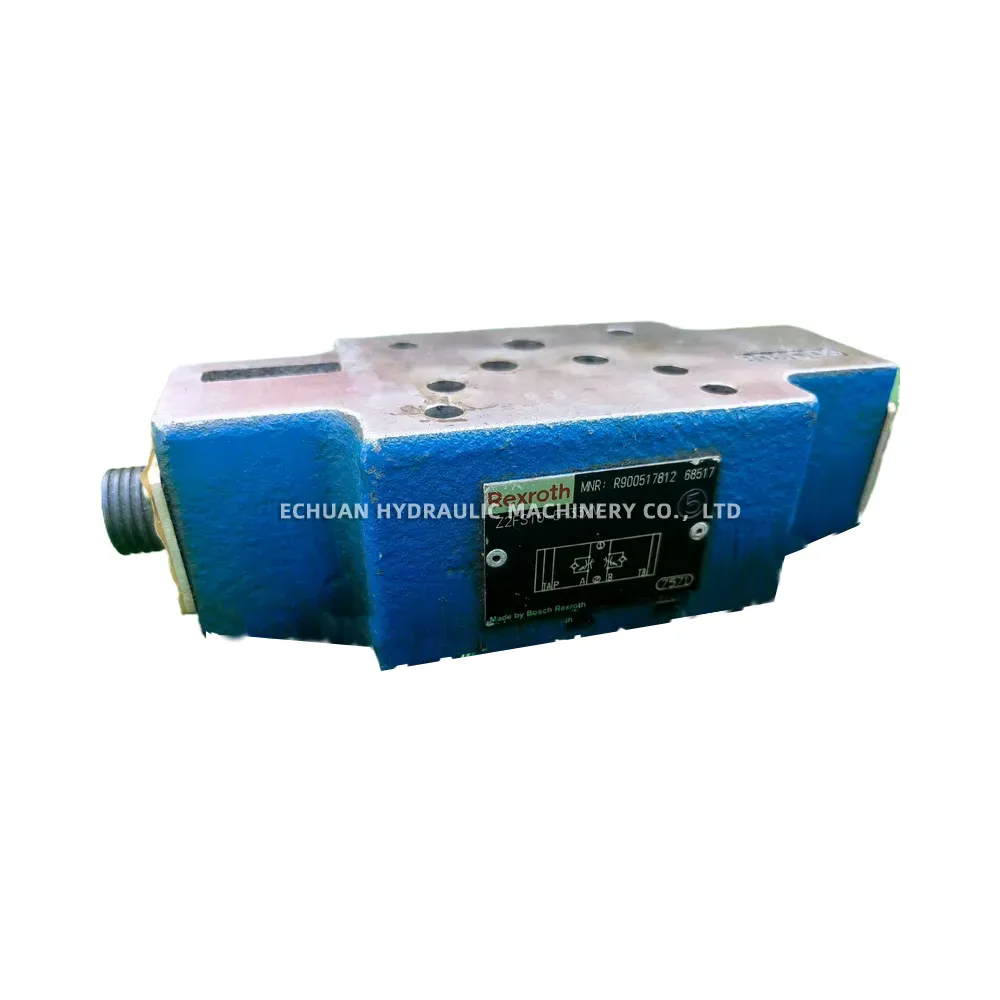

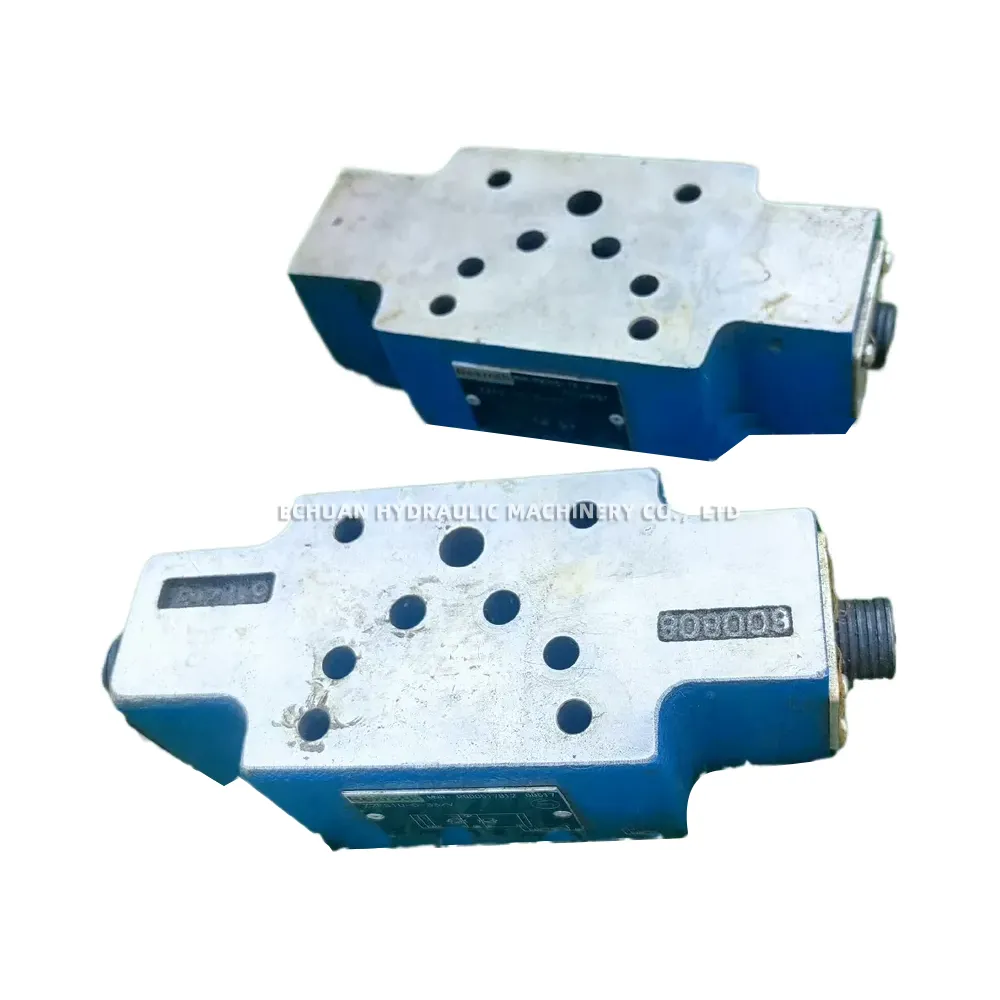

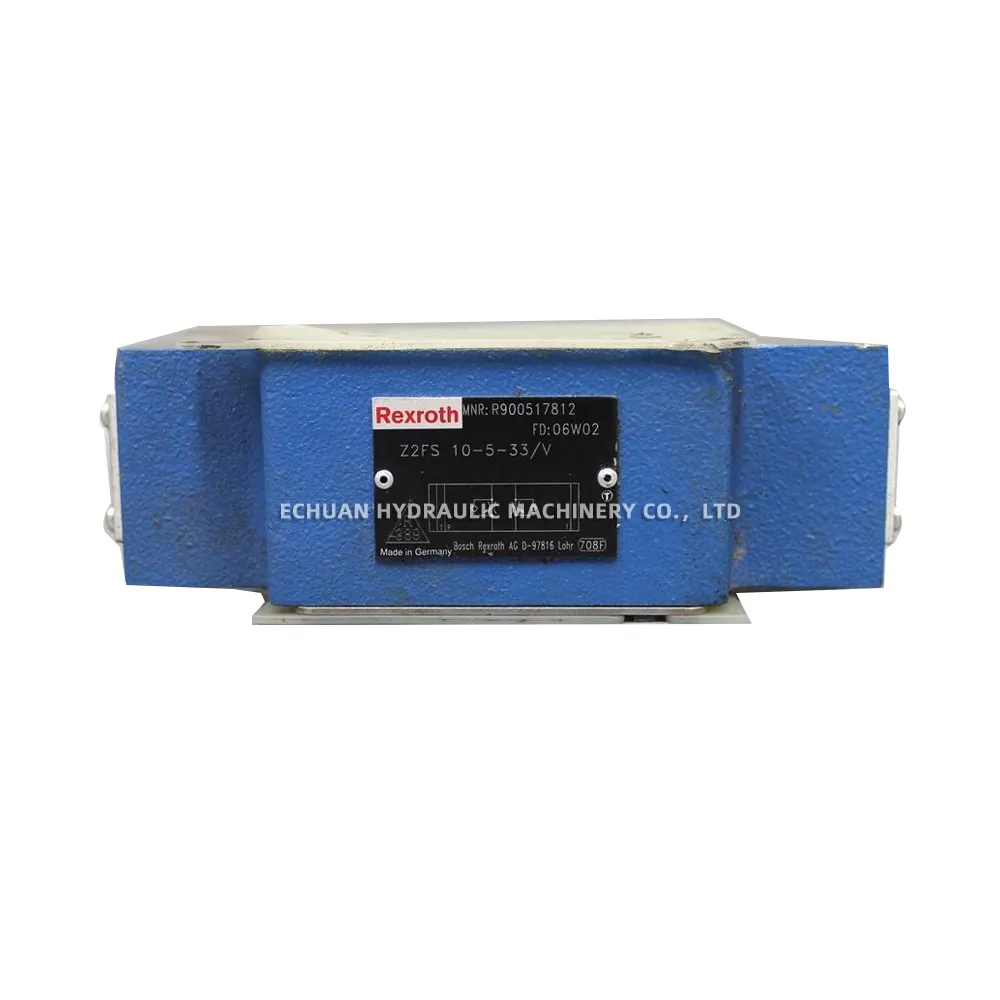

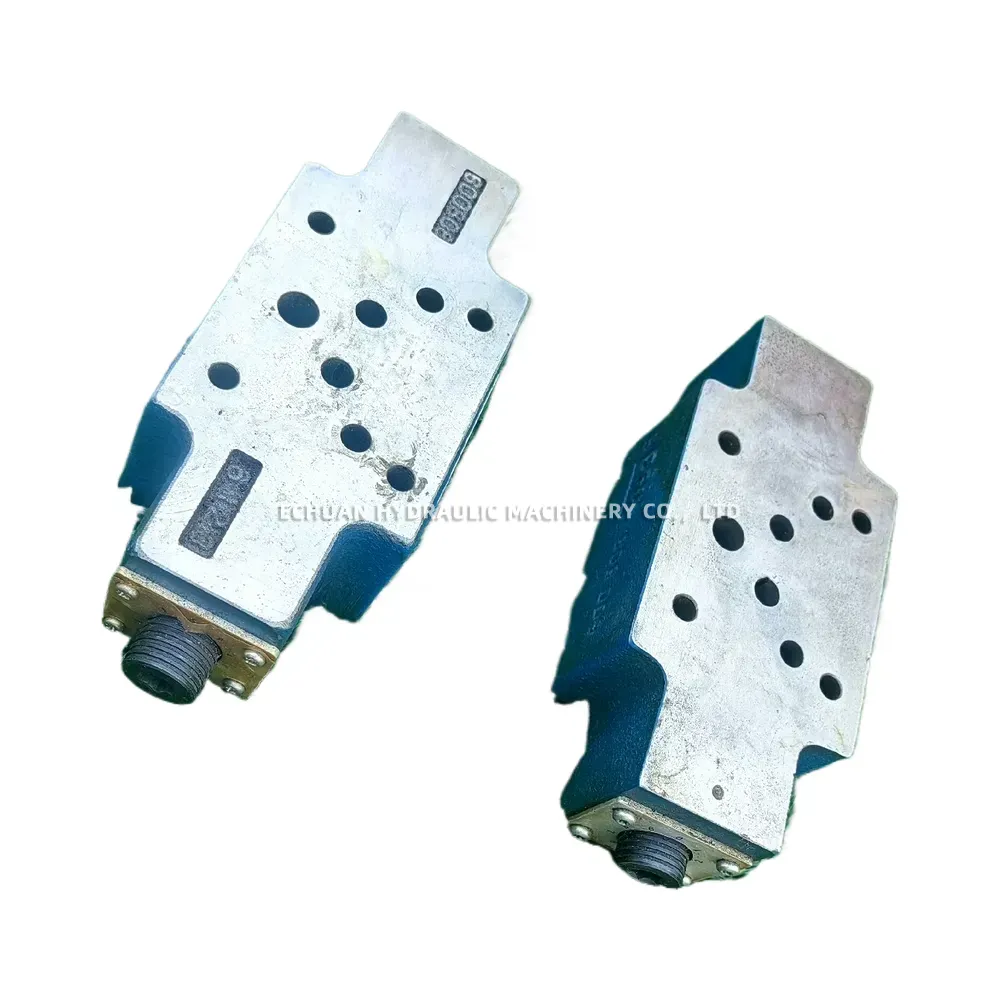

Rexroth R900517812 Z2FS 10-5-33/V
The Rexroth R900517812 Z2FS 10-5-33/V is a double throttle check valve of sandwich plate design, size 10. It is engineered to control the flow rate of hydraulic fluid in two actuator ports (e.g., A and B lines) by providing meter-out control in one direction and allowing free flow in the opposite direction. This valve is typically used to influence the speed of hydraulic consumers. The “-5” in the type code indicates meter-out control, and the “V” signifies that the valve is equipped with FKM seals, making it suitable for a wider range of operating temperatures and hydraulic fluids.
Technical Specifications:
- Type: Double throttle check valve
- Model Series: Z2FS
- Size: 10 (NG10)
- Mounting Interface: Conforms to ISO 4401-05-04-0-05 and CETOP RP121H for size 10
- Control Type: Meter-out (indicated by “5” in the type code)
- Component Series: 3X (the “33” indicates a specific design within this series)
- Adjustment Element: Typically a spindle with internal hexagon and protective cap
- Maximum Operating Pressure: Up to 315 bar (4568 psi)
- Maximum Flow Rate: Approximately 160 L/min (42 GPM)
- Sealing Material: FKM (Viton), indicated by “V”
- Hydraulic Fluid: Mineral oil (HL, HLP) according to DIN 51524. Other fluids on request.
- Fluid Temperature Range (with FKM seals): -20°C to +80°C (-4°F to +176°F)
- Viscosity Range: 2.8 to 500 mm²/s
Rexroth R900517812 Z2FS 10-5-33/V
Model：Rexroth R900517812 Z2FS 10-5-33/V
| Brand | Rexroth |
|---|---|
| Model | R900517812 Z2FS 10-5-33/V |
| Part No. | Rexroth R900517812 Z2FS 10-5-33/V |
| Category | Hydraulic valves |
