Product Description

Rexroth R900561278 4WE 6 E62/EG24N9K4

The Bosch Rexroth R900561278, type 4WE 6 E62/EG24N9K4, is a high-performance, direct-operated directional spool valve with solenoid actuation. It is designed to reliably control the start, stop, and direction of fluid flow in hydraulic systems. This valve features a size 6 (NG6) porting pattern according to ISO 4401-03-02-0-05, ensuring wide compatibility. The wet-pin DC solenoid provides smooth, damped switching and a long service life. Its robust construction makes it suitable for a wide range of industrial and mobile hydraulic applications, offering excellent performance and reliability.

Technical Specifications:

  • Type: 4WE 6 E62/EG24N9K4
  • Part Number: R900561278
  • Size: NG6 (CETOP 3)
  • Actuation: Solenoid, direct operated
  • Spool Symbol: E
  • Maximum Operating Pressure: 350 bar (5075 psi)
  • Maximum Flow Rate: 80 l/min (21 GPM)
  • Solenoid Voltage: 24V DC
  • Electrical Connection: DIN EN 175301-803 connector
  • Manual Override: Yes, concealed (N9)
  • Porting Pattern: ISO 4401-03-02-0-05

Rexroth R900561278 4WE 6 E62/EG24N9K4 - Image 1

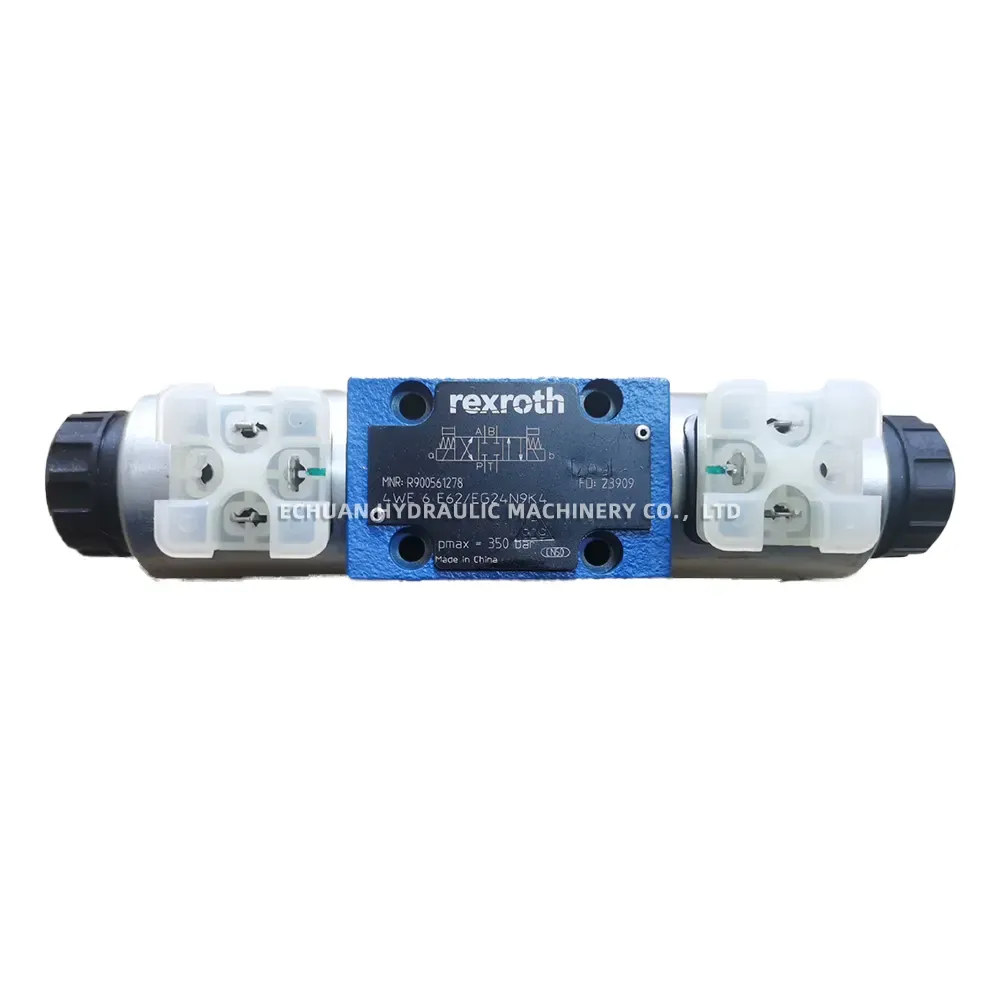

Rexroth R900561278 4WE 6 E62/EG24N9K4 - Image 2

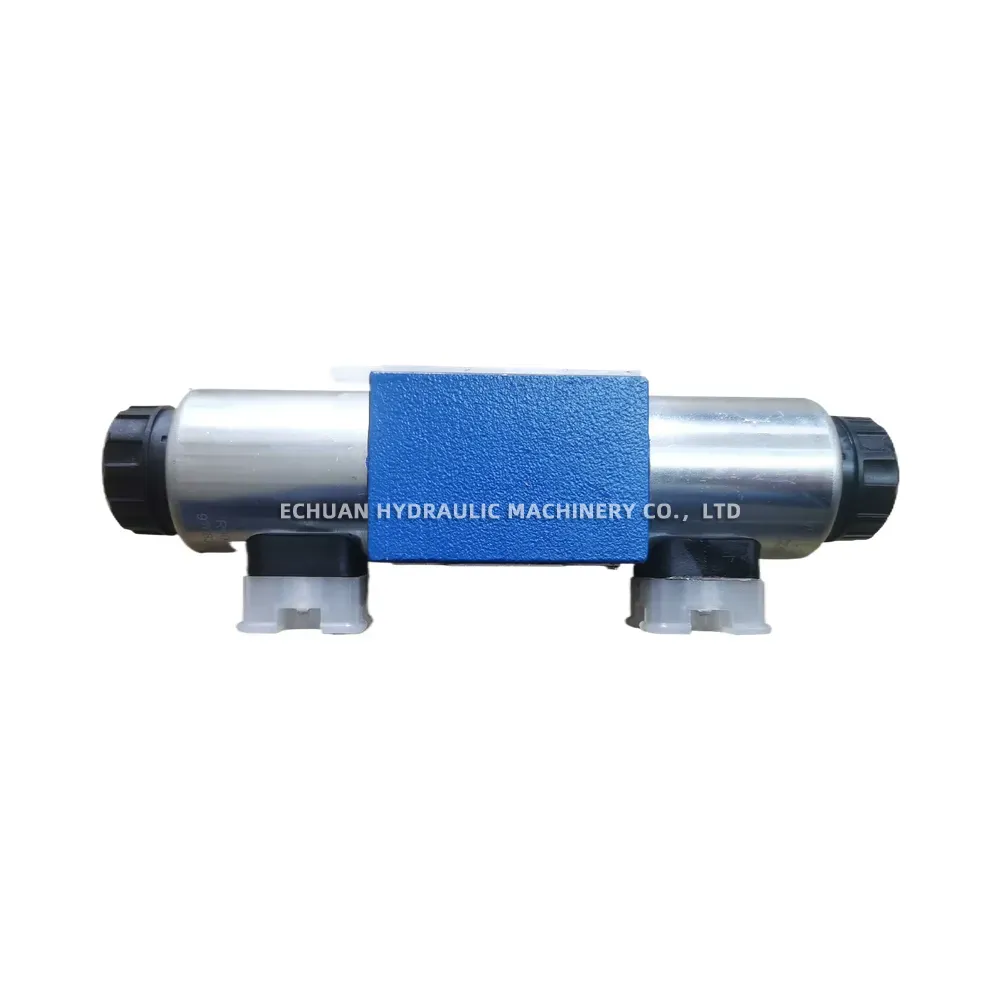

Rexroth R900561278 4WE 6 E62/EG24N9K4 - Image 3

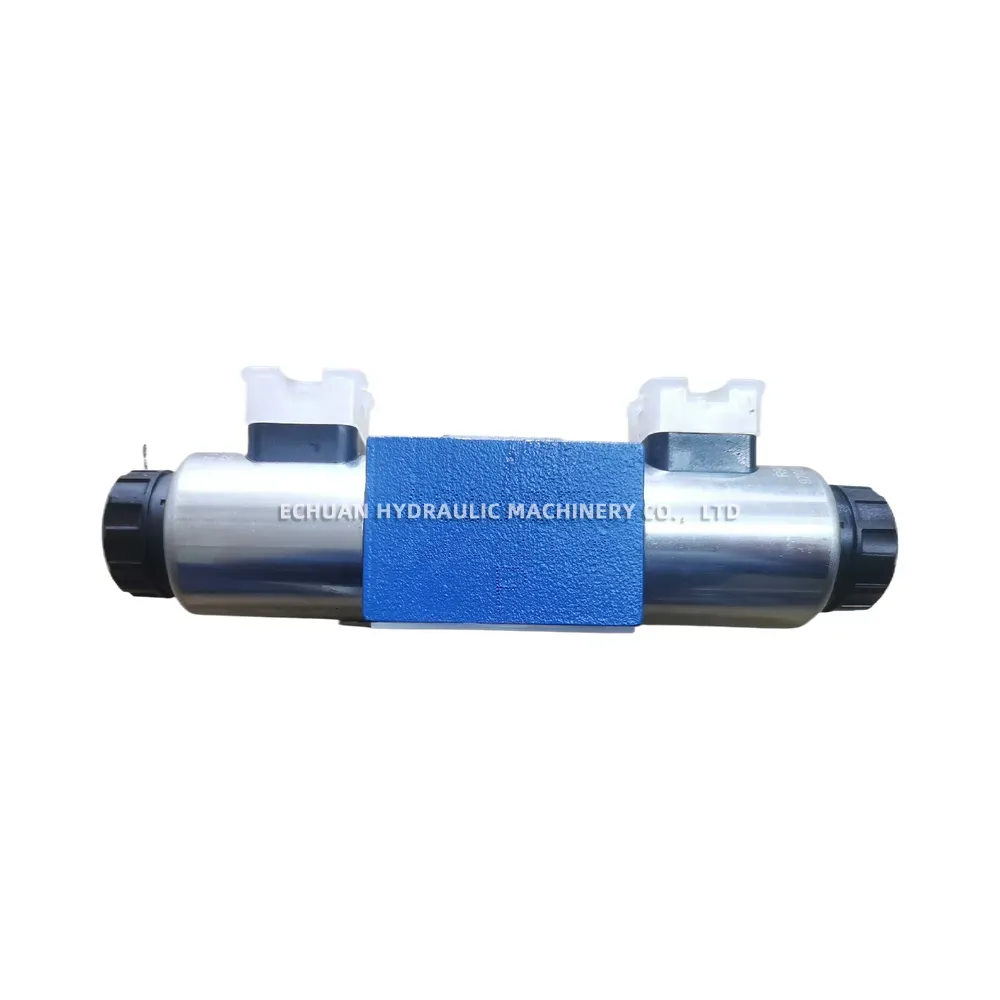

Rexroth R900561278 4WE 6 E62/EG24N9K4 - Image 4

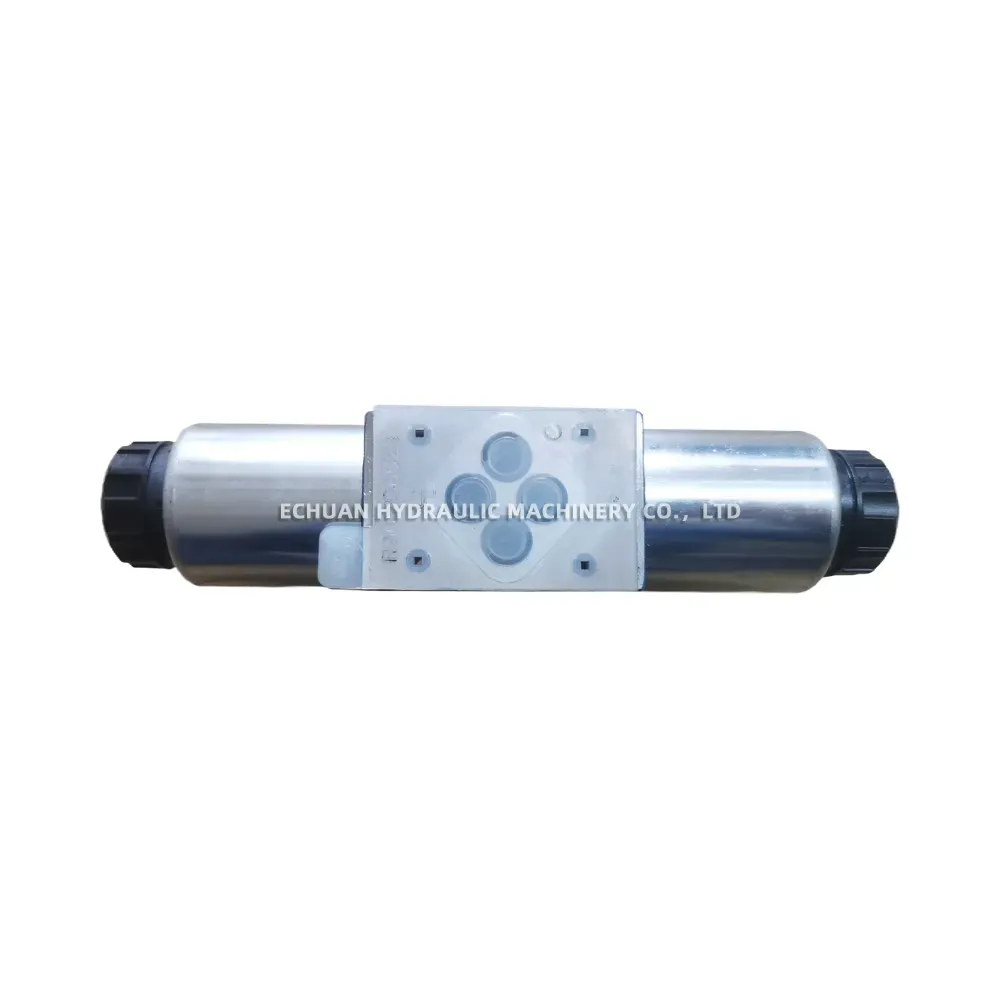

Rexroth R900561278 4WE 6 E62/EG24N9K4 - Image 5

Rexroth R900561278 4WE 6 E62/EG24N9K4

Model:Rexroth R900561278 4WE 6 E62/EG24N9K4

BrandRexroth
ModelR900561278 4WE 6 E62/EG24N9K4
Part No.Rexroth R900561278 4WE 6 E62/EG24N9K4
CategoryHydraulic valves
Linkhttps://www.echuan-hydraulic.com/product/rexroth-r900561278-4we-6-e62-eg24n9k4
