Product Description

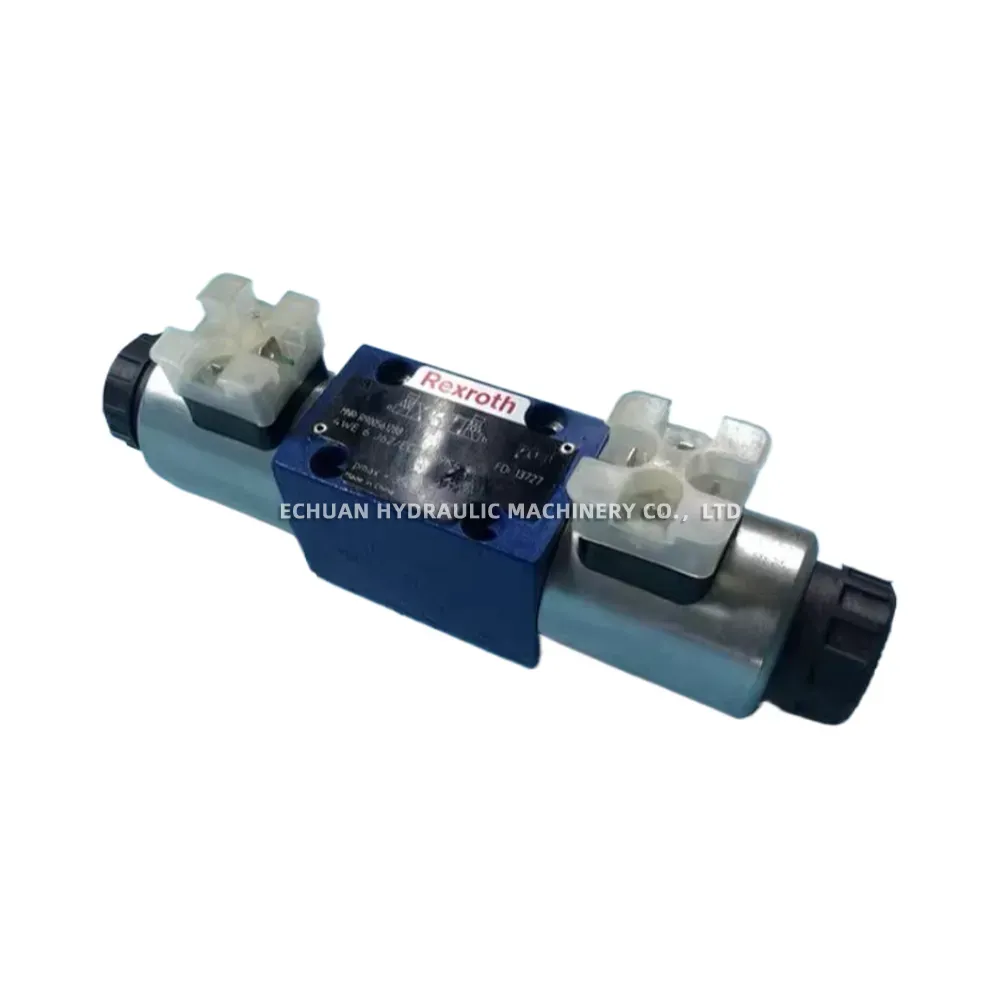

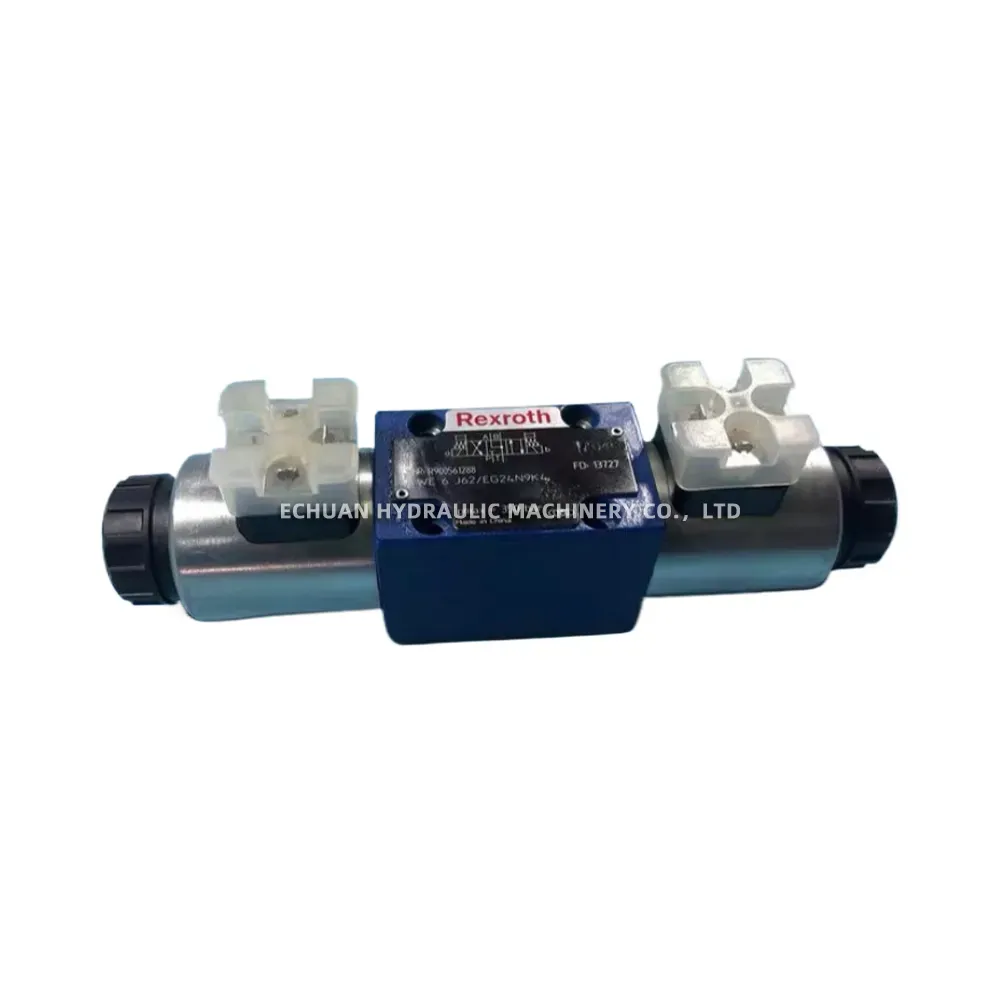

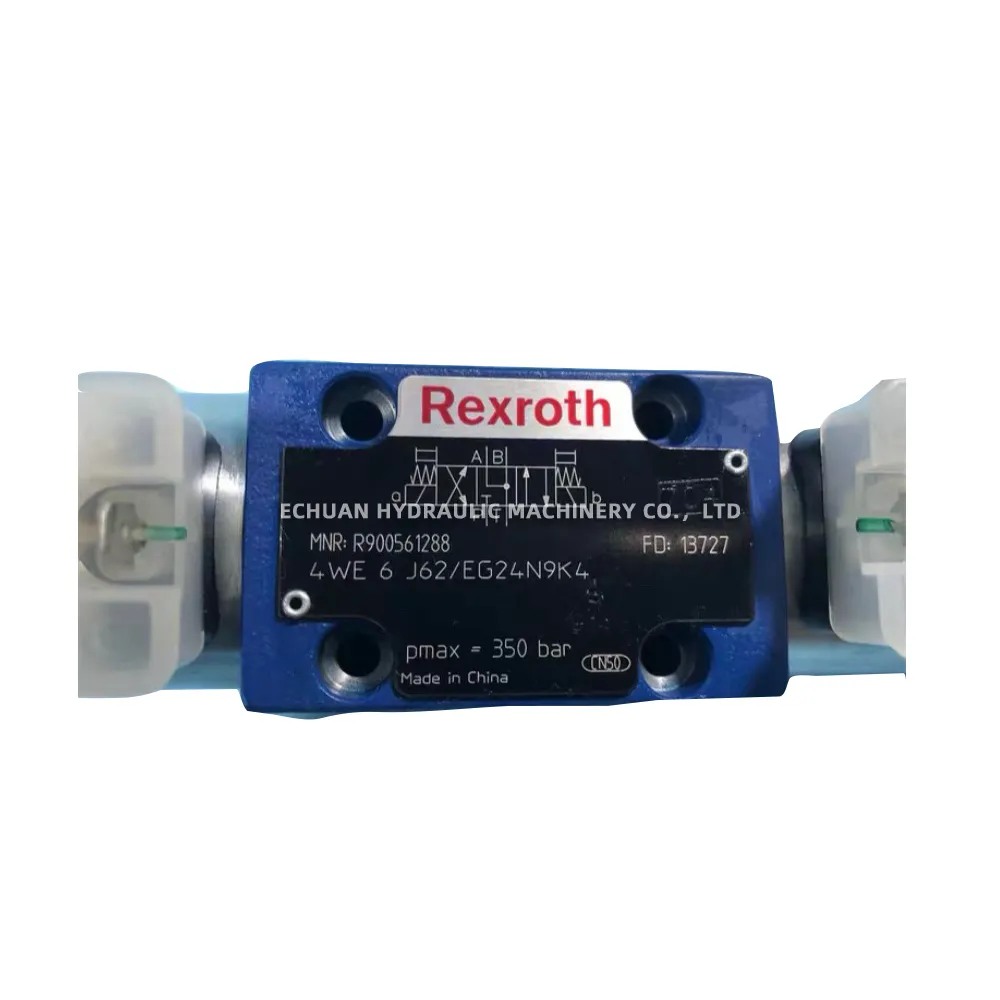

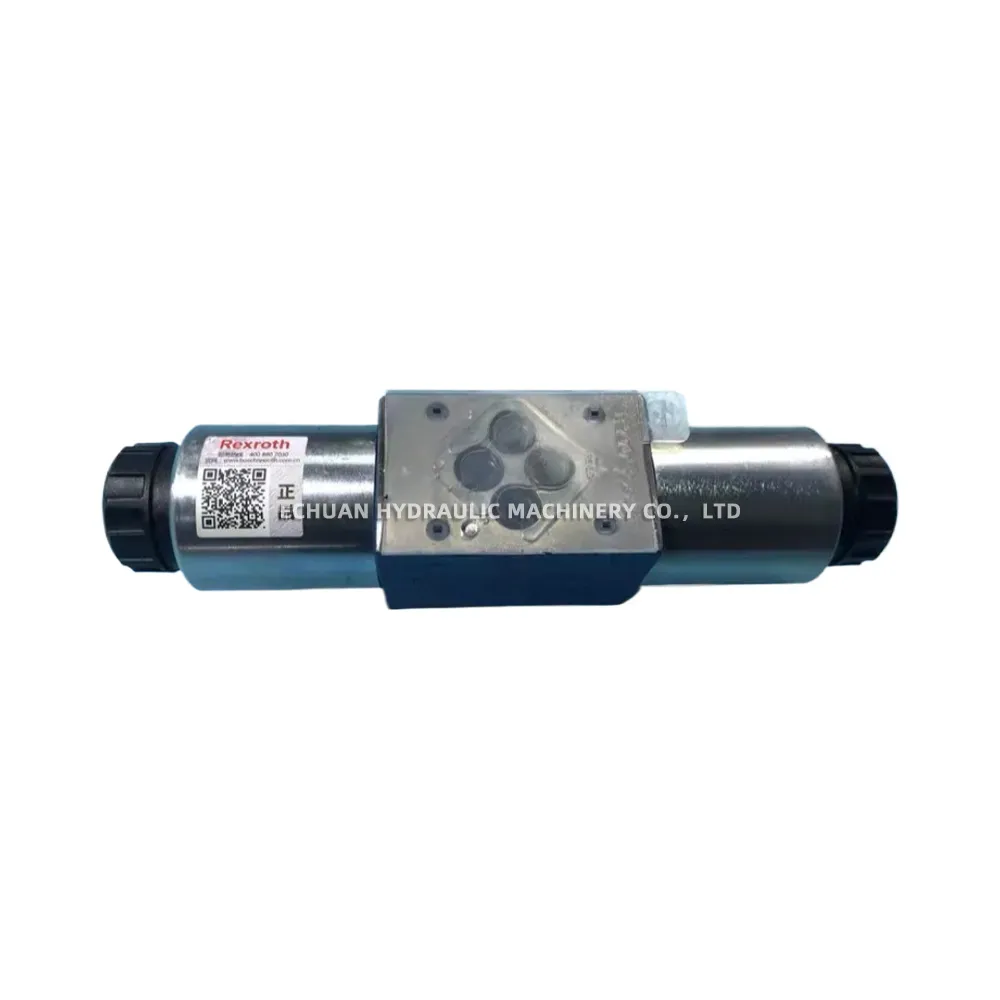

Rexroth R900561288 4WE 6 J62/EG24N9K4
The Bosch Rexroth R900561288, type 4WE 6 J62/EG24N9K4, is a high-performance, direct-operated directional spool valve. It is designed to reliably control the start, stop, and direction of fluid flow within a hydraulic system. This valve is actuated by a 24V DC wet-pin solenoid, which provides a long service life and excellent heat dissipation. Featuring a standard ISO 4401-03-02-0-05 porting pattern (NG6 / CETOP 3), it ensures easy integration into a wide variety of industrial hydraulic applications. The valve includes a concealed manual override for operation during power loss or system setup.

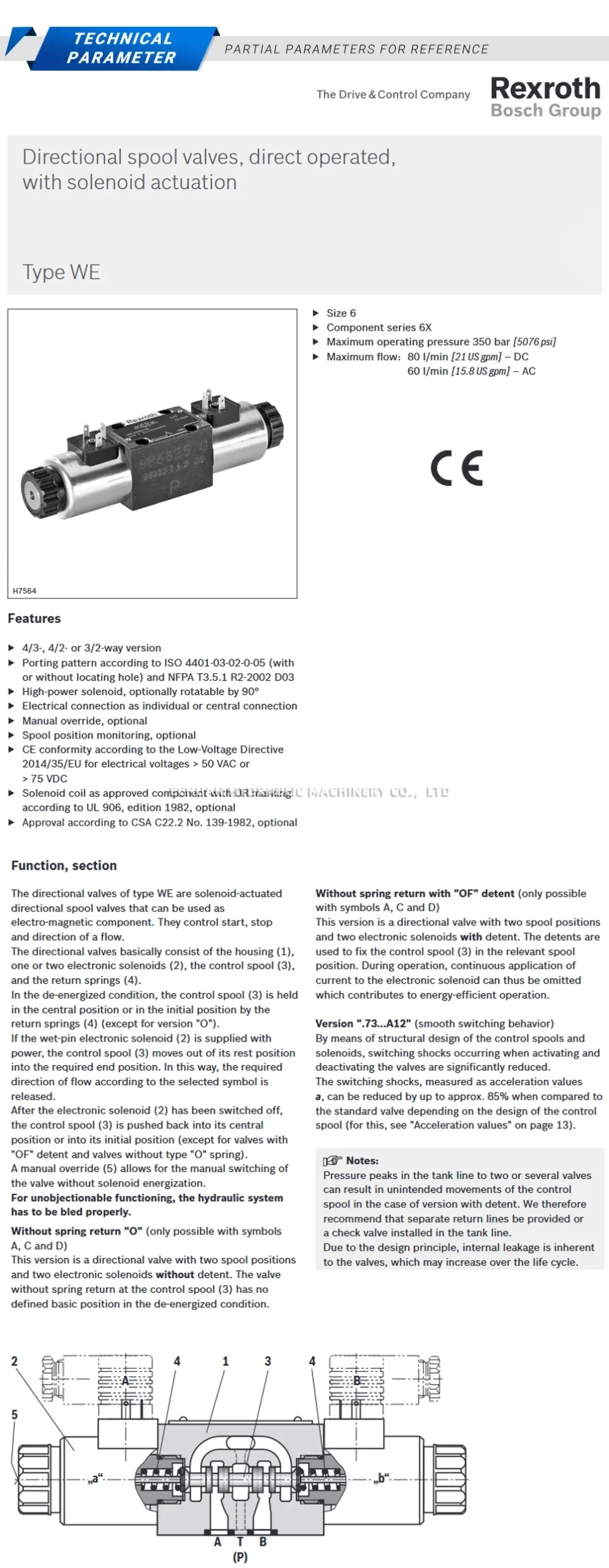

Technical Specifications:
- Model Code: 4WE 6 J62/EG24N9K4
- Type: Solenoid-operated directional spool valve
- Size: NG6 (CETOP 3)
- Porting Pattern: ISO 4401-03-02-0-05
- Spool Symbol: J
- Actuation Voltage: 24V DC
- Electrical Connection: Device connector to DIN EN 175301-803
- Maximum Operating Pressure (Ports P, A, B): 350 bar (5075 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Maximum Flow Rate: 80 l/min (21.1 GPM)
- Manual Override: Concealed manual override (N9)
- Seals: NBR (Nitrile)
Rexroth R900561288 4WE 6 J62/EG24N9K4
Model：Rexroth R900561288 4WE 6 J62/EG24N9K4
| Brand | Rexroth |
|---|---|
| Model | R900561288 4WE 6 J62/EG24N9K4 |
| Part No. | Rexroth R900561288 4WE 6 J62/EG24N9K4 |
| Category | Hydraulic valves |
