Product Description

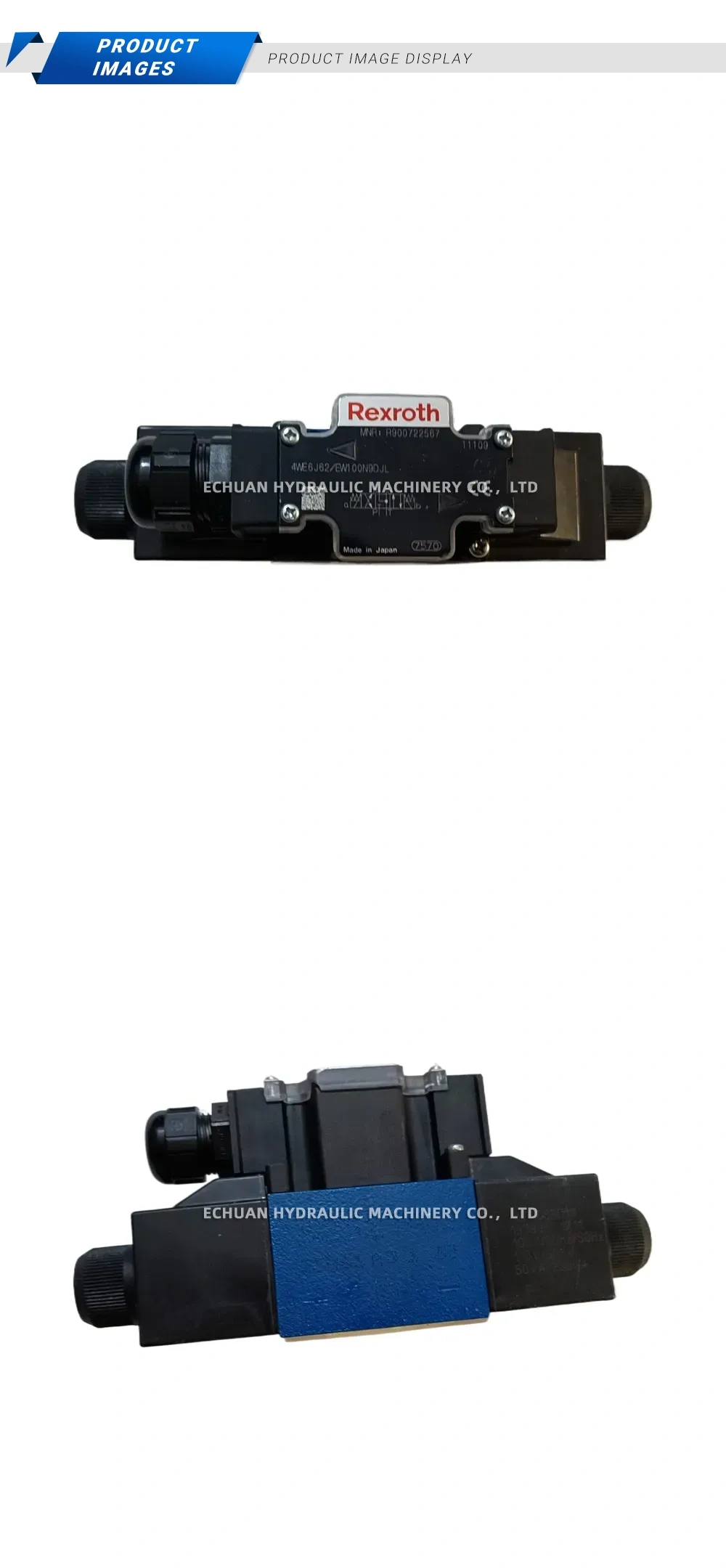

Rexroth R900722567 4WE6J6X/EW100N9DJL
The Rexroth R900722567 4WE6J6X/EW100N9DJL is a high-performance, direct-operated directional spool valve designed for reliable control in hydraulic systems. This solenoid-actuated valve is used to control the start, stop, and direction of fluid flow. Manufactured to the highest quality standards, it features a standard NG6 (CETOP 3) mounting pattern for easy integration into various industrial applications. This specific model is equipped with wet-pin 100V DC solenoids for efficient and quiet operation, a “J” spool configuration that blocks all ports in the neutral position, and durable FKM seals suitable for a wide range of hydraulic fluids. The concealed manual override provides an option for emergency or setup operations.
Technical Specifications:
- Model Code: 4WE6J6X/EW100N9DJL
- Type: Direct-operated directional spool valve
- Size: NG6 (CETOP 3)
- Maximum Operating Pressure: 350 bar (5075 psi)
- Maximum Flow Rate: 80 l/min (21 GPM)
- Spool Symbol: J (P, A, B, T blocked in center position)
- Actuation: Solenoid operated (2 solenoids)
- Solenoid Voltage: 100V DC
- Electrical Connection: DIN EN 175301-803 (connector ordered separately)
- Seals: FKM (Viton)
Rexroth R900722567 4WE6J6X/EW100N9DJL
Genuine Rexroth R900722567 (4WE6J6X/EW100N9DJL) direct-operated solenoid directional valve. Size NG6, 350 bar, with 100V DC coils and a blocked-center spool. Ideal for industrial hydraulic control applications.
