Product Description

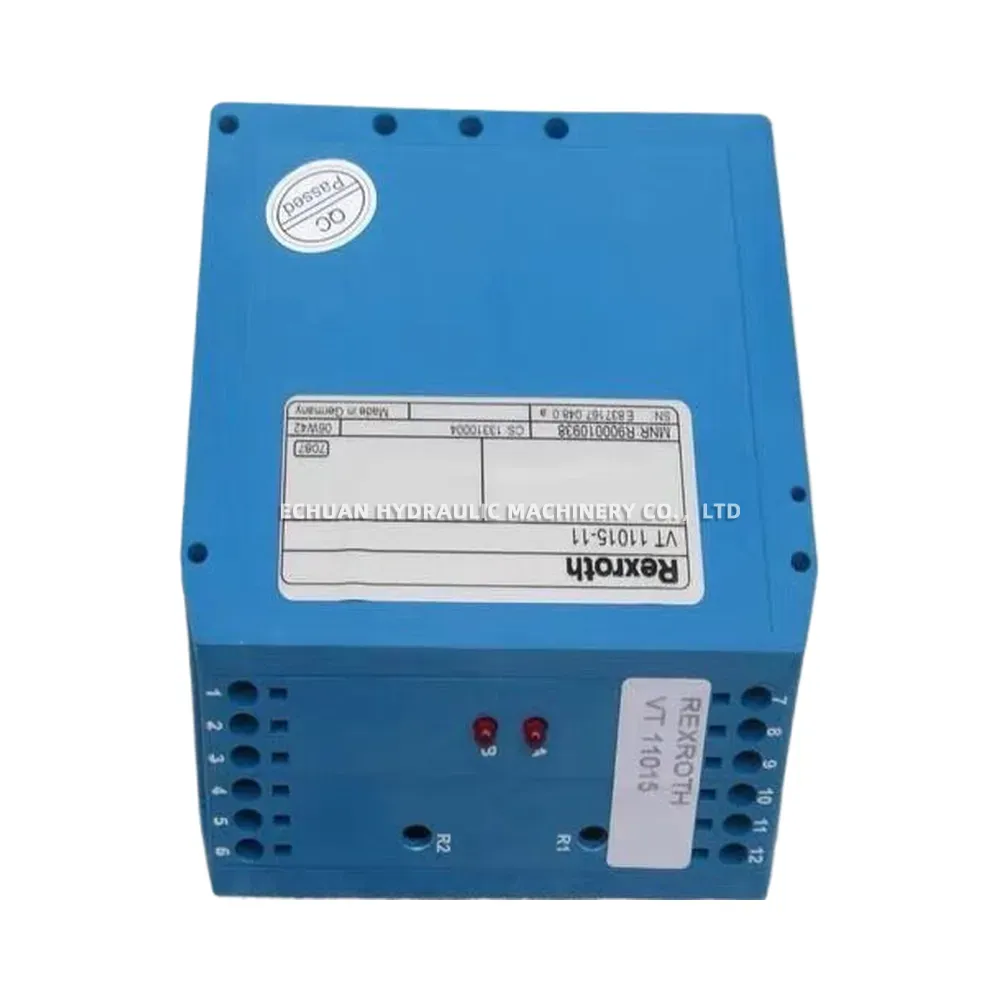

Rexroth VT 11015-11 Proportional Amplifier Card
The Rexroth VT 11015-11 is a high-performance analog amplifier card in Eurocard format, specifically engineered for controlling proportional valves without electrical position feedback. It provides precise and reliable command signal processing, featuring a differential amplifier input, an adjustable ramp generator for smooth acceleration and deceleration, and two pulse-width modulated (PWM) output stages. The card includes status LEDs for quick diagnostics and potentiometers for fine-tuning parameters like ramp times and command value attenuation. Its robust design and compliance with ESD/EMC standards make it an ideal solution for demanding industrial hydraulic applications requiring accurate valve control.
Technical Specifications:
- Brand: Rexroth
- Model: VT 11015-11
- Component Series: 1X
- Design: Analog amplifier in Eurocard format (100 x 160 mm)
- Operating Voltage: 24 V DC ±10%
- Input Signal: Differential input, voltage (0 to ±10 V) or current (4 to 20 mA)
- Output: Pulse-width modulated (PWM) signal for two solenoids
- Connection: 32-pin male connector, type F, according to DIN 41612
- Material Number (MNR): R900010938
Rexroth VT 11015-11 Proportional Amplifier Card
Genuine Rexroth VT 11015-11 (R900010938) proportional amplifier card. This Eurocard format analog amplifier is designed for controlling proportional hydraulic valves without position feedback. Features adjustable ramp times and PWM outputs for precise industrial control.
