Product Description

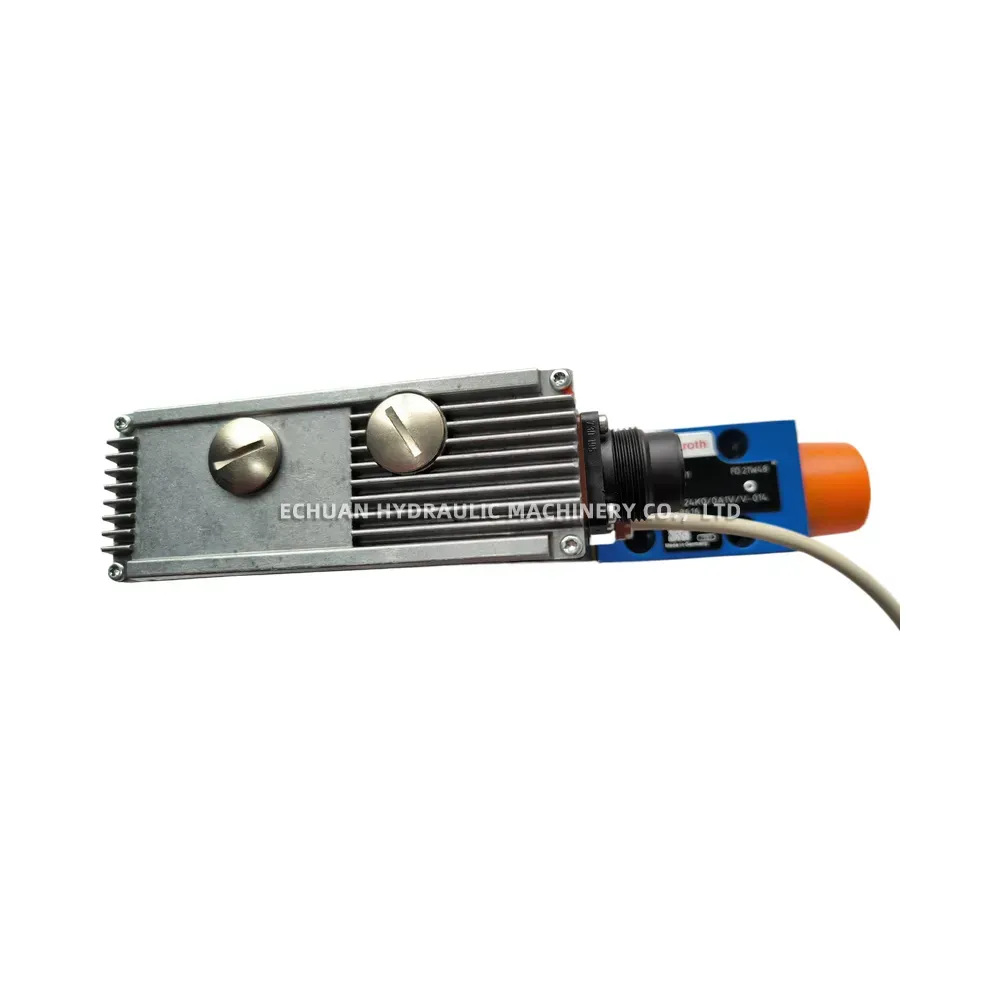

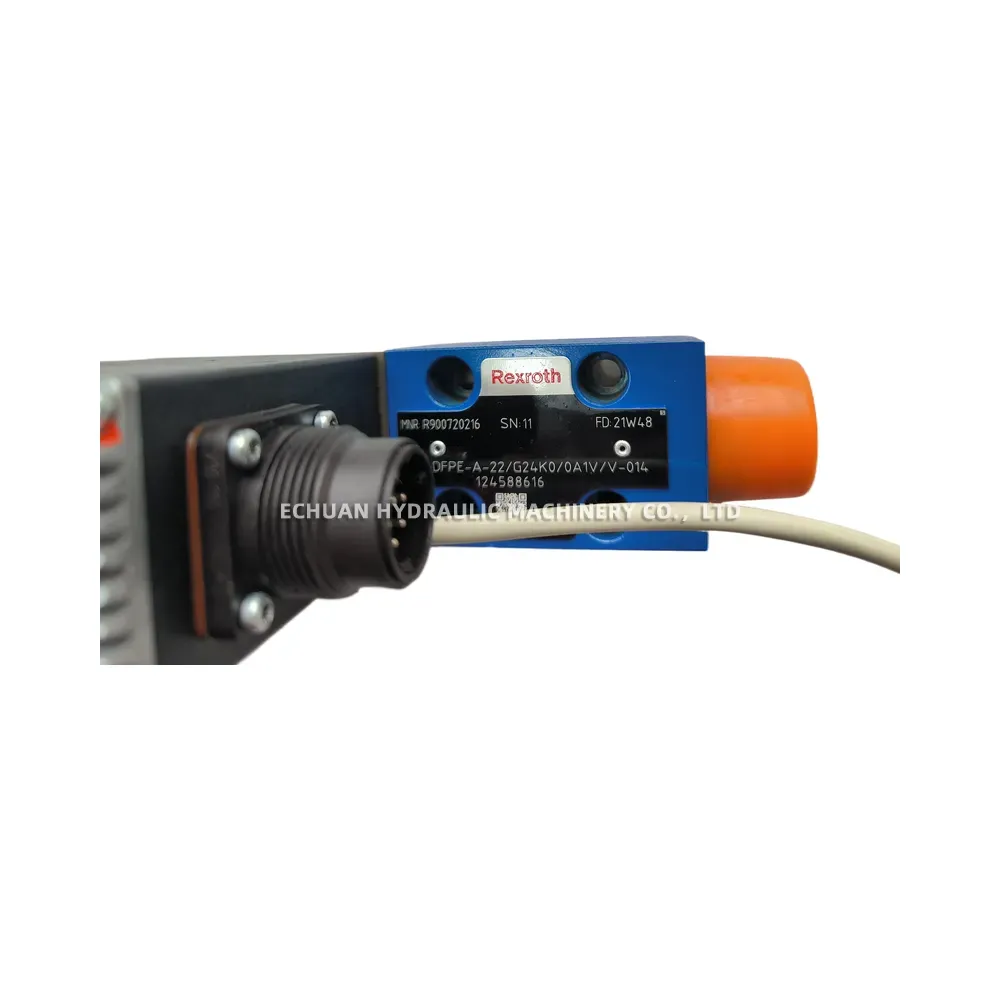

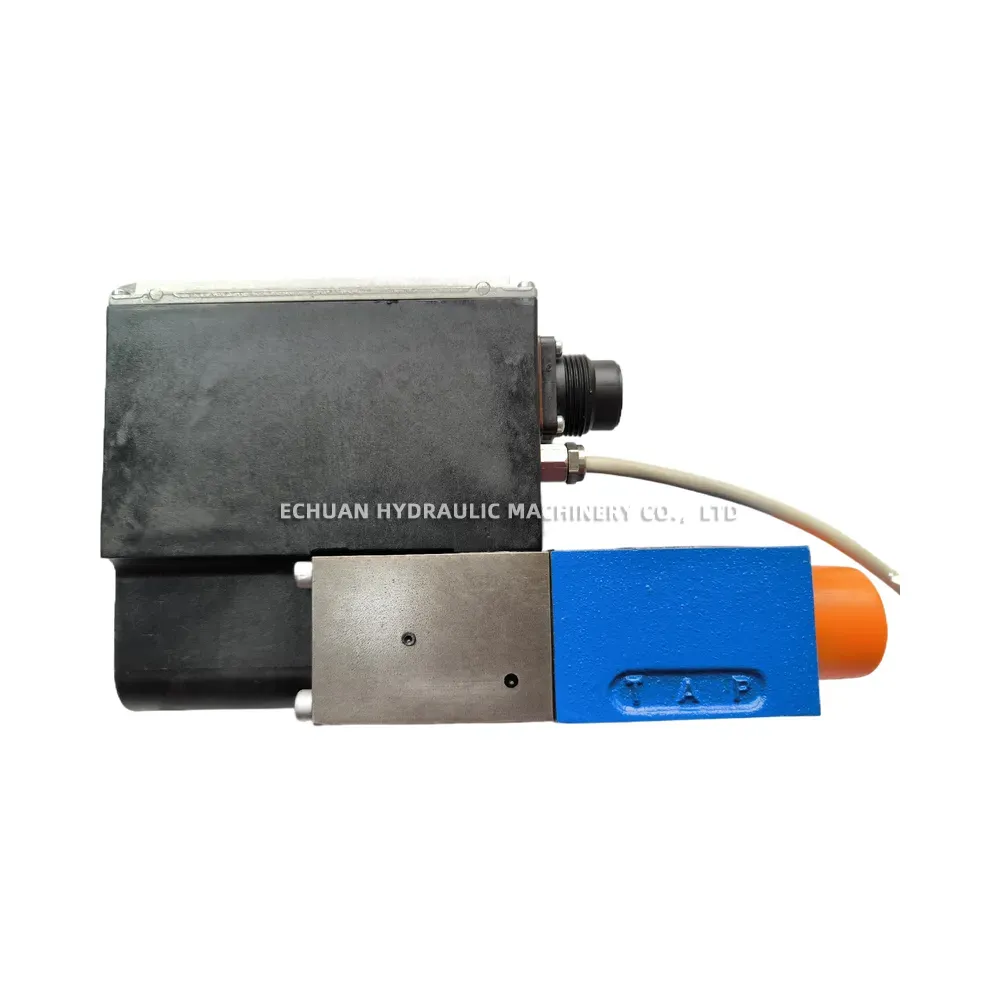

Rexroth VT-DFPE-A-22/G24K0/0A1V/V-014 R900720216
The Rexroth VT-DFPE-A-22 is a pilot-operated proportional pressure reducing valve featuring integrated digital electronics (OBE). Designed for subplate mounting according to ISO 4401-03-02-0-05 standards (NG6 / CETOP 03), this valve is used to reduce system pressure primarily in port P1. It utilizes a proportional solenoid for precise control, managed by the onboard amplifier. This specific variant operates on a 24V DC supply and accepts a differential command signal input of +/- 10V, making it suitable for sophisticated hydraulic control systems requiring accurate pressure regulation.
Technical Specifications:
- Valve Type: Proportional Pressure Reducing Valve, Pilot Operated (based on 3DREP 6)
- Control Electronics: Integrated Digital Electronics (OBE) VT-DFPE
- Size: NG6 (Nominal Size 6)
- Mounting Interface: ISO 4401-03-02-0-05
- Component Series: 2X (Valve), A (Electronics)
- Supply Voltage: 24 V DC (G24)
- Electrical Connector: Plug-in connector DIN EN 175301-803, without plug (K0)
- Command Value Input: Differential amplifier input +/- 10 V (A1V)
- Pressure Reduction: In port P1
- Maximum Operating Pressure (Port P): 315 bar
- Maximum Flow: 15 l/min
- Hydraulic Fluid: Mineral oil (HL, HLP) DIN 51524
- Fluid Temperature Range: -20°C to +70°C
- Part Number: R900720216
Rexroth VT-DFPE-A-22/G24K0/0A1V/V-014 R900720216
Model:Rexroth VT-DFPE-A-22/G24K0/0A1V/V-014 R900720216
| Brand | Rexroth |
|---|---|
| Model | VT-DFPE-A-22/G24K0/0A1V/V-014 R900720216 |
| Part No. | Rexroth VT-DFPE-A-22/G24K0/0A1V/V-014 R900720216 |
| Category | Hydraulic valves |
