Product Description

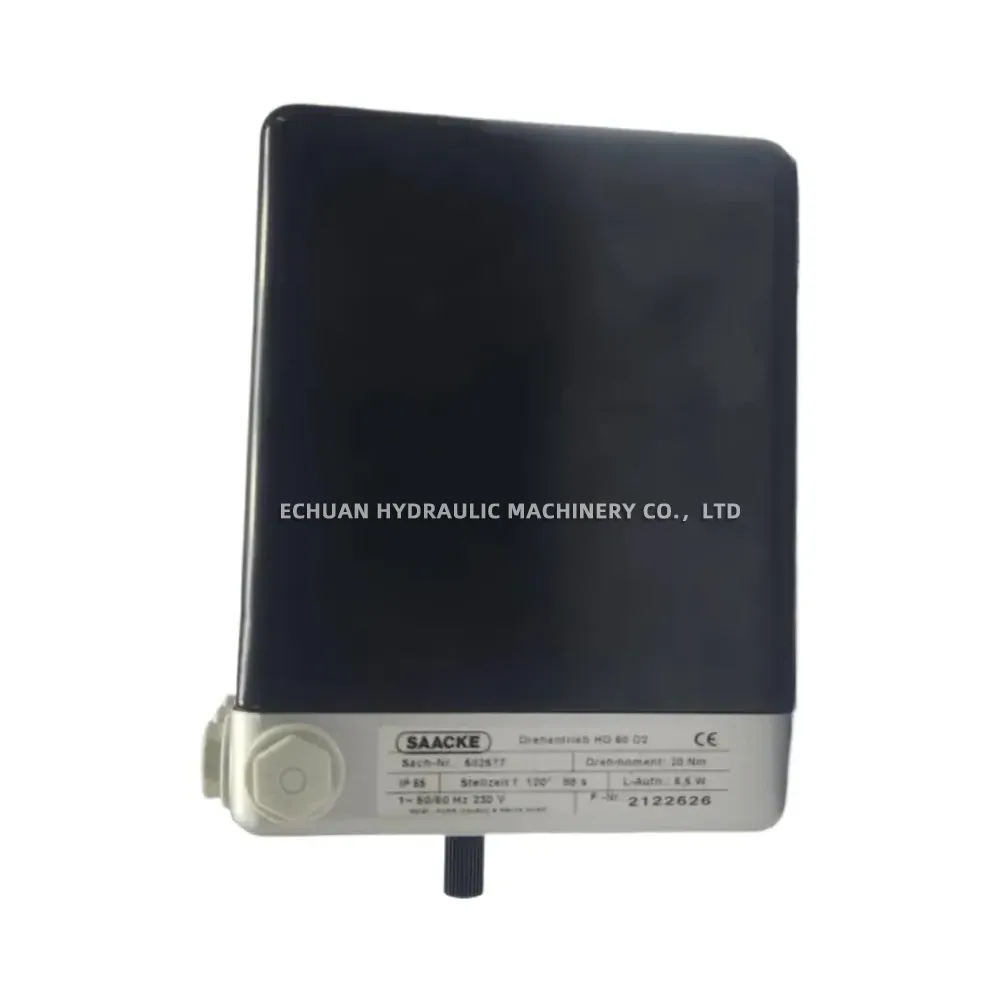

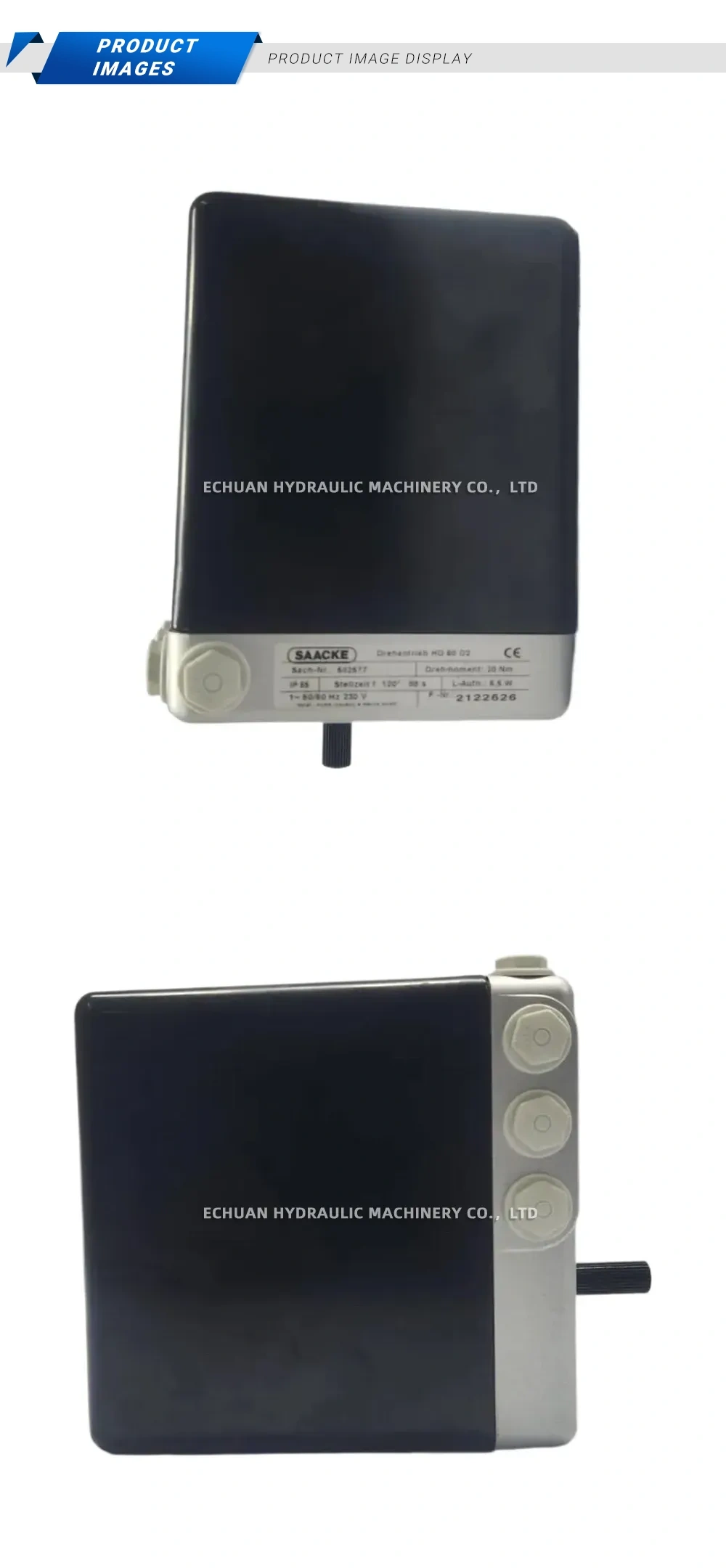

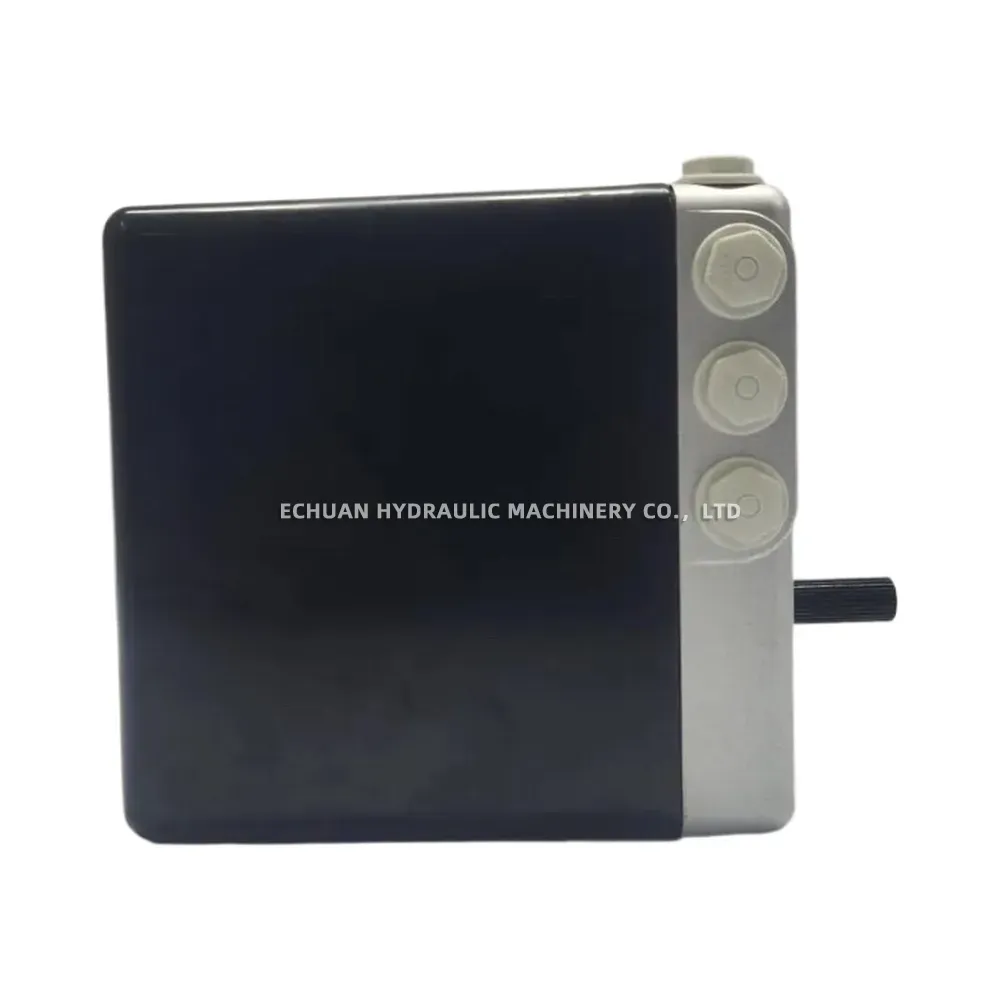

SAACKE HQ 60 D2 Rotary Actuator
The SAACKE HQ 60 D2 is a robust and reliable industrial rotary actuator designed for precise control in demanding applications. Engineered for durability, it features an IP65 protection rating, making it resistant to dust ingress and water jets from any direction. This actuator is ideal for automating dampers, flaps, and ball valves in industrial heating, ventilation, and process control systems. Operating on a standard 230V single-phase supply, it provides a consistent torque of 20 Nm, ensuring dependable performance for a wide range of positioning tasks.
Technical Specifications:
- Model: HQ 60 D2
- Torque: 20 Nm
- Positioning Time: 98 seconds for 120° rotation
- Power Supply: 230V AC, 1-Phase, 50/60 Hz
- Power Consumption: 6.6 W
- Protection Rating: IP65
- Part Number (Sach-Nr.): 602577
SAACKE HQ 60 D2 Rotary Actuator
Discover the SAACKE HQ 60 D2 Rotary Actuator, a high-performance 230V industrial actuator delivering 20 Nm of torque. With an IP65 rating, it’s built for reliable and precise control in harsh environments.
