Product Description

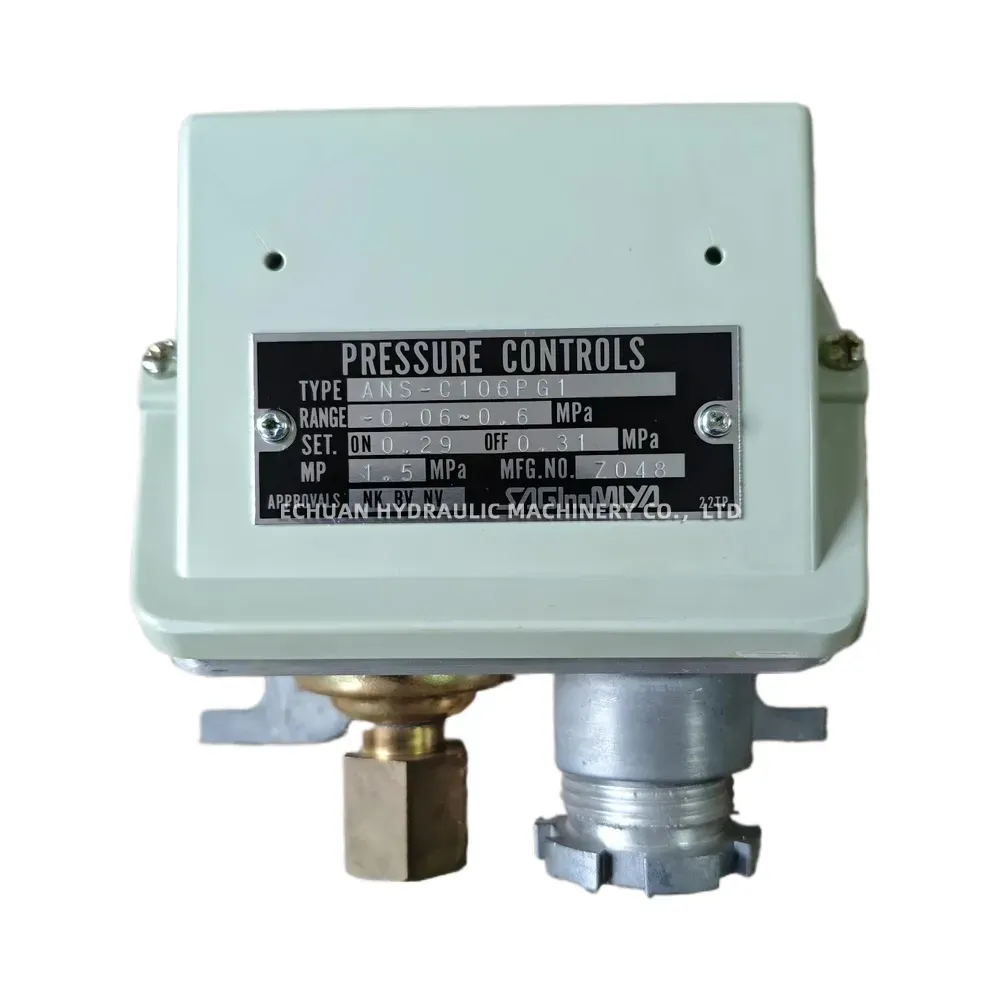

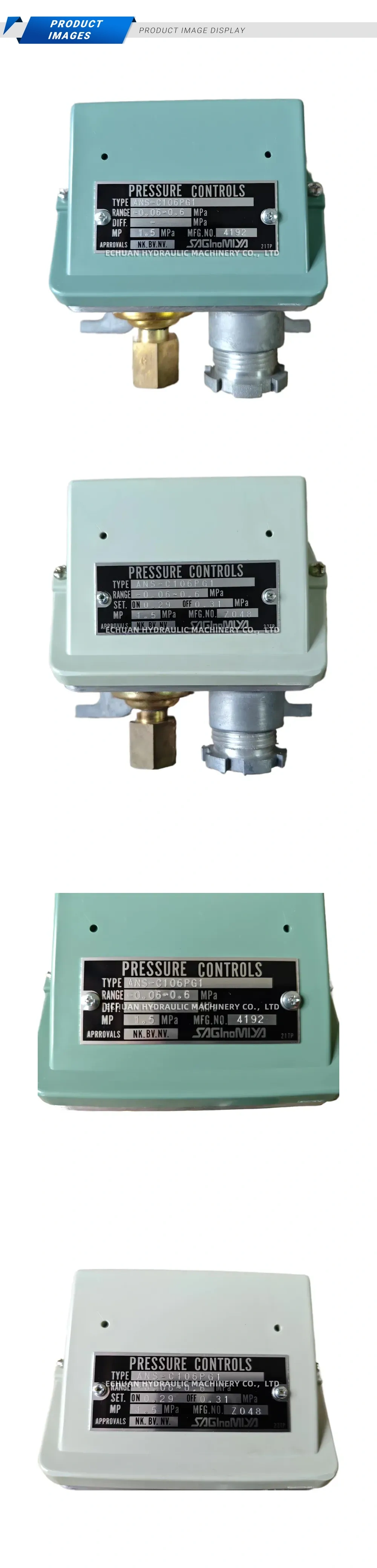

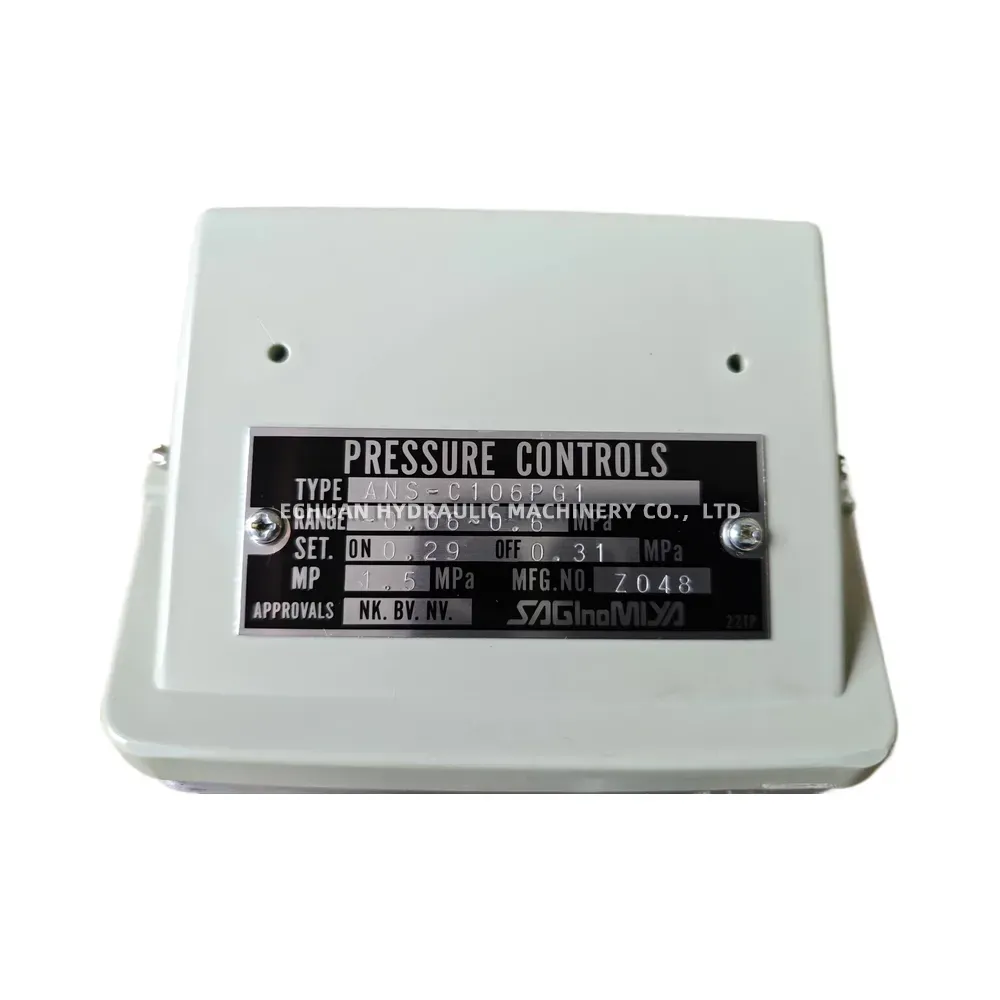

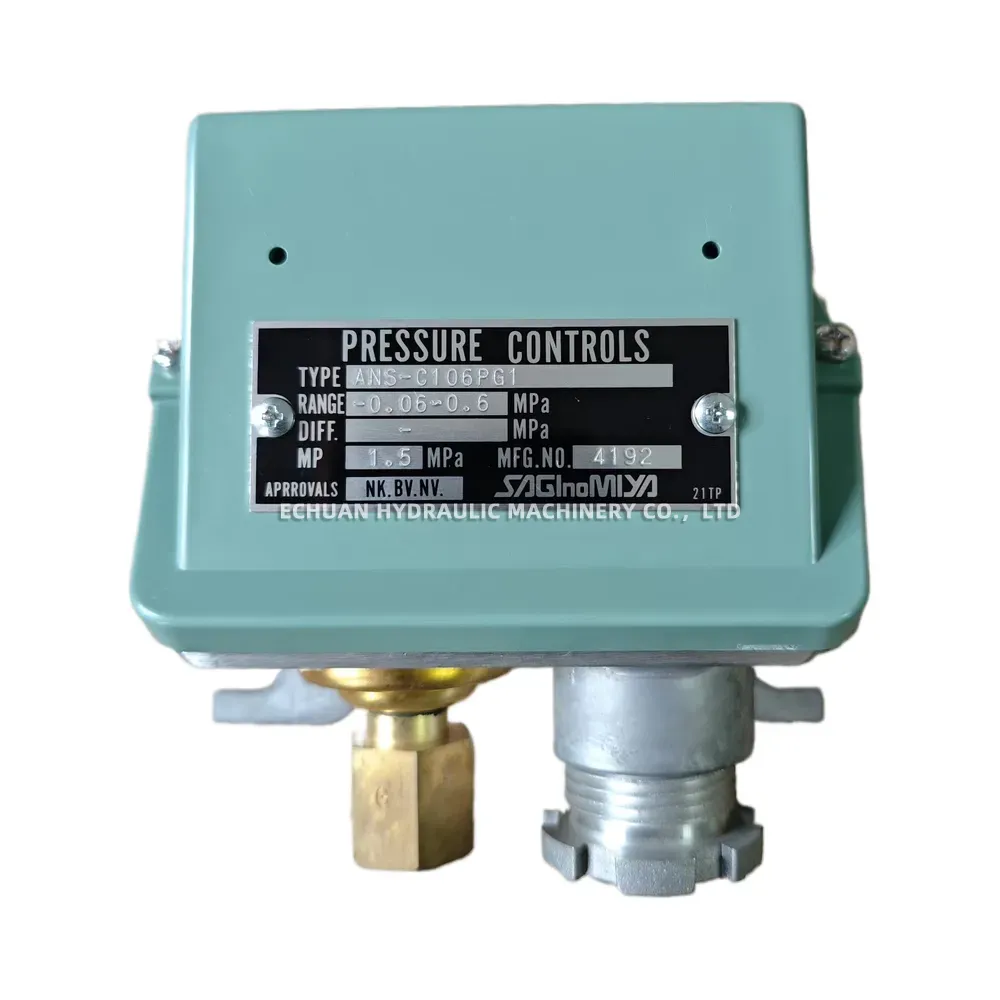

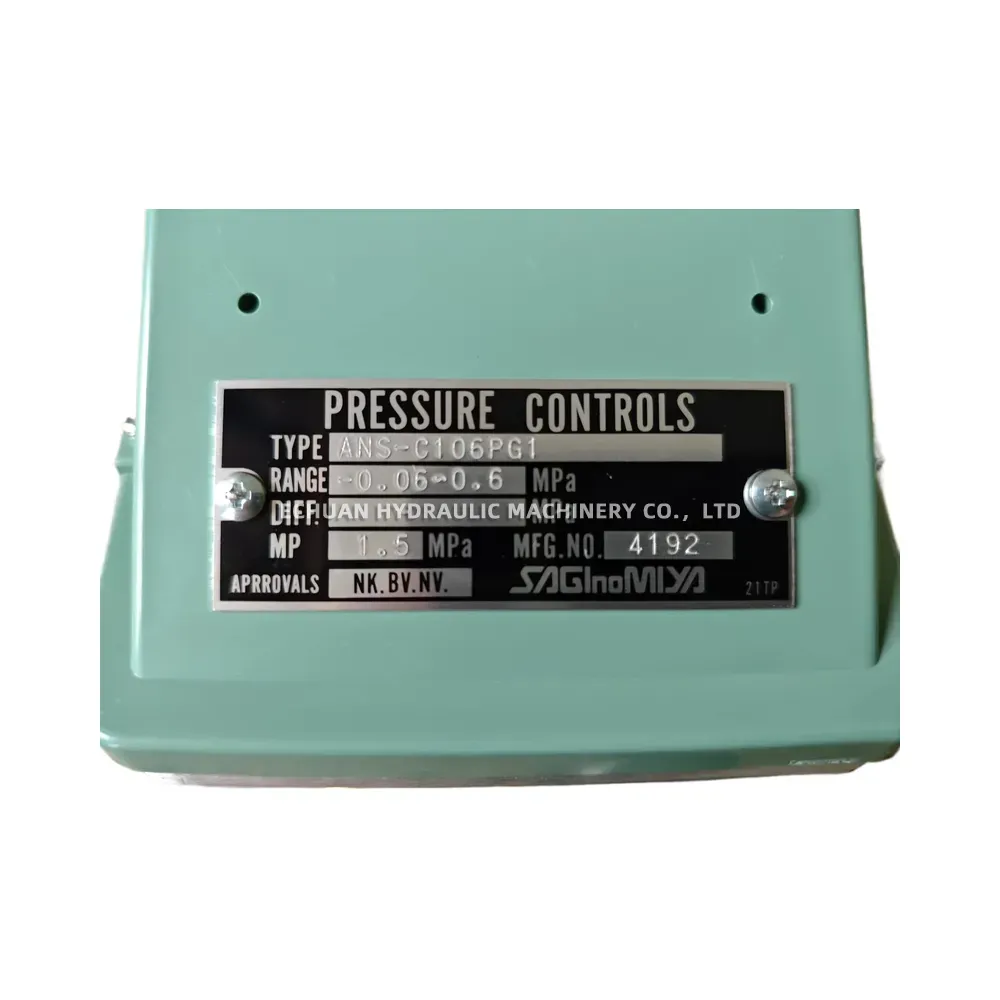

Saginomiya ANS-C106PG1 Pressure Switch
The Saginomiya ANS-C106PG1 is a premium-quality pressure control switch engineered for precision and durability in demanding industrial and marine applications. Manufactured in Japan, this unit features a robust brass pressure sensing port and a secure threaded cable gland connection, ensuring reliable operation in harsh environments. With an adjustable pressure range of -0.06 to 0.6 MPa and a maximum working pressure of 1.5 MPa, it provides accurate system monitoring and protection. The switch is fully certified with major marine approvals including NK, BV, and NV, making it an ideal choice for maritime and heavy-duty industrial pressure regulation systems.
Technical Specifications:
- Brand: Saginomiya
- Model: ANS-C106PG1
- Pressure Range: -0.06 to 0.6 MPa
- Maximum Working Pressure (MP): 1.5 MPa
- Factory Set Point: ON 0.29 MPa / OFF 0.31 MPa
- Approvals: NK, BV, NV
- Construction: Brass pressure sensing port with threaded cable gland
- Country of Origin: Made in Japan

Saginomiya ANS-C106PG1 Pressure Switch (Pressure Control)
Buy the genuine Saginomiya ANS-C106PG1 Pressure Switch. Featuring a -0.06 to 0.6 MPa operating range, 1.5 MPa max pressure, and NK/BV/NV marine approvals, this Japanese-made controller ensures reliable and precise industrial pressure regulation.
| Brand | SAGINOMIYA |
|---|---|
| Model | ANS-C106PG1 |
| Part No. | 945220395841 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/saginomiya-ans-c106pg1-pressure-switch-pressure-control |
