Product Description

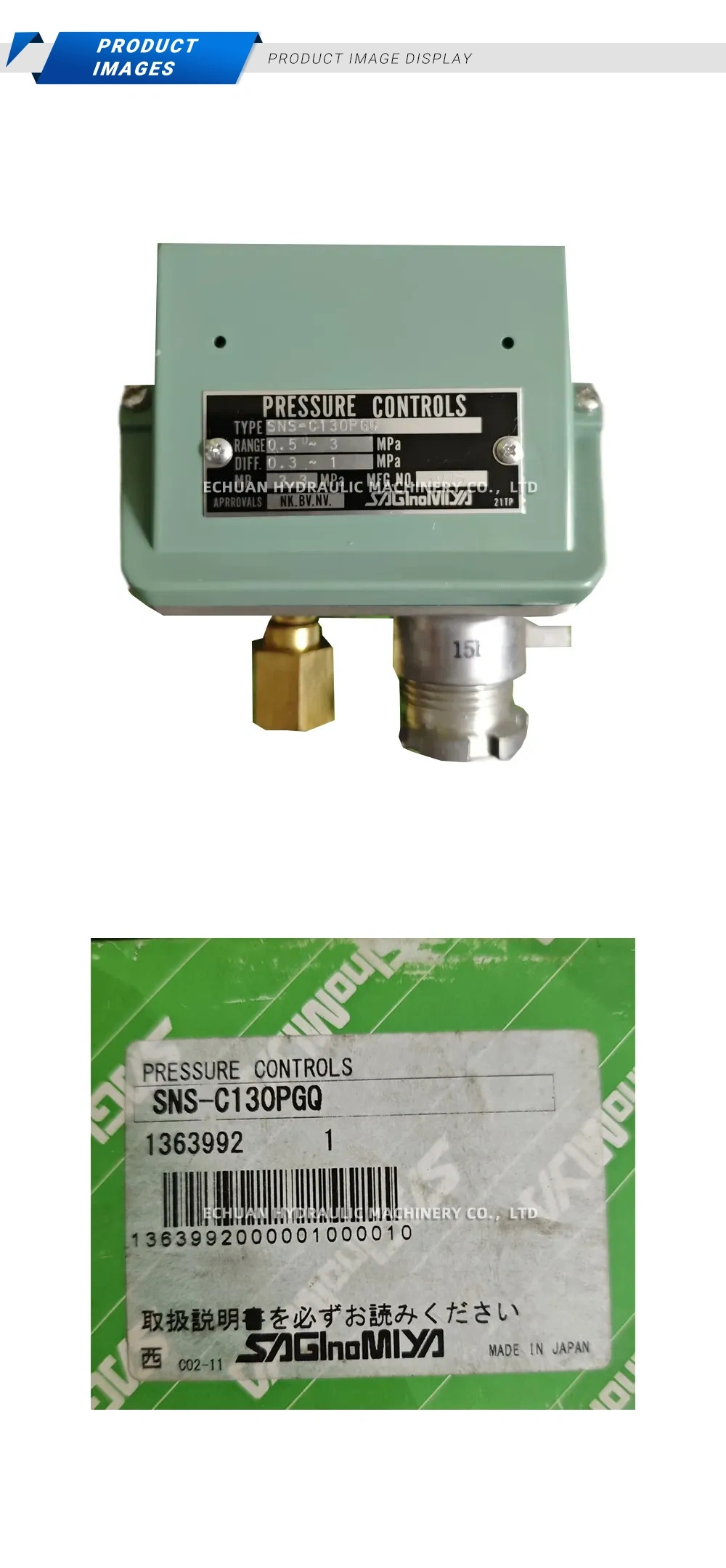

Saginomiya SNS-C130PG0 Pressure Controls
The Saginomiya SNS-C130PG0 is a high-quality, general-purpose pressure control switch designed for reliability and precision. Part of the renowned SNS series, this device is widely used in commercial refrigeration, air conditioning systems, and various industrial applications to regulate pressure and protect equipment. Its robust construction ensures stable and long-lasting performance for both high and low-pressure control. With an adjustable pressure range and differential, the SNS-C130PG0 offers the flexibility needed to safeguard compressors and other critical components from damage caused by abnormal pressure levels, making it an essential component for system safety and efficiency.
Technical Specifications:
- Control Range: 0.5 to 3 MPa (5 to 30 bar)
- Differential: 0.2 to 0.7 MPa (2 to 7 bar)
- Maximum Working Pressure: 3.3 MPa (33 bar)
- Contact Function: SPDT (Single Pole Double Throw)
- Pressure Connection: 1/4″ SAE Flare
- Electrical Rating: 20A at 125/250V AC
Saglnomiya SNS-C-1 30PG0 Pressure Controls
Discover the Saginomiya SNS-C130PG0, a durable pressure control switch with a 0.5-3 MPa range. Ideal for refrigeration and industrial systems requiring precise high/low pressure regulation.
