Product Description

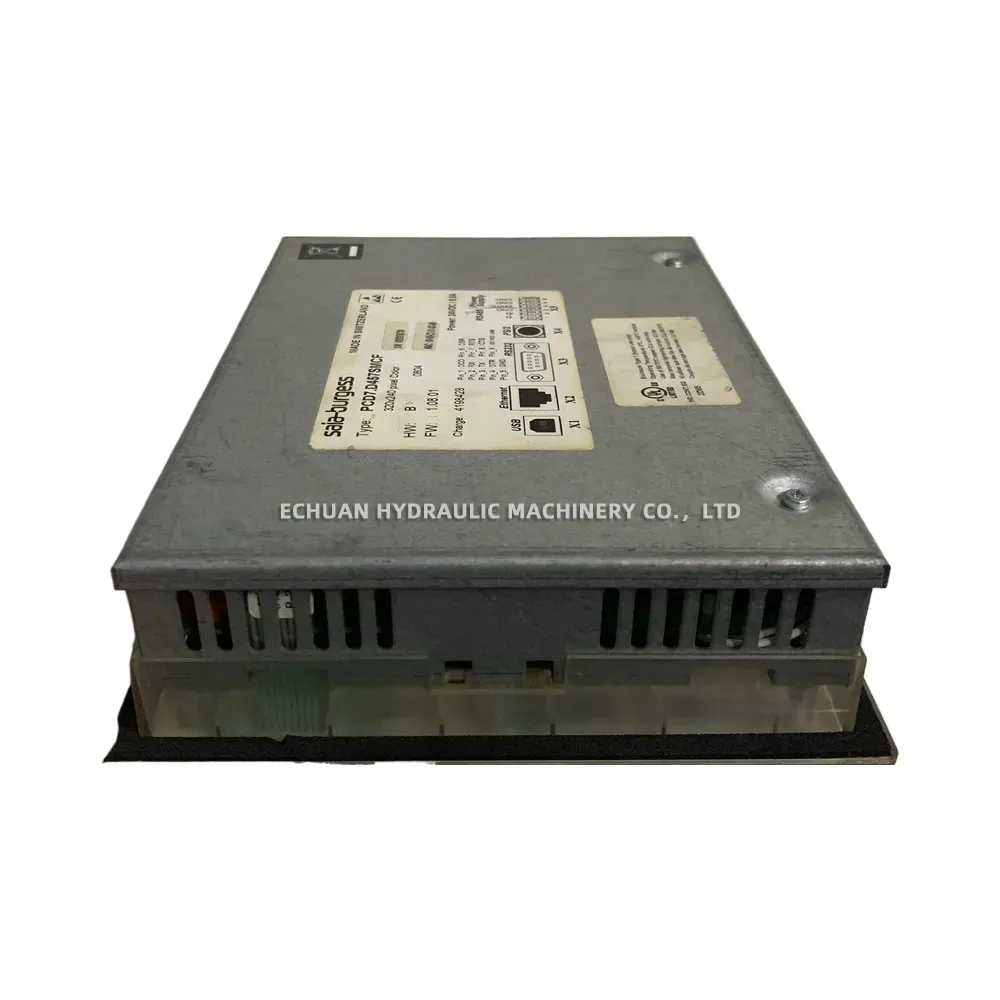

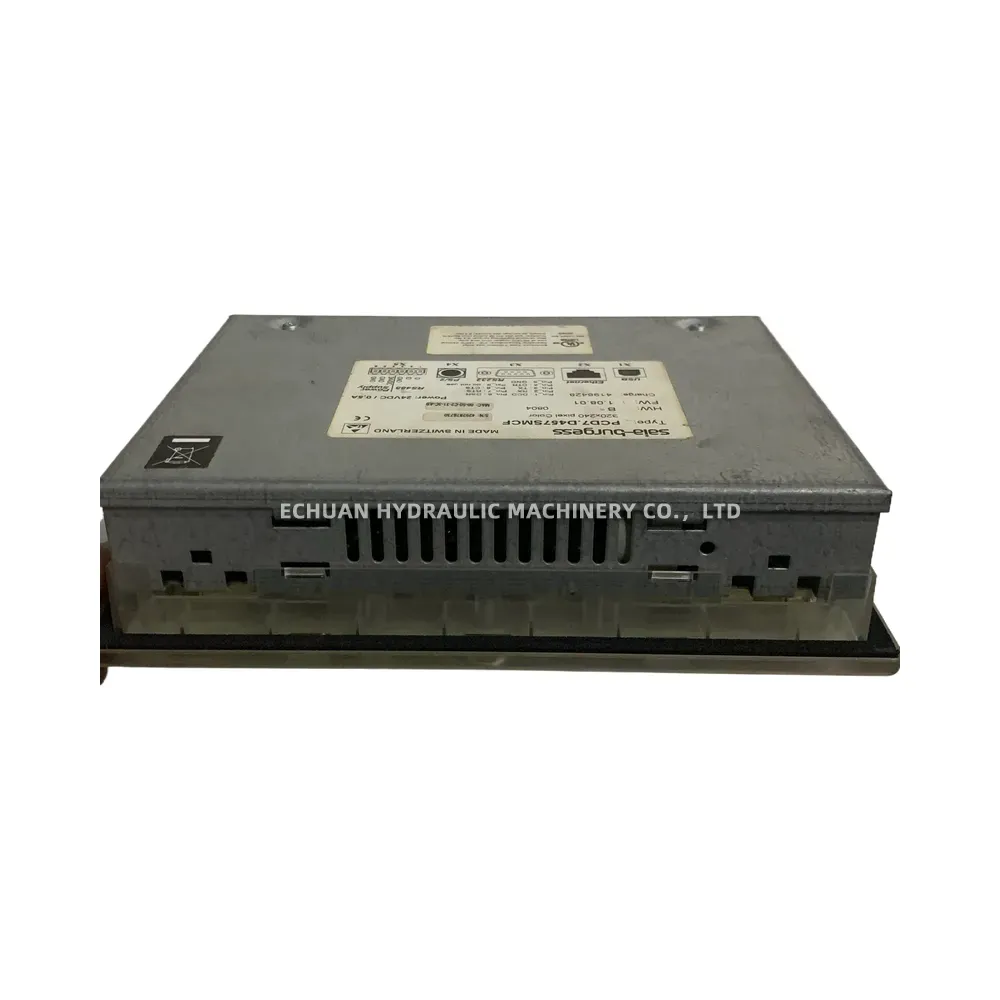

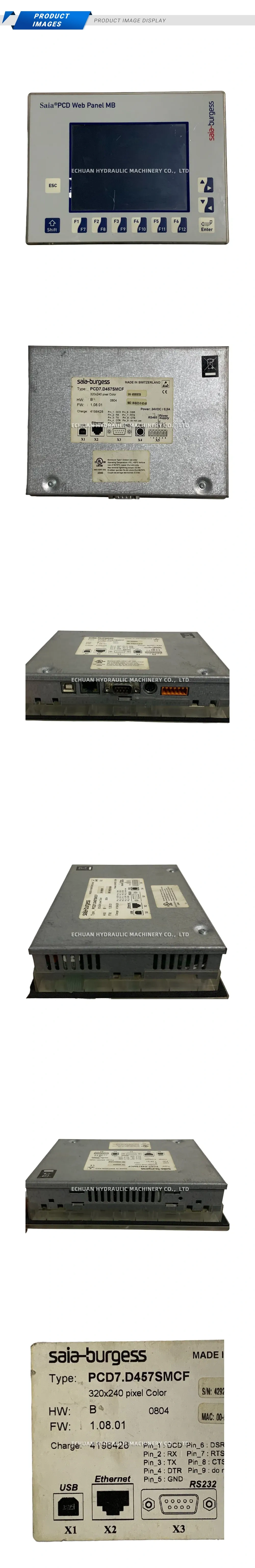

Saia-Burgess PCD7.D457SMCF Web Panel
The Saia-Burgess PCD7.D457SMCF is a highly reliable, industrial-grade Web Panel MB designed for efficient human-machine interface (HMI) applications. Manufactured in Switzerland, this robust panel features a vibrant 320×240 pixel color display, ensuring clear data visibility for critical monitoring and control tasks. It is equipped with versatile communication interfaces, including Ethernet (X2), USB (X1), RS232 (X3), RS485 (X5), and PS/2 (X4), providing seamless integration into diverse automation networks. Built for demanding indoor industrial environments, the PCD7.D457SMCF operates efficiently in vertical installations at temperatures ranging from 0°C to +55°C and holds a cULus listing for industrial control equipment.
Technical Specifications:
- Brand: Saia-Burgess
- Model: PCD7.D457SMCF

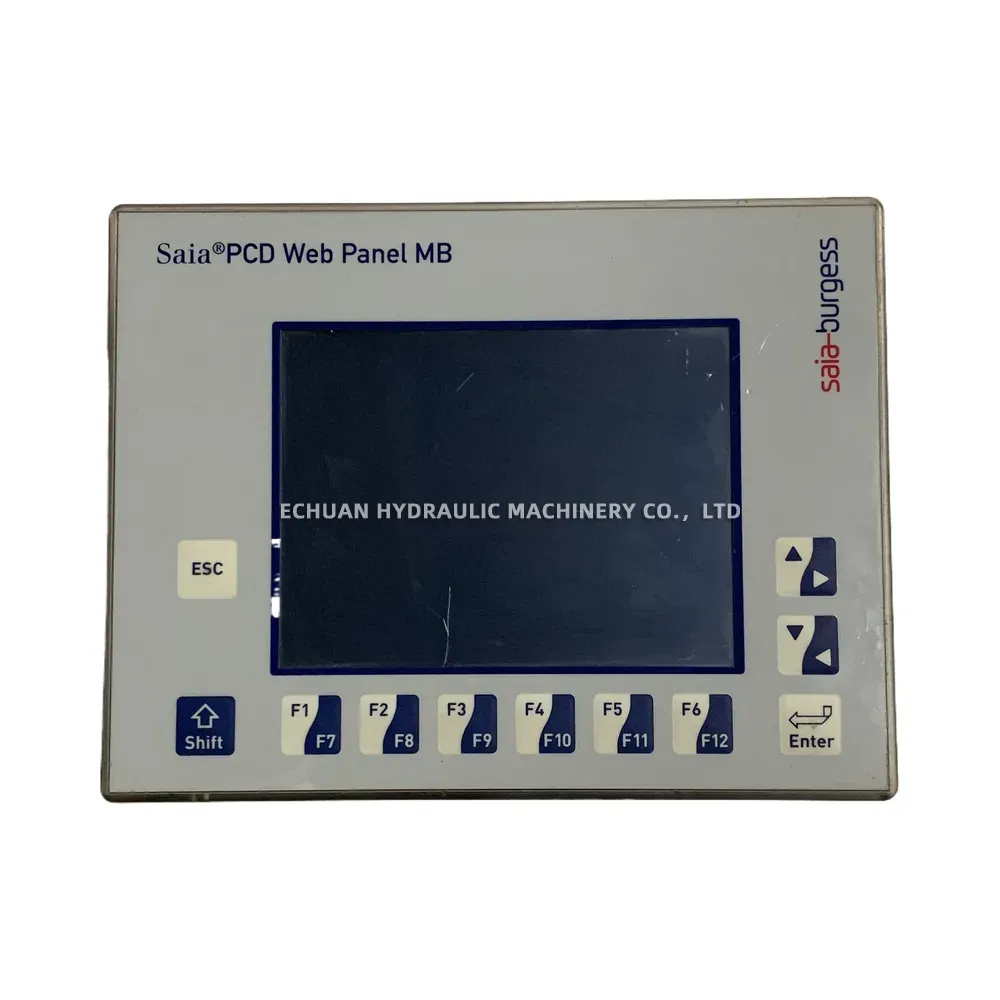

- Display: 320×240 pixel Color
- Power Supply: 24VDC / 0.5A

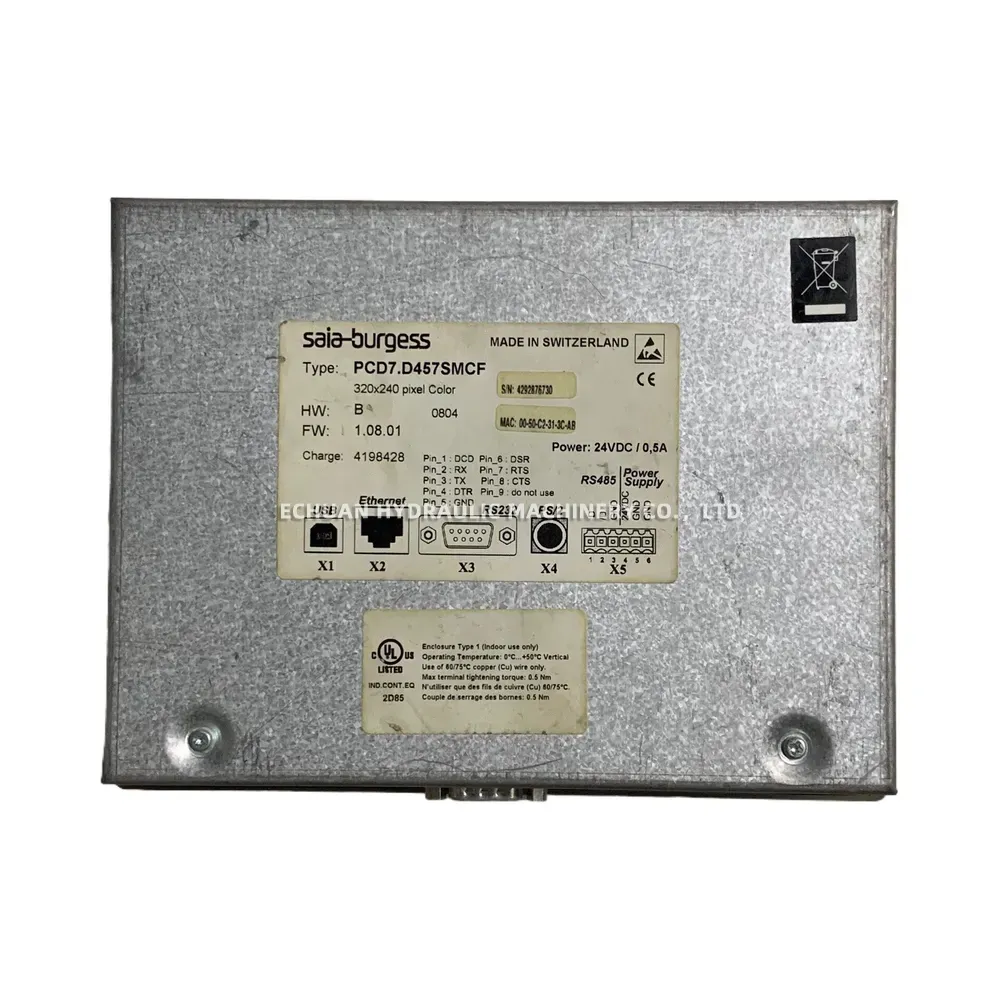

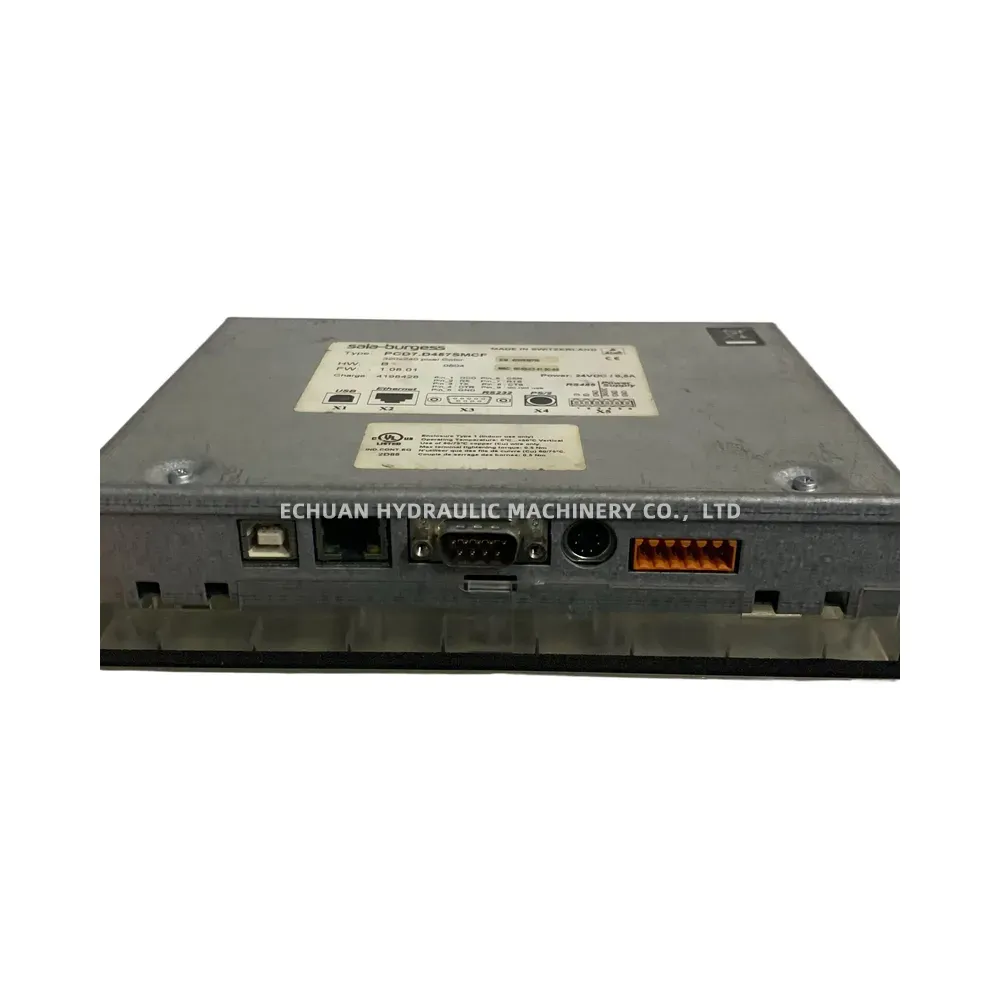

- Communication Interfaces: USB (X1), Ethernet (X2), RS232 (X3), PS/2 (X4), RS485/Power Supply (X5)
- Operating Temperature: 0°C to +55°C (Vertical installation)
- Enclosure Rating: Enclosure Type 1 (Indoor use only)

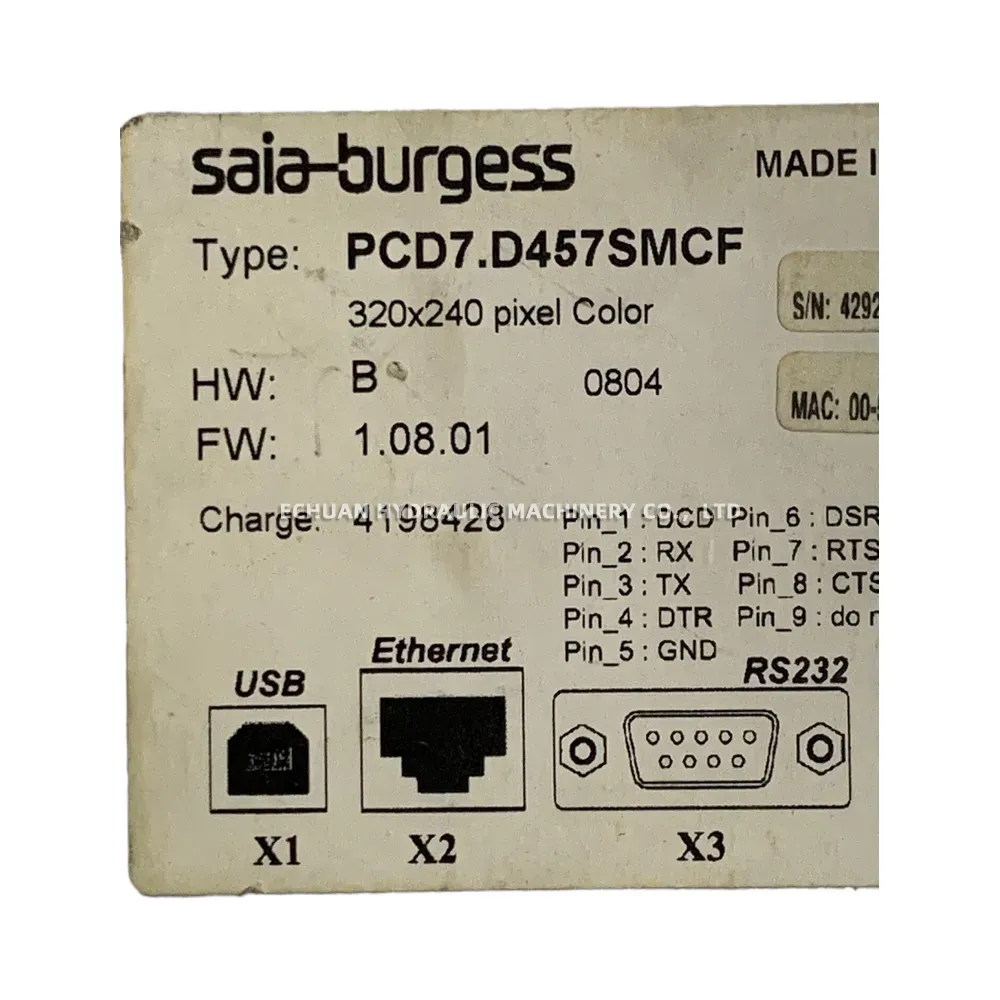

- Hardware / Firmware Version: HW: B 0804 / FW: 1.08.01
- Wiring Specifications: Use of 60/75°C copper (Cu) wire only; Max terminal tightening torque: 0.5 Nm
- Certifications: cULus LISTED (IND.CONT.EQ 2D85)
- Country of Origin: Made in Switzerland
Saia-Burgess PCD7.D457SMCF Web Panel
Optimize your industrial automation with the Saia-Burgess PCD7.D457SMCF Web Panel. This Swiss-made HMI features a 320×240 color display, Ethernet, USB, and Serial connectivity, operating on 24VDC for reliable, seamless indoor control applications.
