Product Description

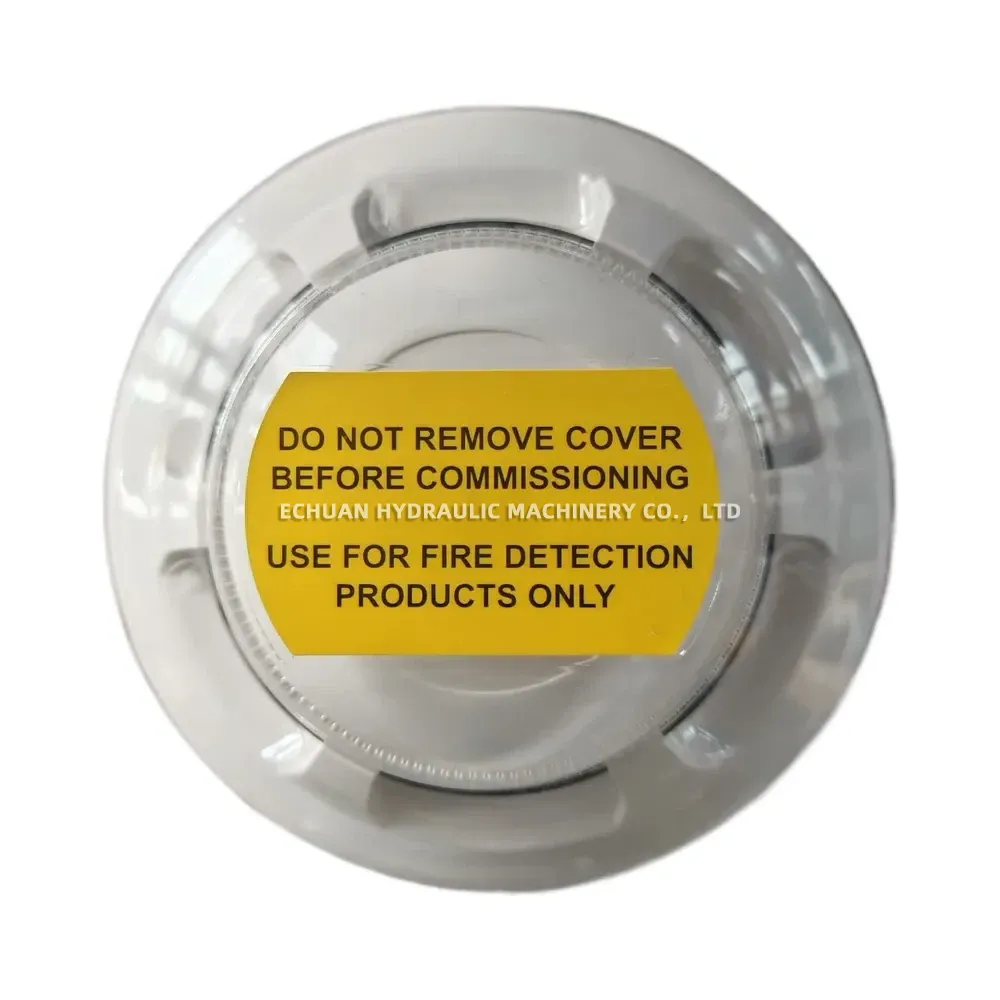

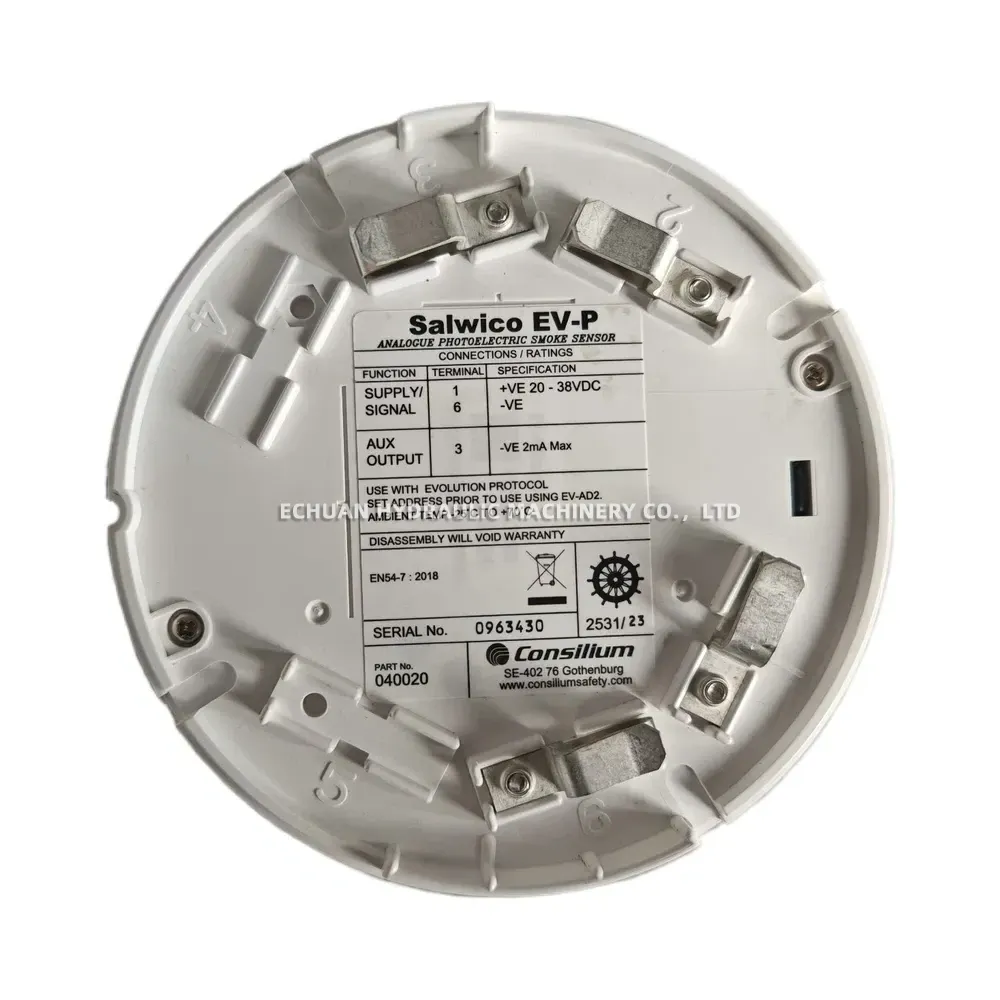

Salwico EV-P Analogue Photoelectric Smoke Sensor

The Salwico EV-P is a high-quality analogue addressable photoelectric smoke sensor designed for reliable fire detection in demanding environments. It utilizes an advanced optical chamber and a sophisticated algorithm to effectively detect smoke particles from smouldering fires. As part of the Salwico Evolution series, it communicates using the robust Evolution Protocol, ensuring fast and secure data transmission to the fire alarm control panel. The sensor is engineered for a wide operating temperature range and is compliant with the EN54-7 standard, making it a dependable choice for industrial and marine applications. Address setting is simplified with the use of the EV-AD2 programming tool.

Technical Specifications:

  • Model: EV-P (Part No. 040020)

  • Sensor Type: Analogue Photoelectric Smoke

  • Operating Voltage: 20 – 38VDC

  • Communication Protocol: Salwico Evolution Protocol

  • Operating Temperature: -25°C to +70°C

  • Auxiliary Output: -VE, 2mA Max (Terminal 3)

  • Addressing: Requires EV-AD2 Address Programmer

  • Standard: EN54-7:2018

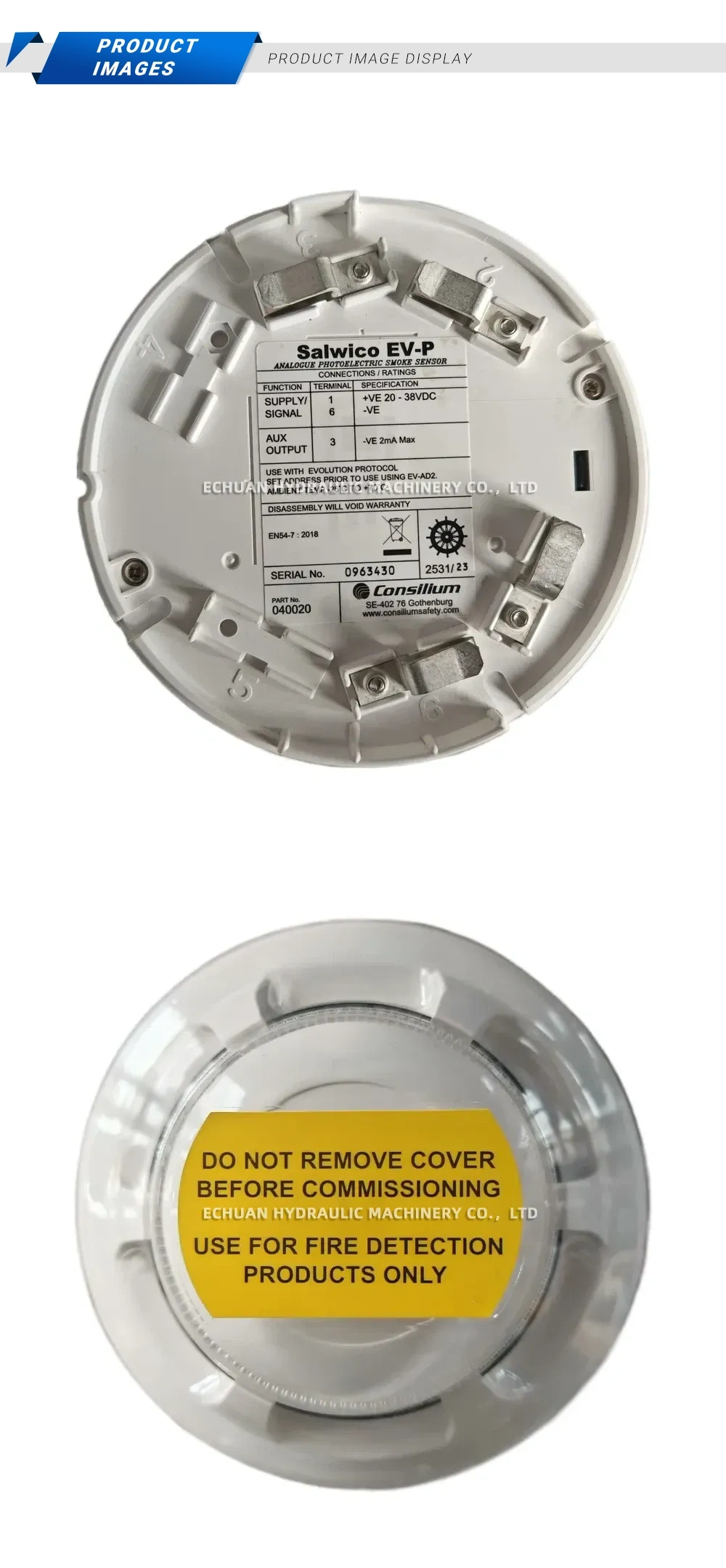

Salwico EV-P Analogue Photoelectric Smoke Sensor Description

Salwico EV-P Analogue Photoelectric Smoke Sensor

Buy the Salwico EV-P (040020), an analogue photoelectric smoke sensor for Salwico Evolution fire alarm systems. EN54-7 certified for reliable performance.
