Product Description

Schmersal RSS 36-I2-ST-AS-2931-2 / RST 36-1-2823 RFID Safety Switch Set

Ensure maximum workplace safety and machine reliability with the Schmersal RSS 36-I2-ST-AS-2931-2 and RST 36-1-2823 RFID Safety Switch Set. This premium safety component set includes the advanced RSS 36 safety sensor and the matching RST 36 actuator, specifically engineered for demanding industrial environments. Utilizing non-contact RFID technology with a ‘High’ coding level, it offers exceptional tamper resistance and precise monitoring of machine guards, safety doors, and enclosures. The AS-Interface (AS-i) compatibility ensures seamless integration into modern automation and control networks. Built to withstand extreme washdown conditions, the set features a robust IP69/IP69K protection rating, making it highly suitable for the food and beverage industry, including direct integration with Krones equipment. UL listed, CE marked, and manufactured in Germany, this safety switch set guarantees compliance with the most stringent international safety standards.

Technical Specifications:

  • Brand: Schmersal

  • Sensor Model / Part No.: RSS 36-I2-ST-AS-2931-2 / 103013666 (Krones Part No. 0904551410)

  • Actuator Model / Part No.: RST 36-1-2823 / 103002753

  • Rated Operating Voltage (Uasi): 18 … 31.6 V DC

  • Rated Operating Current (Iasi): 0.7 A

  • Protection Rating: IP69 / IP69K (NEMA Type 4X, 12, 13)

  • Coding Level: High

  • Certifications: CE, UL Listed (805A IND.CONT.EQ.)

  • Country of Origin: Made in Germany

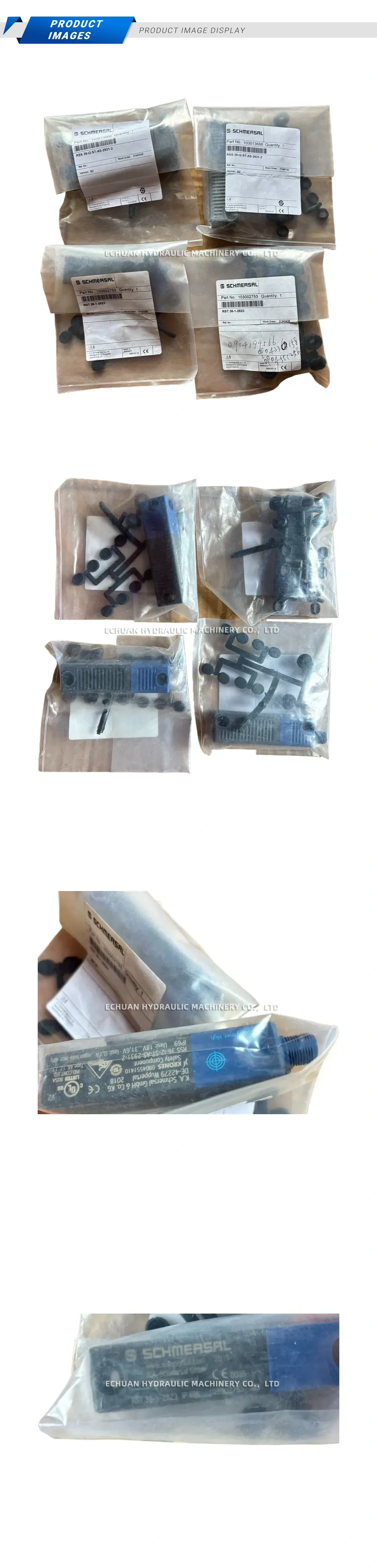

Schmersal RSS 36-I2-ST-AS-2931-2 / RST 36-1-2823 RFID Safety Switch Set (Safety Sensor and Actuator) Description

Schmersal RSS 36-I2-ST-AS-2931-2 / RST 36-1-2823 RFID Safety Switch Set (Safety Sensor and Actuator)

Genuine Schmersal RSS 36-I2-ST-AS-2931-2 RFID safety sensor and RST 36-1-2823 actuator set. Features a High coding level, AS-Interface integration, 18-31.6V DC operating voltage, and IP69/IP69K washdown protection. Ideal for secure industrial machine guarding, food processing lines, and packaging equipment.

BrandSchmersal
ModelRSS 36-I2-ST-AS-2931-2 / RST 36-1-2823
Part No.1072061142761
CategoryElectrical
Linkhttps://www.echuan-hydraulic.com/product/schmersal-rss-36-i2-st-as-2931-2-rst-36-1-2823-rfid-safety-switch-set-safety-sensor-and-actuator
